SRAM DB8 Disc Brake Set

The DB8 Disc Brake by SRAM in a front and rear set is low-maintenance thanks to mineral oil

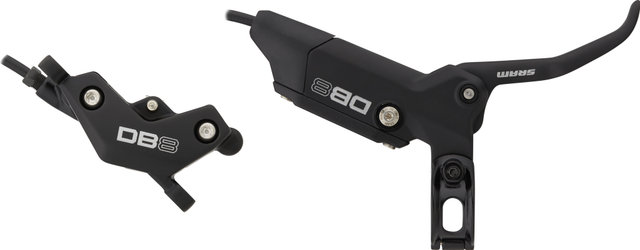

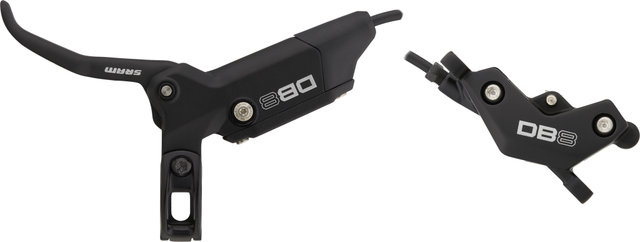

The SRAM DB8 is provided here as a set for front and rear wheel and is a strong 4-piston disc brake with mineral oil for use on mountain bikes. Its caliper design is taken from the Code disc brake and so it offers similarly powerful braking performance. By using mineral oil as a brake fluid, you benefit from longer service intervals than with DOT, so you can spend less time worrying about maintenance and more time biking.

Guidelines for Replacing E-bike Components:

Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked E-bikes/pedelecs with pedal assistance.

Specifications:

Application:

All Mountain, Enduro, Downhill

Type:

hydraulic, 4 pistons

Actuation:

mineral oil

Hose Length (Front/Rear):

950 mm / 2000 mm

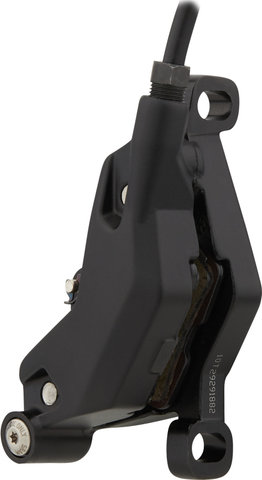

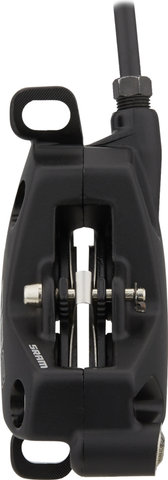

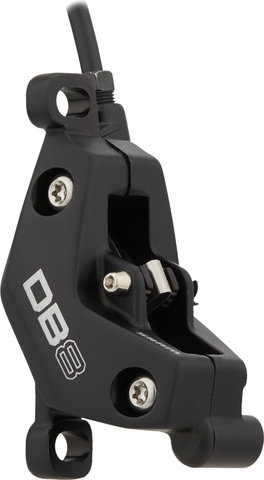

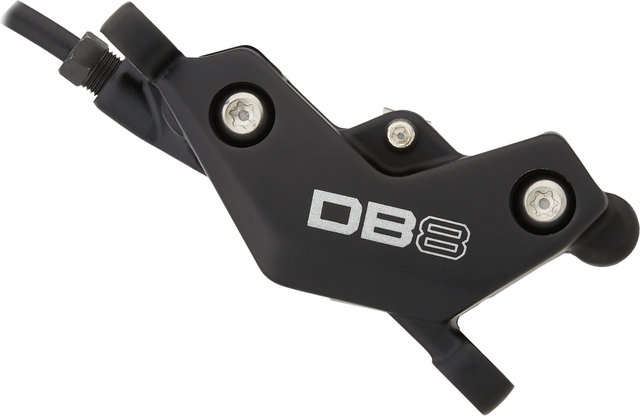

Technical Information - Caliper:

Caliper Mount:

post mount

Pads:

organic

Design:

2-piece

Calliper Material:

Aluminium

Piston Material:

Phenolic Composite

Hose Connection:

straight

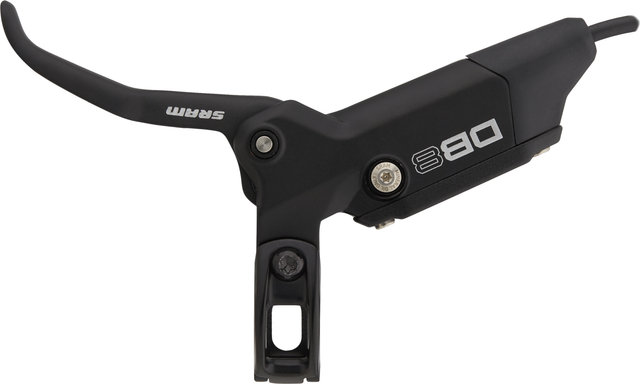

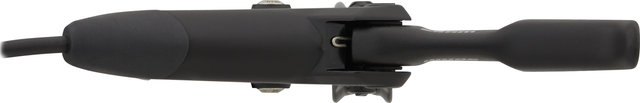

Technical Information - Lever:

Adjustment Options:

reach adjust

Mount:

Matchmaker X

Design:

Flip-Flop (without specific side)

Brake Lever Material:

Aluminium

Brake Lever Housing Material:

Aluminium

Hose Connection:

straight

Features:

• very low maintenance due to the use of mineral oil
• handle width adjustment with 2.5 mm hex tool
• durable brake caliper with the same design as the Code disc brake
• powerful braking
• piston material with good insulating effect
• also suitable for e-bikes

Technology:

DirectLink™
SRAM's DirectLink™ lever design provides a solid, positive brake feel as soon as the brake lever is pulled - an uncompromising solution for precise control.

Reach Adjust
The fit and ergonomics of the brake lever is a very personal matter. Riders have individual position preferences as well as unique hand sizes and finger lengths. With the reach adjustment, the lever can be easily adjusted - for maximum control with just one finger.

Manufacturer Number:

00.5018.193.000 + 00.5018.193.001

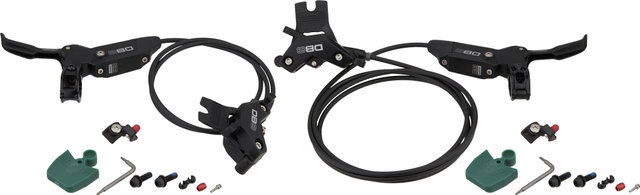

Contents:

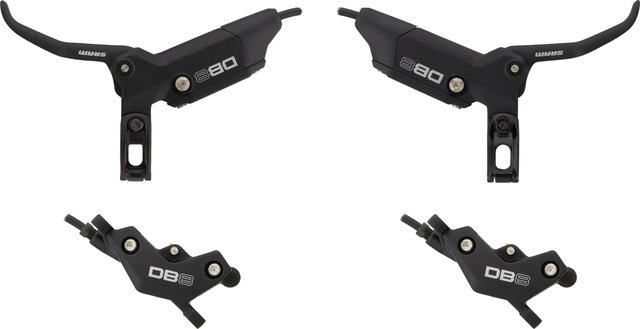

• 2 x SRAM DB8 disc brakes (front and rear wheel)
• 1 x SRAM brake hose, 950 mm (front)
• 1 x SRAM brake hose, 2000 mm (rear)
• 2 x pairs SRAM organic brake pads
• 2 x SRAM Matchmaker X clamps
• 2 x SRAM pad spacers
• 2 x SRAM bleed block
• 4 x SRAM bolts
• 4 x SRAM washers
• 2 x SRAM Torx keys
• 2 x SRAM insert pins
• 2 x SRAM olives
• 2 x SRAM hose clip
