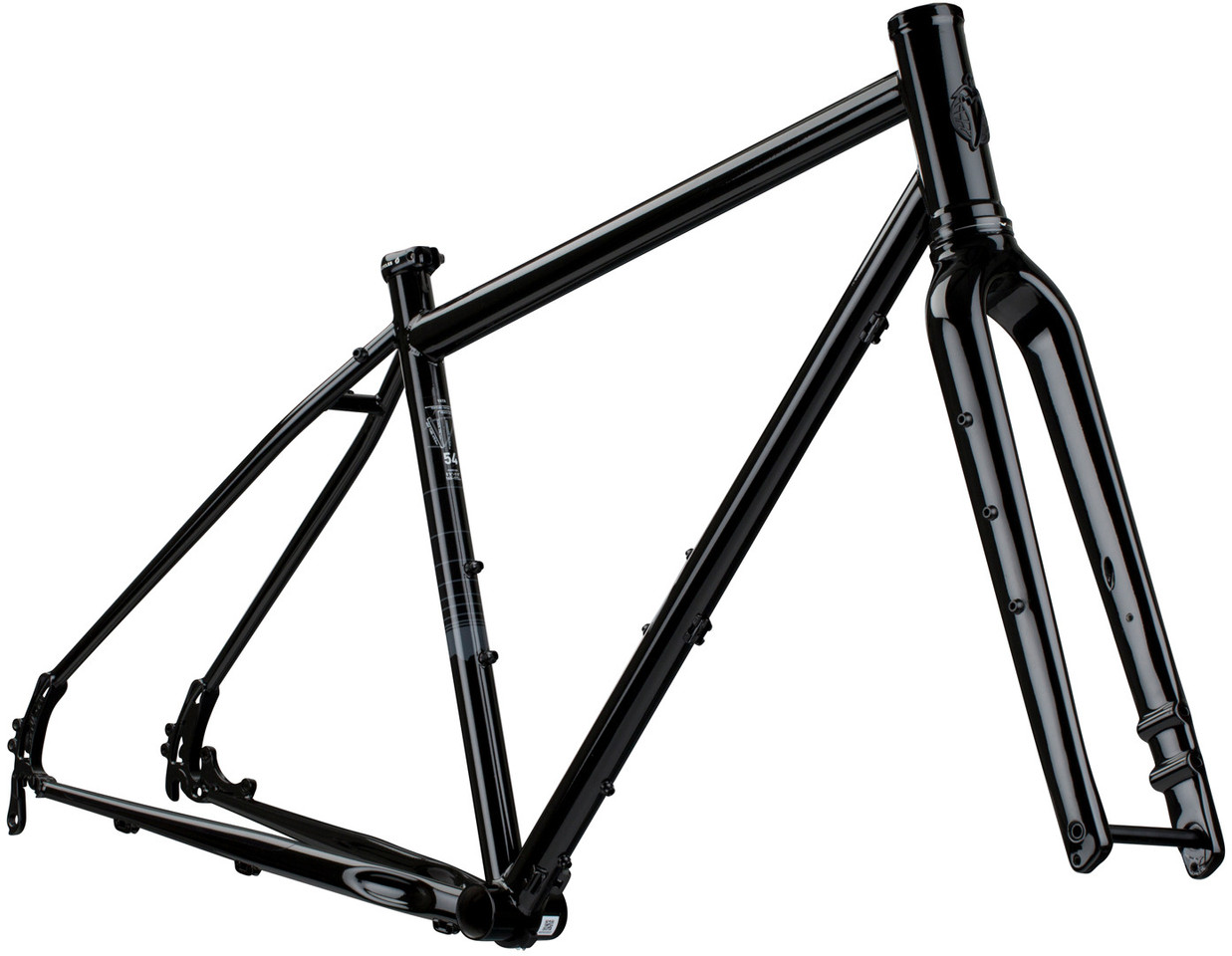

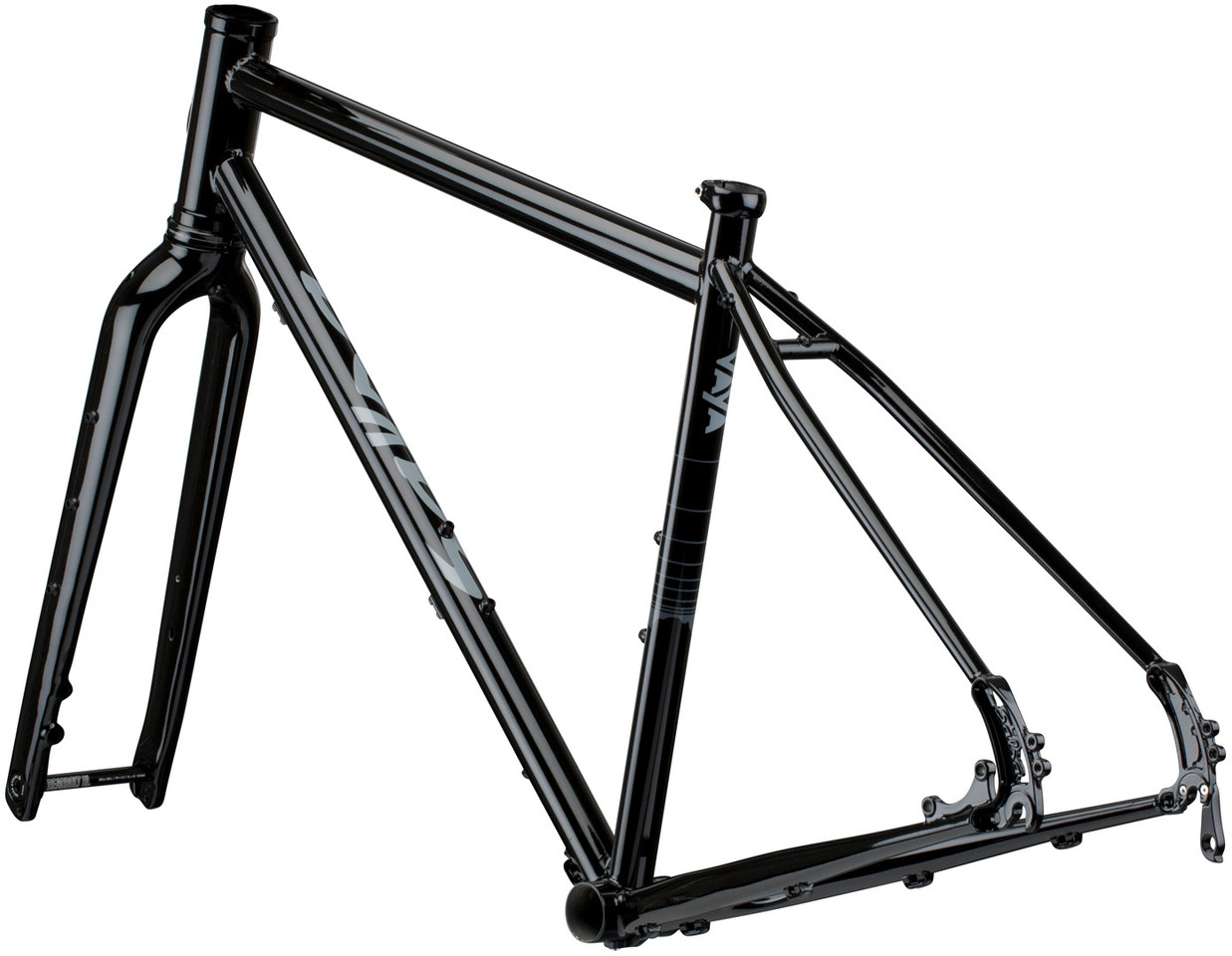

Salsa Vaya Frameset - black/54 cm

Salsa Vaya Frameset

Item number: 76809
1
1

The Vaya Frameset by Salsa can do it all


The Salsa Vaya frameset is suitable for all kinds of road surfaces - asphalt, gravel, dirt. This all-road adventure and touring frame is a versatile machine that feels great whether you're riding fast or slow, loaded or not. CroMoly steel tubes are combined with a Waxwing fork to create a wonderful riding experience. Vaya is the perfect basis for a high-performance, lightweight all-road or touring bike.

Specifications:

Application:
Gravel, Road, Touring
Wheel Size:
28"
Size:
49.5 cm, 52 cm, 54 cm, 55 cm, 57 cm, 59.5 cm
Frame Material:
steel (CrMo)
Fork Material:
carbon, aluminium

Technical Information - Frame:

Rear Over Locknut Dimension:
135 mm
Axle Type:
10 mm quick release
Seatpost (Ø):
27.2 mm
Seatpost Clamp(Ø):
30 mm
Headset:
ZS44 - EC44 (top to bottom)
Steerer tube rec.:
1 1/8" - 1.5" tapered
Fork Axle to Crown:
405 mm
Fork Offset:
50 mm
Bottom Bracket Standard:
BSA
Shell Width:
68 mm
Brake Mount:
IS 2000
Front Derailleur Mount:
high clamp (28.6 mm)
Cable Routing:
external, mechanical
Bottle Cage Mounts:
2

Technical Information - Fork:

Steerer Tube:
1 1/8" - 1.5" tapered
Axle Type:
thru-axle (12 x 100 mm)
Brake Mount:
flat mount
Offset:
50 mm
Axle to Crown:
405 mm
Over Locknut Dimension:
100 mm
Crown Race Diameter:
40 mm
Steerer Tube Material:
aluminium
Blade Material:
Carbon

Approved For:

Weight Limit:
129 kg total weight
Rotor Size (max.):
160 mm
Tyre Size (max.):
45-622 (700x45c) w/ fenders, 50-622 (700x50c) w/o fenders
Chainrings:
1x, 2x, 3x
Chainring Size (max.):
1x 46 tooth, 2x 39-53 tooth, 3x 30-39-53 tooth

Features:

  • for all-road and short tour bikes with drop bars, suitable for all road surfaces
  • Salsa Kung Fu steel pipes, triple butted

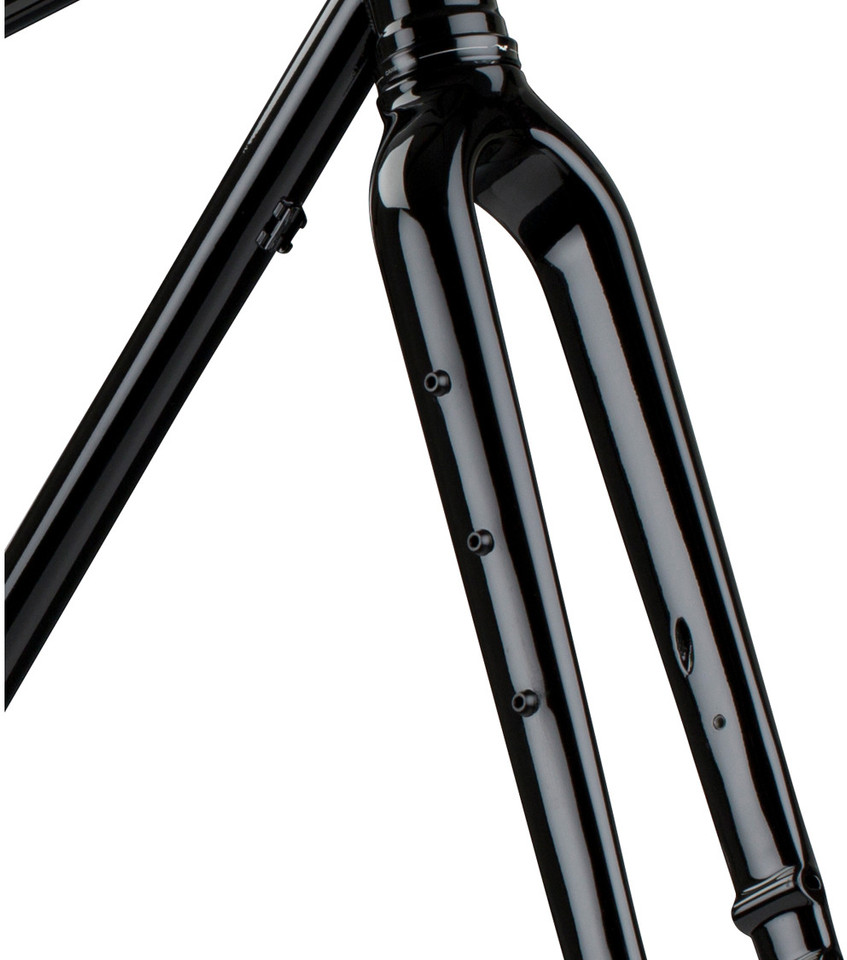

  • Waxwing fork with 3 braze-on mounts, rack mounts and fender mounts
  • ample tyre clearance
  • integrated rear fender and rack mount
  • clean, protected cable routing
  • ASTM Category 2

Geometry:

49.5 cm:
Recommended Height:
147-158 cm
Stack:
542.7 mm
Reach:
354.6 mm
Seat Tube Length:
380 mm
Effective Top Tube Length:
495 mm
Head Tube Length:
100 mm
Chainstay Length:
450 mm
Wheelbase:
1019.4 mm
BB Drop:
75 mm
Seat Tube Angle:
75.5°
Head Tube Angle:
70.3°
Standover Height:
660.1 mm

52 cm:
Recommended Height:
158-165 cm
Stack:
547.4 mm
Reach:
368.2 mm
Seat Tube Length:
450 mm
Effective Top Tube Length:
520 mm
Head Tube Length:
100 mm
Chainstay Length:
450 mm
Wheelbase:
1022.7 mm
BB Drop:
75 mm
Seat Tube Angle:
74.5°
Head Tube Angle:
71.5°
Standover Height:
713.7 mm

54 cm:
Recommended Height:
165-173 cm
Stack:
590.1 mm
Reach:
365.2 mm
Seat Tube Length:
470 mm
Effective Top Tube Length:
540 mm
Head Tube Length:
145 mm
Chainstay Length:
450 mm
Wheelbase:
1034 mm
BB Drop:
75 mm
Seat Tube Angle:
73.5°
Head Tube Angle:
71.5°
Standover Height:
742 mm

55 cm:
Recommended Height:
170-178 cm
Stack:
609.1 mm
Reach:
363.8 mm
Seat Tube Length:
510 mm
Effective Top Tube Length:
550 mm
Head Tube Length:
165 mm
Chainstay Length:
450 mm
Wheelbase:
1038.9 mm
BB Drop:
75 mm
Seat Tube Angle:
73.0°
Head Tube Angle:
71.5°
Standover Height:
776.3 mm

57 cm:
Recommended Height:
175-185 cm
Stack:
628.0 mm
Reach:
372.0 mm
Seat Tube Length:
530 mm
Effective Top Tube Length:
570 mm
Head Tube Length:
185 mm
Chainstay Length:
450 mm
Wheelbase:
1053.5 mm
BB Drop:
75 mm
Seat Tube Angle:
72.5°
Head Tube Angle:
71.5°
Standover Height:
795.6 mm

59.5 cm:
Recommended Height:
from 188 cm
Stack:
647 mm
Reach:
384.8 mm
Seat Tube Length:
560 mm
Effective Top Tube Length:
595 mm
Head Tube Length:
205 mm
Chainstay Length:
450 mm
Wheelbase:
1072.6 mm
BB Drop:
75 mm
Seat Tube Angle:
72°
Head Tube Angle:
71.5°
Standover Height:
821 mm

Manufacturer Numbers:

49.5 cm:
FM1014SA
52 cm:
FM1015SA
54 cm:
FM1016SA
55 cm:
FM1017SA
57 cm:
FM1018SA
59.5 cm:
FM1019SA

Contents:

  • 1 x Salsa Vaya frame
  • 1 x Salsa Waxwing rigid fork
  • 1 x Salsa front thru-axle
  • 1 x Salsa seatpost clamp

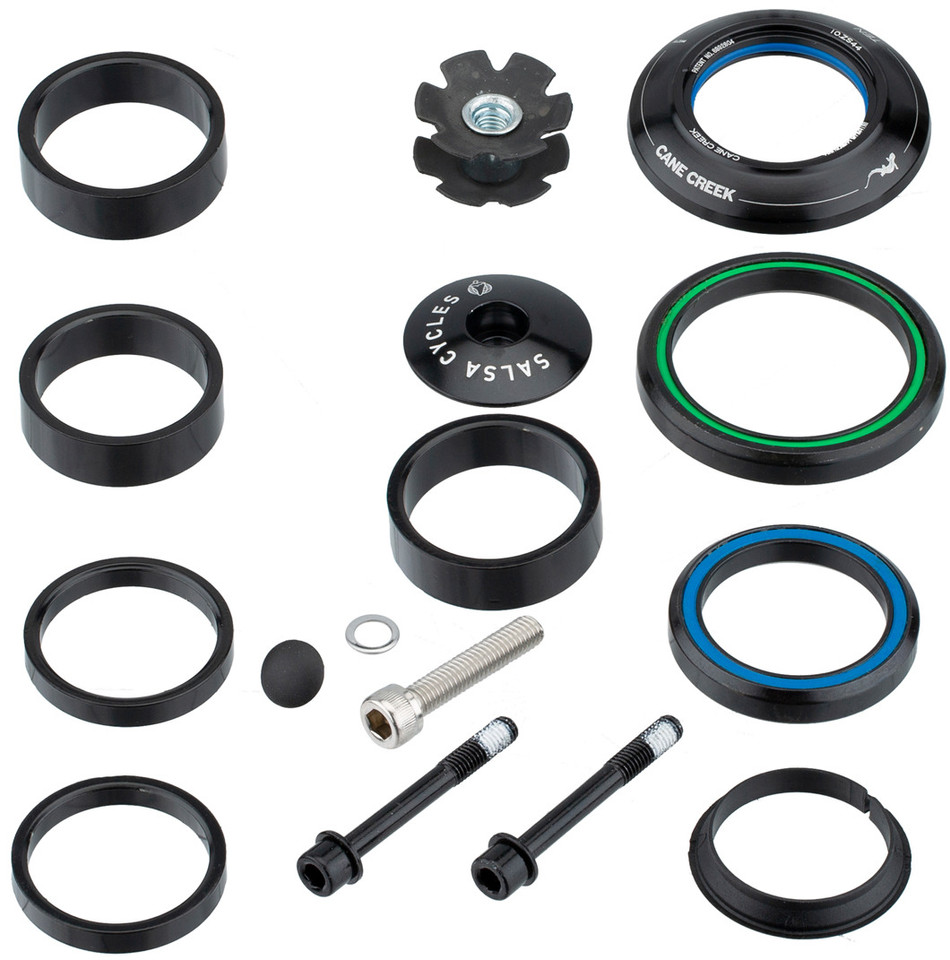

  • 1 x Cane Creek 10 headset


  • 100 day return period
  • Online since 1998

Models:

  • black/55 cm, in stock
    864.68€

Customer Reviews (1)

5

Customer Reviews (1)

5.0/5.0
5
1
4
0
3
0
2
0
1
0

Give us your opinion on this product.

by Christoph R. on 13.04.2020 (modified on 13.04.2020)
3 of 4 customers found this review helpful.

Habe das Rahmenkit (55cm) mit einem DT C 1800 Laufradstatz, FSA 30/46 Kurbel und ansonsten vorwiegend Ultegra (2x11) Komponenten aufgebaut.
Die Beschreibung "Allroad Adventure- und Touring-Rahmen" trifft voll und ganz zu. Mir macht das Rad auf der Straße genauso viel Spaß wie auf Schotterpisten. Das Rad lässt sich mit Schutzblech und Gepäckträger gut zum Tourer ausbauen. Auch Lowrider sollte kein Problem sein.
Das große Stack/Reach-Verhältnis bei der Rahmengröße 55cm, erlaubt eine recht bequeme Sitzposition.
Einziger Schönheitsfehler ist der Bruch des Standards. Gabel mit modernem Flat Mount und Steckachse, Rahmen mit IS und Schnellspanner.
Vielen Dank auch an bc, die mich bei technischen Fragen zum Aufbau des Rades, sehr schnell und kompetent via Chat und EMail beraten haben.
