Shimano WH-M8120-TL-B XT Center Lock Disc 29" Wheelset
The WH-M8120 XT wheelset by Shimano - proven on the toughest trails
The Shimano XT WH-M8120 29" wheelset was specially designed for trail and enduro riding. Its tubeless-compatible rim comes with a comfortable 30 mm inner width, so it can withstand even the toughest trails. These high-quality wheels are spoked with 28 J-bend spokes, which ensures robustness while keeping the weight as low as possible.
Specifications:
- Application:
- Enduro, All Mountain
- Wheel Size:
- 29"
- Tyre Type:
- clincher tyre
- Number of Spokes:
- 28
- Brake Type:
- Center Lock Disc (Boost)
- Wheel Standard:
- Boost
- Tubeless System:
- TL/UST
Technical Information - Rim:
- Dimensions (ETRTO):
- 30-622
- Rim Flange:
- with hook
- Inner Width:
- 30 mm
- Outer Width:
- 34.7 mm
- Depth:
- 18.8 mm
- Valve Hole Diameter:
- SV/Presta (6.5 mm)
- Rim Material:
- Aluminium

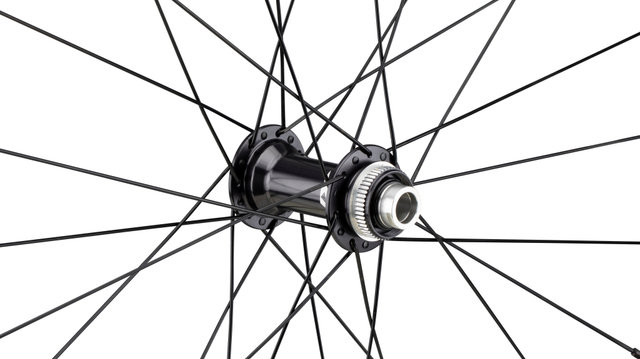

Technical Information - Front Hub:
- Over Locknut Dimension:
- 15 x 110 mm thru-axle
- Bearings:
- cup & cone
- Body Material:
- Aluminium

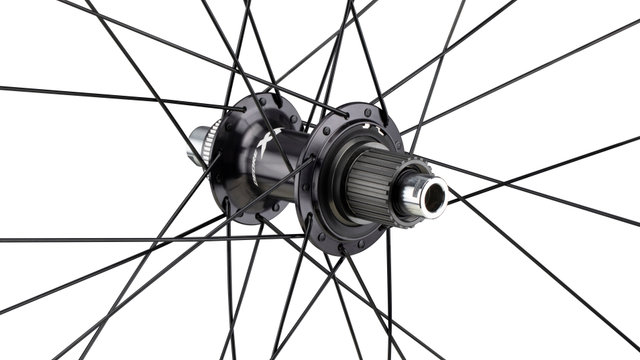

Technical Information - Rear Hub:
- Over Locknut Dimension:
- 12 x 148 mm thru-axle
- Bearings:
- cup & cone
- Body Material:
- Aluminium
- Freehub Body Material:
- Aluminium
- Freehub Body:
- Direct Engagement (Ratchet), Quick Engagement (max. 9°)
Technical Information - Lacing:
- Front Lacing Pattern:
- 2-cross
- Rear Lacing Pattern:
- 2-cross
- Spoke Type:
- J-bend / double butted (2.0-1.8-2.0)
- Spoke Size:
- 293 mm (front), 290 mm/287.5 mm (rear l/r)
- Spoke Material:
- stainless steel
- Nipple Material:
- Aluminium
Features:
- series: Deore XT M8100
- reliable cornering thanks to 15 mm E-Thru at the front and 12 mm at the rear
- 15 % more torsional stiffness and 25 % more transverse tensile strength than 9 mm quick releases
- faster acceleration for more riding pleasure
- smaller spline diameter for 10 T sprocket: Micro Spline
- easy setup and reliable trail performance
- no dish
- welded rim joint
- CBN precision machined bearings (front stainless steel ball bearings with grease cover, rear polished)
- labyrinth and contact seals
- aluminium axles
- anodised rim and hub body
- use tubeless rim tape (included)
Technology:
E-ThruE-Thru is a tool-free thru-axle system from Shimano that optimises the stiffness-to-weight ratio and ensures easy handling via its reliable internal cam mechanism. It is characterised by a high torsion resistance and thus also supports cornering at high speed. E-Thru thru-axle hubs and thru-axles are available in the corresponding over locknut dimensions for front and rear.
Cup and Cone Bearings
Angular contact ball bearings of the cup & cone type are superior to sealed cartridge bearings in terms of load carrying capacity, as they distribute lateral and vertical forces better, and thus run particularly smoothly and last a long time. They are also easier to adjust, maintain and replace.
Micro Spline
Micro Spline is an innovative tooth profile on MTB freehub bodies from Shimano. All Shimano 12-speed MTB cassettes with a 10-speed sprocket are equipped with Micro Spline freehub toothing. The significantly higher and finer toothing enables a stiffer connection between the cassette and the hub body. The resulting increased contact area ensures reliable power transmission, minimises wear and prevents deformation of the freehub and sprocket.
Colour Info:
black:- Rim: black
- Hubs: black
- Spokes: black
- Nipples: black
Models:
29" set (front 15x110 Boost + rear 12x148 Boost) Shimano Micro Spline:- Freehub:
- Shimano Micro Spline
- Gearing:
- 12-speed
- Manufacturer Number:
- E-WHM8120LFEBD9X + E-WHM8120LREBD9
Contents:
- 1 x Shimano XT WH-M8120-TL 29" wheelset (front & rear)
- 2 x tubeless rim valves (installed)
- 2 x rim tape rolls (applied)
- 2 x valve core removers
Weight:
- black/29" set (front 15x110 Boost + rear 12x148 Boost) Shimano Micro Spline: 2002 g (Satz)
