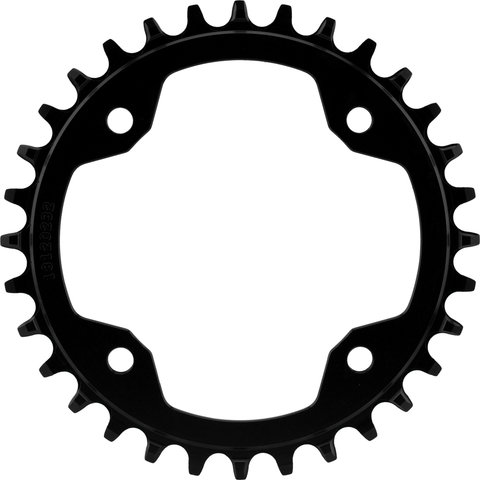

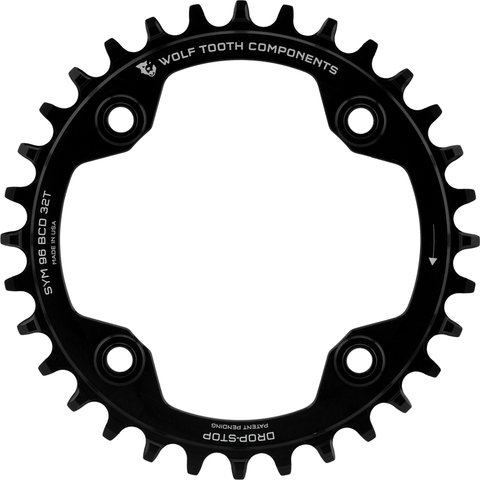

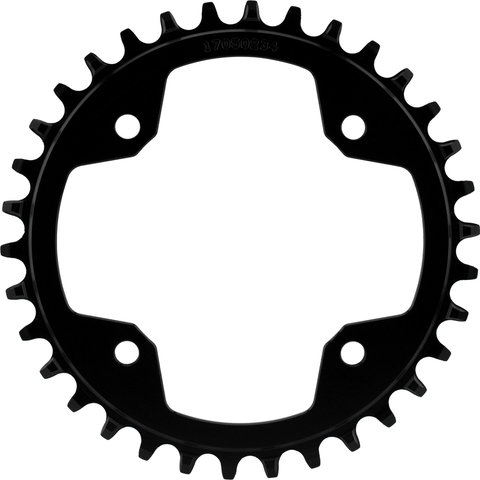

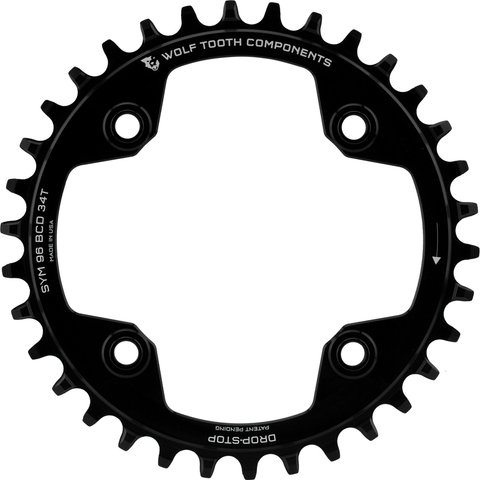

Wolf Tooth Components 96 BCD Symmetrical Chainring for Shimano Compact Triple

The Wolf Tooth Components 96 BCD Symmetrical chainring for Shimano Compact Triple can be used with the Shimano cranks M782, M672, M622 and M612.

Specifications:

Application:

All Mountain, Cross Country, Enduro

Mount:

96 mm bolt circle diameter, 4-arm

Teeth:

30 T, 32 T, 34 T

Gearing:

1x9-speed, 1x10-speed, 1x11-speed, 1x12-speed

Technical Information:

Chainline:

49 mm

Material:

aluminium (7075-T6)

Compatibility:

Crank:

• Shimano 4-arm cranks with symmetrical 96 mm bolt circle: FC-M782, FC-M672, FC-M622, FC-M612 (known as Compact Triple)
• not compatible with Shimano XTR M9000 or XT M8000

Chain:

• all 9-, 10- and 11-speed chains
• SRAM Eagle, KMC, Connex and Wippermann 12-speed chains
• 10-speed chain recommended for 9-speed drivetrains

Chainring Bolts:

• 10 mm bolts

Features:

• Wolf Tooth Wide-Narrow design
• optimal chainline also for most Boost bikes
• ideal in combination with 96 BCD Bash Ring
• Made in the USA

Note from the manufacturer:

For very muddy conditions a chain guide in combination with clutch rear derailleur is recommended.

Technology:

Drop-Stop® A
Wolf Tooth has invested countless hours in the design, prototyping and testing of their Wide-Narrow chainrings and has developed a highly innovative tooth profile. Test riders around the world have confirmed that this design brings unparalleled performance.
The right side of the chainring tooth has a different shape than the left side. The right side transmits the power to the chain and the left side opens a free space for cleaning mud and dirt. Since the two sides have completely different functions, it makes sense to design them differently, true to the motto: extra reinforcement where you need it, less material where you don't.
The right side of the Drop-Stop tooth is as wide as possible to distribute the load over a larger area, which also minimises wear. The left side of the Drop-Stop tooth helps to guide the chain, but it does not transmit any load. Therefore the left side is narrower than the chain roller. Wear is not an issue on this side, so Wolf Tooth was able to save material and create a better mud clearance channel. More free space means less friction and less change of the chain being dropped due to mud.
In the A version, the original version of Drop-Stop, the profile is optimized for use on mountain bikes. The wide teeth are slightly wider than Drop-Stop B. The outer sides of the narrow and wide teeth guide the chain.

Manufacturer Numbers:

30 tooth:

SYM9630

32 tooth:

SYM9632

34 tooth:

SYM9634

Contents:

• 1 x Wolf Tooth Components 96 BCD Symmetrical Shimano Compact Triple chainring
