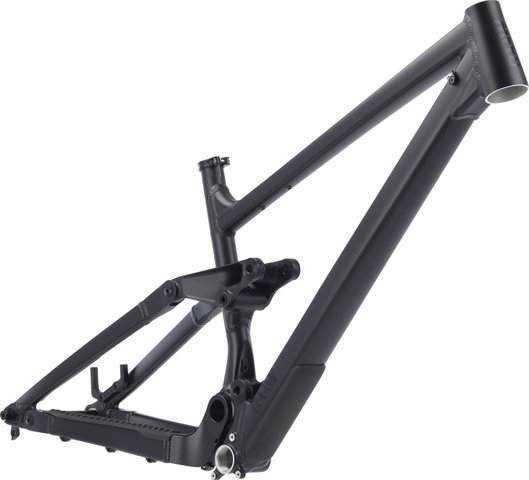

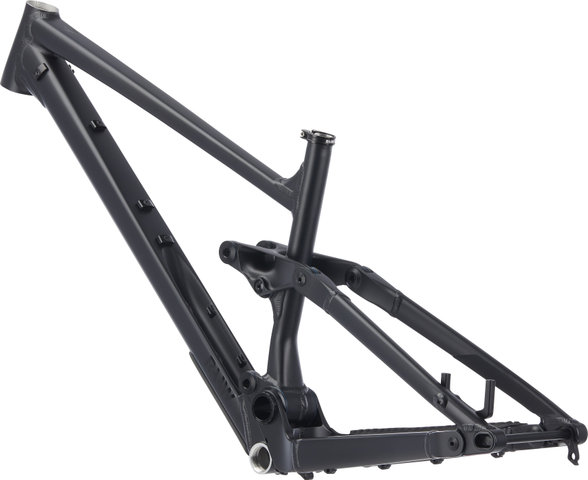

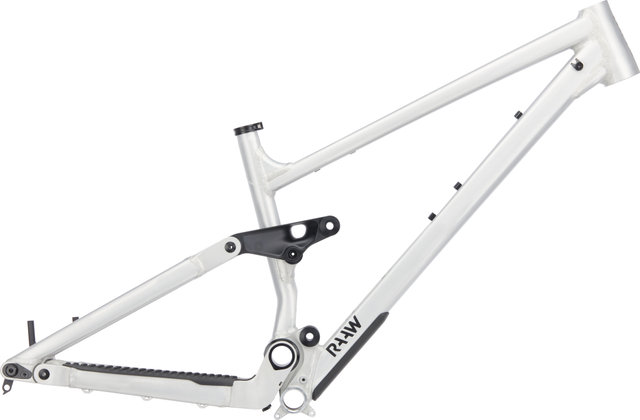

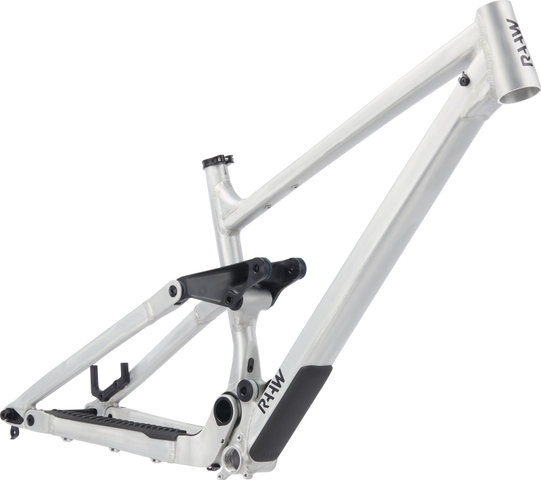

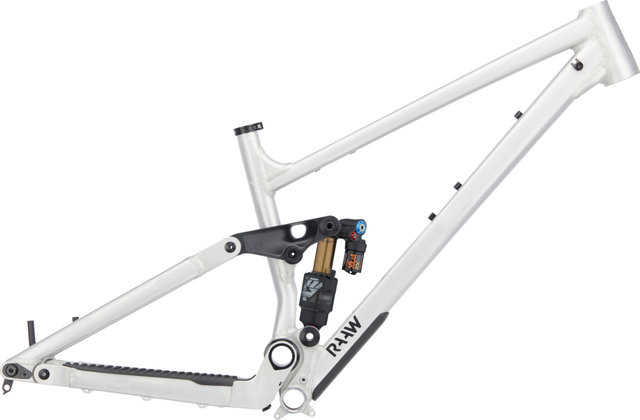

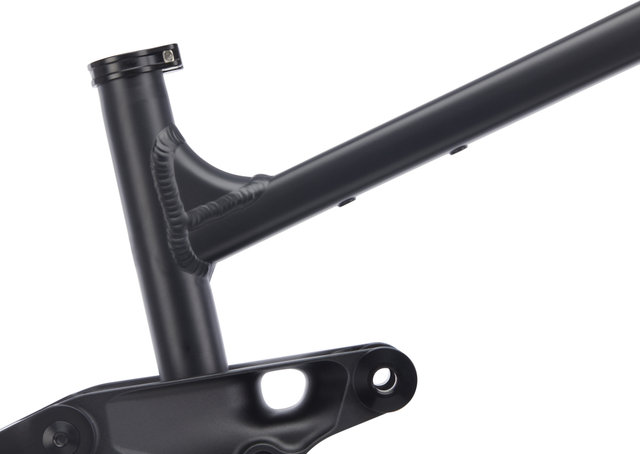

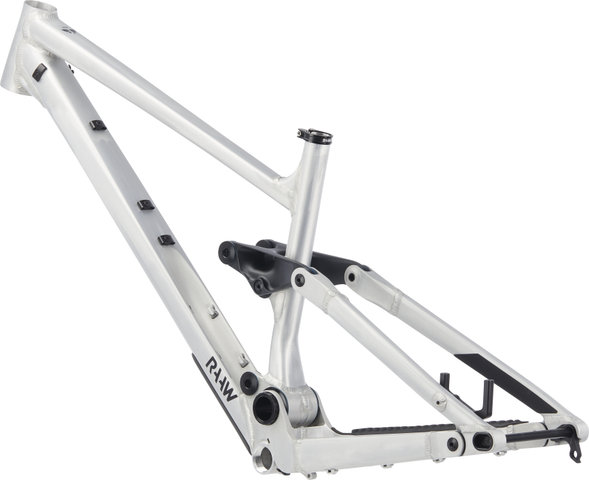

RAAW Mountain Bikes Jibb 29" Frameset w/ Fox Float X2 2POS Factory
The RAAW Mountain Bikes Jibb 29" Frameset with Fox Float X2 Factory Air Shock - A well thought-out design for fun rides

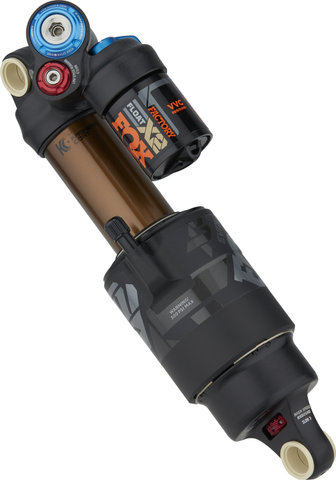

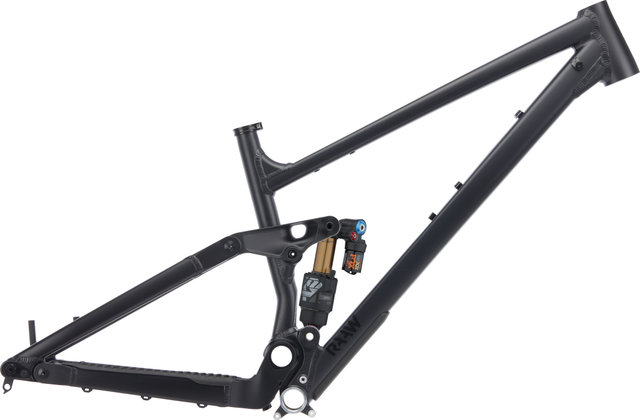

This RAAW Mountain Bikes Jibb frameset for 29" is combined with a Float X2 Factory air shock from Fox Racing Shox and is a playful companion on all-mountain and enduro trails. The Float X2 Factory 2POS shock with Kashima Coat is precisely tunable and offers compression and rebound adjustment in the high- and low-speed range. The Firm Mode of the 2-position lever enables even more efficient climbing uphill if required. As with the Madonna V2.2, RAAW now also use their own thru-axle system for the Jibb, which increases the stiffness and prevents the axle from loosening while riding. The frame design supports an active riding style, giving you confidence and control. The balanced geometry allows for a centralised riding position and provides sufficient traction. The same attention to detail is evident on the Jibb as on its sibling, the Madonna. For example, the brake mount on the Jibb is also a separate component. This means you don't need any extra adapters for different brake rotor sizes, and precision alignment of the brake caliper is not an issue. You can attach an accessory bag (not included) for tools and equipment to two threaded holes on the top tube, which lets you keep your most important items handy at all times. The required shock hardware is already included, so you don't need any bushings for assembly. A thru-axle, headset, seatpost clamp and protective film kit equips you with the basics for your set-up.
Note: The rear shock is not pre-assembled.
Specifications:
- Application:
- All Mountain, Enduro
- Wheel Size:
- 29"
- Travel:
- 135 mm
- Size:
- S, M, L, XL
- Front Triangle Material:
- aluminium (6066-T6)
- Rear Triangle Material:
- aluminium (6066-T6)
- Linkage Design:
- four-pivot rear frame
- Rear Shock:
- Fox Racing Shox Float X2 2POS Factory
Technical Information:
- Rear Over Locknut Dimension:
- 12 x 148 mm (Boost)
- Axle Type:
- 12 mm thru-axle
- Seatpost (Ø):
- 31.6 mm
- Seatpost Clamp(Ø):
- 35 mm
- Headset:
- ZS44 - ZS56 (top to bottom)
- Recommended Steerer Tube:
- 1 1/8" - 1.5" tapered
- Recommended Fork Axle to Crown:
- 560 mm
- Recommended Fork Travel:
- 150 - 160 mm
- Bottom Bracket Standard:
- BSA
- Shell Width:
- 73 mm
- Chainstay Guide:
- ISCG05
- Brake Mount:
- Disc PM8
- Front Derailleur Mount:
- not possible
- Rear Shock Eye-to-Eye Measurement:
- 185 mm
- Rear Shock Stroke:
- 55 mm
- Rear Shock Mounts:
- Trunnion
- Bottle Cage Mounts:
- 1
Approved For:
- Weight Limit:
- 130 kg total weight
- Rotor Size (max.):
- 203 mm
- Tyre Size (max.):
- 29 x 2.6"
- Chainrings:
- 1x
- Chainring Size (max.):
- 1x 36-tooth
- Fork Axle to Crown Size (max.):
- 576 mm
Features:
- sensitive, smooth suspension due to high transmission ratio at the beginning of the spring travel and use of cartridge bearings
- evenly decreasing transmission ratio with approx. 15 % progression at the end of the suspension travel
- low maintenance thanks to completely sealed pivot points
- dirt-resistant frame design
- ample tyre clearance
- suspension fork with 44 mm offset recommended
- maximum insertion depth for seatposts 205 mm (S), 230 mm (M), 255 mm (L), 280 mm (XL)
- externally routed cables for easy maintenance without chafing or rattling
- internal cable routing for seatpost in the seat tube possible
- exchangeable brake mount with disc brake adapter for 180 mm also enables installation of a 180 mm brake rotor
- adjustment of the chainstay length possible with inserts for the dropouts
- two threads on the top tube for attaching accessory bags or items such as a Wolf Tooth Components B-RAD Mini Strap Mount accessory holder
Geometry:
(based on a fork axle to crown length of 560 mm)S:
- Recommended Height:
- 158 - 170 cm
- Stack:
- 608 mm
- Reach:
- 420 mm
- Seat Tube Length:
- 395 mm
- Effective Top Tube Length:
- 561 mm
- Head Tube Length:
- 100 mm
- Chainstay Length:
- 440 mm
- Wheelbase:
- 1172 mm
- Bottom Bracket Height:
- 335 - 340 mm
- BB Drop:
- 35 mm
- Seat Tube Angle (effective):
- 74.5°
- Seat Tube Angle (virtual):
- 77.5°
- Head Tube Angle:
- 65.5°
M:
- Recommended Height:
- 167 - 180 cm
- Stack:
- 622 mm
- Reach:
- 445 mm
- Seat Tube Length:
- 420 mm
- Effective Top Tube Length:
- 589 mm
- Head Tube Length:
- 115 mm
- Chainstay Length:
- 440 mm
- Wheelbase:
- 1203 mm
- Bottom Bracket Height:
- 335 - 340 mm
- BB Drop:
- 35 mm
- Seat Tube Angle (effective):
- 74.5°
- Seat Tube Angle (virtual):
- 77.5°
- Head Tube Angle:
- 65.5°
L:
- Recommended Height:
- 177 - 190 cm
- Stack:
- 636 mm
- Reach:
- 470 mm
- Seat Tube Length:
- 445 mm
- Effective Top Tube Length:
- 619 mm
- Head Tube Length:
- 130 mm
- Chainstay Length:
- 445 mm
- Wheelbase:
- 1240 mm
- Bottom Bracket Height:
- 335 - 340 mm
- BB Drop:
- 35 mm
- Seat Tube Angle (effective):
- 74.5°
- Seat Tube Angle (virtual):
- 77.5°
- Head Tube Angle:
- 65.5°
XL:
- Recommended Height:
- 186 - 199 cm
- Stack:
- 649 mm
- Reach:
- 495 mm
- Seat Tube Length:
- 470 mm
- Effective Top Tube Length:
- 648 mm
- Head Tube Length:
- 145 mm
- Chainstay Length:
- 450 mm
- Wheelbase:
- 1276 mm
- Bottom Bracket Height:
- 335 - 340 mm
- BB Drop:
- 35 mm
- Seat Tube Angle (effective):
- 74.5°
- Seat Tube Angle (virtual):
- 77.5°
- Head Tube Angle:
- 65.5°

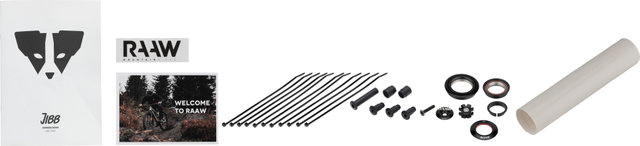

Contents:
- 1 x RAAW Mountain Bikes Jibb Frame
- 1 x Fox Racing Shox X2 2POS Factory rear shock (not pre-assembled)
- 1 x RAAW Mountain Bikes thru-axle

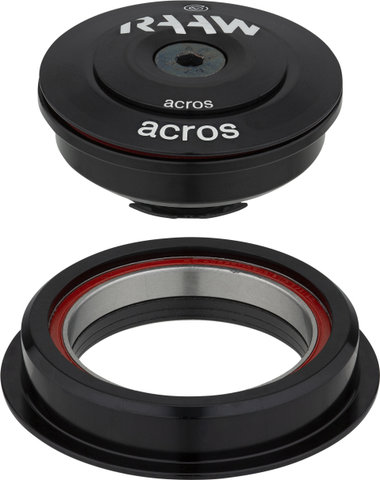

- 1 x Acros headset
- 1 x RAAW Mountain Bikes seatpost clamp
- 1 x RAAW Mountain Bikes PM8 disc brake adapter
- 2 x RAAW Mountain Bikes rear shock spacer
- 1 x RAAW Mountain Bikes rear shock axle
- 1 x protective film kit, matt
- 11 x zip ties
- 1 x sticker
