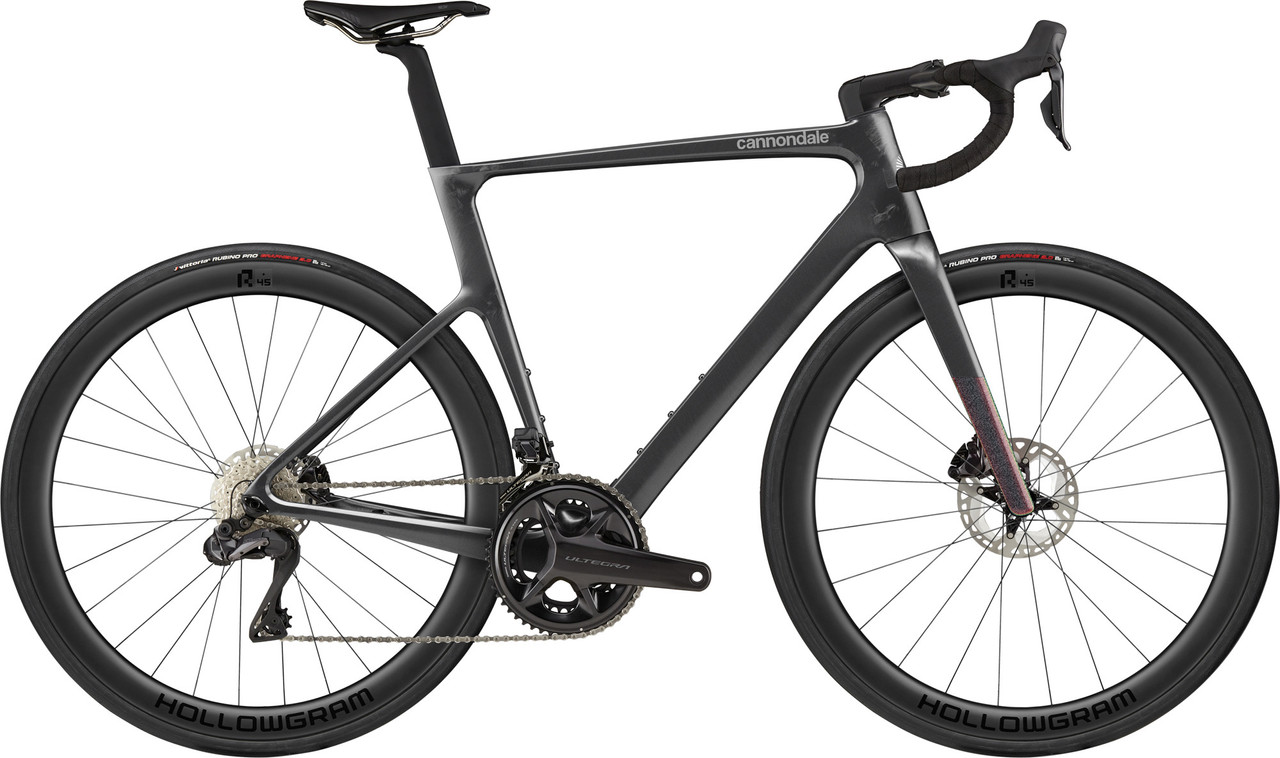

The Cannondale SuperSix EVO 2 carbon road bike likes to go full throttle

The SuperSix EVO 2 carbon road bike from Cannondale is lightweight, streamlined and equipped with electronic Shimano Ultegra Di2 2x12-speed drivetrain. When designing the aerodynamics, not only the frame was considered, but various key components were taken into account in their interaction. The internal cable routing through the head tube not only looks clean, but also prevents unwanted air turbulence at the front. The fork and seatpost are also streamlined. The bike's race-oriented geometry supports agile handling without neglecting stability.

Information regarding the return of batteries and electrical equipment:

Information on the return and disposal of batteries and electrical equipment can be found here.

Specifications:

Application:

Road

Wheel Size:

28"

Sizes:

51 cm, 54 cm, 56 cm, 58 cm, 61 cm

Frame Material:

Carbon

Fork Material:

Carbon

Components:

Frame:

Cannondale SuperSix EVO, internal cable routing with Switchplate, BSA68, SmartSense compatible, 12 x 142 mm

Fork:

Cannondale SuperSix EVO, internal cable routing, Flat Mount, Delta fork steerer, offset: 55 mm (51 cm), 45 mm (54 - 61 cm), 12 x 100 mm

Stem:

Cannondale C1 Conceal, aluminium, 31.8 mm, -6°

Handlebars:

Vision Trimax Carbon Aero, 31.8 mm

Headset:

Integrated, 1 1/8" - 1 1/4"

Seatpost:

Cannondale C1 Aero 40 Carbon, 20 mm setback

Saddle:

Prologo Dimension STN NDR, stainless steel rails

Crank:

Shimano Ultegra R8200, 36-52 tooth

Pedals:

none

Brakes:

Shimano Ultegra R8170, hydraulic, with MT800 brake rotors 160 mm / 140 mm (VR / HR)

Shift/Brake lever:

Shimano Ultegra Di2 R8170

Rear Derailleur:

Shimano Ultegra Di2 R8150

Front Derailleur:

Shimano Ultegra Di2 R8150

Cassette:

Shimano Ultegra R8100, 12-speed, 11-30

Chain:

Shimano Ultegra, 12-speed

Wheels:

Cannondale HollowGram 45 R, carbon, 20 holes / 24 holes (front / rear), 50 mm rim depth, 21 mm rim width, tubeless ready, center lock, hubs with sealed bearings, Formula Grand Forza spokes, double butted, straight pull

Tyres:

Vittoria Rubino Pro Bright Black, 700x25C, reflective stripes

Approved For:

Rotor Size (max.):

160 mm

Tyre Size (max.):

30-622

Chainrings:

2x

Features:

• lightweight, extremely fast carbon road bike with Shimano Ultegra Di2 electronic shifting system
• light: frame weighs only approx. 915 grams
• tubular shape and holistic design for high speeds, at 45 km/h 12 watt saving compared to predecessor model
• aerodynamic optimisation of key components such as frame, fork and seatpost as an overall system
• steerer tube with Delta design for cable routing through head tube, thus more aerodynamic front end
• collaboration with MOMODesign for particularly ergonomic cockpit
• perfect balance of stability and agility
• race-oriented geometry with high control
• space for up to 30 mm wide tyres for more comfort and control
• BSA bottom bracket as a simple, reliable connection of frame and crank
• with Syntace thru-axles
• compatible with SmartSense equipment such as lights or radar to increase visibility and safety as an integrated system (not included)

Geometry:

51 cm:

Stack:

535 mm

Reach:

378 mm

Seat Tube Length:

477 mm

Top Tube Length:

489 mm

Effective Top Tube Length:

528 mm

Head Tube Length:

13 mm

Chainstay Length:

41 mm

Wheelbase:

996 mm

Bottom Bracket Height:

268 mm

BB Drop:

74 mm

Seat Tube Angle:

74.3°

Head Tube Angle:

71.2°

Standover Height:

756 mm

54 cm:

Stack:

555 mm

Reach:

384 mm

Seat Tube Length:

515 mm

Top Tube Length:

509 mm

Effective Top Tube Length:

546 mm

Head Tube Length:

154 mm

Chainstay Length:

41 mm

Wheelbase:

101 mm

Bottom Bracket Height:

271 mm

BB Drop:

72 mm

Seat Tube Angle:

73.7°

Head Tube Angle:

71.2°

Standover Height:

788 mm

56 cm:

Stack:

575 mm

Reach:

389 mm

Seat Tube Length:

534 mm

Top Tube Length:

523 mm

Effective Top Tube Length:

562 mm

Head Tube Length:

165 mm

Chainstay Length:

41 mm

Wheelbase:

994 mm

Bottom Bracket Height:

271 mm

BB Drop:

72 mm

Seat Tube Angle:

73.3°

Head Tube Angle:

73°

Standover Height:

807 mm

58 cm:

Stack:

595 mm

Reach:

395 mm

Seat Tube Length:

567 mm

Top Tube Length:

541 mm

Effective Top Tube Length:

578 mm

Head Tube Length:

188 mm

Chainstay Length:

41 mm

Wheelbase:

1007 mm

Bottom Bracket Height:

273 mm

BB Drop:

69 mm

Seat Tube Angle:

72.9°

Head Tube Angle:

73°

Standover Height:

836 mm

61 cm:

Stack:

625 mm

Reach:

403 mm

Seat Tube Length:

60 mm

Top Tube Length:

564 mm

Effective Top Tube Length:

603 mm

Head Tube Length:

22 mm

Chainstay Length:

41 mm

Wheelbase:

1024 mm

Bottom Bracket Height:

273 mm

BB Drop:

69 mm

Seat Tube Angle:

72.3°

Head Tube Angle:

73°

Standover Height:

866 mm

Manufacturer Number:

C11453U

Shipping Notice:

The shipment is sent pre-assembled by a forwarding agent.
The delivery time is extended by 2-5 days, depending on the overall volume of orders.
For individual consultation, please contact our customer service team.

Contents:

• 1 x Cannondale SuperSix EVO 2 Carbon road bike
