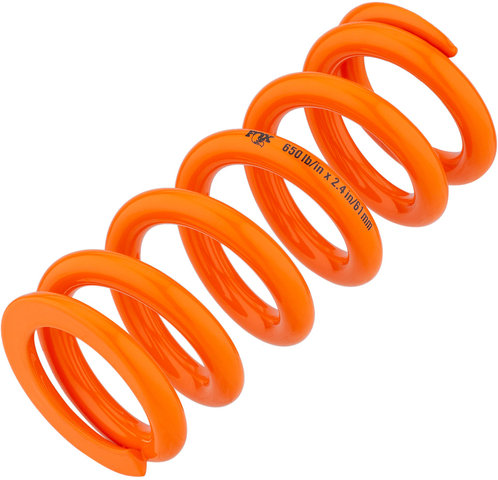

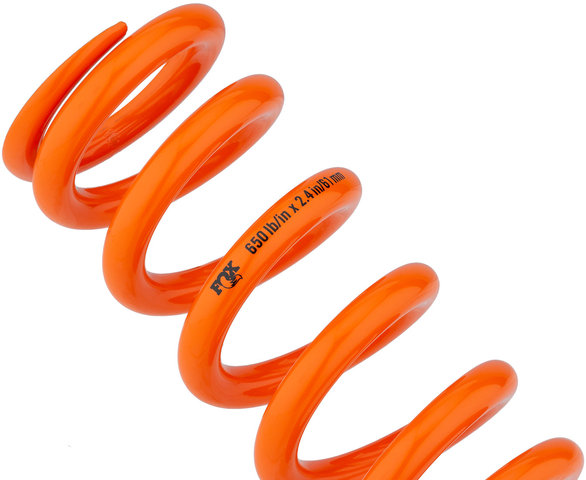

The Fox Racing Shox SLS Super Light steel coil for shocks with 50 to 57.5 mm stroke

This Fox Racing Shox SLS Super Light steel coil weighs less than a titanium coil and is suitable for compatible shocks with 50 to 57.5 mm stroke. The coil itself has a stroke of 61 mm, this must necessarily be greater than the stroke of the shock. The specially developed surface treatment and manufacturing process reduce stresses on the coil, allowing it to withstand higher loads than standard steel coils. The relatively low material thickness and number of coils make an additional contribution to weight reduction.

Specifications:

Application:

Downhill, Enduro, All Mountain

Rear Shock (Size x Travel):

200 x 57 mm (7.875" x 2.25" ), 185 x 50 mm, 185 x 52.5 mm, 185 x 55 mm, 210 x 50 mm, 210 x 52.5 mm, 210 x 55 mm, 230 x 57.5 mm

Stroke:

61 mm (2.4" )

Inner Diameter:

35 mm (1.385" )

Compatibility:

• Fox DHX2 rear shock
• Fox DHX rear shock
• Fox VAN shock
• Marzocchi Bomber CR shock

Note from the manufacturer:

Depending on the shock model, it may happen that a coil is too long or too short. Therefore, also consider the coil length when making your choice.

Models:

300 lbs:

Coil Length:

109 mm

Spring Rate:

300 lbs/inch

Manufacturer Number:

033-22-000

325 lbs:

Coil Length:

112 mm

Spring Rate:

325 lbs/inch

Manufacturer Number:

033-22-001

350 lbs:

Coil Length:

111 mm

Spring Rate:

350 lbs/inch

Manufacturer Number:

033-22-002

375 lbs:

Coil Length:

115 mm

Spring Rate:

375 lbs/inch

Manufacturer Number:

033-22-003

400 lbs:

Coil Length:

115 mm

Spring Rate:

400 lbs/inch

Manufacturer Number:

033-22-004

425 lbs:

Coil Length:

115 mm

Spring Rate:

425 lbs/inch

Manufacturer Number:

033-22-005

450 lbs:

Coil Length:

120 mm

Spring Rate:

450 lbs/inch

Manufacturer Number:

033-22-006

475 lbs:

Coil Length:

119 mm

Spring Rate:

475 lbs/inch

Manufacturer Number:

033-22-007

500 lbs:

Coil Length:

119 mm

Spring Rate:

500 lbs/inch

Manufacturer Number:

033-22-008

550 lbs:

Coil Length:

125 mm

Spring Rate:

550 lbs/inch

Manufacturer Number:

033-22-009

600 lbs:

Coil Length:

126 mm

Spring Rate:

600 lbs/inch

Manufacturer Number:

033-22-010

650 lbs:

Coil Length:

126 mm

Spring Rate:

650 lbs/inch

Manufacturer Number:

033-22-011

700 lbs:

Coil Length:

126 mm

Spring Rate:

700 lbs/inch

Manufacturer Number:

033-22-012

Contents:

• 1 x Fox Racing Shox SLS Super Light steel coil
