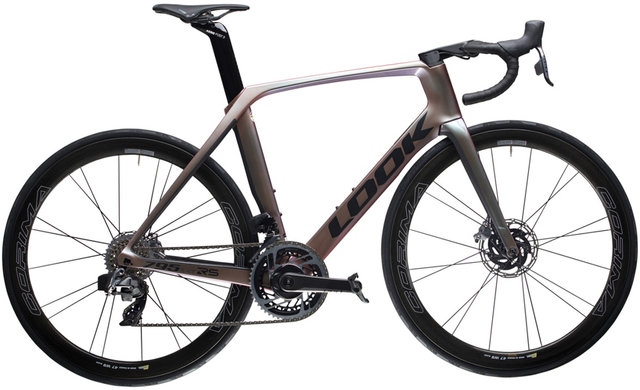

Look 795 Blade RS Disc Red eTap Corima 47 Carbon road bike - Made for top speed

The Look 795 Blade RS Disc with SRAM Red eTap AXS 2x12-speed electronic groupset, SRAM disc brakes and Corima 47 mm rims is an aerodynamic, super-stiff and agile road bike made from particularly high-performance carbon. It is suitable for high-speed rides, sprints and, thanks to the sensationally light frame that weighs only 1 kilogram, also for climbing. An innovative manufacturing process and a revised carbon fibre layup saves material and thus weight, but at the same time increases stability and comfort. The Blade RS has specially shaped seat stays without a cross connection, which improves traction at the rear wheel and promotes power transfer. Its extravagant chameleon finish, which shimmers differently depending on light conditions, makes for a very special look, in both senses.

Information regarding the return of batteries and electrical equipment:

Information on the return and disposal of batteries and electrical equipment can be found here.

Specifications:

Application:

Road

Wheel Size:

28"

Sizes:

XS, S, M, L, XL

Frame Material:

Carbon (UHM)

Fork Material:

Carbon (UHM)

Components:

Frame:

Look 795 Blade RS Disc, 12 x 142 mm

Fork:

Look 795 Blade RS Disc, 368 mm drop-in length, 50 mm / 43 mm trail (XS + S / M - XL), oval steerer tube, 12 x 100 mm

Stem:

Look ADS (Aero Design Stem) for oval steerer tube, 31.8 mm, -10°

Handlebars:

Look ADH 1.2 Carbon

Headset:

Look 795 Blade 1.5" 36° / 45°

Seatpost:

Look Aeropost 3 Carbon, 400 mm

Saddle:

Selle Italia SLR Boost Superflow Carbon Ceramic

Crank:

SRAM Red Carbon DUB, 37-50 T, Pressfit BB386 DUB bottom bracket

Pedals:

none

Brakes:

SRAM Flat Mount with centreline brake rotors (160 mm/140 mm)

Shift/Brake lever:

SRAM Red eTap AXS, wireless, hydraulic

Rear Derailleur:

SRAM Red eTap AXS

Front Derailleur:

SRAM Red eTap AXS

Cassette:

SRAM Red XG-1290, 10-33 tooth

Chain:

SRAM Red 12-speed

Wheels:

Corima WS Black DX Disc, 47 mm rims

Tyres:

Vittoria Corsa G+ folding tyre, 700 x 28 mm

Approved For:

Weight Limit:

100 kg total weight

Rotor Size (max.):

160 mm

Tyre Size (max.):

700 x 30 mm

Chainrings:

2-speed, 1-speed

Features:

• fast, comfortable and versatile high-end road bike for speedy rides, sprints and uphill rides
• aerodynamics tested in the wind tunnel
• super-light and super-stiff thanks to an innovative manufacturing process and optimised carbon layups with ultra high modulus fibres
• frame weighs only 1 kg (size S)
• unique chameleon finish for a special look
• SRAM Red eTap 12-speed electronic groupset and WS Black DX Disc 47 wheels from Corima
• disc brake-compatible for higher safety in all conditions, also benefits from wider rims and tyres
• increased traction on the rear wheel thanks to special seat stay design
• routing of shift and brake cables through stem and headset for a tidy cockpit
• integrated seatpost design
• two bottle cage mounts
• Mavic Speed Release thru-axles front and rear

Technology:

Ultra High Modulus Carbon Fibres
UHM carbon fibres are more powerful and denser than other carbon fibres, meaning you need less of them to get the same stiffness, which saves a lot of weight. At strategically important, highly stressed points, the fibres can be selectively added up to further optimise stiffness.

EPS
The frame was made using Extended Polystyrene (EPS) technology, an elaborate carbon processing method that uses two different moulds of polystyrene: one for the outer shape of the frame and one for the inner. A layer of carbon fibre is wrapped around each of the moulds, after which they are removed. This results in a smooth, consistent and high-strength product.

3S technology
The seat stays are not connected by a bridge and also have a curved shape. In this way, they yield to the force coming from the rear wheel, which keeps it in constant contact with the road. This leads to more grip, control and power transfer efficiency.

Geometry:

XS:

Recommended Height:

< 166 cm

Stack:

505 mm

Reach:

367 mm

Seat Tube Length:

445 mm

Effective Top Tube Length:

494.1 mm

Head Tube Length:

111.9 mm

Chainstay Length:

415 mm

BB Drop:

65 mm

Seat Tube Angle:

75.8°

Head Tube Angle:

71.8°

Standover Height:

748 mm

Stem Length:

90 mm

Handlebar Width:

38 cm

Crank Arm Length:

170.0 mm

S:

Recommended Height:

164 - 173 cm

Stack:

529 mm

Reach:

377 mm

Seat Tube Length:

469.7 mm

Effective Top Tube Length:

510.1 mm

Head Tube Length:

137.1 mm

Chainstay Length:

415 mm

BB Drop:

65 mm

Seat Tube Angle:

75.8°

Head Tube Angle:

71.8°

Standover Height:

771 mm

Stem Length:

100 mm

Handlebar Width:

40 cm

Crank Arm Length:

170.0 mm

M:

Recommended Height:

171 - 180 cm

Stack:

553 mm

Reach:

386 mm

Seat Tube Length:

494.4 mm

Effective Top Tube Length:

526.2 mm

Head Tube Length:

155.7 mm

Chainstay Length:

415 mm

BB Drop:

65 mm

Seat Tube Angle:

75.8°

Head Tube Angle:

73°

Standover Height:

796 mm

Stem Length:

110 mm

Handlebar Width:

42 cm

Crank Arm Length:

172.5 mm

L:

Recommended Height:

178 - 187 cm

Stack:

578 mm

Reach:

396 mm

Seat Tube Length:

519.2 mm

Effective Top Tube Length:

545 mm

Head Tube Length:

180.8 mm

Chainstay Length:

415 mm

BB Drop:

65 mm

Seat Tube Angle:

75.8°

Head Tube Angle:

73°

Standover Height:

821 mm

Stem Length:

110 mm

Handlebar Width:

42 cm

Crank Arm Length:

172.5 mm

XL:

Recommended Height:

> 185 cm

Stack:

601 mm

Reach:

406 mm

Seat Tube Length:

544 mm

Effective Top Tube Length:

558.3 mm

Head Tube Length:

205.9 mm

Chainstay Length:

415 mm

BB Drop:

65 mm

Seat Tube Angle:

75.8°

Head Tube Angle:

73°

Standover Height:

844 mm

Stem Length:

120 mm

Handlebar Width:

44 cm

Crank Arm Length:

175.0 mm

Manufacturer Numbers:

XS:

24277

S:

24278

M:

24279

L:

24280

XL:

24281

Shipping Notice:

The shipment is sent pre-assembled by a forwarding agent.
The delivery time is extended by 2-5 days, depending on the overall volume of orders.
For individual consultation, please contact our customer service team.

Contents:

• 1 x Look 795 Blade RS Disc Red eTap Corima 47 Carbon road bike

Order Together:

• Pedals
