Rotor Road Chainring, 4-arm, noQ, 110 mm Bolt Circle Diameter 11-/12-speed - black/50 tooth

Rotor Road Chainring, 4-arm, noQ, 110 mm Bolt Circle Diameter 11-/12-speed

Item number: 90183

Rotor Road chainring, 4-arm, noQ, 110 mm bolt circle diameter for Rotor and Shimano cranks

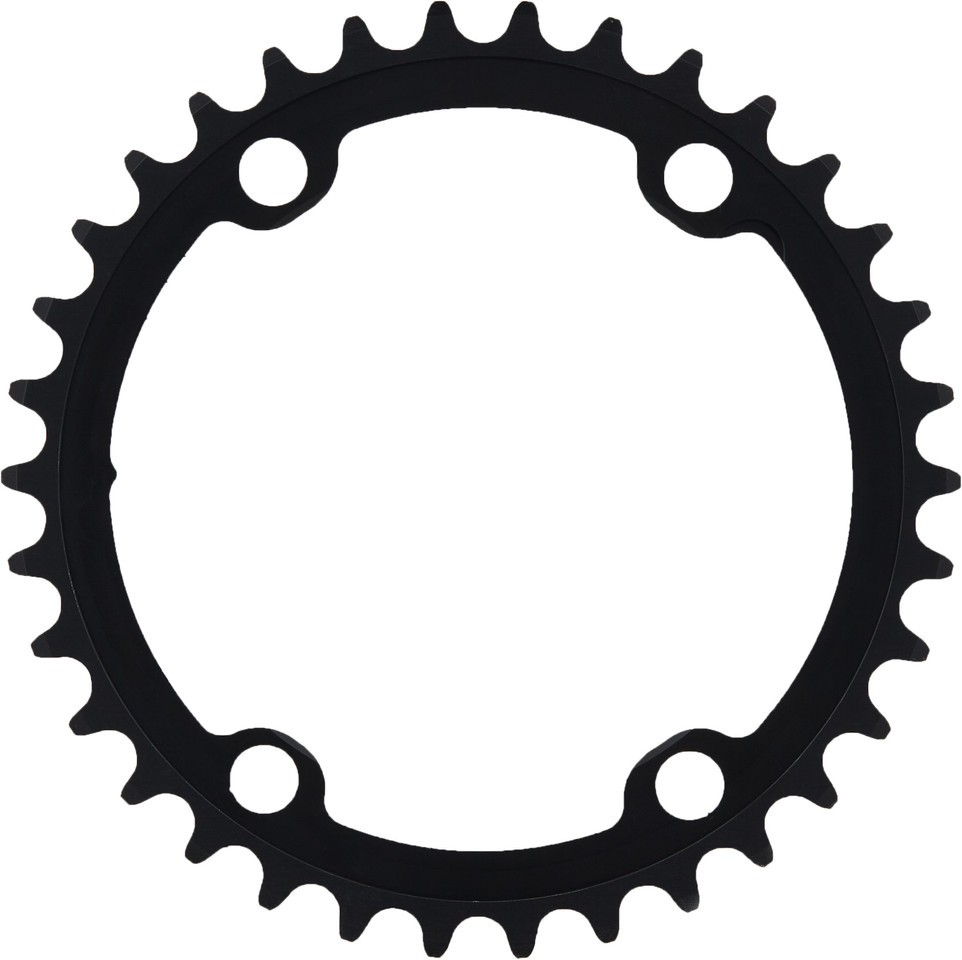

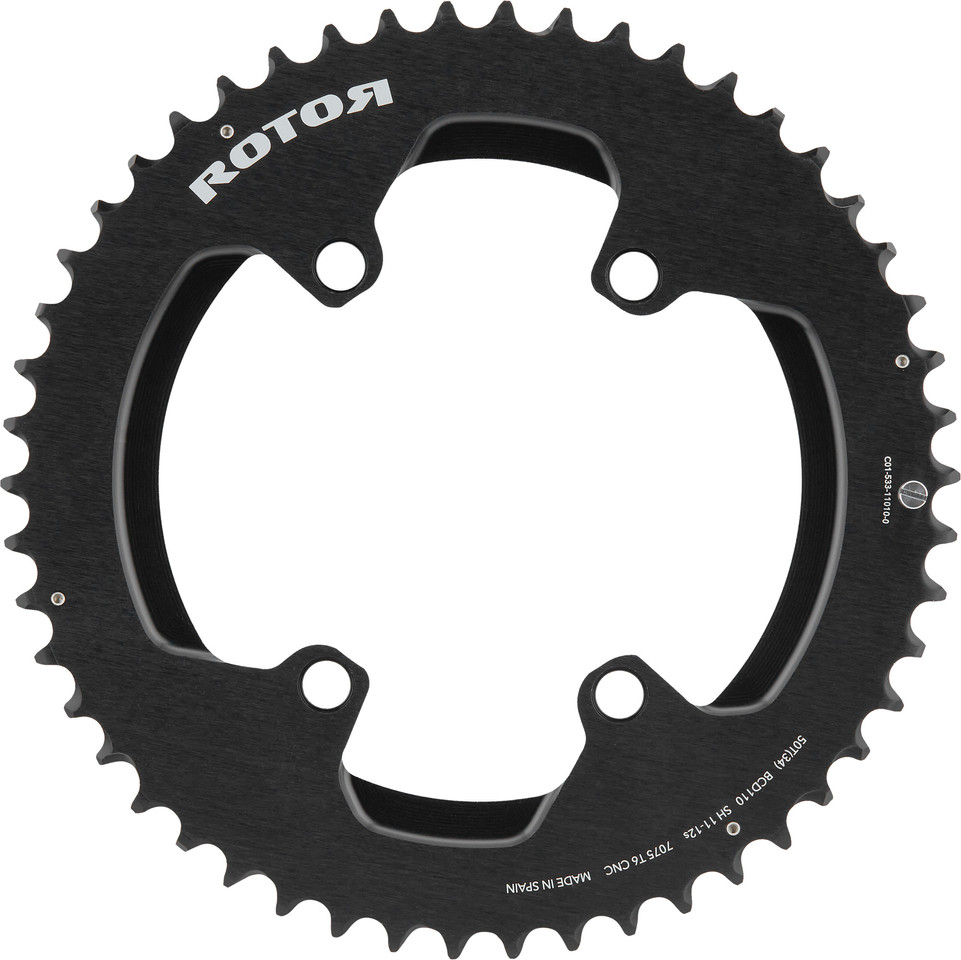

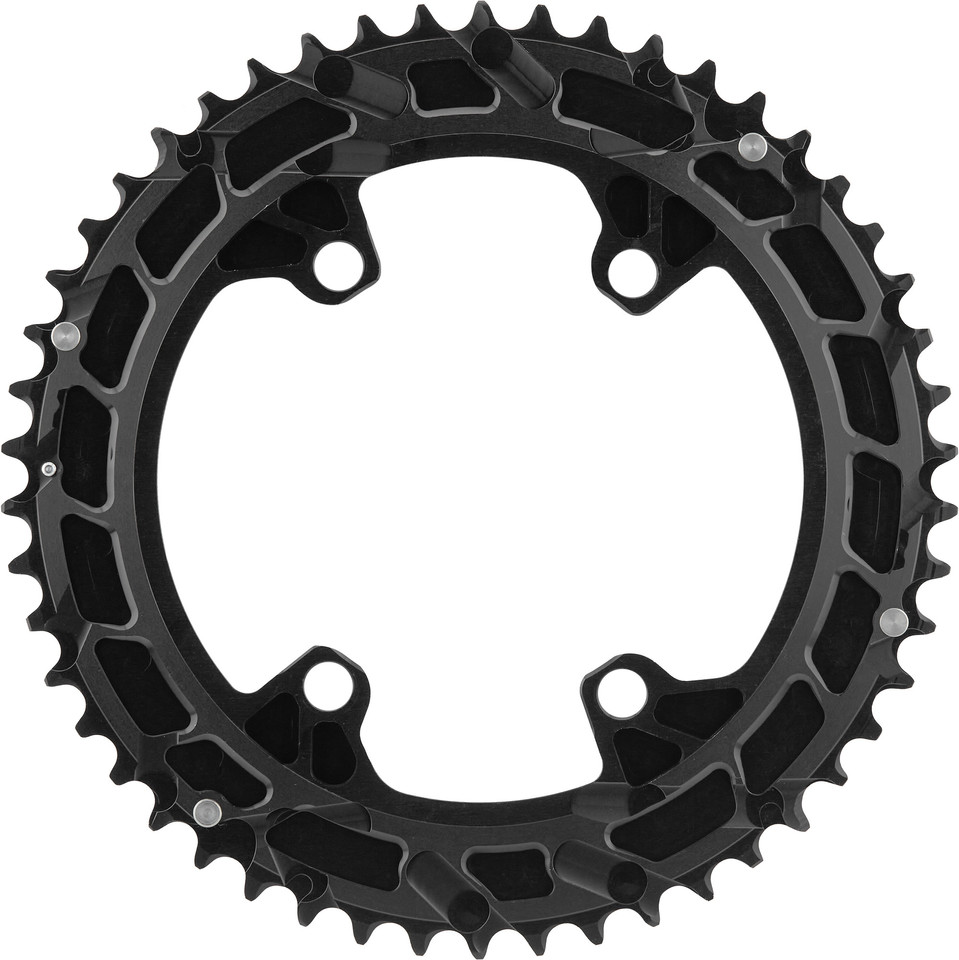

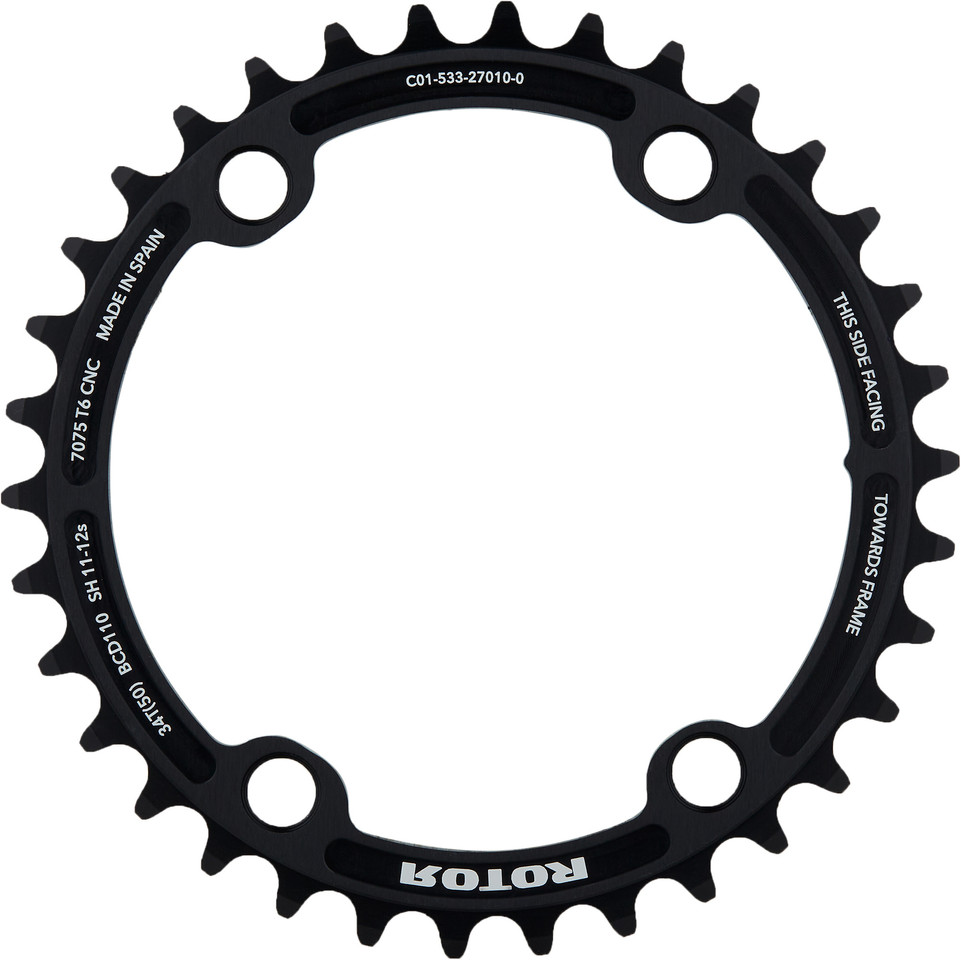

This round road bike chainring from Rotor has four arms and a bolt circle diameter of 110 mm. It is suitable for Rotor cranks with corresponding spider, for INSpider power meter cranks as well as for newer Shimano Dura-Ace and Ultegra cranks including a power meter. The chainring is made of aluminium and has been CNC-milled.

Specifications:

Application:
Road
Mount:
110 mm bolt circle diameter, 4-arm asymmetrical
Teeth:
34 t, 36 t, 39 t, 42 t, 44 t, 46 t, 50 t, 52 t, 53 t, 54 t, 55 t, 56 t, 58 t
Gearing:
2x11-speed, 2x12-speed

Technical Information:

Chainline:
43.9 mm (Rotor standard axis), 46.4 mm (Rotor offset axis)
Material:
aluminium (7075-T6)

Compatibility:

  • all Rotor cranks with 110x4 spider
  • all Rotor cranks with INSpider power meter
  • Shimano Dura-Ace FC-R9200, FC-R9200-P, FC-R9100, FC-R9100-P
  • Shimano Ultegra FC-R8100, FC-R8100-P, FC-R8000
  • Shimano 2x12-speed and 2x11-speed groupsets
  • SRAM 2x11-speed groupsets
  • 12- and 11-speed chains

Note from the manufacturer:

In some cases, a 0.5 mm washer must be fitted on the right side of the crank axle to ensure full compatibility between Shimano Dura-Ace FC-R9200 or Ultegra FC-R8100 cranks, Shimano 2x12-speed groupsets and Rotor chainrings.

Features:

  • fast, precise shifting
  • lightweight
  • 34 to 44 teeth for the inner chainring, 46 to 58 teeth for the outer chainring
  • 100% CNC milled

Manufacturer Numbers:

34 tooth:
C01-533-27010-0
36 tooth:
C01-533-25010-0
39 tooth:
C01-533-22010-0
42 tooth:
C01-533-19010-0
44 tooth:
C01-533-17010-0
46 tooth:
C01-533-15010-0
50 tooth:
C01-533-11010-0
52 tooth:
C01-533-09010-0
53 tooth:
C01-533-08010-0
54 tooth:
C01-533-07010-0
55 tooth:
C01-533-06020-0
56 tooth:
C01-533-05010-0
58 tooth:
C01-533-03010-0

Contents:

  • 1 x Rotor Road chainring, 4-arm, noQ, 110 mm bolt circle diameter


  • 100 day return period
  • Online since 1998
  • Trusted Shop 4.89 / 5.00

Models:

  • black/42 tooth, in stock
    48.46€
  • black/44 tooth, in stock
    48.46€
  • black/52 tooth, in stock
    86.55€
  • black/53 tooth, in stock
    86.55€
  • black/54 tooth, in stock
    101.26€
  • black/55 tooth, in stock
    101.26€
