Guidelines for Replacing E-bike Components:

Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.

Information regarding the return of batteries and electrical equipment:

Information on the return and disposal of used batteries and electrical equipment can be found here.

Specifications:

Type:

front light (white)

Mount:

handlebars

Light Source:

1 Terraflux4 lens

Brightness:

235 lumen, 100 lux (low beam) / 550 lumen 160 lux (high beam)

Power Source:

E-bike battery

Technical Information:

Illumination Modes:

low beam, high beam, integrated daytime running light

Voltage:

12V

Dimensions (HxWxD):

41 mm x 41 mm x 31.5 mm

Cable Length:

1300 mm

Material:

aluminium

Approved For:

Street Use in Germany:

Yes, for bicycles (according to §67 StVZO)

Check Number:

K~~1651

Compatibility:

• BionX, 12 V, 18 W
• Bosch Gen. 4 (CX), 12 V, 18 W
• Bosch Gen. 2 (Performance Line CX, Active Line), 12 V, 18 W
• Brose > MY19
• Continental 48 (Gen. 1 Prime, Revolution) 12 V, 24 W
• Fazua Evation
• Neodrives (UR-V5, UR-V8 Integrale, Supercore, Z20 RS)
• Panasonic (GX 0)
• Sachs (RS)
• Shimano (Steps E7000)
• Specialized (Turbo Levo, Vado 2019, CREO SL)

Features:

• compatible with most e-bike drivetrains thanks to soft start function
• front light with high beam function for e-bikes up to 25 km/h
• compact shape
• Terraflux4 lens for good and even illumination
• compatible with many e-bike drivetrains

Technology:

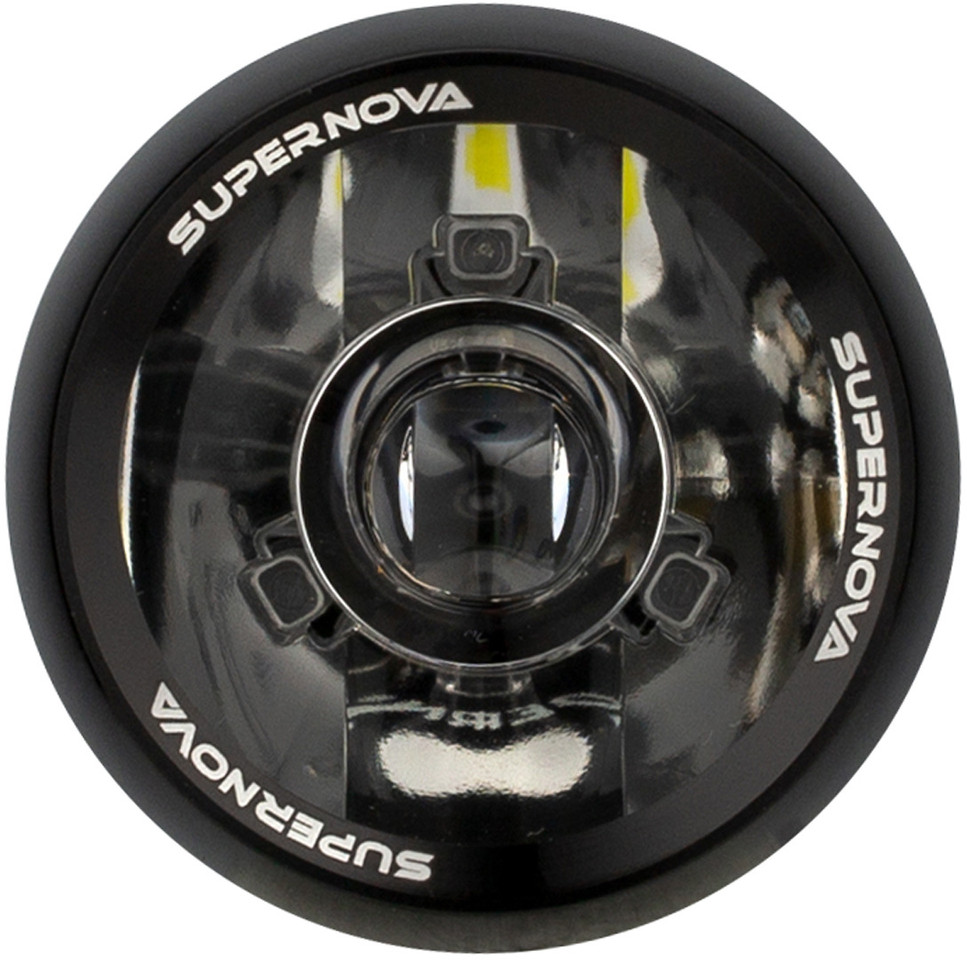

Terraflux4 lens
The Terraflux lens is a milestone in optics development. For a lens of this size, it produces outstandingly bright and uniform illumination on the road and good ambient lighting above the cut-off line. With the Terraflux lens you will be noticed without dazzling oncoming traffic. Thanks to a sophisticated light control system, the Terraflux lens directs 90% of the light where it is needed most: on the road. There it forms a broad and even blanket of light that extends from the front wheel to far away. The permanent daytime running light incorporated into the lens ensures that the rider is also very well visible in traffic during the day. At night, this light component is used for excellent ambient lighting and warns of low-hanging branches on the trail.

Supernova High Beam
The very high beam angle makes the high beam shine much further than other front lights. In addition, the illumination of corners is significantly better. This makes road signs easier to see and the light cone is not as susceptible to the sagging of a suspension fork. The even, far-reaching, focused field of light greatly improves safety and visibility. There is also a powerful low beam light, so you can ride through the city without glare and in compliance with the law.

Manufacturer Number:

U-MINI2P-BLK

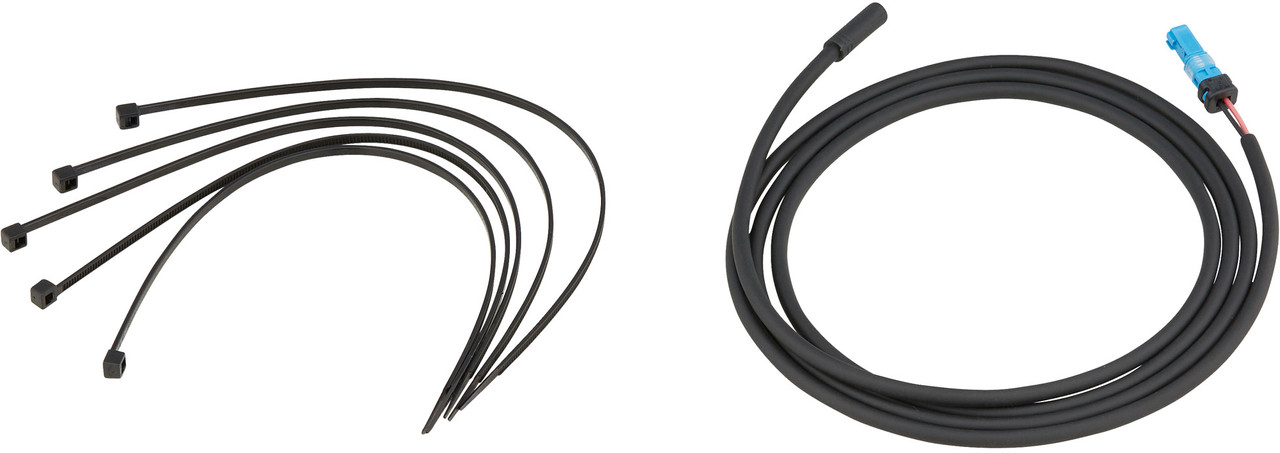

Contents:

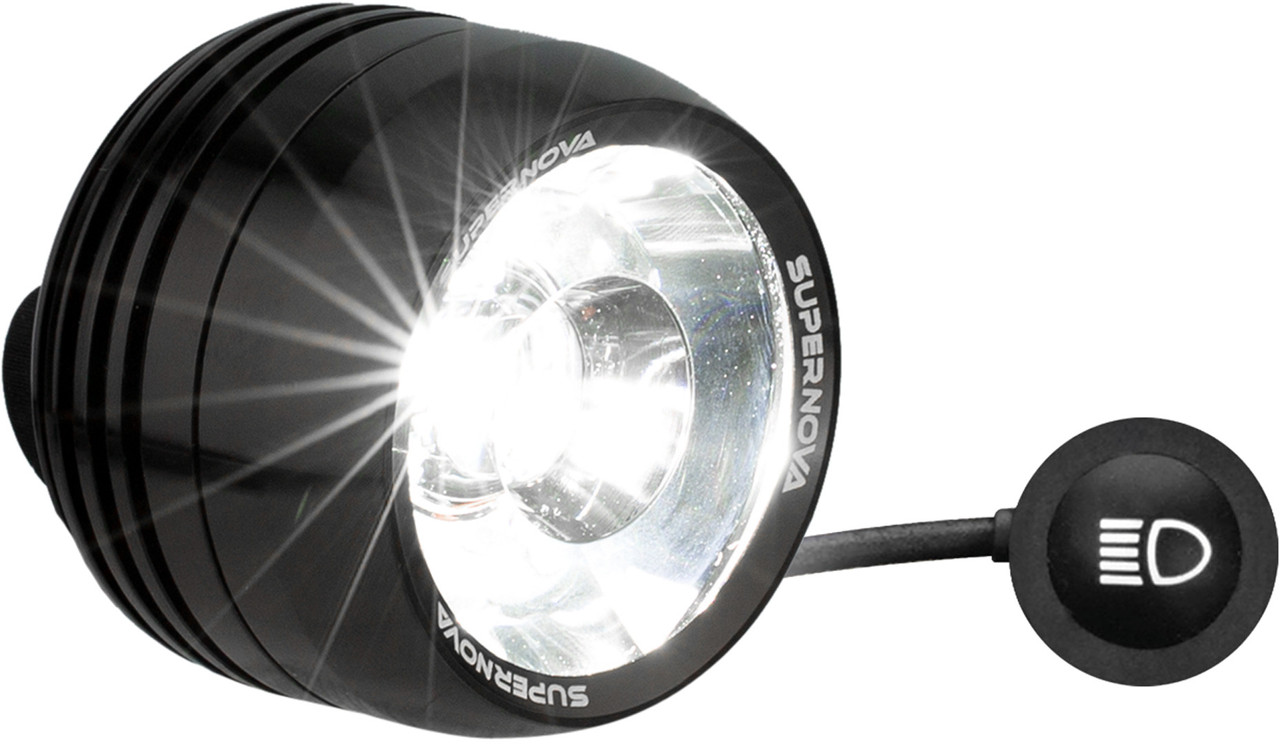

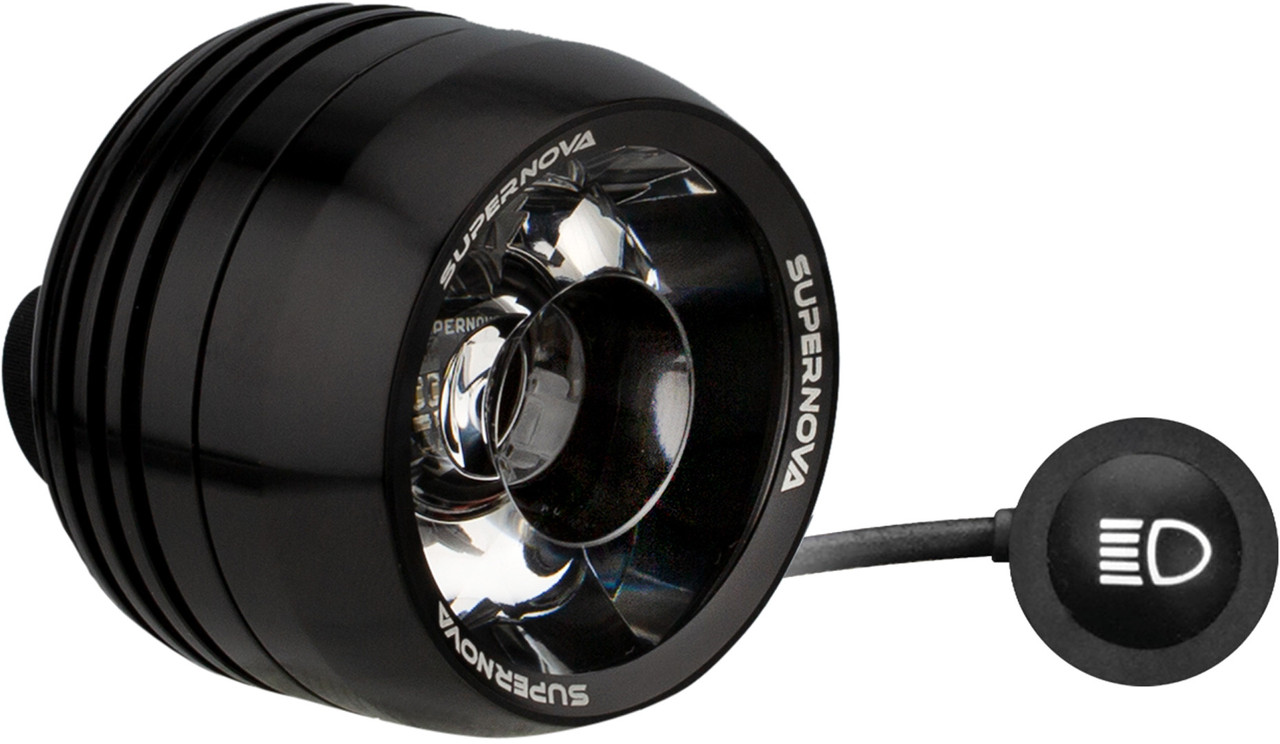

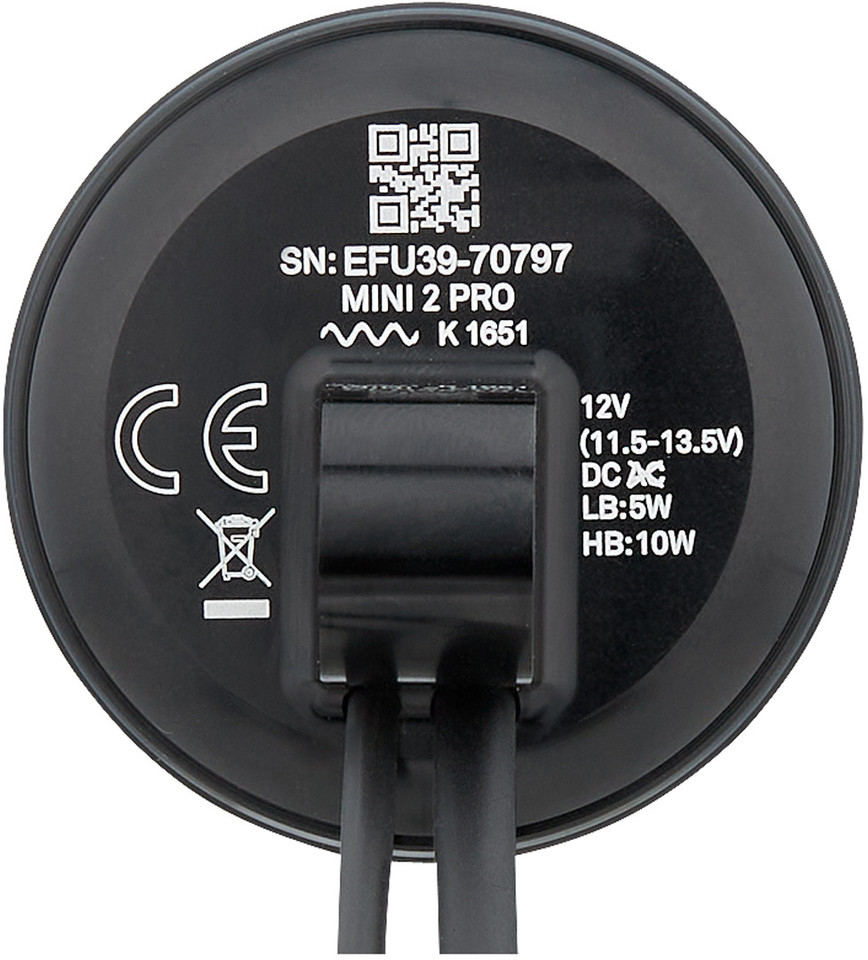

• 1 x Supernova Mini 2 PRO E-Bike front light
• 1 x Supernova universal mount for high beam switch

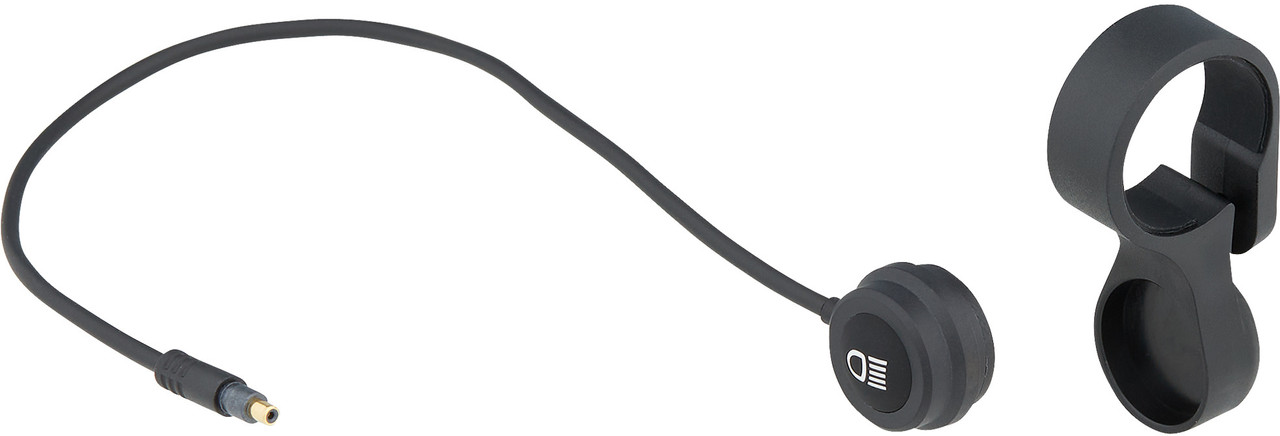

• 1 x Supernova magnetic high beam switch
• 1 x BOSCH Power Connector Cable
• 5 x zip ties
