Surly Disc Trucker 26" Frameset - black/54 cm

Surly Disc Trucker 26" Frameset

Item number: 82022

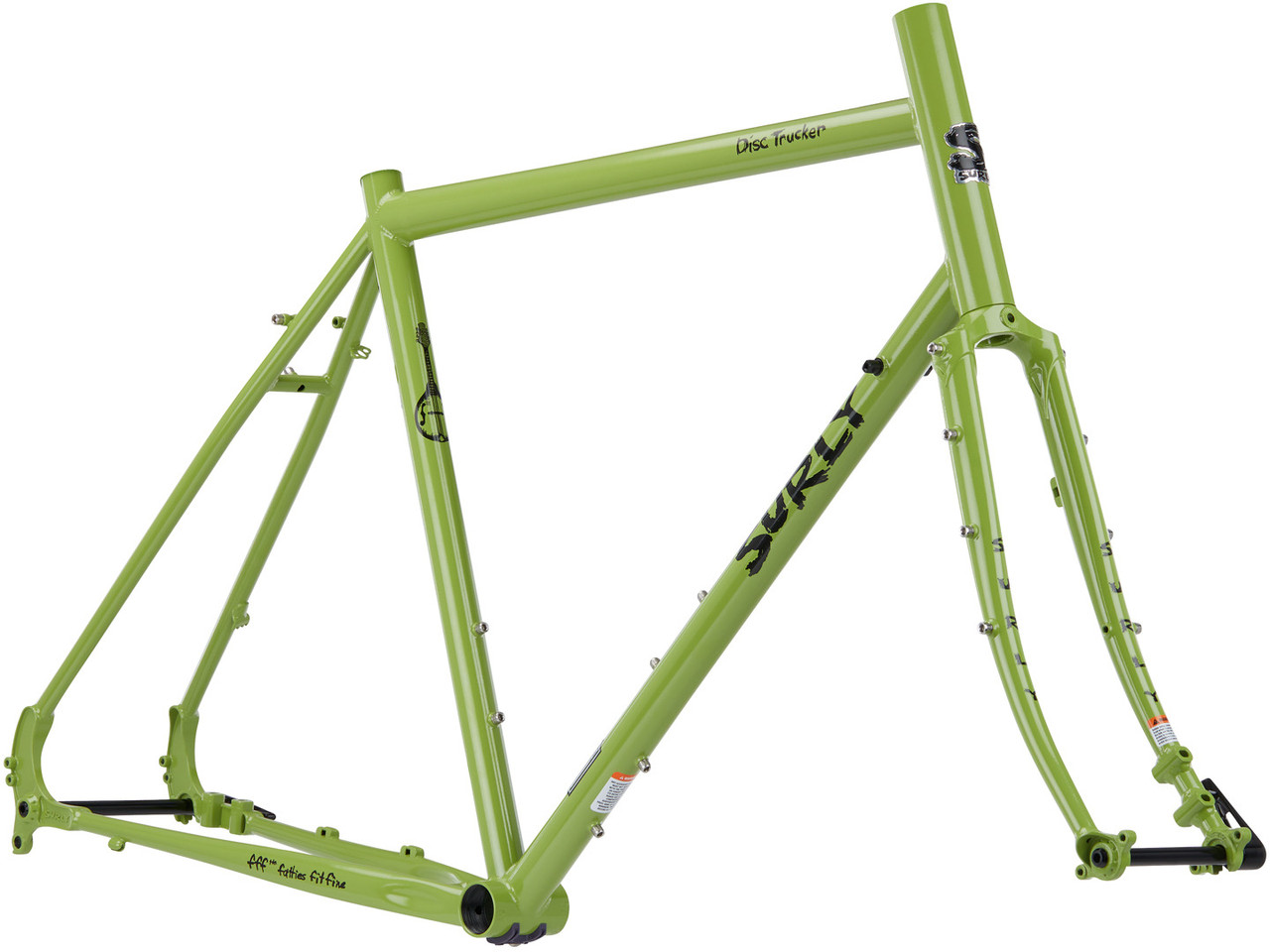

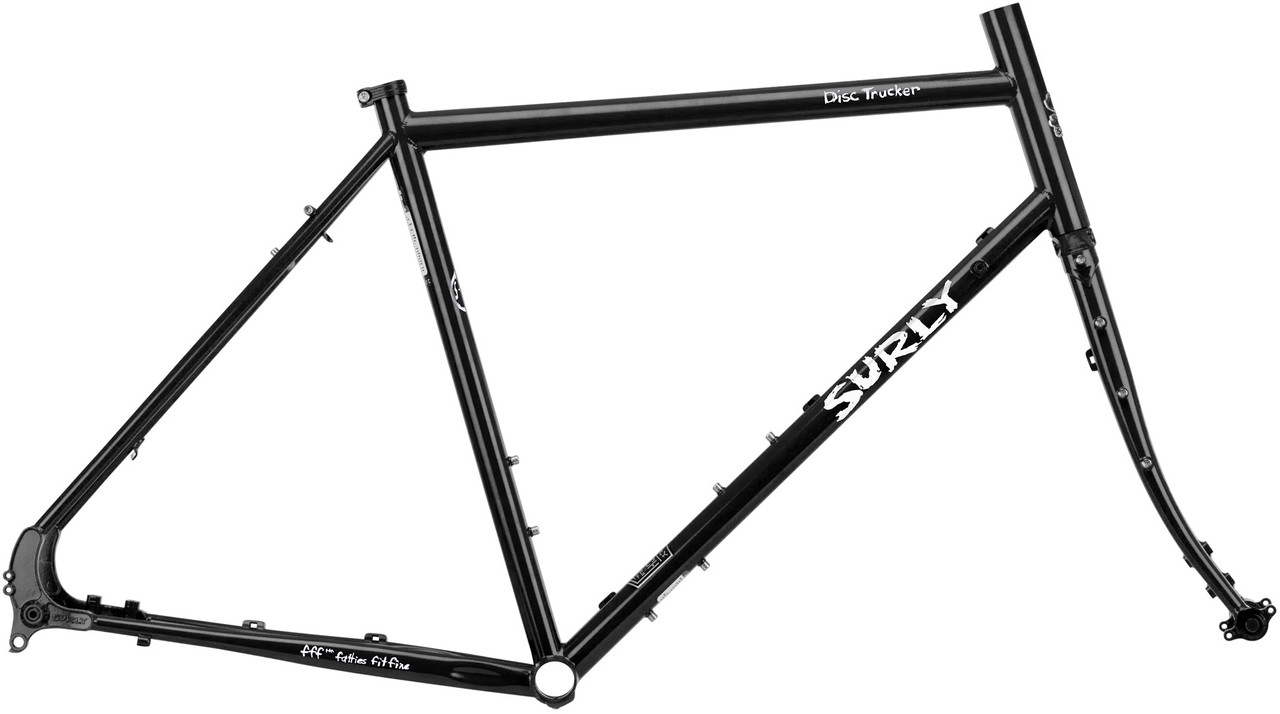

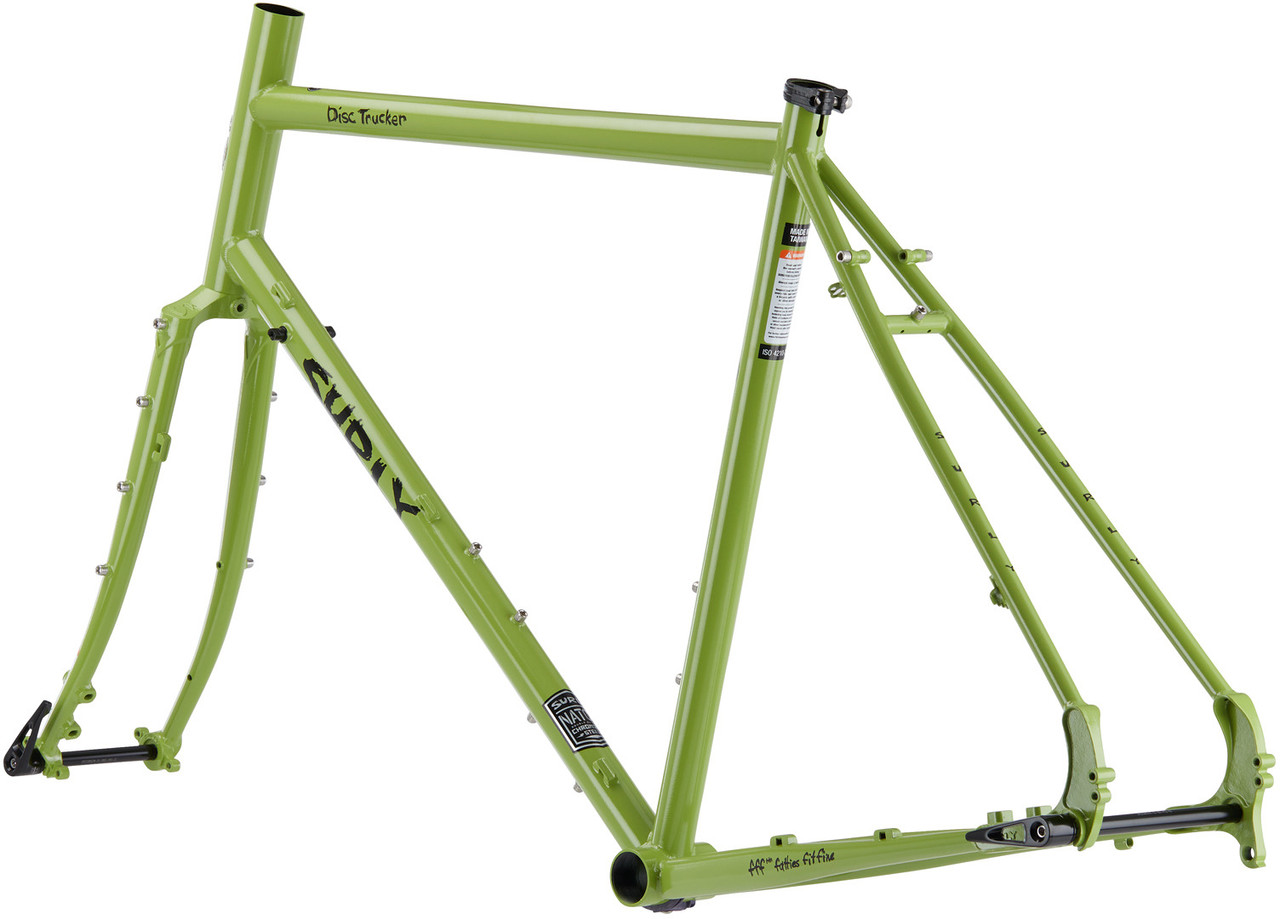

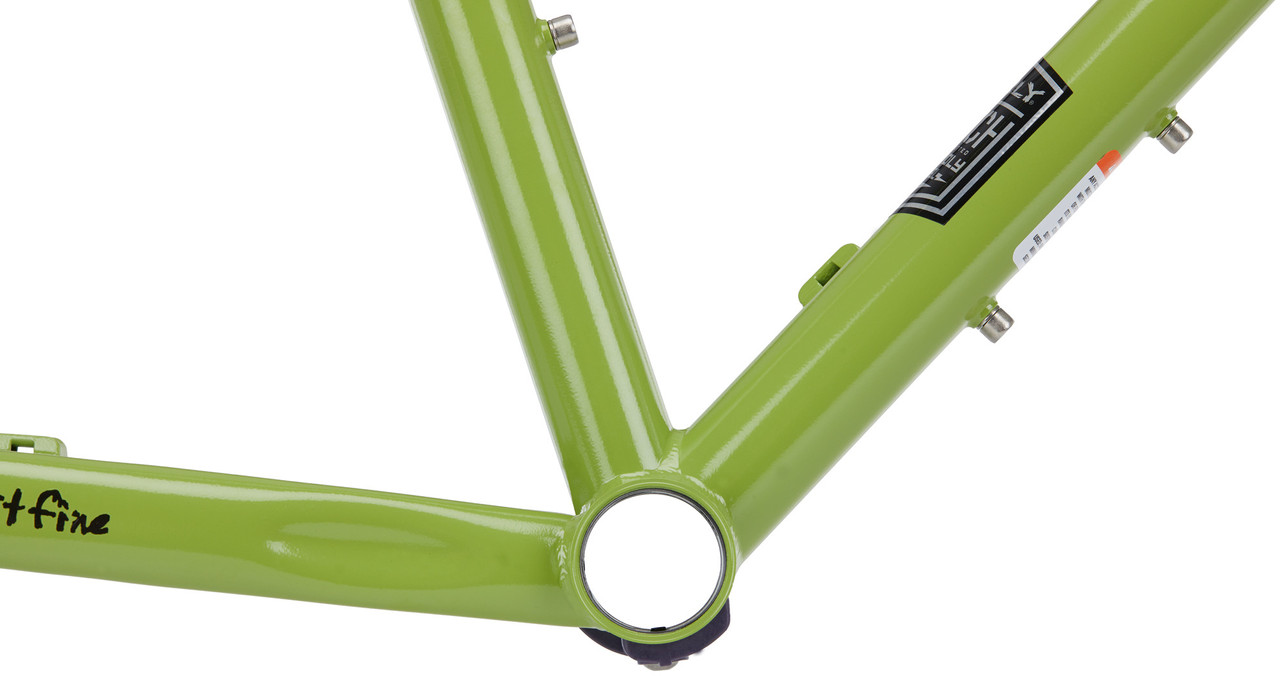

The Disc Trucker 26" frameset from Surly consists of both a frame and fork made of steel, and is designed for touring bikes. For increased stability, the wheels have been fixed with a thru-axle. You can attach your luggage to the frame using numerous eyelets. The shortened chainstays provide more agility. In addition, the frame and fork feature flat mount disc brake mounts.

Specifications:

Application:
City & Touring
Wheel Size:
26"
Size:
46 cm, 50 cm, 52 cm, 54 cm, 56 cm
Frame Material:
steel (4130 CrMo)
Fork Material:
steel (4130 CrMo)

Technical Information - Frame:

Wheel Standard:
12 x 142 mm (standard)
Axle Type:
12 mm thru-axle
Seatpost (Ø):
27.2 mm
Seatpost Clamp(Ø):
30 mm
Headset:
EC34/28.6 - EC34/30
Bottom Bracket Standard:
BSA
Shell Width:
68 mm
Brake Mount:
flat mount
Front Derailleur Mount:
high clamp (28.6 mm)
Bottle Cage Mounts:
3
Accessory Mounts:
pannier rack mount, fender mount, base for downtube shifter

Technical Information - Fork:

Steerer Tube:
1 1/8"
Wheel Standard:
thru-axle (12 x 100 mm)
Axle Type:
12 mm thru-axle
Brake Mount:
flat mount
Offset:
45 mm
Axle to Crown:
376 mm
Crown Race Diameter:
30 mm
Steerer Tube Material:
steel (4130 CrMo)
Blade Material:
steel (4130 CrMo)
Accessory Mounts:

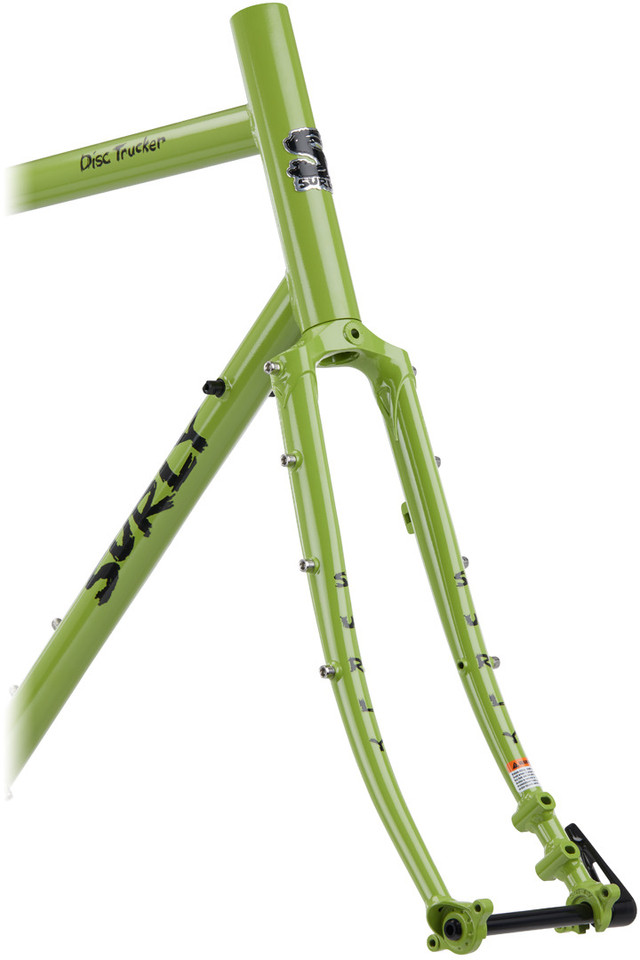

3 eyelets per fork leg for lowrider, fender attachment

Approved For:

Weight Limit:
161 kg total weight
Brake Rotor Size (max.):
160 mm (front), 160 mm (rear)
Tyre Size (max.):
26 x 2.0" (front), 26 x 2.1" (rear)
Chainrings:
1x, 2x, 3x
Chainring Size (max.):
1x 47 tooth, 2x 34-50 tooth, 3x 33-47-56 tooth

Features:

  • ASTM category 2: for use on roads, maintained dirt roads and gravel roads (on Touring and Cross Country bikes) with jumps up to a height of 15 cm

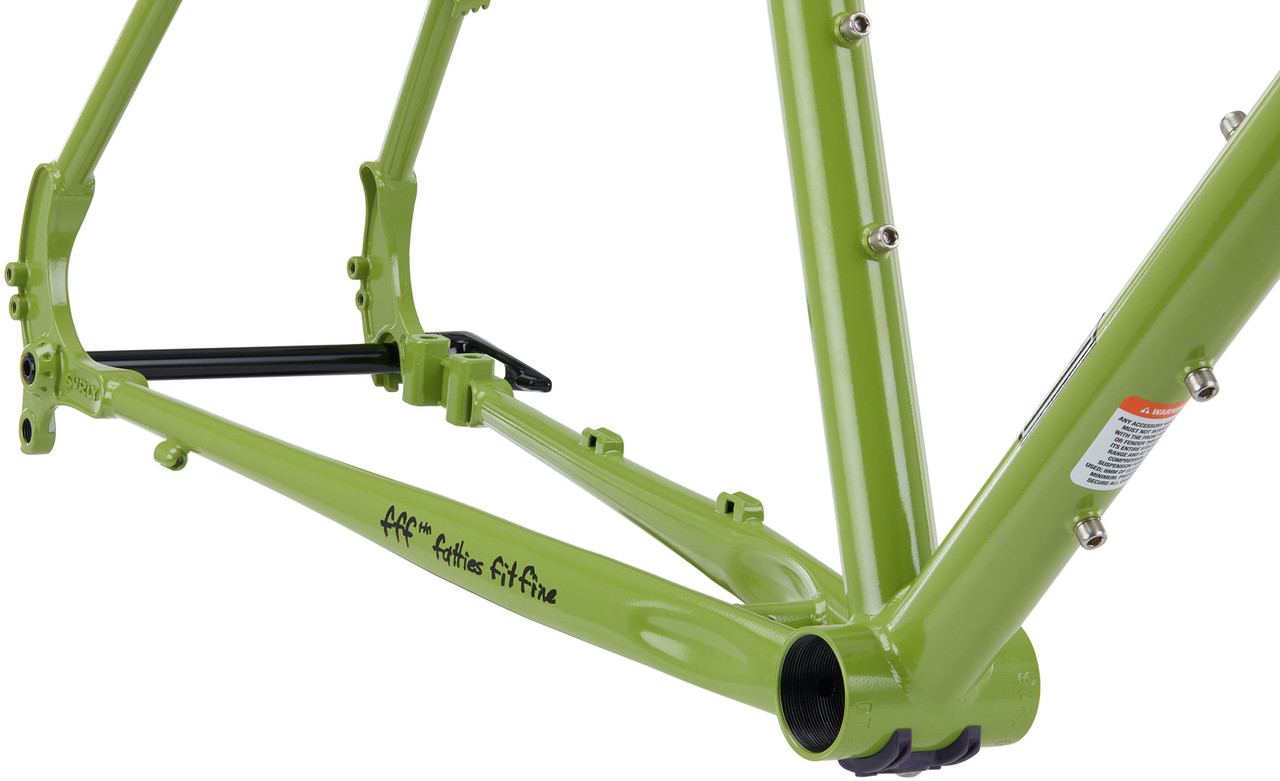

  • shortened chainstays

Manufacturer's Notice:

When choosing your frame size you should take into account that Surly does not measure the seat tube specifications to the end of the seat tube. For frames with struts on the top tube, this is measured from the middle of the bottom bracket to above the struts. For frames without struts, measure from the middle of the bottom bracket to the top edge of the top tube.

Geometry:

46 cm:
Stack:
520 mm
Reach:
371 mm
Seat Tube Length:
460 mm
Top Tube Length:
506.5 mm
Effective Top Tube Length:
515 mm
Head Tube Length:
130 mm
Chainstay Length:
450 mm
Wheelbase:
1037 mm
BB Drop:
50 mm
Seat Tube Angle:
74.5°
Head Tube Angle:
70°
Standover Height:
731 mm

50 cm:
Stack:
561 mm
Reach:
369 mm
Seat Tube Length:
500 mm
Top Tube Length:
521 mm
Effective Top Tube Length:
530 mm
Head Tube Length:
170 mm
Chainstay Length:
450 mm
Wheelbase:
1040 mm
BB Drop:
50 mm
Seat Tube Angle:
74°
Head Tube Angle:
71°
Standover Height:
766 mm

52 cm:
Stack:
561 mm
Reach:
369 mm
Seat Tube Length:
500 mm
Top Tube Length:
535 mm
Effective Top Tube Length:
545 mm
Head Tube Length:
185
Chainstay Length:
450 mm
Wheelbase:
1050 mm
BB Drop:
50 mm
Seat Tube Angle:
73.5°
Head Tube Angle:
71°
Standover Height:
782 mm

54 cm:
Stack:
594.5 mm
Reach:
378 mm
Seat Tube Length:
540 mm
Top Tube Length:
549 mm
Effective Top Tube Length:
560 mm
Head Tube Length:
205 mm
Chainstay Length:
450 mm
Wheelbase:
1060.5 mm
BB Drop:
50 mm
Seat Tube Angle:
73°
Head Tube Angle:
71°
Standover Height:
800 mm

56 cm:
Stack:
613 mm
Reach:
387.5 mm
Seat Tube Length:
560 mm
Top Tube Length:
564 mm
Effective Top Tube Length:
575 mm
Head Tube Length:
225 mm
Chainstay Length:
450 mm
Wheelbase:
1076 mm
BB Drop:
50 mm
Seat Tube Angle:
73°
Head Tube Angle:
71°
Standover Height:
819.5 mm

Manufacturer Numbers:

black / 46 cm:
FM1764
black / 50 cm:
FM1765
black / 52 cm:
FM1766
black / 54 cm:
FM1767
black / 56 cm:
FM1768
pea lime soup / 46 cm:
FM1752
pea lime soup / 50 cm:
FM1753
pea lime soup / 52 cm:
FM1754
pea lime soup / 54 cm:
FM1755
pea lime soup / 56 cm:
FM1756

Contents:

  • 1 x Surly Disc Trucker 26" frame
  • 1 x Surly Disc Trucker 26" frame

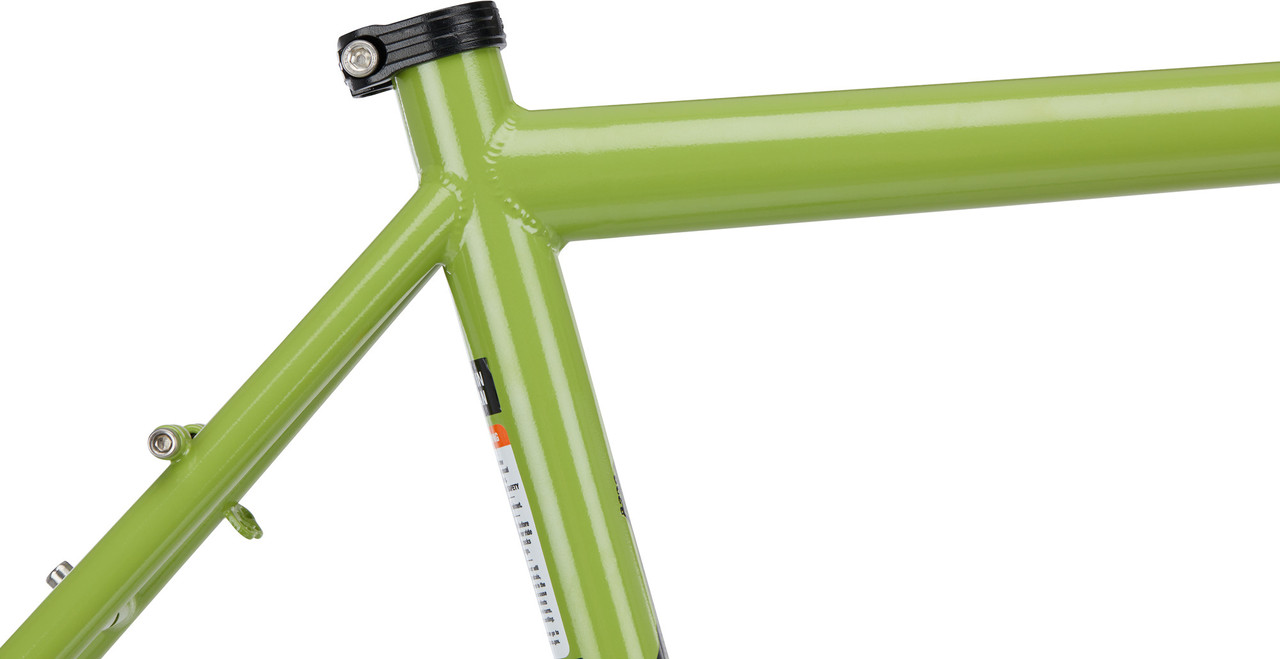

  • 1 x Surly Disc Trucker seatpost clamp

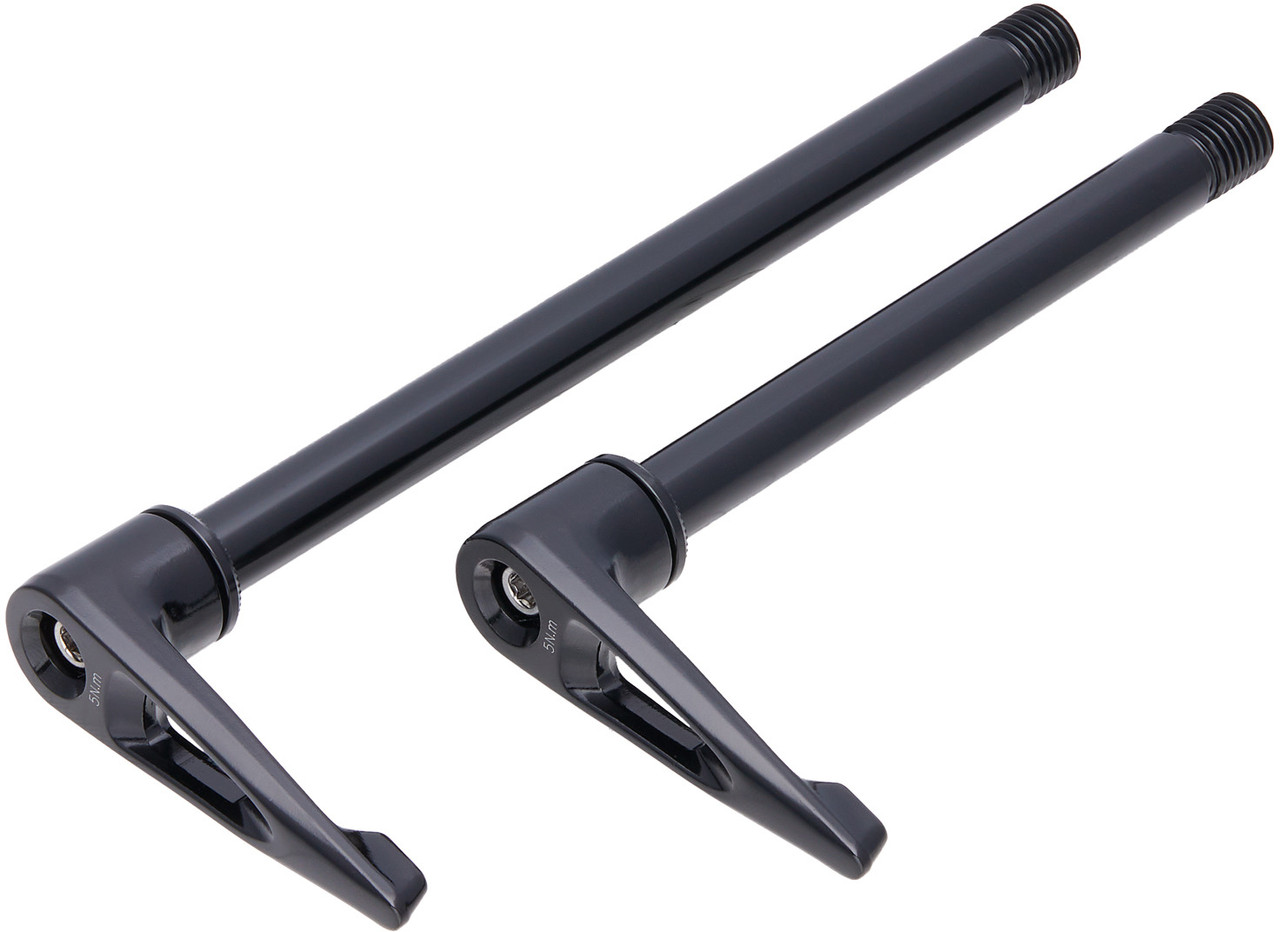

  • 1 x Surly rear thru-axle
  • 1 x Surly front thru-axle
