BikeYoke Bartender Stem

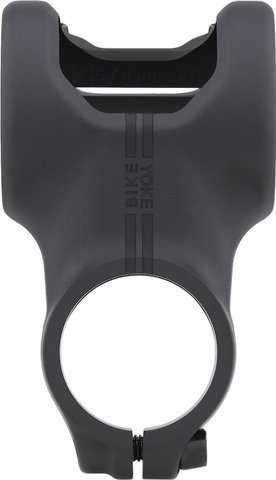

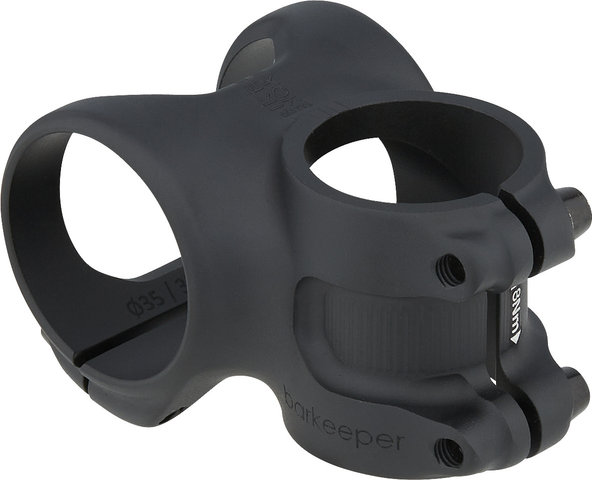

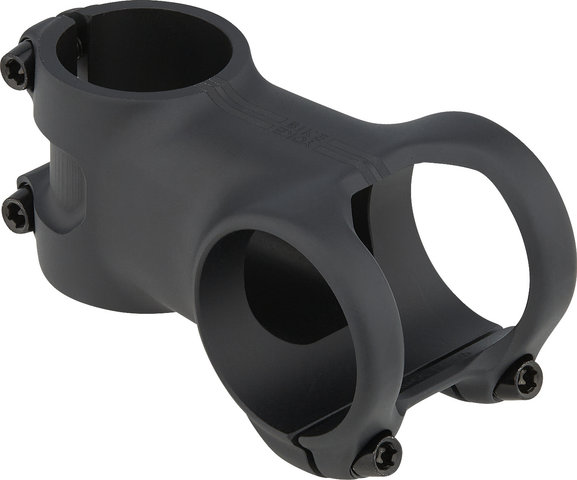

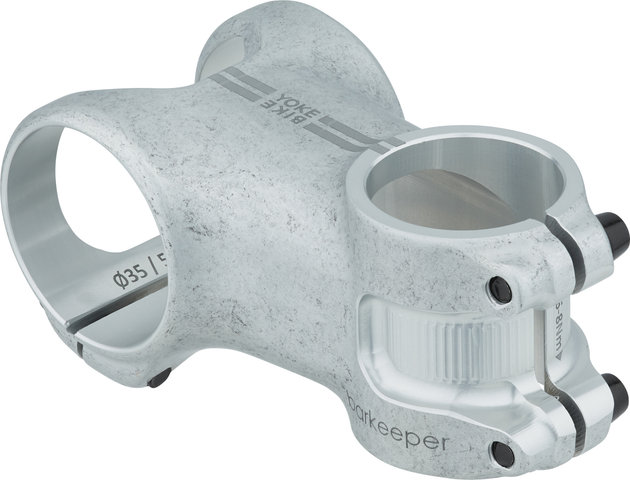

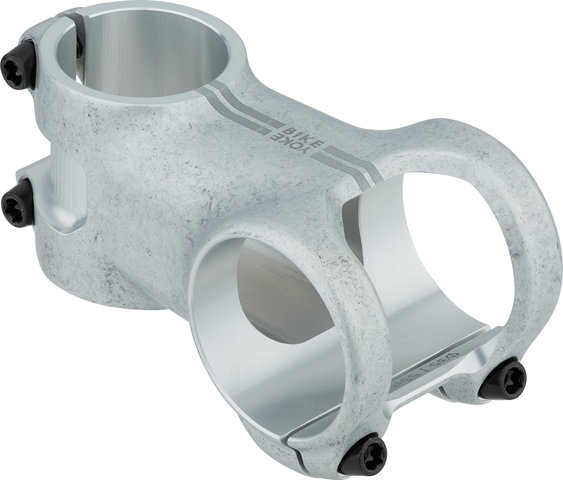

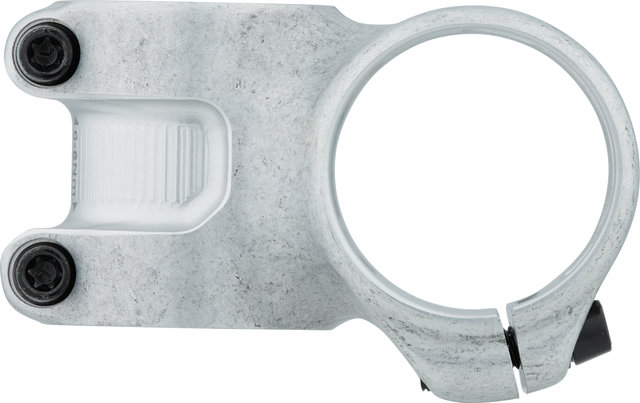

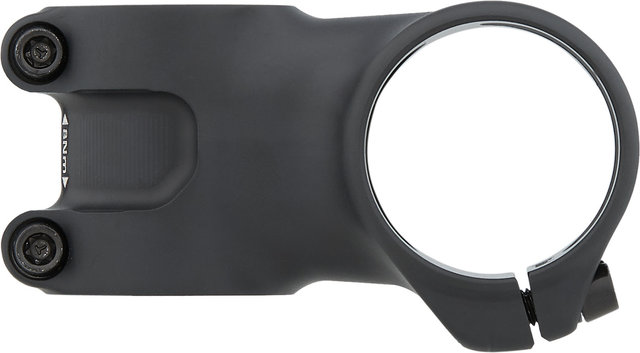

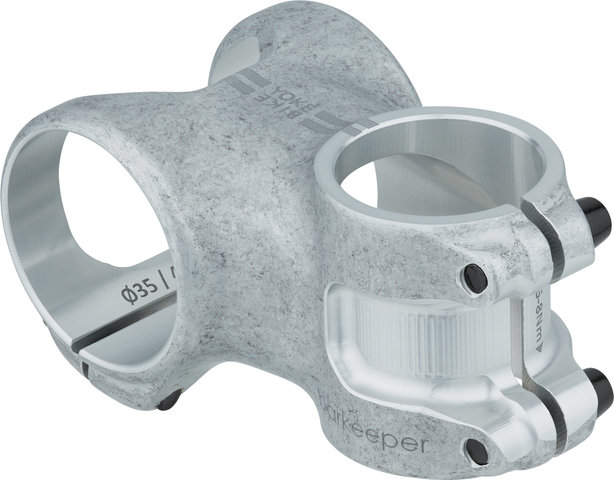

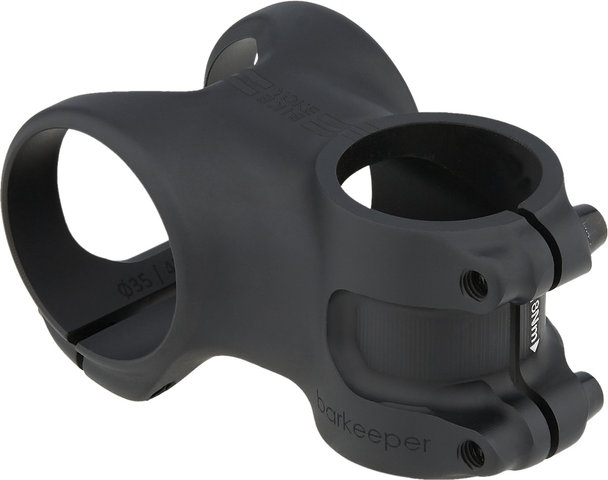

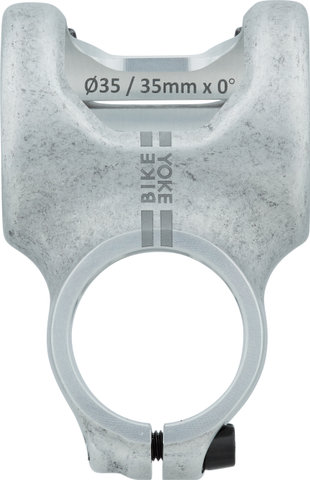

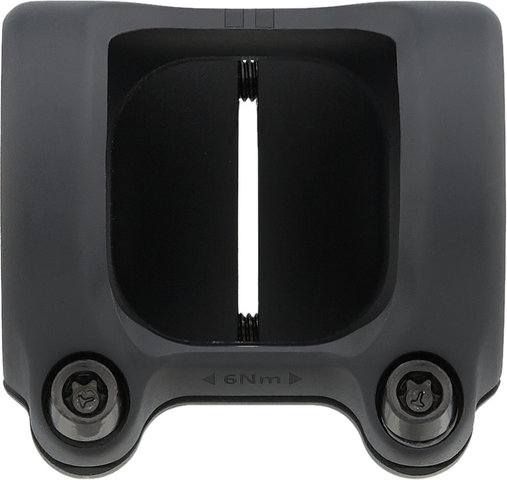

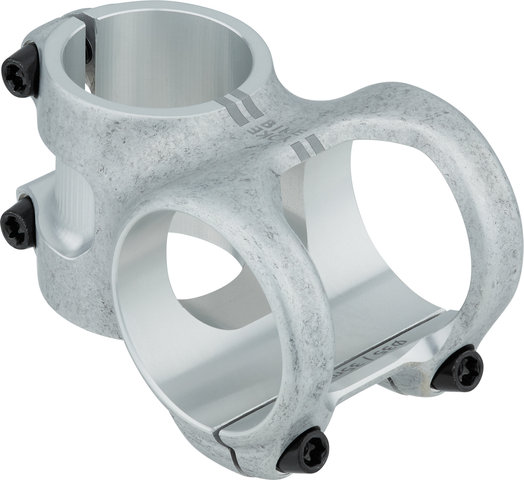

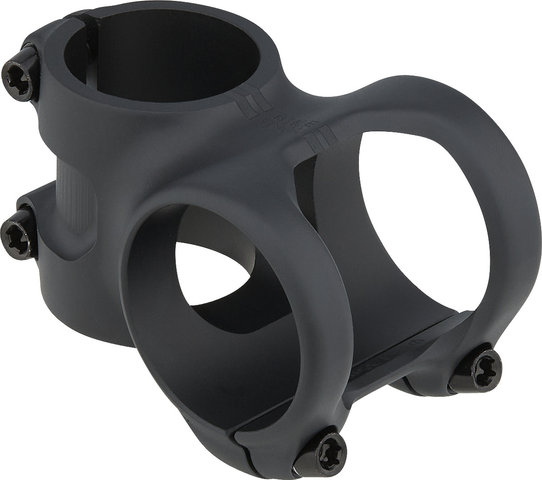

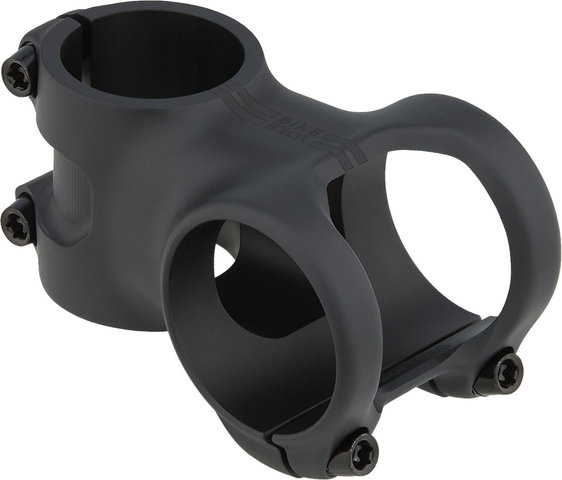

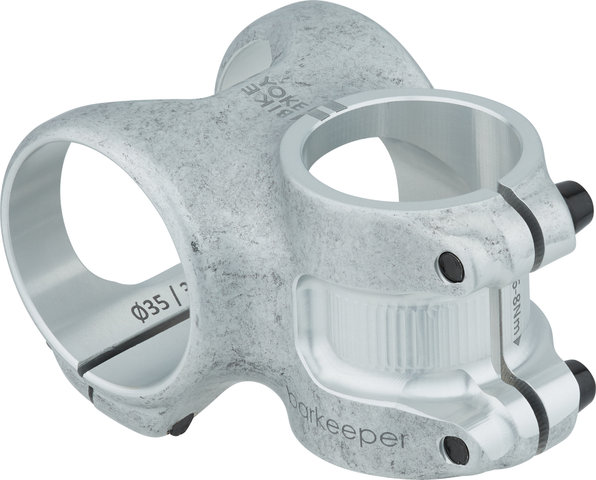

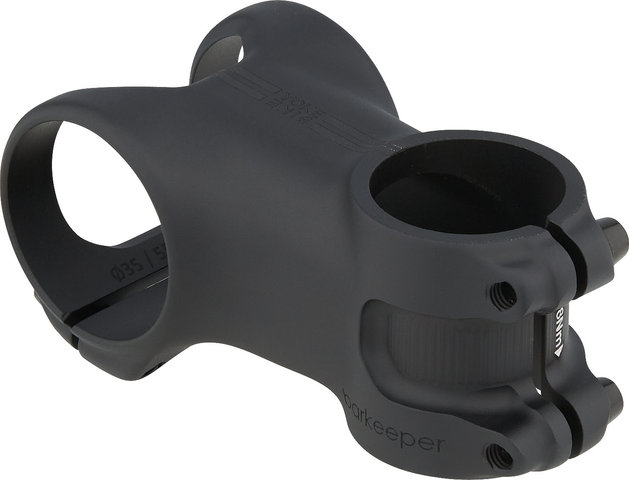

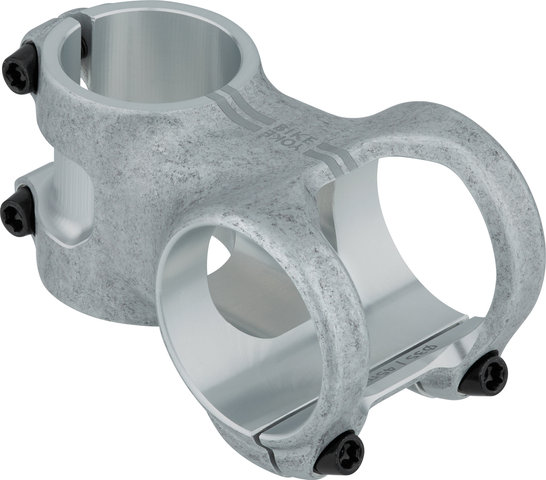

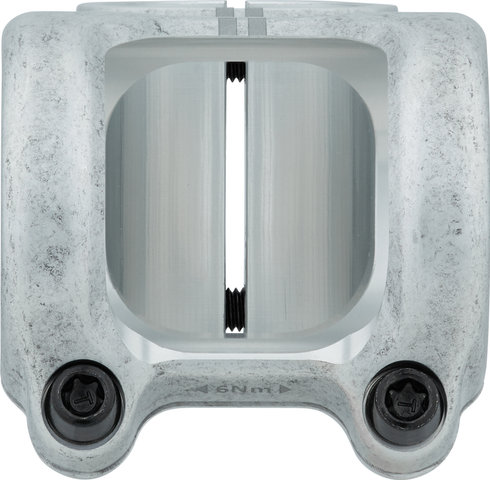

The BikeYoke Barkeeper stem with one-piece design can take a beating

The Barkeeper stem by BikeYoke is a one-piece Ahead stem that scores with careful workmanship. By dispensing with a separate clamping plate, it is extremely light and stable.

Specifications:

Application:

All Mountain, Enduro

Design:

Ahead

Steerer Clamp:

1 1/8"

Stack Height (steerer tube):

40 mm

Handlebar Clamp:

35 mm

Clamping Width (handlebars):

50 mm

Lengths:

35 mm, 45 mm, 55 mm

Angle:

0°

Technical Information:

Material:

aluminium (7075)

Bolt Material:

steel

Approved For:

Handlebar Width:

800 mm

Compatibility:

tested by BikeYoke:

• Hope Carbon handlebars, 800 mm, 20 mm rise
• OneUp Components Carbon handlebars, 800 mm, 20 mm rise
• Race Face SixC handlebars, 800 mm, 20 mm rise
• Race Face SixC handlebars, 800 mm, 35 mm rise

Note from the manufacturer:

Due to the one-piece design, the Barkeeper stem is not compatible with all handlebar types. Since not only its rise, but also the shape of the bends determine the suitability, a generally valid statement is not possible. BikeYoke assume that most handlebars with up to 30 mm rise will fit. The instructions in the installation manual must be observed.

Features:

• one-piece design for low weight and great robustness
• 3D-forged and CNC machined
• surface compacted with shot peening
• multi-stage heat treated
• ASTM 5: suitable for use in extreme terrain
• laser engraved and anodised

Manufacturer Number:

BARK

Contents:

• 1 x BikeYoke Barkeeper stem
• 4 x stem bolts
• 4 x washers
• 2 x bolts

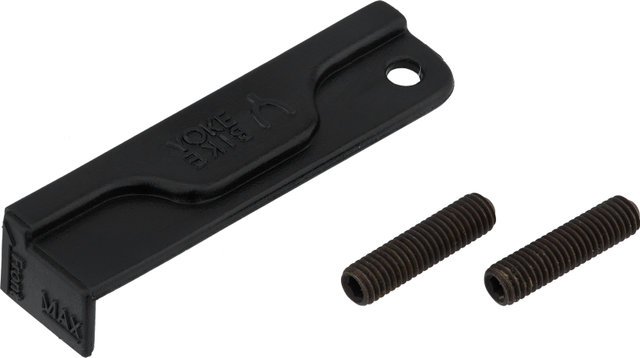

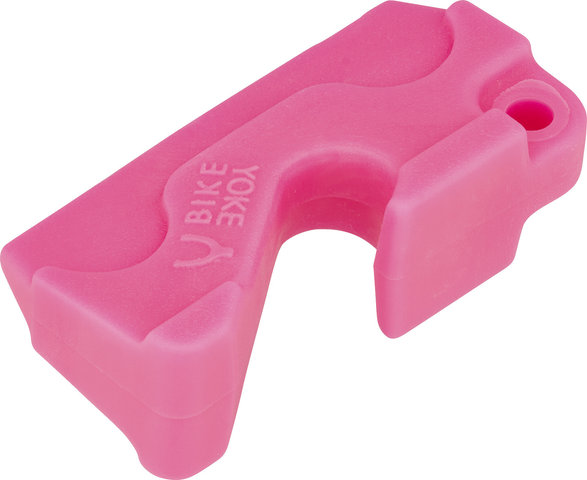

• 1 x installation tool

Order Together:

Optional accessories:

• Bartender Titan Bolts

• black/0°/35 mm: 86 g
• black/0°/45 mm: 96 g
• black/0°/55 mm: 112 g
