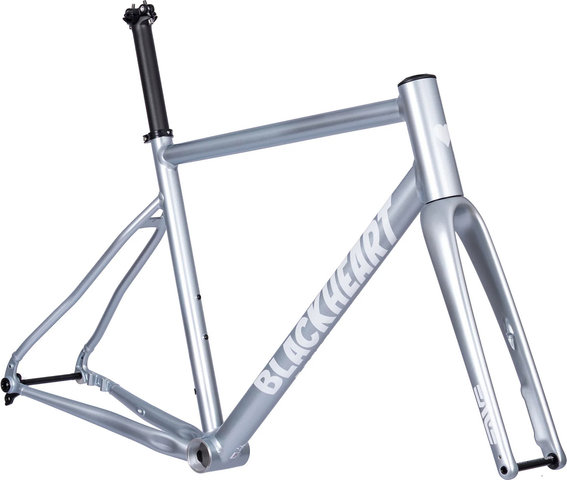

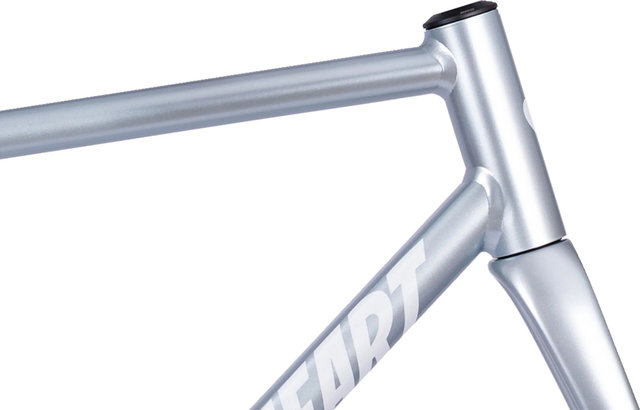

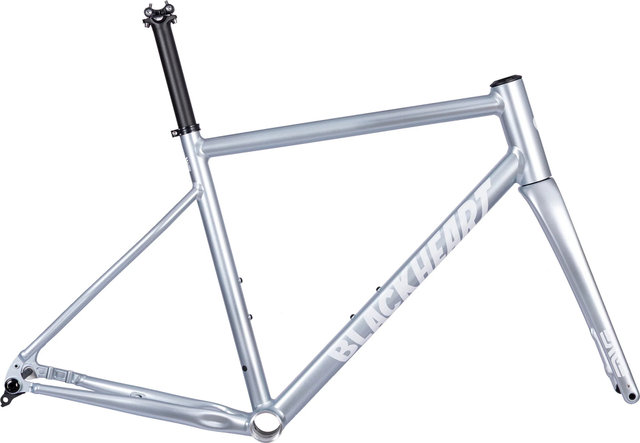

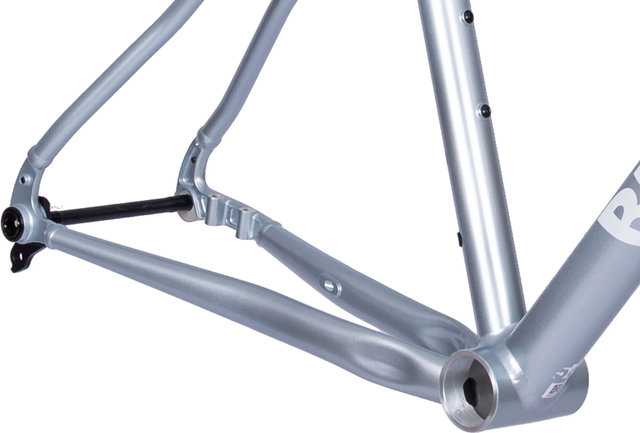

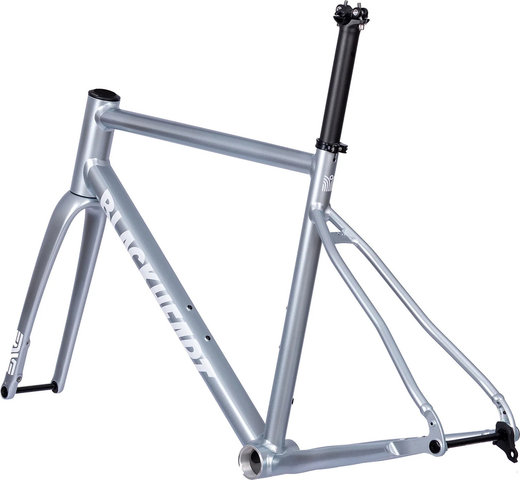

Blackheart Road Plus AL frame kit

Road Plus AL frame kit by Blackheart – Perfect for Road Cycling Enthusiasts

The Road Plus AL frame kit from Blackheart is designed specifically for road cycling, offering versatility for both women's and men's bikes. Crafted from lightweight aluminum, this frame features a carbon fork with a maximum length of 380 mm, ensuring responsive handling and comfort on long rides. It supports a tapered steerer tube from 1 1/8" to 1.5" and accommodates disc brakes with a flat mount for enhanced stopping power. With compatibility for a 1x or 2x chainring setup up to 36-52T, you can customize your gearing to match your riding style. The frame fits 28" wheels with a maximum tire size of 34-622 at the front and 42-622 at the rear, providing extra clearance for wider tires. It comes with a T47 bottom bracket standard and supports 12 x 100 mm and 12 x 142 mm wheel standards for modern thru-axle setups. The seatpost diameter is 31.6 mm, and the bolt-type seat clamp ensures secure saddle positioning. This frame kit is ideal for riders looking to build a reliable and adaptable road bike that balances performance and comfort.

lunar frost | 28" | 1 1/8" - 1,5" tapered | 47 mm | 0 mm | M:

Wheel size:

28"

Setback:

0 mm

lunar frost | 28" | 1 1/8" - 1,5" tapered | 47 mm | 0 mm | L:

Wheel size:

28"

Setback:

0 mm

lunar frost | 28" | 1 1/8" - 1,5" tapered | 47 mm | 0 mm | XL:

Wheel size:

28"

Setback:

0 mm

lunar frost | 28" | 1 1/8" - 1,5" tapered | 47 mm | 0 mm | XXL:

Wheel size:

28"

Setback:

0 mm

lunar frost | 28" | 1 1/8" - 1,5" tapered | 47 mm | 0 mm | XXXL:

Setback:

0 mm

Wheel size:

28"

lunar frost | 28" | 1 1/8" - 1,5" tapered | 51 mm | 0 mm | XXS:

Wheel size:

28"

Setback:

0 mm

lunar frost | 28" | 1 1/8" - 1,5" tapered | 51 mm | 0 mm | XS:

Wheel size:

28"

Setback:

0 mm

lunar frost | 28" | 1 1/8" - 1,5" tapered | 51 mm | 0 mm | S:

Wheel size:

28"

Setback:

0 mm

lunar frost | 28" | 1 1/8" - 1,5" tapered | 47 mm | 0 mm | M:

Steerer Tube:

1 1/8" - 1,5" tapered

Fork Offset:

47 mm

lunar frost | 28" | 1 1/8" - 1,5" tapered | 47 mm | 0 mm | L:

Fork Offset:

47 mm

Steerer Tube:

1 1/8" - 1,5" tapered

lunar frost | 28" | 1 1/8" - 1,5" tapered | 47 mm | 0 mm | XL:

Steerer Tube:

1 1/8" - 1,5" tapered

Fork Offset:

47 mm

lunar frost | 28" | 1 1/8" - 1,5" tapered | 47 mm | 0 mm | XXL:

Steerer Tube:

1 1/8" - 1,5" tapered

Fork Offset:

47 mm

lunar frost | 28" | 1 1/8" - 1,5" tapered | 47 mm | 0 mm | XXXL:

Steerer Tube:

1 1/8" - 1,5" tapered

Fork Offset:

47 mm

lunar frost | 28" | 1 1/8" - 1,5" tapered | 51 mm | 0 mm | XXS:

Steerer Tube:

1 1/8" - 1,5" tapered

Fork Offset:

51 mm

lunar frost | 28" | 1 1/8" - 1,5" tapered | 51 mm | 0 mm | XS:

Steerer Tube:

1 1/8" - 1,5" tapered

Fork Offset:

51 mm

lunar frost | 28" | 1 1/8" - 1,5" tapered | 51 mm | 0 mm | S:

Steerer Tube:

1 1/8" - 1,5" tapered

Fork Offset:

51 mm

• Lightweight and durable Road Plus AL frame kit designed for versatile road cycling with disc brakes and tapered steerer compatibility
• Crafted from aluminum frame and carbon fork for optimal balance of stiffness and comfort on long rides
• Supports wide tire clearance up to 700x42C rear and 700x34C front for enhanced grip and stability on varied road surfaces
• Equipped with T47 bottom bracket standard and flat mount disc brake compatibility for modern drivetrain and braking setups
• Compatible with 1x or 2x chainring configurations and standard 12x100mm front and 12x142mm rear thru-axle wheels for performance and reliability

lunar frost | 28" | 1 1/8" - 1,5" tapered | 47 mm | 0 mm | M:

Head Tube Angle:

72

Stack:

567 mm

Standover Height:

750 mm

Wheelbase:

1009 mm

Reach:

387 mm

Seat Tube Angle:

74

BB Drop:

72 mm

Frame Size:

54 cm

Head Tube Length:

155 mm

Seat Tube Length:

500 mm

Top Tube Length:

545 mm

Effective Top Tube Length:

545 mm

lunar frost | 28" | 1 1/8" - 1,5" tapered | 47 mm | 0 mm | L:

Head Tube Angle:

72

Stack:

581 mm

Standover Height:

775 mm

Wheelbase:

1020 mm

Reach:

394 mm

Seat Tube Angle:

73.5

BB Drop:

71 mm

Frame Size:

56 cm

Head Tube Length:

170 mm

Seat Tube Length:

515 mm

Top Tube Length:

555 mm

Effective Top Tube Length:

555 mm

lunar frost | 28" | 1 1/8" - 1,5" tapered | 47 mm | 0 mm | XL:

Head Tube Angle:

72.5

Stack:

597 mm

Standover Height:

800 mm

Wheelbase:

1025 mm

Reach:

399 mm

Seat Tube Angle:

73.5

BB Drop:

71 mm

Frame Size:

58 cm

Top Tube Length:

565 mm

Seat Tube Length:

530 mm

Head Tube Length:

185 mm

Effective Top Tube Length:

565 mm

lunar frost | 28" | 1 1/8" - 1,5" tapered | 47 mm | 0 mm | XXL:

Head Tube Angle:

72.5

Stack:

610 mm

Standover Height:

825 mm

Wheelbase:

1040 mm

Reach:

409 mm

Seat Tube Angle:

73.5

BB Drop:

70 mm

Frame Size:

60 cm

Top Tube Length:

585 mm

Head Tube Length:

200 mm

Seat Tube Length:

545 mm

Effective Top Tube Length:

585 mm

lunar frost | 28" | 1 1/8" - 1,5" tapered | 47 mm | 0 mm | XXXL:

Head Tube Angle:

72.5

Stack:

629 mm

Standover Height:

850 mm

Wheelbase:

1055 mm

Reach:

419 mm

Seat Tube Angle:

73

BB Drop:

70 mm

Frame Size:

62 cm

Head Tube Length:

220 mm

Seat Tube Length:

565 mm

Top Tube Length:

600 mm

Effective Top Tube Length:

600 mm

lunar frost | 28" | 1 1/8" - 1,5" tapered | 51 mm | 0 mm | XXS:

Head Tube Angle:

71

Stack:

530 mm

Standover Height:

675 mm

Wheelbase:

1000 mm

Reach:

378 mm

Seat Tube Angle:

75.5

BB Drop:

73 mm

Frame Size:

46 cm

Top Tube Length:

510 mm

Head Tube Length:

120 mm

Seat Tube Length:

440 mm

Effective Top Tube Length:

510 mm

lunar frost | 28" | 1 1/8" - 1,5" tapered | 51 mm | 0 mm | XS:

Head Tube Angle:

71.5

Stack:

541 mm

Standover Height:

700 mm

Wheelbase:

1001 mm

Reach:

380 mm

Seat Tube Angle:

75

BB Drop:

73 mm

Head Tube Length:

130 mm

Seat Tube Length:

460 mm

Frame Size:

49 cm

Top Tube Length:

520 mm

Effective Top Tube Length:

520 mm

lunar frost | 28" | 1 1/8" - 1,5" tapered | 51 mm | 0 mm | S:

Head Tube Angle:

71.5

Stack:

550 mm

Standover Height:

725 mm

Wheelbase:

1007 mm

Reach:

383 mm

Seat Tube Angle:

74.5

BB Drop:

72 mm

Frame Size:

52 cm

Head Tube Length:

140 mm

Seat Tube Length:

480 mm

Top Tube Length:

530 mm

Effective Top Tube Length:

530 mm

• lunar frost | 28" | 1 1/8" - 1,5" tapered | 47 mm | 0 mm | M: 26BHPALF54
• lunar frost | 28" | 1 1/8" - 1,5" tapered | 47 mm | 0 mm | L: 26BHPALF56
• lunar frost | 28" | 1 1/8" - 1,5" tapered | 47 mm | 0 mm | XL: 26BHPALF58
• lunar frost | 28" | 1 1/8" - 1,5" tapered | 47 mm | 0 mm | XXL: 26BHPALF60
• lunar frost | 28" | 1 1/8" - 1,5" tapered | 47 mm | 0 mm | XXXL: 26BHPALF62
• lunar frost | 28" | 1 1/8" - 1,5" tapered | 51 mm | 0 mm | XXS: 26BHPALF46
• lunar frost | 28" | 1 1/8" - 1,5" tapered | 51 mm | 0 mm | XS: 26BHPALF49
• lunar frost | 28" | 1 1/8" - 1,5" tapered | 51 mm | 0 mm | S: 26BHPALF52

• 1 x Blackheart Road Plus AL Frame


• 1 x ENVE All Road In-Route Carbon Fork


• 1 x FSA Headset


• 1 x Blackheart Carbon SL Seatpost


• 1 x Blackheart Seat Clamp


• 2 x Thru Axles


• 1 x UDH Derailleur Hanger
