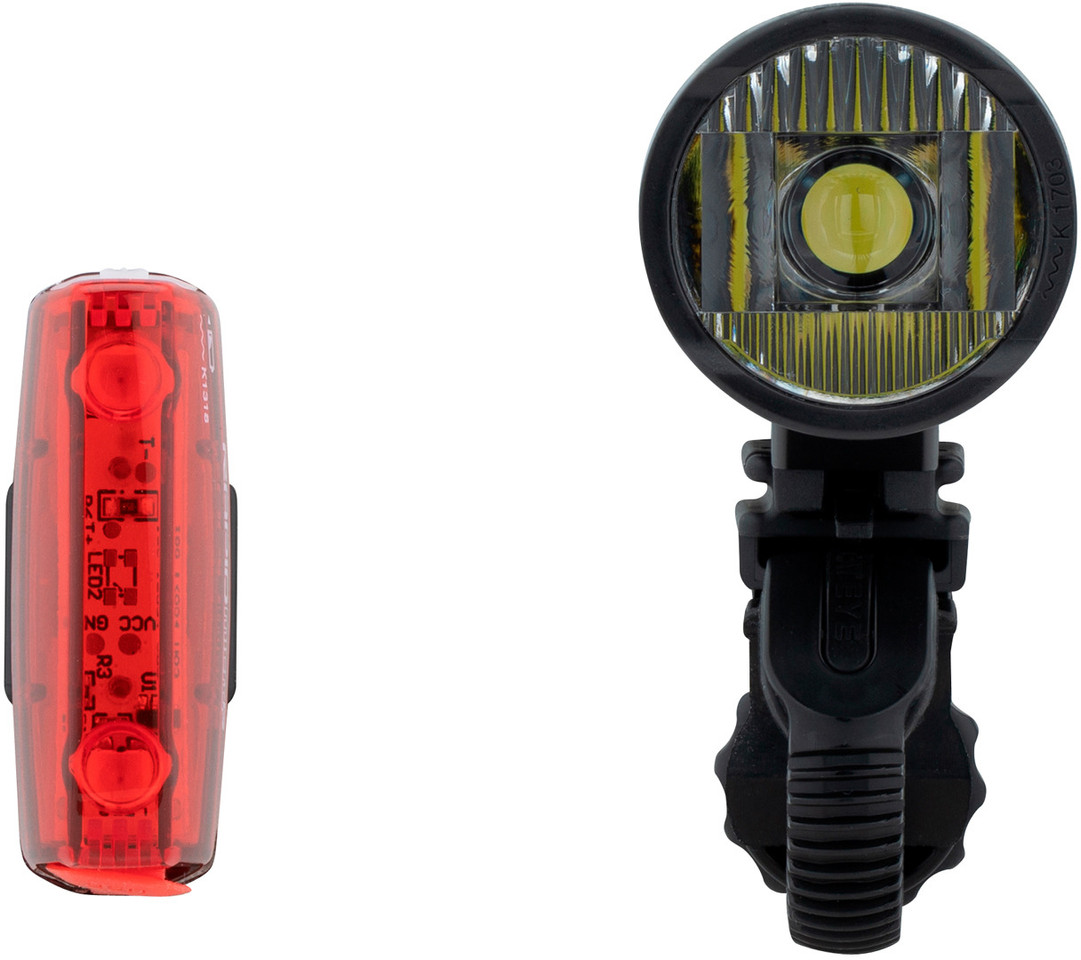

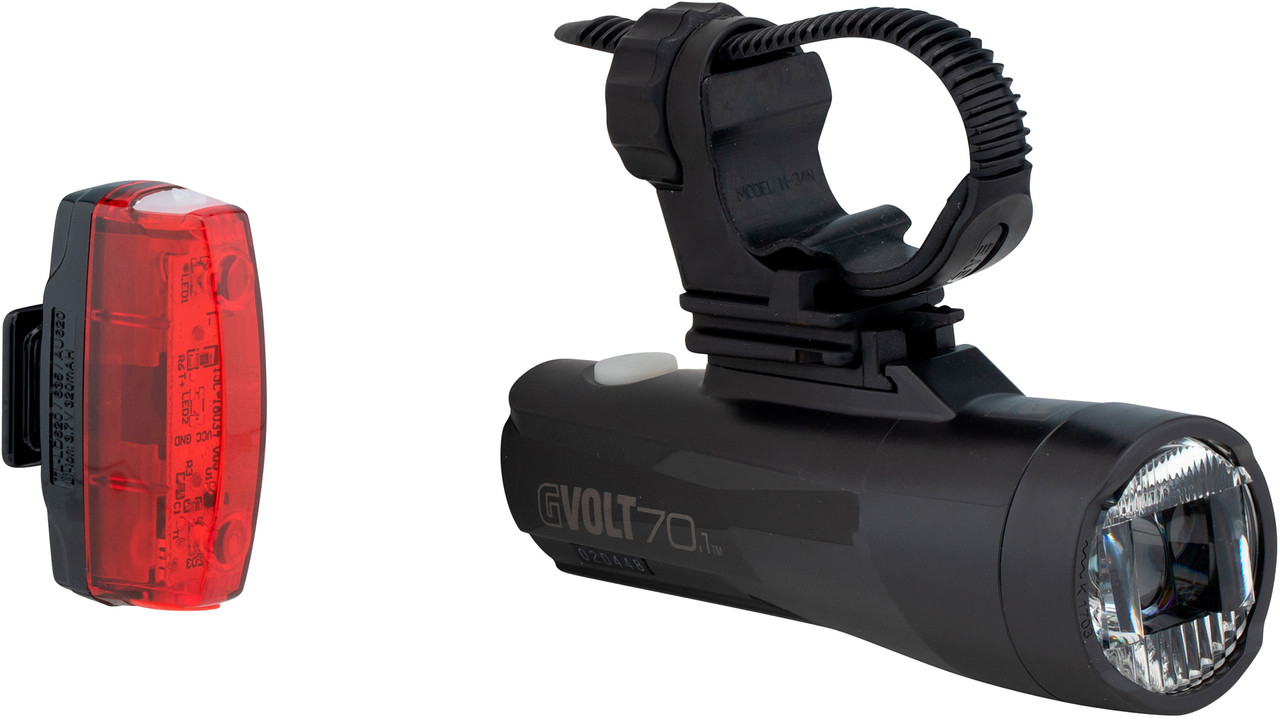

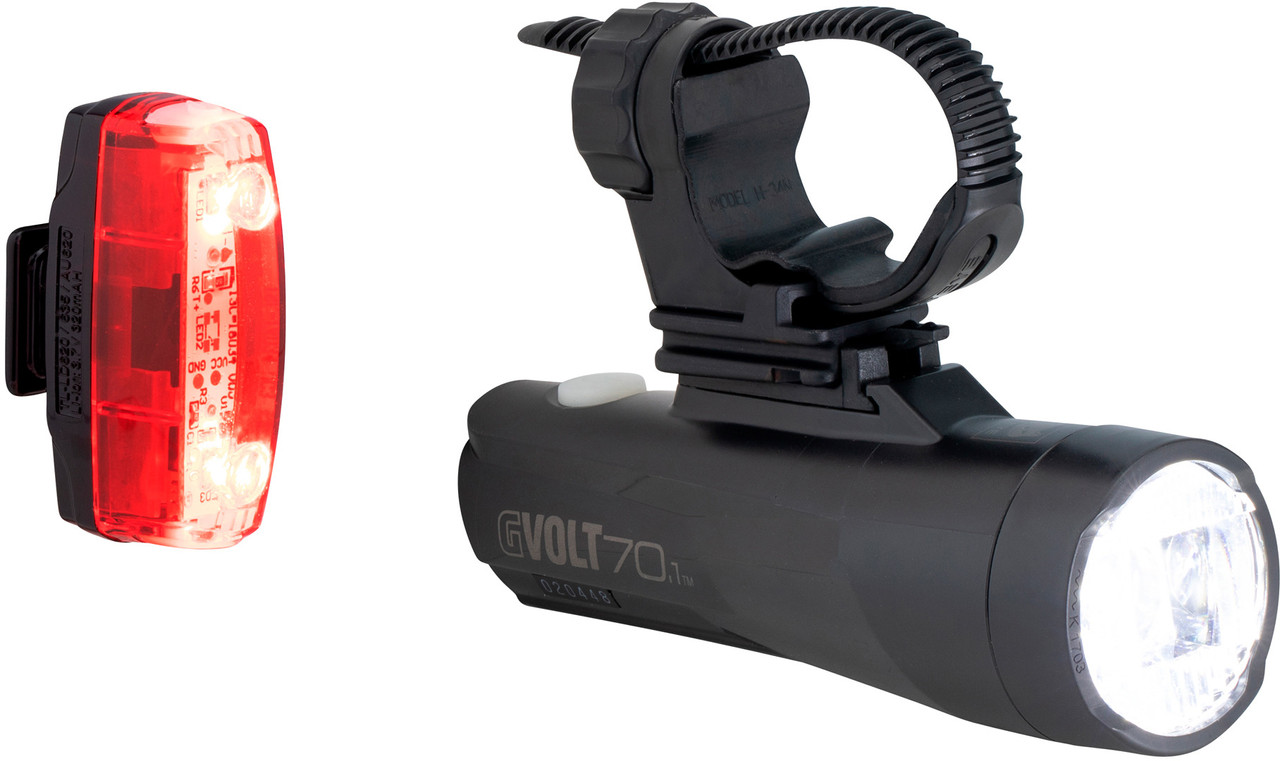

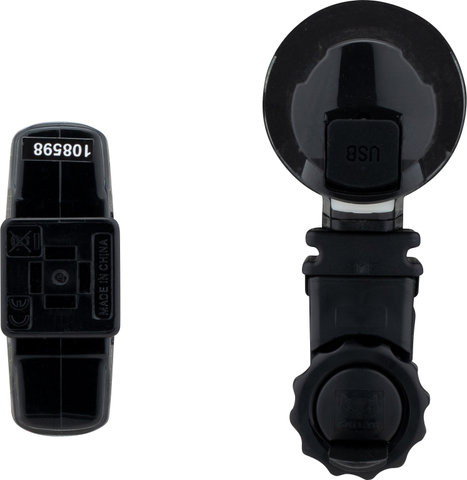

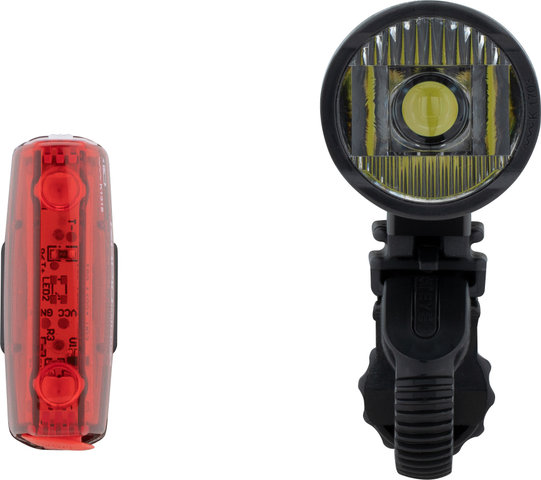

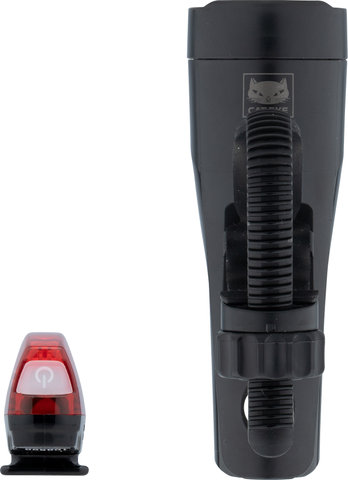

CATEYE GVolt 70.1 + Rapid Micro G Lighting Set - StVZO Approved

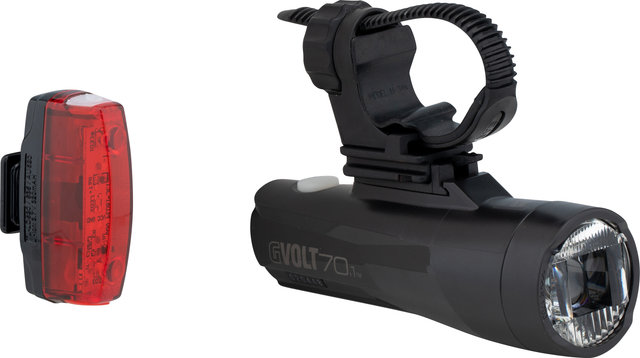

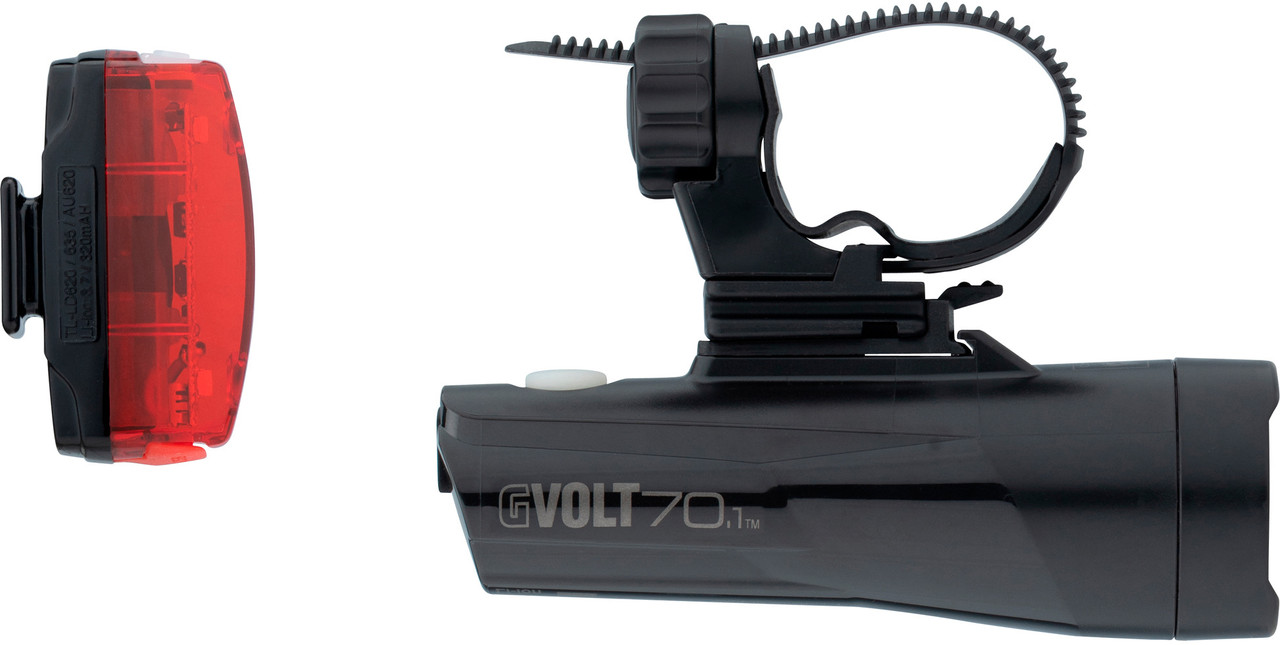

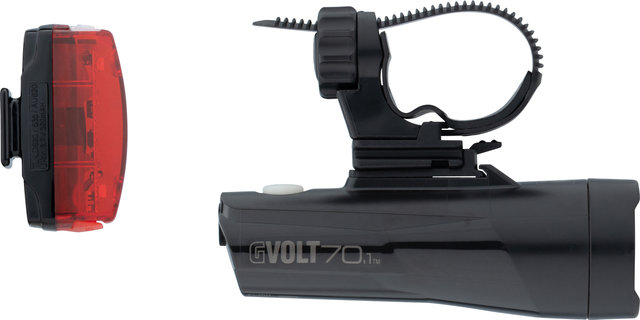

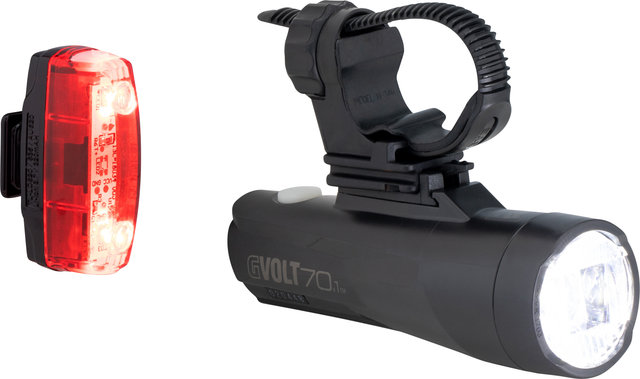

The GVolt 70.1 Rapid Micro G lighting set from CATEYE includes the impressively luminous GVolt 70.1 LED front light, which features a broad field of illumination as well as flexible mounting options. It also includes the compact TL-LD620G Rapid Micro G LED rear light, which is ready to use in all cycling and sports-related activities.

Information regarding the return of batteries and electrical equipment:

Information on the return and disposal of used batteries and electrical equipment can be found here.

Specifications:

GVolt 70.1:

Type:

front light (white)

Mount:

FlexTight™ H-34N / GoPro adapter (with matching out-front bracket, not included)

Light Source:

LED (1)

Brightness:

70 lux

Burn Time:

4 - 25 h

Power Source:

battery (Li-ion), integrated

TL-LD620G Rapid Micro G:

Type:

rear light (red)

Mount:

SP14 seatpost mount

Light Source:

LED (2)

Burn Time:

5 h

Power Source:

battery (Li-ion), integrated

Technical Information:

GVolt 70.1:

Illumination Modes:

3 (High, Middle, Low)

Power Indicator:

yes

Charge Time:

5 h

Battery Type:

Li-Ion battery, 3.6 V, 3400 mAh

Dimensions (H x W x D):

46.5 x 36 x 106.5 mm

Material:

Composite material

TL-LD620G Rapid Micro G:

Power Indicator:

yes

Charge Time:

2 h

Dimensions (H x W x D):

52 x 22 x 32 mm

Approved For:

Street Use in Germany:

yes, for bikes according to §67 StVZO

Check Number:

K~~1703 (front light), K~~1318 (rear light)

Features:

Front Light:

• can be mounted both under the handlebars and via adapter to out-front mount (not included)
• broad illumination of ambient surroundings
• rechargeable via Micro-USB
• mode memory function stores the last used mode
• can be recharged approx. 300 times before starting capacity drops below 70%

Rear Light:

• compact and lightweight housing
• 180° visibility
• lithium-ion battery rechargeable via Micro-USB
• convenient seatpost mount

Manufacturer Number:

HL-EL552GRC + TL-LD620G

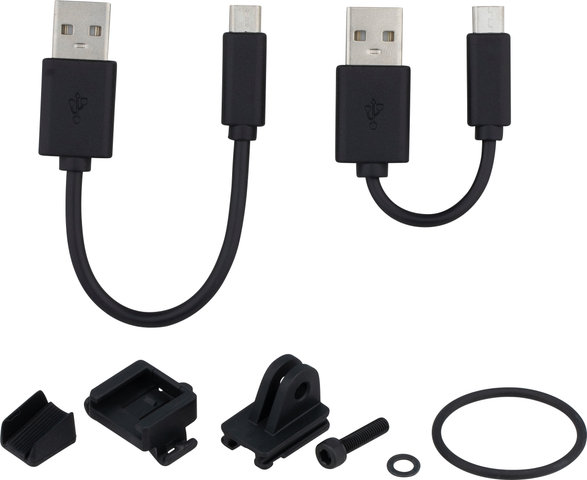

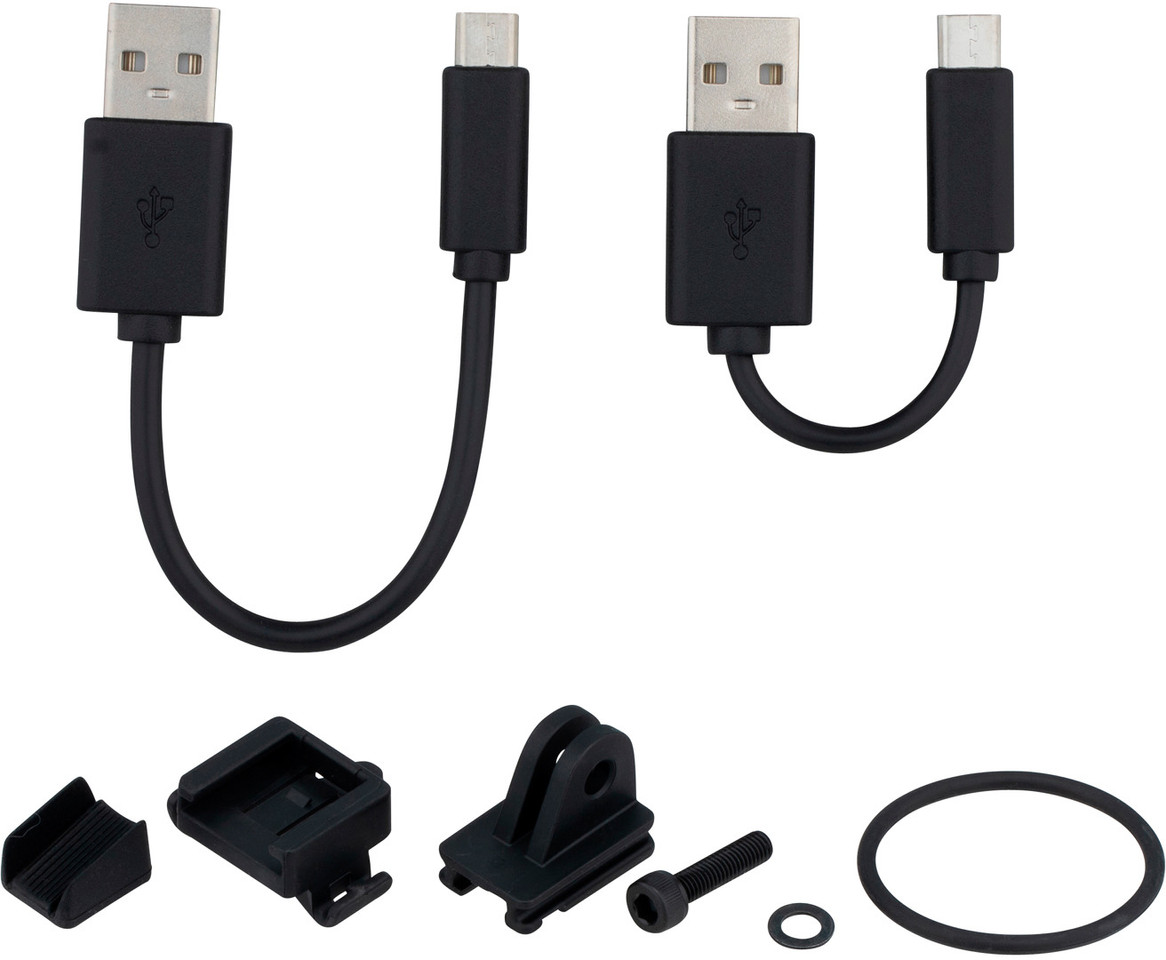

Contents:

• 1 x CATEYE GVolt 70.1 LED front light
• 1 x CATEYE TL-LD620G Rapid Micro G LED rear light
• 1 x CATEYE FlexTight H-34N mount
• 1 x CATEYE GP adapter
• 1 x CATEYE SP-14-R saddle rail mount
• 2 x USB charger cable

Order Together:

• suitable out-front mount for GP-adapter, e.g. CATEYE OF-200, K-Edge Combo, 3min19sec handlebar mount
