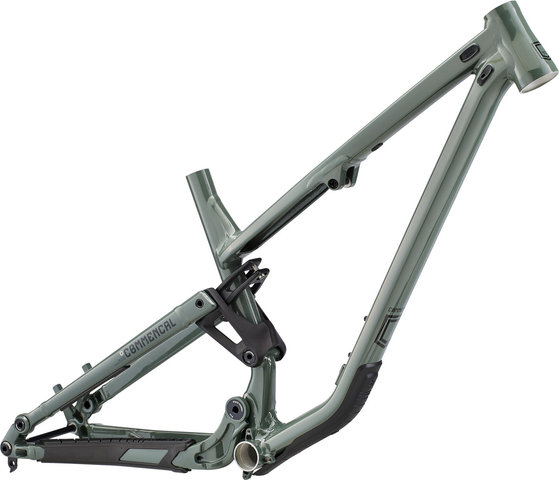

COMMENCAL Meta TR 29" Frame Kit with Fox Float X Schock Model 2022

The COMMENCAL Meta TR frame kit for 29" is equipped with a Flip Chip and a Fox Float X shock, making it the right basis for a playful, dynamic trail bike. With the help of the Flip Chip on the shock mount, you can adjust the geometry to the road ahead, your preferences and your riding style in no time at all. The Float X Factory shock is tuned to the frame and offers you low-speed compression adjustment and a 2-position lever for quick adjustment on the go. Playful kinematics make the Meta TR dynamic, while double-row bearings on the frame prevent loss of rigidity at the joints. The result is a bike that delivers high performance both uphill and downhill, and won't let you down on difficult passages.

Note: The rear shock is not pre-assembled.

Specifications:

Application:

All Mountain, Enduro

Wheel Size:

29"

Travel:

140 mm

Size:

S, M, L, XL

Front Triangle Material:

aluminium (6066)

Rear Triangle Material:

aluminium (6066)

Linkage Design:

supported single hinge

Rear Shock:

Fox Racing Shox Float X EVOL LV 2POS Factory

Technical Information:

Wheel Standard:

12 x 148 mm (Boost)

Axle Type:

12 mm thru-axle

Seatpost (Ø):

34.9 mm

Seatpost Clamp(Ø):

38.5 mm

Head Tube:

1 1/8" - 1.5" tapered

Headset:

ZS44 - ZS56 (top to bottom)

Recommended Fork Axle to Crown:

551 mm

Recommended Fork Travel:

150 - 160 mm

Bottom Bracket Standard:

Press Fit BB92

Shell Width:

92 mm

Chainstay Guide:

ISCG 05

Brake Mount:

disc PM8 (direct mount 200 mm)

Front Derailleur Mount:

not possible

Rear Shock Eye-to-Eye Measurement:

210 mm

Rear Shock Stroke:

55 mm

Rear Shock Bushing Width:

20 mm x 10 mm / 20 mm x 10 mm

Bottle Cage Mounts:

1

Approved For:

Rotor Size (max.):

220 mm

Tyre Size (max.):

65 mm (width)

Chainrings:

1x

Fork Axle to Crown Size (max.):

571 mm

Features:

• with flip chip on the damper mount to adjust the geometry
• dynamic linkage design
• designed for rather short fork offset
• double butted frame tubes
• rather steep seat tube angle for a good uphill riding position
• enduro bearings for high rigidity and performance

Geometry:

(based on a fork axle to crown length of 561 mm)
S:

Recommended Height:

160 - 171 cm

Stack:

626 mm (low), 623 mm (high)

Reach:

440 mm (low), 444 mm (high)

Seat Tube Length:

380 mm

Effective Top Tube Length:

566 mm (low), 565 mm (high)

Head Tube Length:

110 mm

Chainstay Length:

435 mm (low), 434 mm (high)

Wheelbase:

1203 mm (low), 1202 mm (high)

BB Drop:

33 mm (low), 29 mm (high)

Seat Tube Angle:

78.6° (low), 79° (high)

Head Tube Angle:

64.5° (low), 65° (high)

M:

Recommended Height:

170 - 181 cm

Stack:

630 mm (low), 627 mm (high)

Reach:

465 mm (low), 469 mm (high)

Seat Tube Length:

420 mm

Effective Top Tube Length:

592 mm (low), 591 mm (high)

Head Tube Length:

115 mm

Chainstay Length:

435 mm (low), 434 mm (high)

Wheelbase:

1230 mm (low), 1229 mm (high)

BB Drop:

33 mm (low), 29 mm (high)

Seat Tube Angle:

78.6° (low), 79° (high)

Head Tube Angle:

64.5° (low), 65° (high)

L:

Recommended Height:

180 - 191 cm

Stack:

634 mm (low), 631 mm (high)

Reach:

490 mm (low), 494 mm (high)

Seat Tube Length:

440 mm

Effective Top Tube Length:

618 mm (low), 617 mm (high)

Head Tube Length:

120 mm

Chainstay Length:

435 mm (low), 434 mm (high)

Wheelbase:

1257 mm (low), 1256 mm (high)

BB Drop:

33 mm (low), 29 mm (high)

Seat Tube Angle:

78.6° (low), 79° (high)

Head Tube Angle:

64.5° (low), 65° (high)

XL:

Recommended Height:

190 - 203 cm

Stack:

638 mm (low), 635 mm (high)

Reach:

515 mm (low), 519 mm (high)

Seat Tube Length:

460 mm

Effective Top Tube Length:

644 mm (low), 643 mm (high)

Head Tube Length:

125 mm

Chainstay Length:

435 mm (low), 434 mm (high)

Wheelbase:

1284 mm (low), 1283 mm (high)

BB Drop:

33 mm (low), 29 mm (high)

Seat Tube Angle:

78.6° (low), 79° (high)

Head Tube Angle:

64.5° (low), 65° (high)

Manufacturer Number:

22CMETATR + 979-67-043

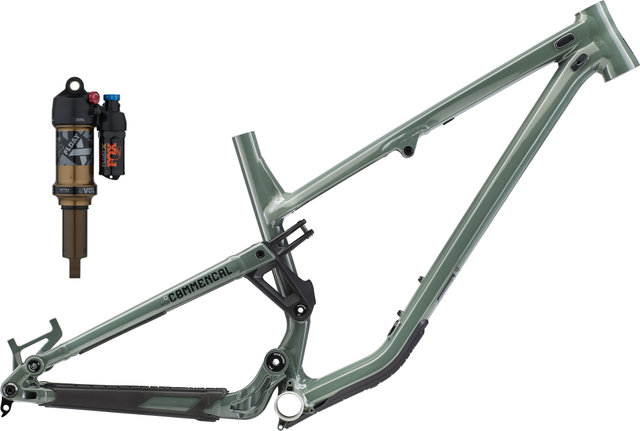

Contents:

• 1 x COMMENCAL Meta TR Race 29" frame
• 1 x Fox Racing Shox Float X rear schock
• 1 x COMMENCAL bushing set
