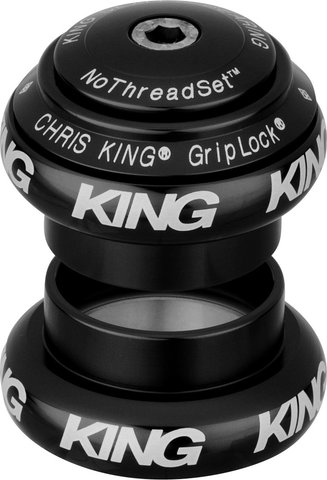

Chris King NoThreadSet GripLock EC34/28.6 - EC34/30 Headset

More than just a headset: the NoThreadSet™ Grip Lock™ Headset by Chris King

In terms of headset bearings, this headset serves as the essential point of reference. Honestly, it's probably the only headset you'll want to pry out of decommissioned frame to install onto a new one. The world-famous Aheadset isn't a cult favourite for nothing.

Use:
Designed for 1 1/8" upper and lower head tubes combined with standard 1 1/8" forks.

Specifications:

Upper Cup:

1 1/8"

Lower Cup:

1 1/8"

Steerer Tube:

1 1/8"

Design:

external cup (EC)

Technical Information:

Material:

Aluminium

Bearings:

high-end industrial bearings, double seals

Upper Insert Depth:

10.67 mm

Lower Insert Depth:

10.67 mm

Upper Stack Height:

17.7 mm

Lower Stack Height:

13.7 mm

Upper Outer Diameter:

34 mm

Lower Outer Diameter:

34 mm

Upper Inner Diameter:

28.6 mm

Lower Inner Diameter:

30 mm

Standardized Headset Identification System (S.H.I.S.):

In order to clarify and bring uniformity to a sea of headset standards, manufacturers Acros, Cane Creek, Hope, Race Face, Reset Racing and Ritchey have agreed upon using a shared nomenclature, which will likely include more participating companies in the future. This system takes into account a combination of frame and fork dimensions. Both the upper and lower part of the headset are marked by two alphanumeric identifiers. The first identifier indicates the type of headset (External Cup, Zero Stack, Integrated) and head tube diameter. The second identifier - separated from the first by a backslash - indicates the diameter of the steerer tube. When referring to a complete headset, the specifications of both upper and lower parts must be combined.

Nomenclature:

EC:

Bearings contained within cups that are located outside of the frame (external cup).

ZS:

Bearings contained within pressed-in cups where the cup and bearings rest inside the frame (zero stack).

IS:

Bearings that fit directly into a bonded or machined interface that is integrated into the frame (integrated).

Manufacturer's Guarantee:

Chris King offers a quality guarantee on production and material defects for headsets for a period of 10 years from date of purchase. Learn more about warranty terms and conditions here.

Manufacturer Number:

FB0044 (black)

Contents:

• 1 x Chris King upper headset cup, incl. stainless steel bearings
• 1 x Chris King lower headset cup incl. stainless steel bearings
• 1 x Chris King headset cap
• 1 x Chris King plastic ring
• 1 x Chris King GripLock bearing cap unit
• 1 x Chris King star nut with M6 x 30 bolt
• 1 x Chris King crown race
