Cinelli Fork

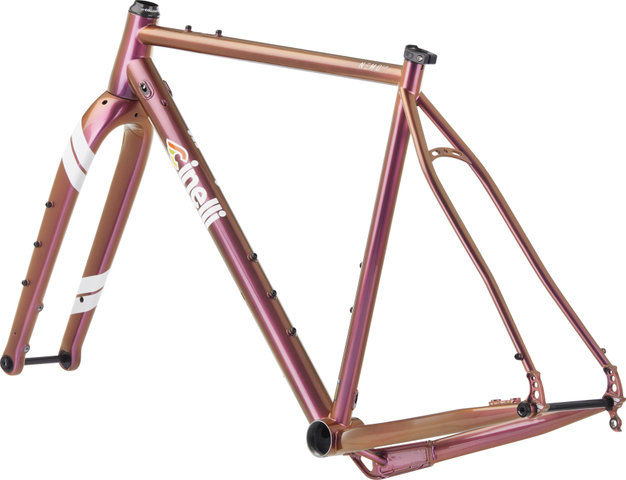

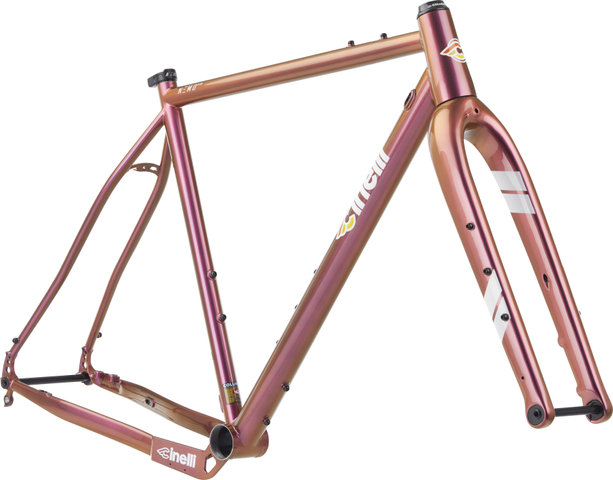

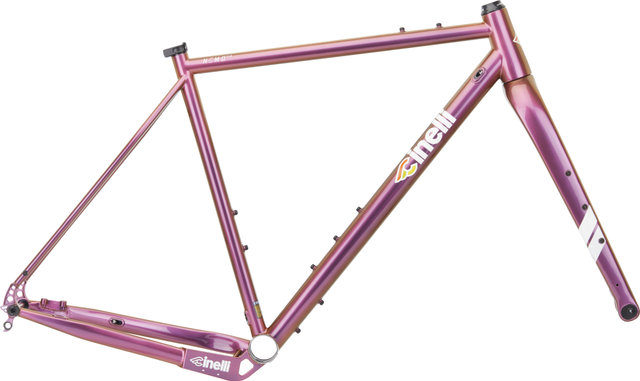

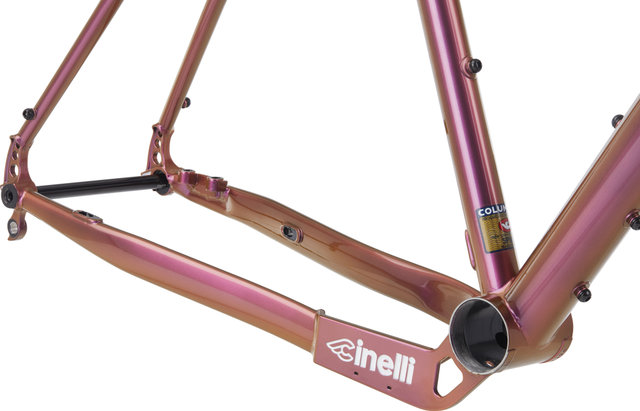

Discover the Cinelli Nemo TIG Gravel II Rigid Fork gravel bike frame kit, designed to push the limits of adventure and performance. Crafted with a durable steel frame, this frame is built to withstand the rigors of off-road riding while offering the smooth ride quality that steel is renowned for. The carbon fork not only reduces weight but also enhances steering precision and absorbs vibrations, ensuring a comfortable ride on any terrain. With the capability to accommodate up to 47-622 (700 x 47C) or 27,5 x 2,1" tires in both the front and rear, you're equipped to tackle a wide range of surfaces, from smooth tarmac to rugged gravel paths. This versatile gravel bike frame kit is engineered for both men and women, featuring a geometry that ensures a comfortable and efficient riding position for all riders. This frame kit supports disc brakes with a maximum disc brake size of 180 mm at the front and 160 mm at the rear, providing reliable stopping power in all weather conditions. The brake mounts are designed for flat mount disc brakes, the current standard for modern road and gravel bikes, offering a sleek and integrated appearance. The frame's housing width is set at 68 mm, and it utilizes the T47 bottom bracket standard, which combines the benefits of a large-diameter threaded bottom bracket with compatibility for a wide range of cranksets. Although not compatible with belt drives, this frame is ready for traditional chain drive systems, with a clamp mount for the front derailleur to accommodate various gearing setups. The frame is designed to work with wheels that follow the 12 x 100 mm standard in the front and 12 x 142 mm standard in the rear, compatible with most modern gravel and road wheelsets. Whether you're embarking on a long-distance gravel race, exploring new off-road trails, or enjoying a leisurely ride on country roads, this gravel bike frame kit offers the performance, durability, and comfort you need for your next adventure.
Specifications:
- Brake Type:
- disc
- Housing Width:
- 68 mm
- Wheel size:
- 27,5", 28"
- Application:
- Gravel
- Frame material:
- Steel
- Fork material:
- Carbon
- Gender:
- Women's, Men´s
Technical Information:
- Wheel Standard:
- 12 x 100 mm (Standard), 12 x 142 mm (Standard)
- Belt Compatibility:
- No
- Front Derailleur Mount:
- Clamp
- :
- 27,2 mm
- Brake Mount:
- Flat Mount
- :
- T47
Approved For:
- Max Tire Size Rear:
- 27,5 x 2,1", 47-622 (700 x 47C)
- Max. Disc Brake Size Front:
- 180 mm
- Max Tire Size Front:
- 27,5 x 2,1", 47-622 (700 x 47C)
- Max. Disc Brake Size Rear:
- 160 mm
Features:
- Versatile gravel bike frame designed for both men and women, offering a perfect blend for adventure on and off-road.
- Supports a wide range of tire sizes up to 47-622 (700 x 47C) and 27,5 x 2,1", ensuring compatibility with both 27.5" and 28" wheels for flexible ride options.
- Constructed with a durable steel frame paired with a lightweight carbon fork, balancing strength and responsive handling.
- Equipped for disc brakes with maximum rotor sizes of 180 mm front and 160 mm rear, providing reliable stopping power in various conditions.

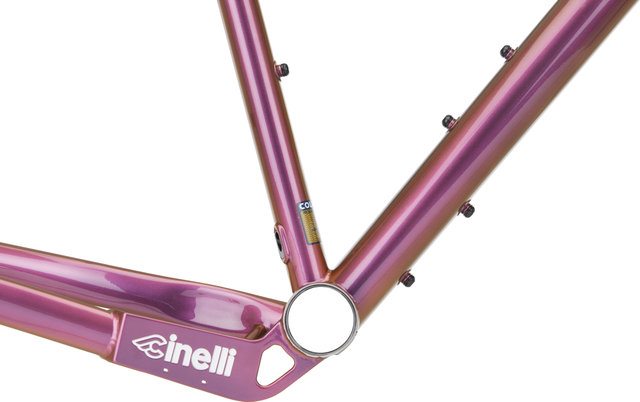

- Features a T47 bottom bracket and a 27.2 mm seatpost diameter, optimizing power transfer and comfort.
- Designed with flat mount brake mounting and a clamp-style front derailleur mount, ensuring a sleek and efficient setup.
Geometry:
- Head Tube Angle:
- 70
- Stack:
- 568 mm
- Wheelbase:
- 1034 mm
- Reach:
- 374 mm
- Chainstay Length:
- 430 mm
- Seat Tube Angle:
- 74.5
- BB Drop:
- 68 mm
- Seat Tube Length:
- 480 mm
- Head Tube Length:
- 115 mm
- Recommended Rider Height:
- 156 - 165 cm
- Effective Top Tube Length:
- 528 mm
- Head Tube Angle:
- 70
- Stack:
- 569 mm
- Wheelbase:
- 1054 mm
- Reach:
- 391 mm
- Chainstay Length:
- 430 mm
- Seat Tube Angle:
- 74.5
- BB Drop:
- 68 mm
- Seat Tube Length:
- 520 mm
- Head Tube Length:
- 115 mm
- Recommended Rider Height:
- 166 - 171 cm
- Effective Top Tube Length:
- 548 mm
- Head Tube Angle:
- 71
- Stack:
- 578 mm
- Wheelbase:
- 1054 mm
- Reach:
- 399 mm
- Chainstay Length:
- 430 mm
- Seat Tube Angle:
- 74
- BB Drop:
- 68 mm
- Head Tube Length:
- 120 mm
- Seat Tube Length:
- 540 mm
- Recommended Rider Height:
- 172 - 178 cm
- Effective Top Tube Length:
- 565 mm,120 mm
- Head Tube Angle:
- 72
- Stack:
- 591 mm
- Wheelbase:
- 1059 mm
- Reach:
- 410 mm
- Chainstay Length:
- 430 mm
- Seat Tube Angle:
- 73.5
- BB Drop:
- 68 mm
- Seat Tube Length:
- 560 mm
- Recommended Rider Height:
- 179 - 186 cm
- Head Tube Length:
- 130 mm
- Effective Top Tube Length:
- 585 mm
- Head Tube Angle:
- 72.5
- Stack:
- 603 mm
- Wheelbase:
- 1063 mm
- Reach:
- 416 mm
- Chainstay Length:
- 430 mm
- Seat Tube Angle:
- 73
- BB Drop:
- 68 mm
- Seat Tube Length:
- 590 mm
- Recommended Rider Height:
- 187 - 193 cm
- Head Tube Length:
- 140 mm
- Effective Top Tube Length:
- 600 mm
- Head Tube Angle:
- 72.5
- Stack:
- 622 mm
- Wheelbase:
- 1079 mm
- Reach:
- 425 mm
- Chainstay Length:
- 430 mm
- Seat Tube Angle:
- 73
- BB Drop:
- 68 mm
- Seat Tube Length:
- 310 mm
- Head Tube Length:
- 160 mm
- Recommended Rider Height:
- 194 - 199 cm
- Effective Top Tube Length:
- 615 mm
Manufacturer Number:
- oat milk/47 mm/XS/1 1/8" - 1,5" tapered: 11NMG3480EOM
- oat milk/47 mm/S/1 1/8" - 1,5" tapered: 11NMG3520EOM
- oat milk/47 mm/M/1 1/8" - 1,5" tapered: 11NMG3540EOM
- oat milk/47 mm/L/1 1/8" - 1,5" tapered: 11NMG3560EOM
- oat milk/47 mm/XL/1 1/8" - 1,5" tapered: 11NMG3590EOM
- oat milk/47 mm/XXL/1 1/8" - 1,5" tapered: 11NMG3610EOM

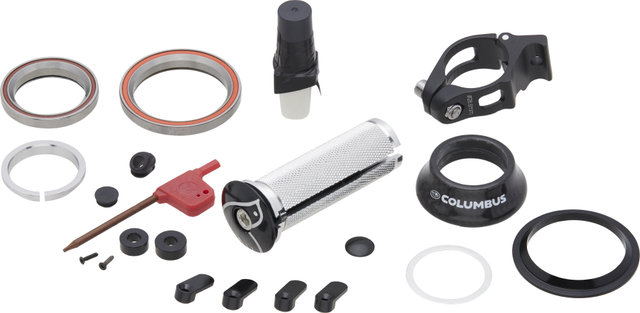

Contents:
1 x Cinelli Nemo TIG Gravel frame

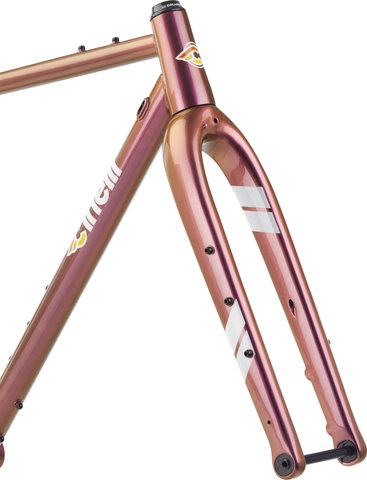

1 x Cinelli Columbus carbon fork
1 x Headset IS42/26.6 - IS52/40
1 x Cinelli seat clamp 29.8 mm
1 x Front derailleur clamp 28.6 mm
