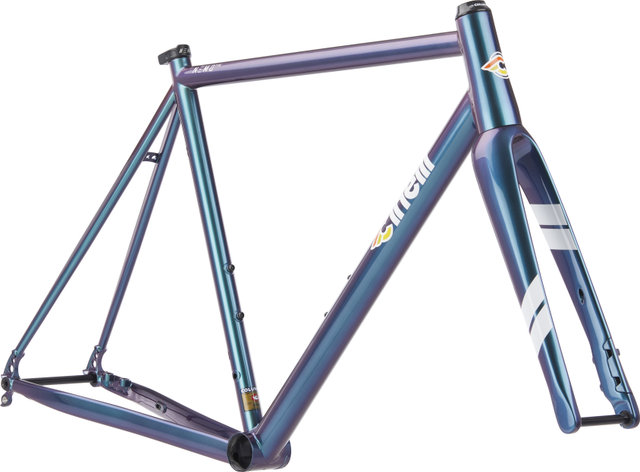

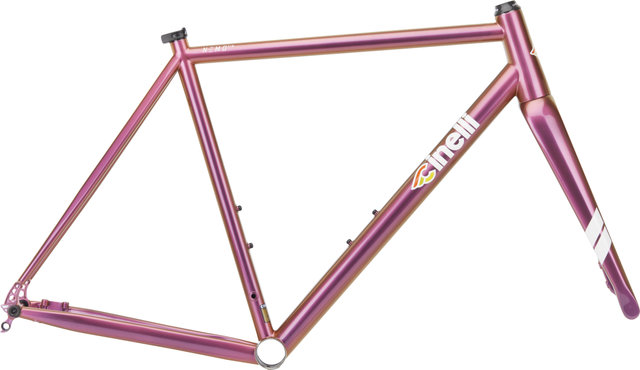

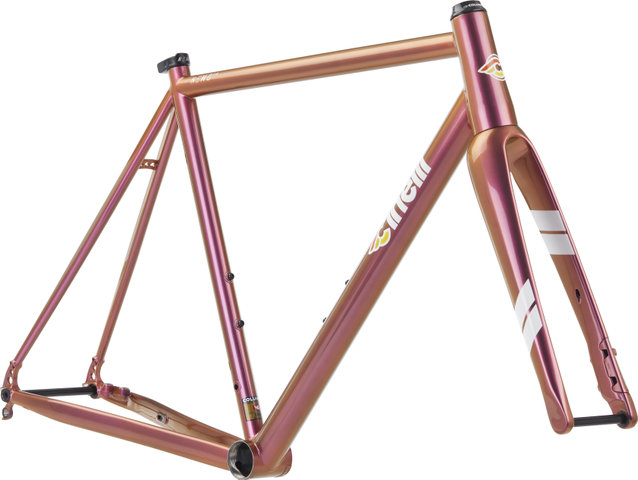

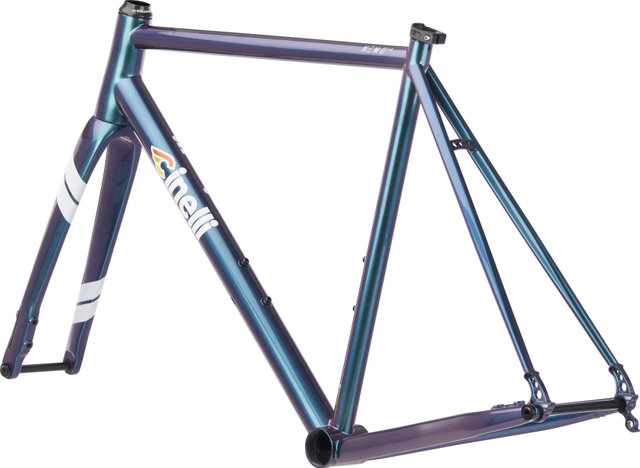

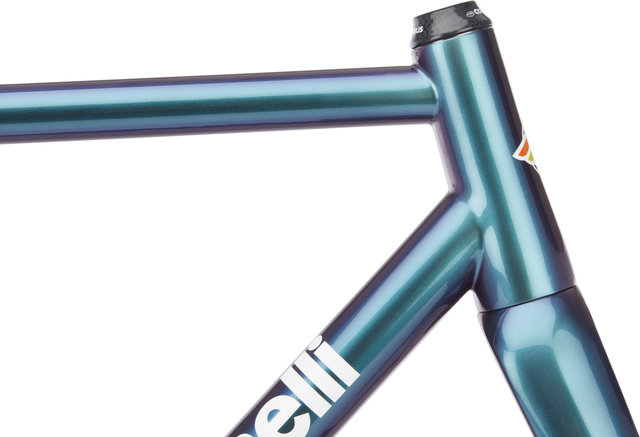

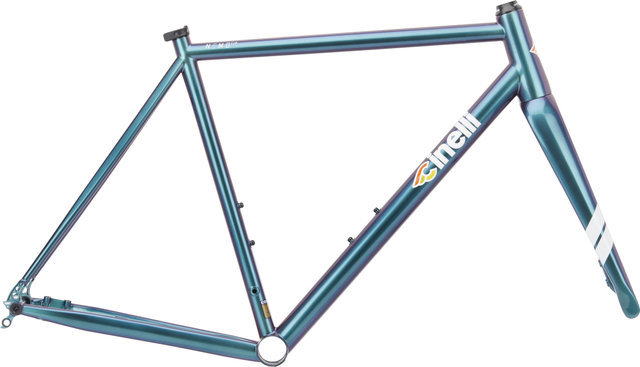

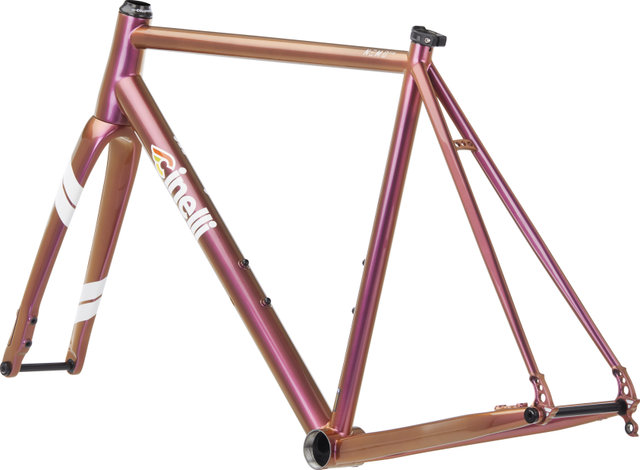

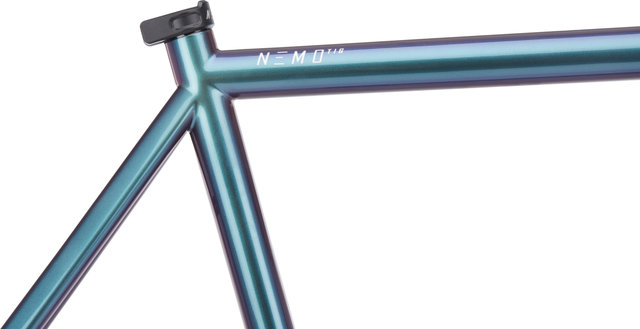

Cinelli Nemo TIG Road Disc II Frame Kit

Crafted for the avid road cyclist who demands performance and durability, this Cinelli Nemo TIG Road Disc II bike frame kit is a fusion of classic steel resilience and modern design. With a frame that welcomes both men and women riders, it's built to accommodate up to 32-622 (700 x 32C) tire sizes front and rear, ensuring a smooth ride on various road conditions. The heart of this frame is its steel construction, offering the timeless appeal and robustness that seasoned cyclists appreciate. Up front, a carbon fork not only reduces the overall weight but also enhances handling precision, making it a joy to navigate through tight corners or descend with confidence. Designed for disc brake systems, it supports up to 160 mm rotors both at the front and rear, providing superior stopping power in all weather conditions. The brake mounts are of the flat-mount standard, further streamlining the frame's aesthetics and aerodynamics. Compatibility with a braze-on front derailleur and a T47 bottom bracket standard showcases its commitment to versatility and performance. The wheelset can adhere to the 12 x 100 mm standard in the front and 12 x 142 mm at the rear, ensuring a stable and responsive ride. Lastly, the frame's seatpost diameter is set at 27.2 mm, allowing for a wide range of seatpost choices to fine-tune your riding position. This bike frame is a testament to the seamless blend of tradition and innovation, ready to take on the demands of road cycling.

• Versatile road bike frame designed for both women and men, featuring a durable steel frame and a lightweight carbon fork.
• Compatible with 28" wheels and tires up to 700 x 32C for a smooth and comfortable ride on various road surfaces.
• Equipped with flat mount disc brake system for reliable stopping power, supporting up to 160 mm disc brake size both front and rear.
• Offers a braze-on front derailleur mount, catering to precise and efficient gear shifting.

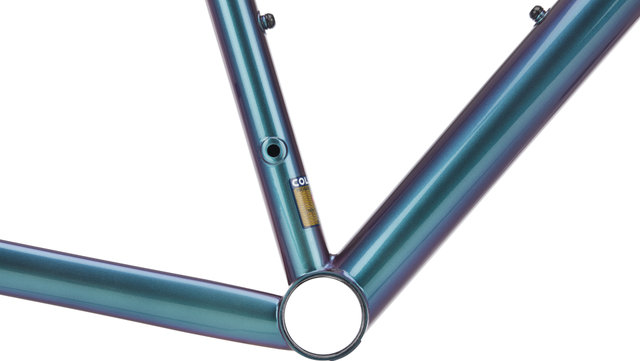

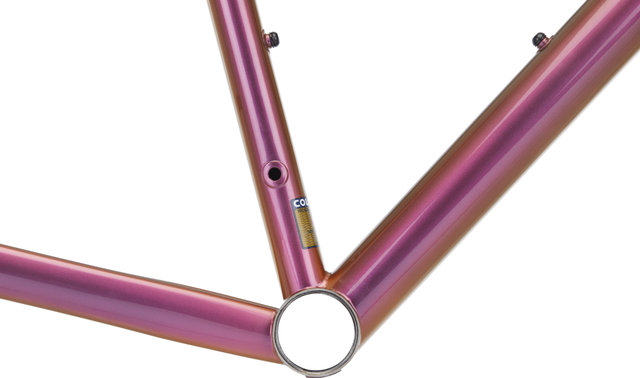

• Frame accommodates a T47 bottom bracket and a 27.2 mm seatpost diameter, ensuring compatibility with a wide range of components.
• Designed with 12 x 100 mm front and 12 x 142 mm rear wheel standards for enhanced stability and performance.

Head Tube Angle:

71

Stack:

509 mm

Wheelbase:

972 mm

Reach:

369 mm

Chainstay Length:

410 mm

Seat Tube Angle:

74.5

BB Drop:

70 mm

Seat Tube Length:

480 mm

Recommended Rider Height:

156 - 165 cm

Head Tube Length:

110 mm

Effective Top Tube Length:

510 mm

Head Tube Angle:

71.5

Stack:

530 mm

Wheelbase:

978 mm

Reach:

373 mm

Chainstay Length:

410 mm

Seat Tube Angle:

74

BB Drop:

70 mm

Seat Tube Length:

510 mm

Head Tube Length:

130 mm

Recommended Rider Height:

166 - 171 cm

Effective Top Tube Length:

525 mm

Head Tube Angle:

72.5

Stack:

548 mm

Wheelbase:

985 mm

Reach:

383 mm

Chainstay Length:

410 mm

Seat Tube Angle:

73.5

BB Drop:

70 mm

Seat Tube Length:

540 mm

Head Tube Length:

145 mm

Recommended Rider Height:

172 - 178 cm

Effective Top Tube Length:

545 mm

Head Tube Angle:

73

Stack:

568 mm

Wheelbase:

990 mm

Reach:

387 mm

Chainstay Length:

410 mm

Seat Tube Angle:

73.5

BB Drop:

70 mm

Head Tube Length:

165 mm

Seat Tube Length:

560 mm

Recommended Rider Height:

179 - 186 cm

Effective Top Tube Length:

555 mm

Head Tube Angle:

73

Stack:

588 mm

Wheelbase:

1010 mm

Reach:

395 mm

Chainstay Length:

415 mm

Seat Tube Angle:

73

BB Drop:

70 mm

Head Tube Length:

185 mm

Seat Tube Length:

590 mm

Recommended Rider Height:

187 - 193 cm

Effective Top Tube Length:

575 mm

Head Tube Angle:

73.5

Stack:

613 mm

Wheelbase:

1019 mm

Reach:

402 mm

Chainstay Length:

415 mm

Seat Tube Angle:

73

BB Drop:

70 mm

Recommended Rider Height:

194 - 199 cm

Seat Tube Length:

610 mm

Head Tube Length:

210 mm

Effective Top Tube Length:

590 mm

• oat milk/1 1/8" - 1,5" tapered/XS/45 mm: 11NMD3480EOM
• oat milk/1 1/8" - 1,5" tapered/S/45 mm: 11NMD3510EOM
• oat milk/1 1/8" - 1,5" tapered/M/45 mm: 11NMD3540EOM
• oat milk/1 1/8" - 1,5" tapered/L/45 mm: 11NMD3560EOM
• oat milk/1 1/8" - 1,5" tapered/XL/45 mm: 11NMD3590EOM
• oat milk/1 1/8" - 1,5" tapered/XXL/45 mm: 11NMD3610EOM

•

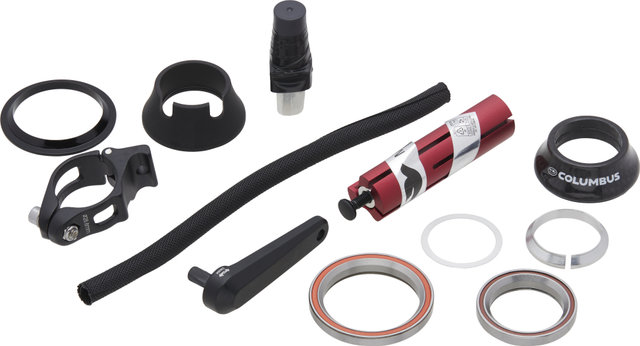

  1 x Cinelli Nemo TIG Road Disc II frame





•

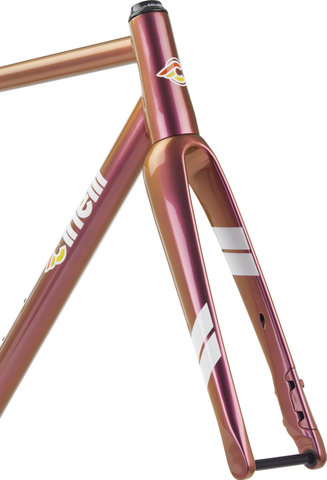

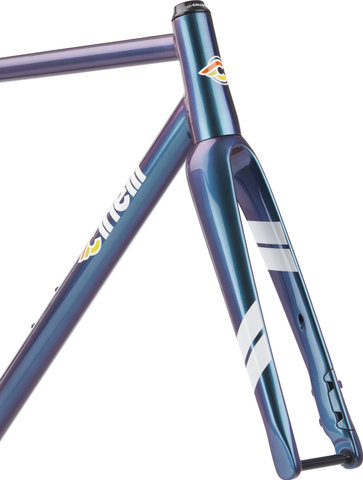

  1 x Cinelli Columbus Trittico carbon fork





•


  1 x Headset IS42/28.6 - IS52/40





•

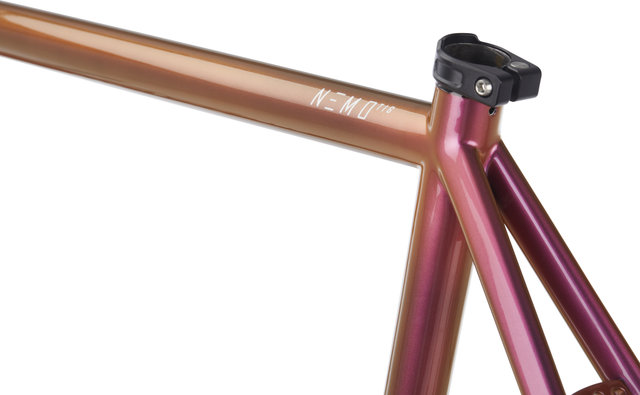

  1 x Cinelli seat clamp 29.8 mm





•


  1 x Front derailleur clamp 28.6 mm
