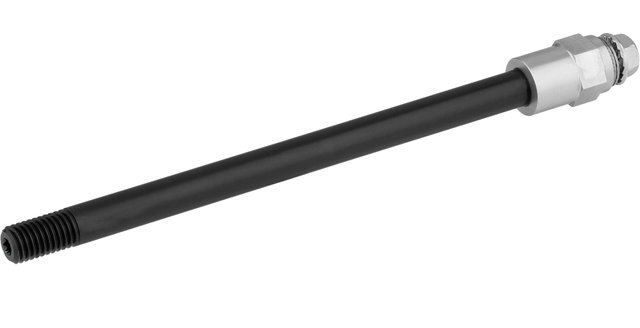

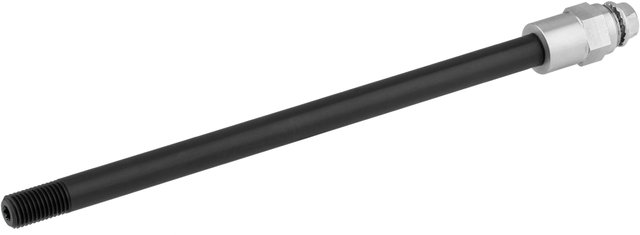

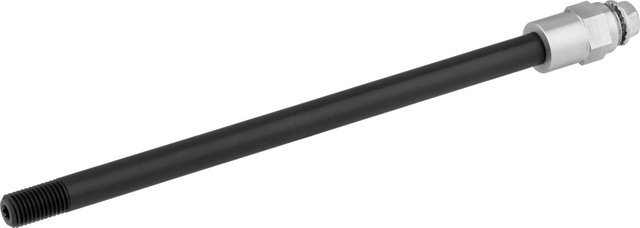

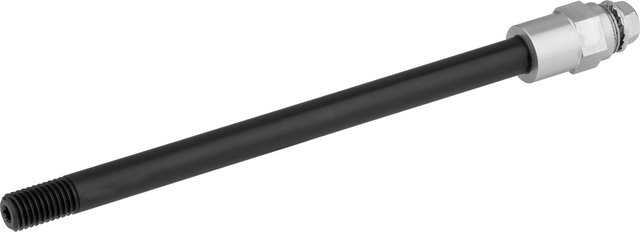

Croozer Thru-Axle Adapter A

The Croozer thru-axle adapter A fits standard axle hitches for bicycle trailers. So you can attach your bike trailer to your bike.

Specifications:

Over Locknut Dimension:

135 mm, 142 mm, 148 mm, 177 mm, 197 mm

Axle Diameter:

12 mm

Technical Information:

Use:

12 x 135 mm, 12 x 142 mm, 12 x 148 mm, 12 x 177 mm, 12 x 197 mm

Type:

thru-axle

Axle Material:

Aluminium

Axle Length:

165 mm, 167 mm, 178 mm, 180 mm, 198 mm, 209 mm, 217 mm, 229 mm

Nominal Diameter:

M12

Thread Pitch:

1 mm, 1.5 mm, 1.75 mm

Features:

• thru-axle with integrated adapter for trailer hitches
• for standard axle hitches

Models:

12 x 165 mm / 1.5 mm:

Over Locknut Dimension:

135 mm

Thread Pitch:

1.5 mm

Manufacturer Number:

122530318

12 x 178 mm / 1.5 mm:

Over Locknut Dimension:

142 mm / 148 mm

Thread Pitch:

1.5 mm

Manufacturer Number:

122530518

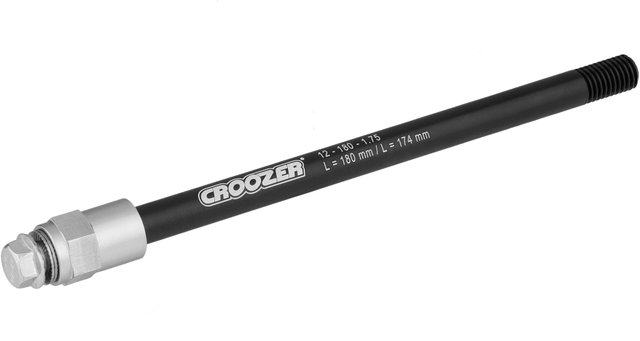

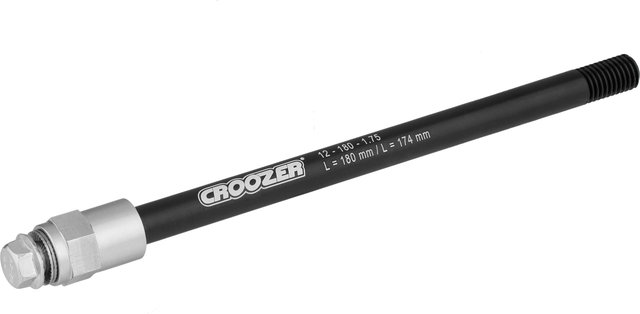

12 x 180 mm / 1.75 mm:

Over Locknut Dimension:

142 mm / 148 mm

Thread Pitch:

1.75 mm

Manufacturer Number:

122530818

12 x 181 mm / 1 mm:

Over Locknut Dimension:

142 mm / 148 mm

Thread Pitch:

1.0 mm

Manufacturer Number:

122500220

12 x 198 mm / 1.75 mm:

Over Locknut Dimension:

142 mm / 148 mm

Thread Pitch:

1.75 mm

Manufacturer Number:

122530918

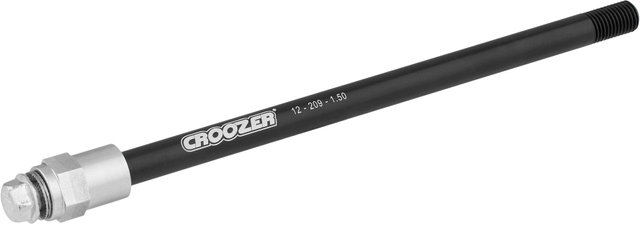

12 x 209 mm / 1.5 mm:

Over Locknut Dimension:

177 mm

Thread Pitch:

1.5 mm

Manufacturer Number:

122530618

12 x 209 mm / 1.75 mm:

Over Locknut Dimension:

177 mm

Thread Pitch:

1.75 mm

Manufacturer Number:

122531118

12 x 217 mm / 1 mm:

Over Locknut Dimension:

177 mm

Thread Pitch:

1 mm

Manufacturer Number:

122530218

12 x 229 mm / 1.5 mm:

Over Locknut Dimension:

197 mm

Thread Pitch:

1.5 mm

Manufacturer Number:

122530718

12 x 229 mm / 1.75 mm:

Over Locknut Dimension:

197 mm

Thread Pitch:

1.75 mm

Manufacturer Number:

122531018

Contents:

• 1 x Croozer thru-axle adapter A

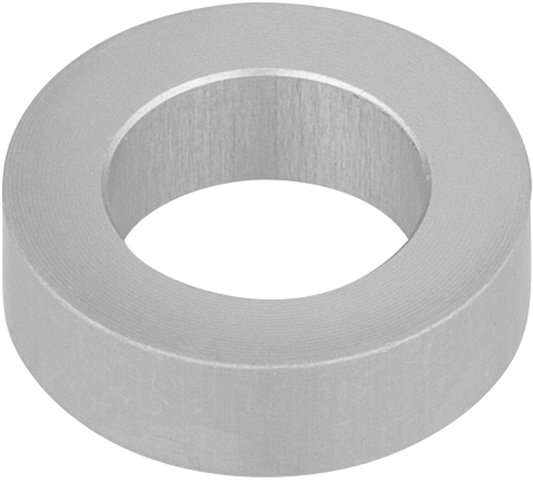

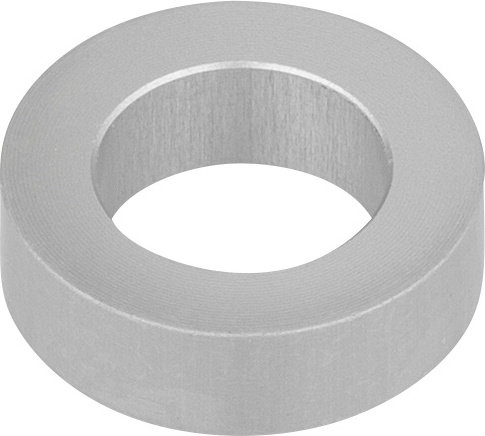

• 1 x spacer
