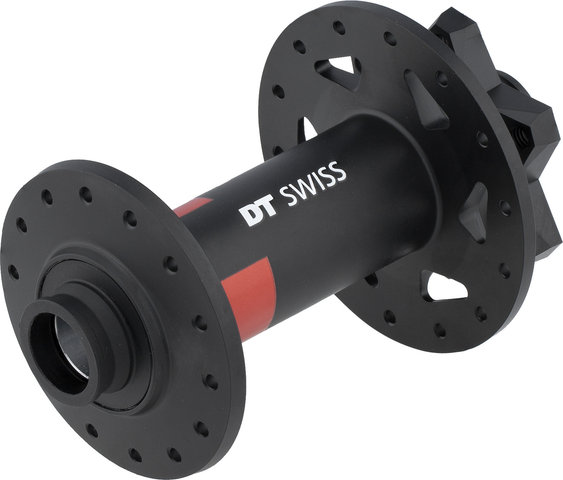

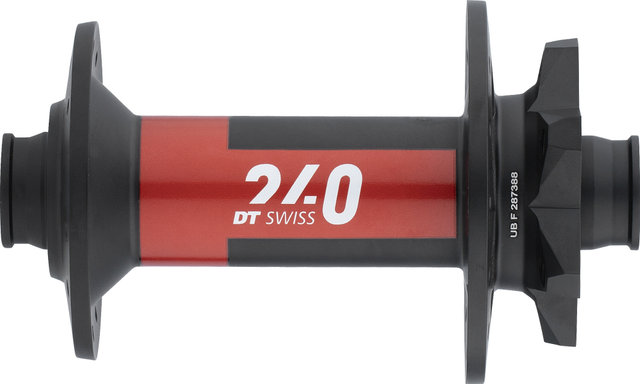

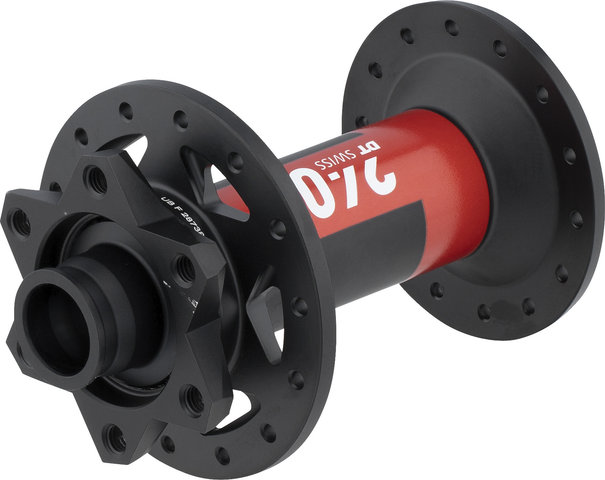

DT Swiss 240 Classic MTB Boost 6-Bolt Disc Front Hub

Item number: 78737
240 Classic MTB Boost 6-Bolt Disc Front Hub - black/15 x 110 mm / 28 hole
240 Classic MTB Boost 6-Bolt Disc Front Hub - black/15 x 110 mm / 28 hole
240 Classic MTB Boost 6-Bolt Disc Front Hub - black/15 x 110 mm / 28 hole
  • 100 day return period
  • Online since 1998
  • Trusted Shop 4.89 / 5.00

DT Swiss 240 Classic MTB Boost 6-Bolt Disc front hub - A classic hub with modern standards


The 240 Classic front hub for MTBs from DT Swiss is equipped with Boost-Standard and prepares your bike for extra wide tyres. In addition, Boost hubs are particularly stable due to the strong axle. This means they can withstand use on an enduro bike. Aluminium was chosen as the main material to ensure resilience as well as a light weight. It is designed for J-bend spokes and has a disc brake mount for 6-bolt rotors. The new edition of the Swiss classic impresses with a sportive shape and very easy maintenance. The No-Tool concept enables you to forego specialist workshop equipment.

Specifications:

Application:
All Mountain, Cross Country, Enduro
Brake Type:
6-bolt disc
Wheel Standard:
Boost

Technical Information:

Body Material:
Aluminium
Bearings:
steel bearings
Seals:
precision seal

Models:

15 x 110 mm / 28 hole:
Over Locknut Dimension:
15 x 110 mm thru-axle
Spoke Hole Count:
28
Flange Distance (L/R):
68.3 mm (27.3 mm/41 mm)
Pitch Circle Diameter (L/R):
57.8 mm/49.4 mm
Manufacturer Number:
H240BDIXR28SA6481S

15 x 110 mm / 32 hole:
Over Locknut Dimension:
15 x 110 mm thru-axle
Spoke Hole Count:
32
Flange Distance (L/R):
68.3 mm (27.3 mm/41 mm)
Pitch Circle Diameter (L/R):
57.8 mm/49.4 mm
Manufacturer Number:
H240BDIXR32SA6481S

20 x 110 mm / 28 hole:
Over Locknut Dimension:
20 x 110 mm thru-axle
Spoke Hole Count:
28
Flange Distance (L/R):
68.3 mm (27.3 mm/41 mm)
Pitch Circle Diameter (L/R):
57.8 mm/49.4 mm
Manufacturer Number:
H240BDEXR28SA7854S

20 x 110 mm / 32 hole:
Over Locknut Dimension:
20 x 110 mm thru-axle
Spoke Hole Count:
32
Flange Distance (L/R):
68.3 mm (27.3 mm/41 mm)
Pitch Circle Diameter (L/R):
57.8 mm/49.4 mm
Manufacturer Number:
H240BDIXR32SA6481S

Contents:

  • 1 x DT Swiss 240 Classic MTB front hub

Weight:

  • black/15 x 110 mm / 28 hole: 141 g
  • black/15 x 110 mm / 32 hole: 141 g
  • black/20 x 110 mm / 28 hole: 192 g
  • black/20 x 110 mm / 32 hole: 192 g

Models:

  • black/15 x 110 mm / 28 hole, in stock
    125.50€
  • black/15 x 110 mm / 32 hole, in stock
    125.50€
  • black/20 x 110 mm / 28 hole, in stock
    125.50€
  • black/20 x 110 mm / 32 hole, out of stock
    125.50€
