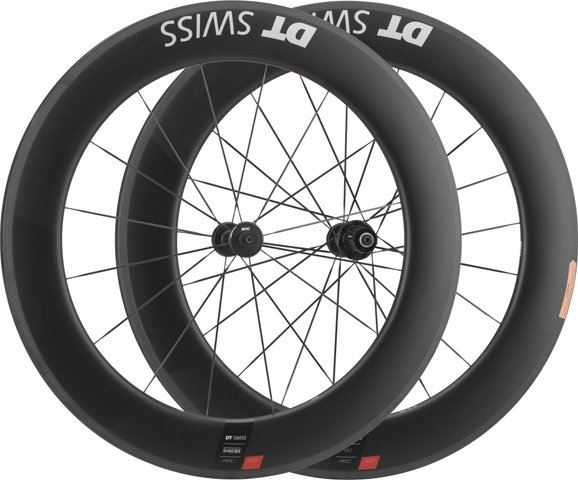

DT Swiss ARC 1100 DICUT 80 Carbon Rim Brake 28" Wheelset

DT Swiss ARC 1100 DICUT 80 Carbon rim brake 28" wheelset - high-performance with sailing effect

The ARC 1100 DICUT wheelset from DT Swiss gives your road or triathlon with rim brakes improved aerodynamic properties. The design of the 80 mm deep DICUT carbon rim has been optimised. This made it possible to increase the jaw width. As a result, wider and more comfortable 25 to 28 mm tyres can be used on your time trial bike without perceiving disadvantages in the rolling resistance. Despite a full 80 mm rim depth, the steering behaviour remains well under control. This is achieved, among other things, by the streamlined 180 hub and the Aerolite II straight pull spokes. In addition, you benefit from a noticeable sailing effect during crosswinds. To ensure that your leg power can develop ideally, the rear wheel has the modern Ratchet- EXP freehub. It has 36 teeth, which ensure direct power transmission, thus keeping undesired idling during acceleration as low as possible.

Specifications:

Application:

Road, Triathlon & Time Trial

Wheel Size:

28"

Tyre Type:

clincher tyre

Number of Spokes:

16 (front), 21 (rear)

Brake Type:

rim brake

Tubeless System:

Tubeless Ready

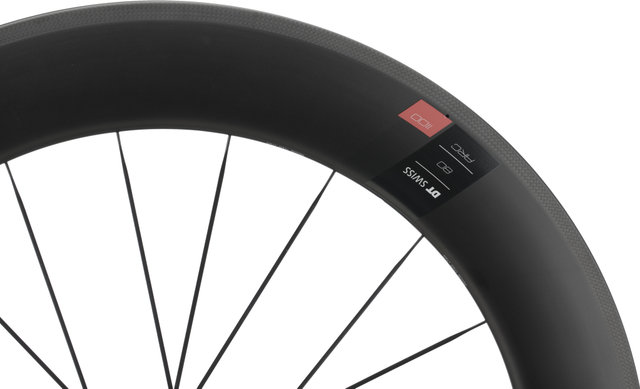

Technical Information - Rim:

Rim Flange:

with hook

Dimensions (ETRTO):

17-622

Inner Width:

17 mm

Outer Width:

28 mm

Depth:

80 mm

Valve Hole Diameter:

SV/Presta (6.5 mm)

Rim Material:

carbon

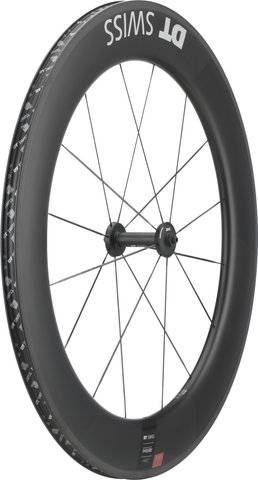

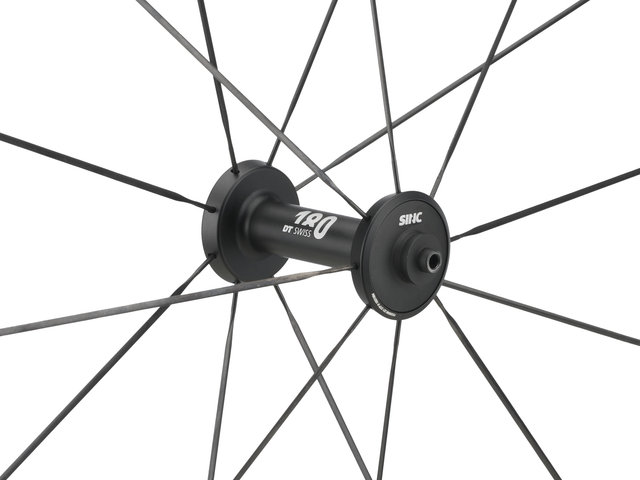

Technical Information - Front Hub:

Type:

180 straight pull

Over Locknut Dimension:

9 x 100 mm quick release

Bearings:

Ceramic bearings (SINC)

Body Material:

aluminium

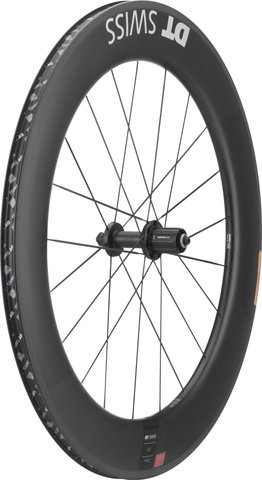

Technical Information - Rear Hub:

Type:

180 straight pull

Over Locknut Dimension:

10 x 130 mm quick release

Bearings:

Ceramic bearings (SINC)

Body Material:

aluminium

Freehub Body Material:

aluminium

Freehub Body:

Ratchet EXP 36

Technical Information - Lacing:

Front Lacing Pattern:

radial

Rear Lacing Pattern:

radial (L), 2-cross (R)

Spoke Type:

DT Aero Comp II T-Head, DT Aerolite II T-Head

Spoke Material:

stainless steel

Nipple Type:

DT Pro Lock Hidden

Nipple Material:

aluminium

Approved For:

Weight Limit:

100 kg (system weight)

Air Pressure (max.):

see user manual (Tire Pressure and Dimension)

Recommended Tyre Width:

see user manual (Tire Pressure and Dimension)

Technology:

Intended use - Category 1
Suitable for predominantly paved surfaces.

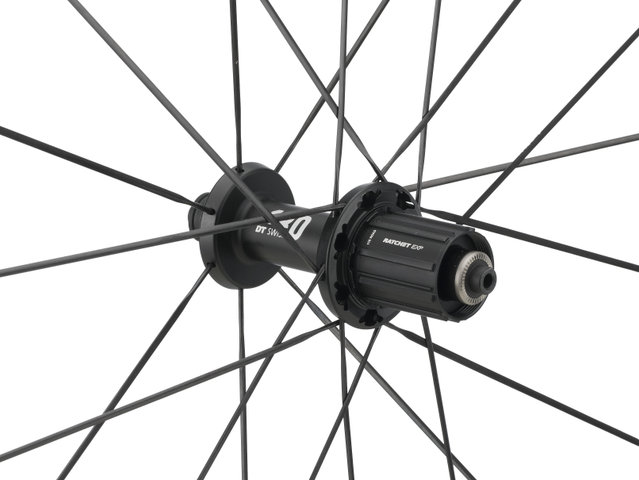

Ratchet EXP
A ratchet and a threaded ring are integrated into the hub. This reduces the number of components required, resulting in less wear and tear and a lower weight. In addition, the heavy-duty and reliable ratchet system can be easily and quickly maintained. The no-tool concept plays a decisive role, as it allows the freehub to be replaced without any tools. The freehub has two ratchets which engage simultaneously. This means that the contact surface is large and the point load is kept small, which relieves the material and allows the freehub to work particularly reliably and precisely.

Pro Lock
The nipple thread is coated with two-component adhesive to increase the durability of the wheels. It can still be re-trued several times without any problems, but the adhesive strength decreases slightly. The connection between the spoke and nipple cannot loosen by itself.

Models:

28" set (front 9x100 + rear 10x130) Shimano:

Freehub:

Shimano Road

Gearing:

8-/9-/10-/11-/12-speed

Note:

Assembly of 8-/9-/10-speed cassettes on Shimano Road freehub bodies requires a 1.85 mm spacer.

Manufacturer Numbers:

WARC110AAQXCA19291 + WARC110HRQJCA19292

Contents:

• 1 x DT Swiss ARC 1100 DICUT 80 Carbon rim brake wheelset (front wheel and rear wheel)
• 1 x DT Swiss SRAM XDR freehub body
• 2 pair of Swissstop Black Prince rim brake pads

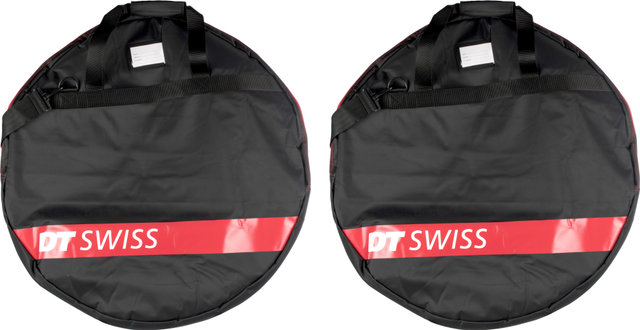

• 2 x DT Swiss wheel bags
• 2 x DT Swiss tubeless valves
• 2 x rolls DT Swiss tubeless rim tape
