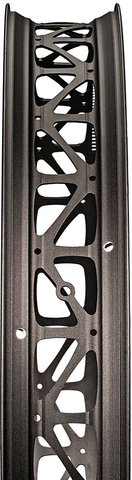

DT Swiss BR 710 Big Ride Disc 26" Rim

Fat bike rims must harmonise perfectly with extra-wide tyres, and maintain the balancing act between high stability and low weight. The rims of the DT Swiss BR series manage this with ease thanks to the specifically developed profile, the high-strength aluminium alloy and the sophisticated recesses.

Specifications:

Application:

Fat Bike

Wheel Size:

26"

Tyre Type:

clincher tyre

Number of Spokes:

32

Brake Type:

disc

Tubeless System:

none

Technical Information:

Dimensions (ETRTO):

76-559

Inner Width:

76.0 mm

Outer Width:

81.0 mm

Depth:

16.0 mm

ERD:

549 mm

Valve Hole Diameter:

SV/Presta (6.5 mm)

Rim Material:

aluminium

Approved For:

Weight Limit:

130 kg (system weight)

Air Pressure (max.):

2.0 bars

Recommended Tyre Width:

3.2 - 5.0" / 81 - 127 mm

Features:

• no eyelets
• 1200 N max. spoke tension
• rim tape: 559x68 mm
• recommended spokes: DT Competition®
• produced with special SBWT® technology
• one of the lightest fat bike rims

Technology:

SBWT®:
In the SBWT® (Strength Boost Welding Technology) process, a block is pressed into both profile ends for stabilisation during welding. After welding, the seam is CNC processed.

Manufacturer Number:

RDBR71DPN32S011362

Contents:

• 1 x DT Swiss BR 710 Big Ride Rim

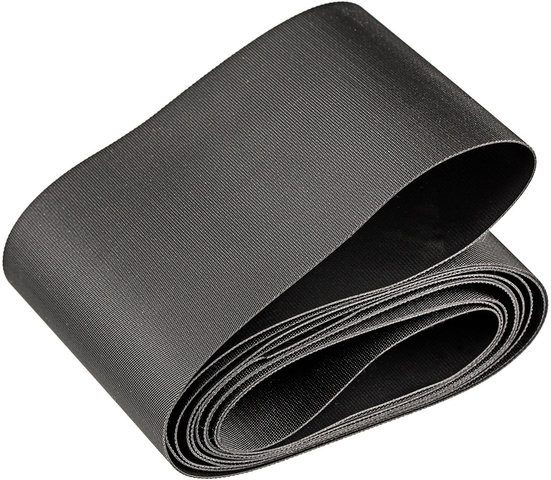

• 1 x roll DT Swiss rim tape (black)

• black/32/26": 675 g
