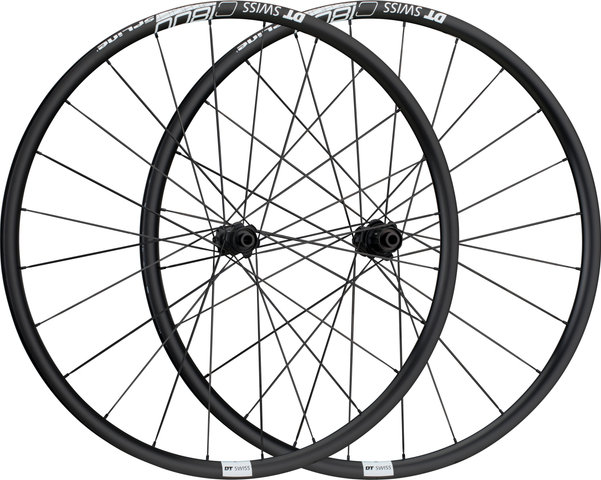

DT Swiss C 1800 SPLINE 23 Disc Center Lock 28" Wheelset

Over sticks and stones: the C 1800 SPLINE DB 32 wheelset from DT Swiss

DT Swiss C 1800 SPLINE DB 32 wheels are built on 22 mm wide, stable rims and robust spokes. In addition, the reliable hub quality and the precise wheel construction guarantee countless kilometres of riding distance. Jumping over obstacles, ploughing through muddy puddles or scurrying down some steps - these wheels can do it all.

Specifications:

Application:

Road, Gravel

Wheel Size:

28"

Tyre Type:

clincher tyre

Number of Spokes:

24

Brake Type:

disc Center Lock (6-bolt conversion w/ adapter)

Tubeless System:

Tubeless Ready

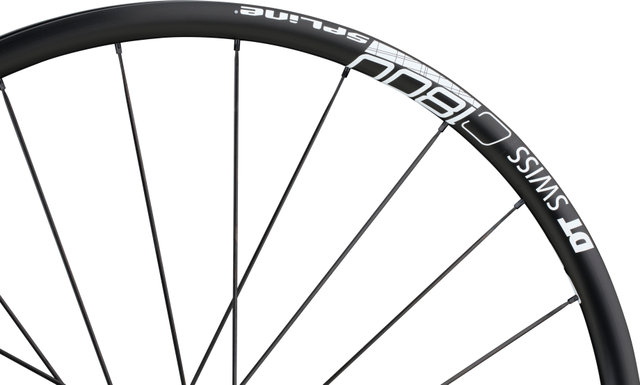

Technical Information - Rim:

Type:

C 1800 SPLINE

Dimensions (ETRTO):

22-622

Inner Width:

22.0 mm

Outer Width:

26.0 mm

Depth:

23.0 mm

Valve Hole Diameter:

SV / Presta (6.5 mm)

Rim Material:

aluminium

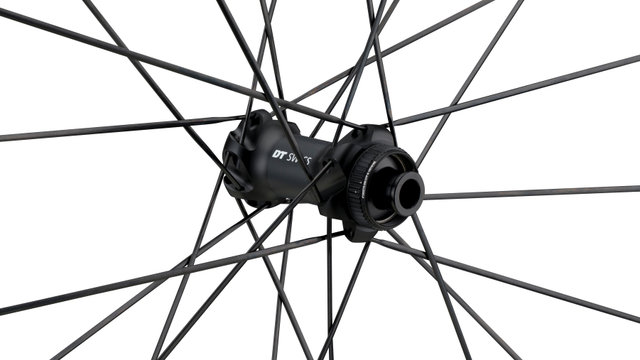

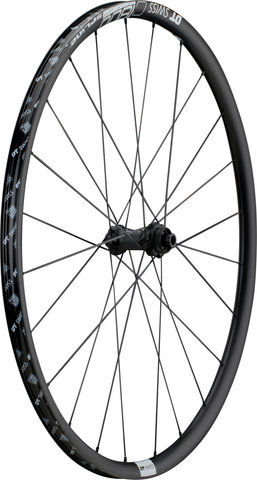

Technical Information - Front Hub:

Type:

370

Over Locknut Dimension:

12 x 100 mm thru-axle

Body Material:

aluminium

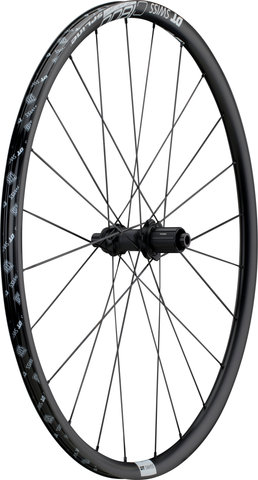

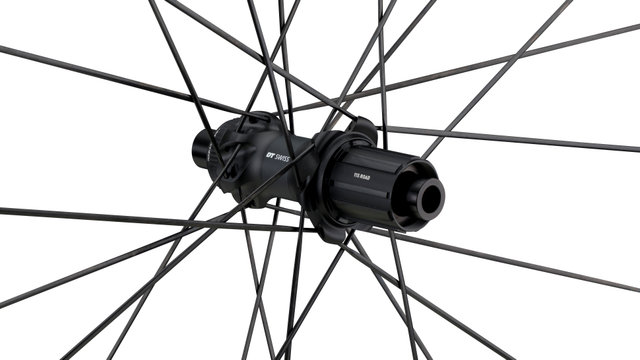

Technical Information - Rear Hub:

Type:

370

Over Locknut Dimension:

12 x 142 mm thru-axle

Body Material:

aluminium

Freehub Body Material:

aluminium / steel

Freehub Body:

DT Swiss Pawl System® (3 pawls)

Technical Information - Lacing:

Front Lacing Pattern:

2-cross

Rear Lacing Pattern:

2-cross

Spoke Type:

DT Aero Comp® / straight pull

Spoke Size:

296 mm/297 mm (front l/r), 297 mm/296 mm (rear l/r)

Spoke Material:

steel

Nipple Type:

DT Pro Lock® Squorx / Pro Head

Nipple Material:

aluminium

Approved For:

Weight Limit:

130 kg system weight (rider + bike + gear)

Air Pressure (max.):

7.8 bars

Recommended Tyre Width:

28 - 34 mm (1.10 - 1.35" )

Features:

• Adhesive: vinyl hub, Waterslide rim
• 22 mm jaw width

Technology:

SPLINE
The SPLINE line is characterised by straight pull hubs with famous DT Swiss technology, straight spokes as well as stable rims. The combination of reliable and ideally matched components makes every SPLINE wheel the perfect training and competition partner.

DT ProLock Squorx Pro Head
The DT Squorx Pro Head nipple combines ease of assembly and lightweight. With an additional Torx and square drive. The Torx drive provides more contact surface when building wheels, which means that the torque transmitted from the tool to the nipple is better distributed. The spherical contact area in the rim guarantees perfect alignment with the spoke.

Tubeless Ready
Tubeless Ready rims are designed for use with tubeless kits and tyres. They allow a correct fit of the tubeless rim tape (use the appropriate model!) and the tubeless tyre.

Straight Pull
In order to achieve an ideal ratio of weight and stability, many DT Swiss wheels use different forms of straight pull spokes. Straight pull spokes do not need a spoke bend and thus eliminate a weak point. Nevertheless, they can be trued and replaced with standard tools.

Colour Info:

black:

• Rims: black w/ white accents
• Hubs: black
• Spokes: black
• Nipples: black

Models:

28" set (front 12x100 + rear 12x142) Shimano:

• Freehub: Shimano Road
• Gearing: 8-/9-/10-/11-speed
• Manufacturer Numbers: W0C1800AIDXSA10603 (front) + W0C1800NIDUSA10604 (rear)
• Conversion Options: To convert to SRAM XDR, an XDR freehub body is required.

Contents:

• 1 x DT Swiss C 1800 SPLINE DB 32 wheelset (front and rear wheel)
• 2 x DT Swiss 25 mm tubeless tape
• 2 x DT Swiss road 32 mm tubeless valves
