C 1800 SPLINE 23 Disc Center Lock 28" Wheelset - black/28" set (front 12x100 + rear 12x142) Shimano

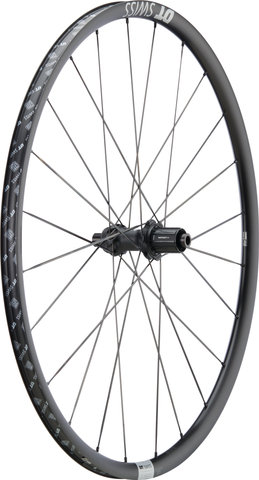

DT Swiss C 1800 SPLINE 23 Disc Center Lock 28" Wheelset

Item number: 90514
1
1

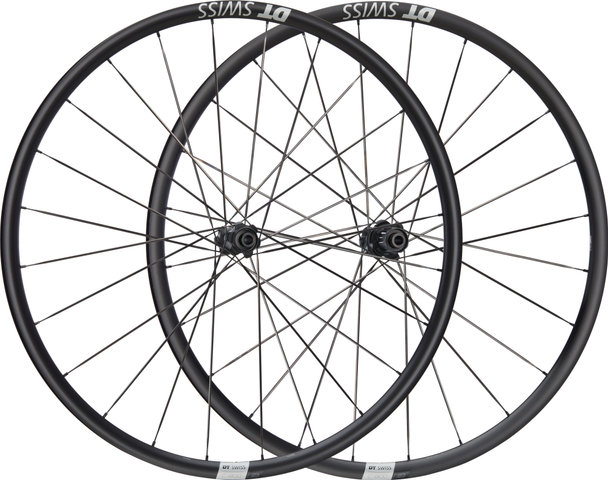

DT Swiss C 1800 SPLINE 23 Center Lock Disc 28" wheelset - for more performance in sand and mud


The DT Swiss C 1800 SPLINE 23 wheelset with 23 mm deep aluminium rims was designed for cyclocross use. Designed for the toughest conditions, it proves to be adaptable and rock solid. The rims were joined together using the sleeve-joint method for extra strength and fitted with a hook on the rim flange, which stabilises the tyre bead. With a jaw width of 22 mm, the wheelset is suitable for tyres up to 34 mm wide, which you can also mount tubeless. This allows lower tyre pressures and thus opens up more comfort and traction on technical terrain. The 370 SPLINE hubs are designed for center-lock brake rotors and straightpull spokes. The rear wheel has a Ratchet LN freehub with an 18-tooth disc and an engagement angle of only 20°. Wear is therefore particularly low and unwanted idling is minimised, which increases your speed. The robust DT New Aero II spokes come with self-locking aluminium Pro-Lock Squorx nipples, which contribute to the durability of the C 1800 wheelset.

Specifications:

Application:
Cyclocross
Wheel Size:
28"
Tyre Type:
clincher tyre
Number of Spokes:
24
Brake Type:
Center Lock Disc
Tubeless System:
Tubeless Ready

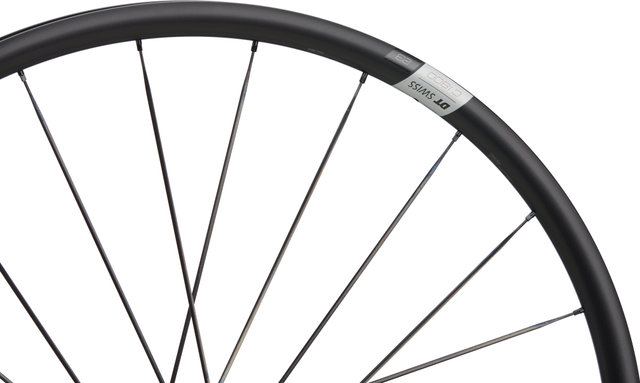

Technical Information - Rim:

Rim Flange:
with hook
Dimensions (ETRTO):
22-622
Inner Width:
22 mm
Depth:
23 mm
Valve Hole Diameter:
SV/Presta (6.5 mm)
Rim Material:
aluminium

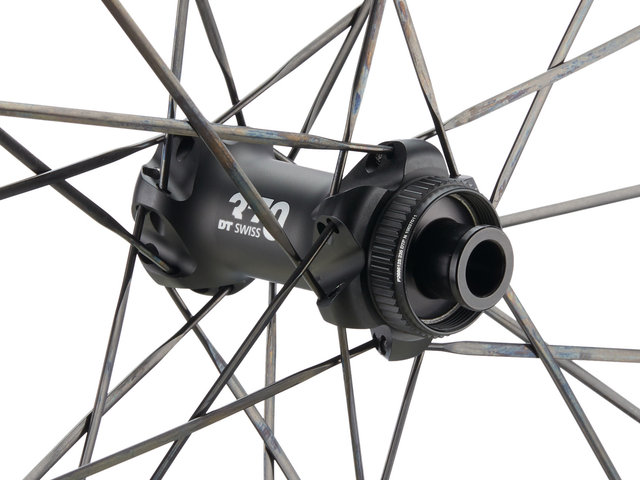

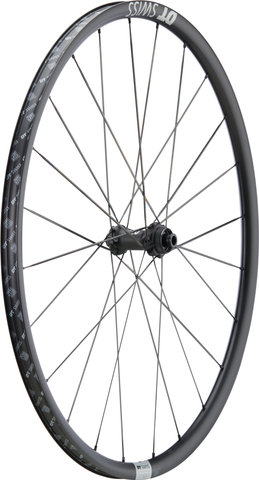

Technical Information - Front Hub:

Type:
370 straight pull
Over Locknut Dimension:
12 x 100 mm thru-axle
Body Material:
aluminium

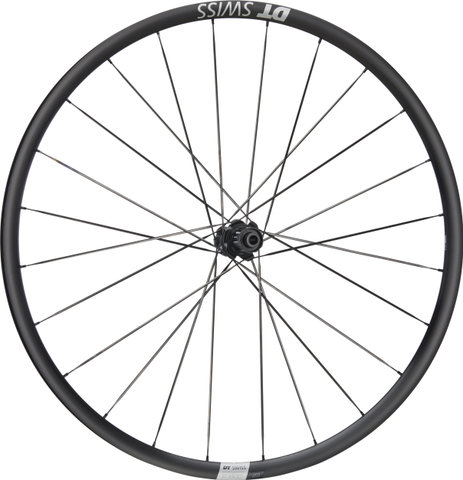

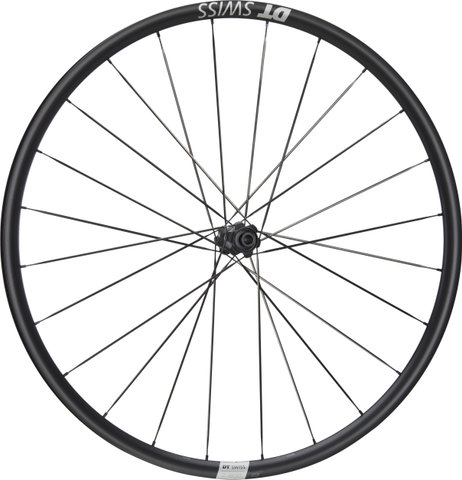

Technical Information - Rear Hub:

Type:
370 straight pull
Over Locknut Dimension:
12 x 142 mm thru-axle
Body Material:
aluminium
Freehub Body Material:
aluminium
Freehub Body:
Ratchet LN 18

Technical Information - Lacing:

Front Lacing Pattern:
2-cross
Rear Lacing Pattern:
2-cross
Spoke Type:
DT New Aero II / Straightpull
Spoke Material:
stainless steel
Nipple Type:
DT Pro Lock Squorx ProHead
Nipple Material:
aluminium

Approved For:

Weight Limit:
120 kg (system weight)
Air Pressure (max.):
see user manual (Tire Pressure and Dimension)
Recommended Tyre Width:
see user manual (Tire Pressure and Dimension)

Features:

  • robust, adaptable cyclocross wheelset with 23 mm deep aluminium rims
  • sturdy sleeve joint hook rim with 22 mm jaw width
  • compatible with wide (tubeless) tyres for more comfort and traction
  • reliable ratchet freehub system for efficient propulsion
  • straightpull spokes with improved aerodynamic shape due to flat forging process
  • nipple with thread lock for even more safety and durability

Technology:

Intended use: Category 2
Suitable for use on predominantly paved and partially unpaved ground with a slight slope and a temporary loss of ground contact as well as drops of up to 15 cm.

Pro Lock
The nipple thread is coated with two-component adhesive to increase the durability of the wheels. It can still be re-trued several times without any problems, but the adhesive strength decreases slightly. The connection between the spoke and nipple cannot loosen by itself.

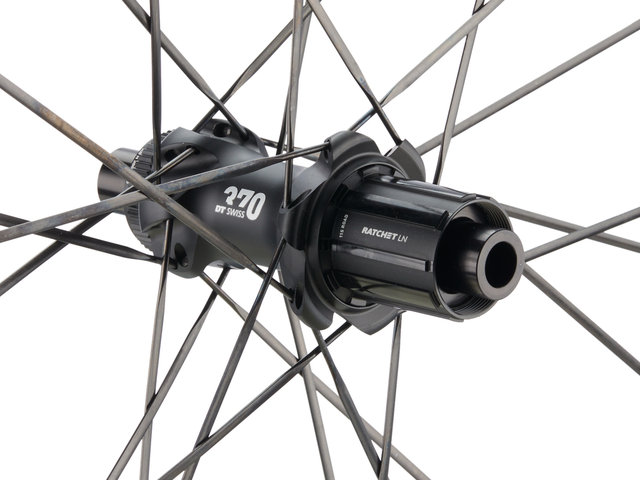

Ratchet LN
The Ratchet LN freehub is used to convert DT Swiss 370 hubs with pawls to a ratchet freehub. The advantage, compared to pawls, is the significantly larger contact surface with improved frictional connection. The seal attached to the freehub body, and not to the hub shell as usual, makes the freehub body easily replaceable. The modular design allows free selection of the engagement angle (18, 24, 36 or 54 teeth) and of the freehub body.

SPLINE
Straight pull hubs, straight spokes and strong rims result in a durable wheel. It can therefore be reliably used in training and competition.

Models:

28" set (front 12x100 + rear 12x142) Shimano:
Freehub:
Shimano Road
Gearing:
8-/9-/10-/11-/12-speed
Note:
The assembly of 8-/9-/10-speed cassettes on a Shimano road rotor requires a 1.85 mm spacer.
Manufacturer Numbers:
W0C1800AIDXSA21423 + W0C1800NIDMSA21424

28" set (front 12x100 + rear 12x142) SRAM XDR:
Freehub:
SRAM XDR
Gearing:
11-/12-speed
Manufacturer Numbers:
W0C1800AIDXSA21423 + W0C1800NID1SA21913

Contents:

  • 1 x DT Swiss C 1800 SPLINE 23 Disc Center Lock 28" wheelset (front and rear wheel)
  • 2 x rolls DT Swiss rim tape (applied)

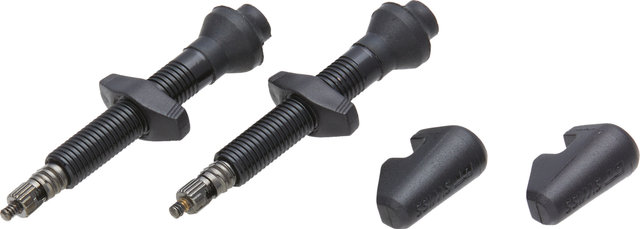

  • 2 x DT Swiss tubeless valves

Weight:

  • black/28" set (front 12x100 + rear 12x142) Shimano: 1763 g (pro Satz)
