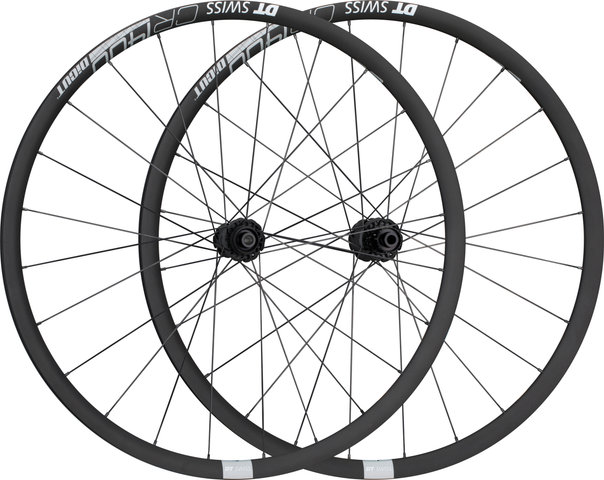

DT Swiss CR 1400 DICUT 25 Center Lock Disc 28" Wheelset

The CR 1400 DICUT 25 offers maximum off-road performance at an attractive price. The high-end version of the Cross Road aluminium wheels from DT-Swiss is sure to impress with outstanding efficiency by using a 240s hub with the reliable Ratchet System. Coupled with a rigid and wide rim, these wheels offer the perfect mix of grip, comfort and efficiency. Truly " off the beaten path," the CR 1400 DICUT wheels will demonstrate their full potential and put a smile on your face.

Specifications:

Application:

Gravel, Road

Wheel Size:

28"

Tyre Type:

clincher tyre

Number of Spokes:

24

Brake Type:

Center Lock Disc

Tubeless System:

Tubeless Ready

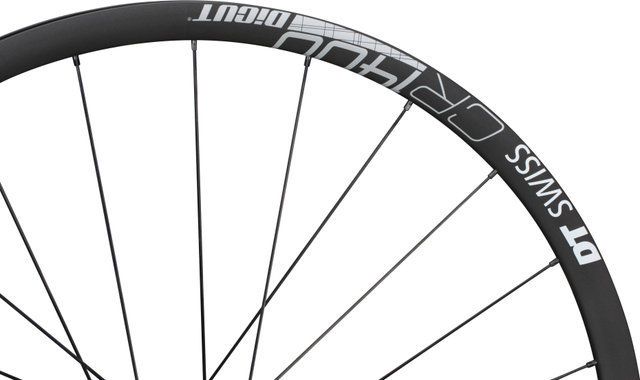

Technical Information - Rim:

Dimensions (ETRTO):

22-622

Inner Width:

22 mm

Outer Width:

26 mm

Depth:

25 mm

Valve Hole Diameter:

SV/Presta (6.5 mm)

Rim Material:

aluminium

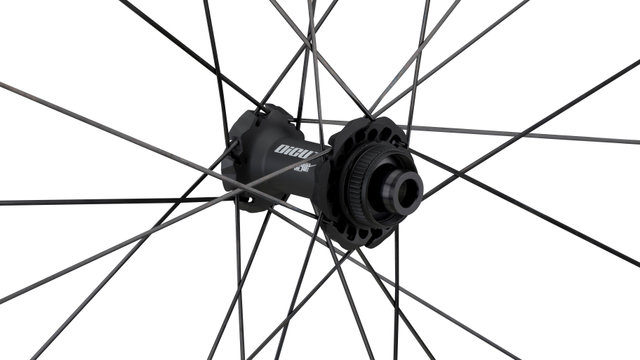

Technical Information - Front Hub:

Type:

240

Over Locknut Dimension:

12 x 100 mm thru-axle

Body Material:

aluminium

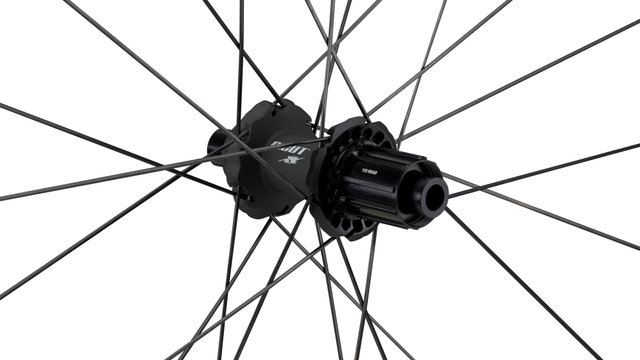

Technical Information - Rear Hub:

Type:

240

Over Locknut Dimension:

12 x 142 mm thru-axle

Body Material:

aluminium

Freehub Body:

DT Swiss Ratchet System® (36 T)

Technical Information - Lacing:

Front Lacing Pattern:

2-cross

Rear Lacing Pattern:

2-cross

Spoke Type:

DT Aerolite® / straight pull (front), DT Aero Comp® / straight pull (rear)

Spoke Size:

285 mm/290 mm (front l/r), 286 mm/285 mm (rear l/r)

Spoke Material:

aluminium

Nipple Type:

DT Pro Lock / Squorx Pro Head

Nipple Material:

aluminium

Approved For:

Weight Limit:

120 kg (system weight)

Air Pressure (max.):

see manufacturer's specifications

Recommended Tyre Width:

see manufacturer's specifications

Features:

• Waterslide adhesive type
• 22 mm jaw width

Technology:

Pro Lock
The screw-locking system injected into the nipples enables the construction of extremely durable wheels.

DICUT®
The RRC DICUT® line is the perfect combination of aerodynamics, technology and design. From the advanced heat-dissipating rims to the reliable Ratchet System® hubs, DICUT® wheels are high-end and made for fast times.

Straight Pull
In order to achieve an ideal ratio of weight and stability, many DT Swiss wheels use different forms of straight pull spokes. Straight pull spokes do not need a spoke bend and thus eliminate a weak point. Nevertheless, they can be trued and replaced with standard tools.

Tubeless Ready
Tubeless Ready rims are designed for use with tubeless kits and tyres. They allow a correct fit of the tubeless rim tape (use the appropriate model!) and the tubeless tyre.

Models:

28" set (front 12x100 + rear 12x142) Shimano:

• Freehub: Shimano Road
• Gearing: 8-/9-/10-/11-speed
• Note: Assembly of 8-/9-/10-speed cassettes on Shimano Road freehub bodies requires a 1.85 mm spacer.
• Manufacturer Numbers: WCR1400AIDXKA07502 (front) + WCR1400NIDJKA07503 (rear)

Colour Info:

• Rims: black w/ white accents
• Hubs: black
• Spokes: black
• Nipples: grey

Contents:

• 1 x DT Swiss CR 1400 DICUT® 25 wheelset (front and rear wheel)
• 2 x tubeless tape, 25 mm
• 2 x DT Swiss road 32 mm tubeless valves
• 1 x DT Swiss SRAM freehub body
