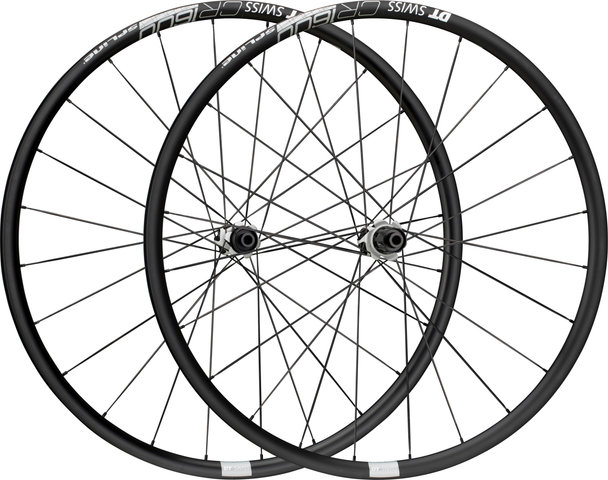

DT Swiss CR 1600 SPLINE 23 Disc Center Lock 28" Wheelset

Stops a lot: the CR 1600 SPLINE® 23 DB wheelset from DT Swiss

When you're on a cyclo-cross bike, there's no better feeling than leaving mountain bikers in the dust. OK not really, but these CR 1600 SPLINE® 23 wheels will exceed all of your expectations. Maximum efficiency is the hallmark of these wheels, whether you are driving through deep mud, on frozen forest floors or over dusty gravel roads. Wide straight pull spokes combined with a high-quality ratchet®system hub provide the necessary durability and support you need, day in and day out. These are the wheels or every new adventure.

Specifications:

Application:

Road

Wheel Size:

28"

Tyre Type:

clincher tyre

Number of Spokes:

24

Brake Type:

Center Lock Disc

Tubeless System:

Tubeless Ready

Freehub Compatibility:

Shimano Freehub:

8/9/10/11-speed Shimano/SRAM (Road)

Note:

To convert to 11-/12-speed SRAM XD, an XD freehub body is required.

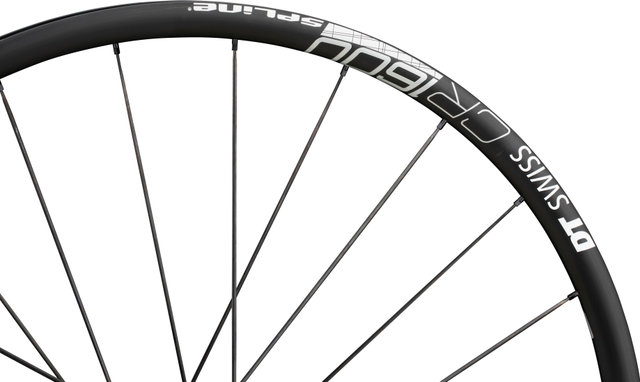

Technical Information - Rim:

Dimensions (ETRTO):

22-622

Inner Width:

22 mm

Outer Width:

26 mm

Depth:

23 mm

Valve Hole Diameter:

SV/Presta (6.5 mm)

Rim Material:

Aluminium

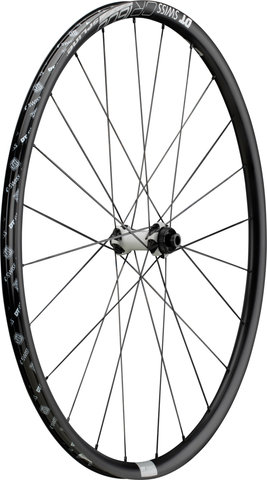

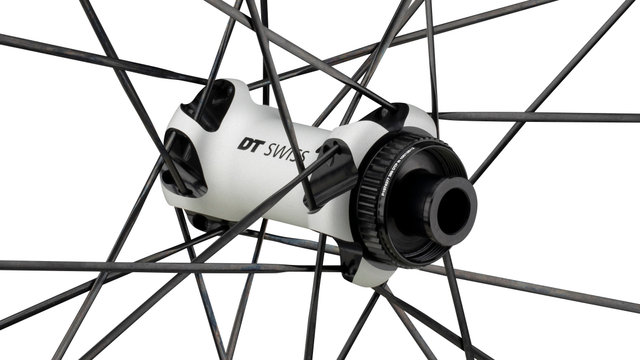

Technical Information - Front Hub:

Type:

350

Over Locknut Dimension:

12 x 100 mm thru-axle

Body Material:

Aluminium

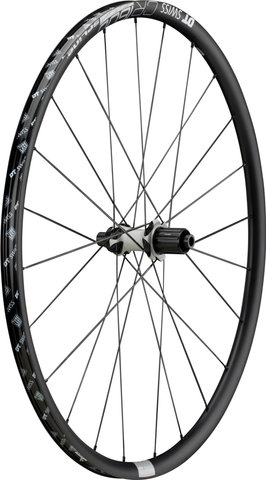

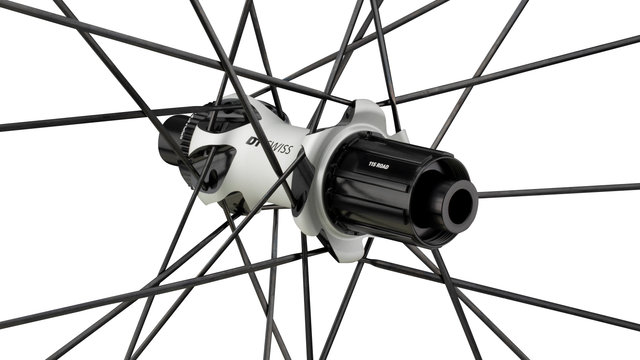

Technical Information - Rear Hub:

Type:

350

Over Locknut Dimension:

12 x 142 mm thru-axle

Body Material:

Aluminium

Freehub Body:

DT Swiss Ratchet System® (18 T)

Technical Information - Lacing:

Front Lacing Pattern:

1-cross

Rear Lacing Pattern:

1-cross

Spoke Type:

DT Aero Comp® / straight pull

Spoke Material:

steel

Nipple Type:

DT Pro Lock / Squorx Pro Head

Nipple Material:

Aluminium

Approved For:

Weight Limit:

130 kg (system weight)

Air Pressure (max.):

7.8 bars

Recommended Tyre Width:

28 - 62 mm (1.1 - 2.5" )

Technology:

Pro Lock
The screw-locking system injected into the nipples enables the construction of extremely durable wheels.

SPLINE®
The SPLINE® line features new and lightweight straight pull hubs with well-known DT Swiss technology, straight spokes as well as stable rims. The combination of reliable and ideally matched components makes every SPLINE® wheel the perfect training and competition partner.

Straight Pull
In order to achieve an ideal ratio of weight and stability, many DT Swiss wheels use different forms of straight pull spokes. Straight pull spokes do not need a spoke bend and thus eliminate a weak point. Nevertheless, they can be trued and replaced with standard tools.

Tubeless Ready
Tubeless Ready rims are designed for use with tubeless kits and tyres. They allow a correct fit of the tubeless rim tape (use the appropriate model!) and the tubeless tyre.

Manufacturer Numbers:

WCR1600AIDXSA04478 + WCR1600NIDMSA04480

Contents:

• 1 x DT Swiss CR 1600 SPLINE® DB 23 wheelset (front and rear wheel)
• 2 x DT Swiss road 32 mm tubeless valves
• 2 x rolls DT Swiss rim tape
