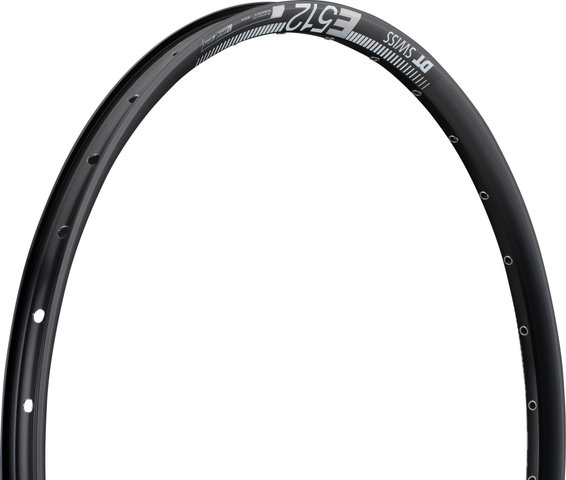

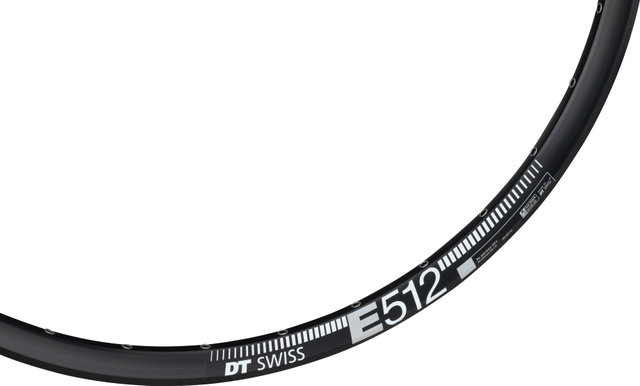

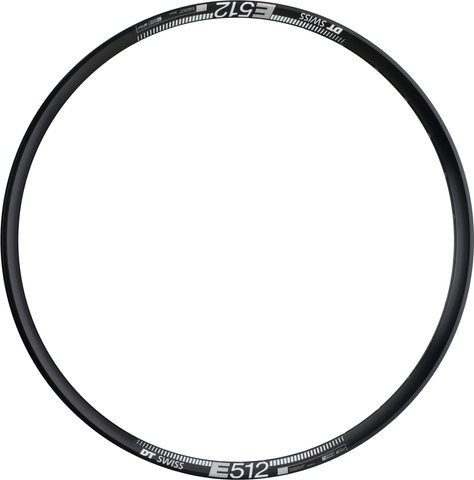

DT Swiss E 512 Disc 29" Rim

Made from extremely resistant aluminium alloys: the E 512 Disc Rim by DT Swiss

Uphill with muscle power while chatting with the buddies, downhill attack mode. That's exactly what DT Swiss Enduro rims are designed for. Manufactured with the highest precision and from extremely resistant aluminium alloys, they can handle even the most demanding trails.

Specifications:

Application:

Enduro

Wheel Size:

29"

Tyre Type:

clincher tyre

Number of Spokes:

32

Brake Type:

disc

Tubeless System:

tubeless ready

Technical Information:

Dimensions (ETRTO):

25-622

Inner Width:

25 mm

Outer Width:

30 mm

Depth:

21 mm

ERD:

600 mm

Valve Hole Diameter:

SV/Presta (6.5 mm)

Rim Material:

aluminium

Approved For:

Weight Limit:

130 kg (system weight)

Air Pressure (max.):

5.5 bars

Recommended Tyre Width:

1.5 - 3.0" / 40 - 76 mm

Features:

• single eyelets
• 1200 N max. spoke tension
• rim tape: 622x27 mm
• spokes: DT Competition®, DT Champion®, DT Aero Comp®

Technology:

Sleeve Joint:
In this process a shaped part (sleeve) is pressed evenly into both ends of the profile. The sleeve joint is the best alternative to SBWT® welded rims.

Models:

29" / 28 hole:

• Wheel Size: 29"
• Number of Spokes: 28
• Manufacturer Number: RTE05129S28S011296

29" / 32 hole:

• Wheel Size: 29"
• Number of Spokes: 32
• Manufacturer Number: RTE05129S32S011297

Contents:

• 1 x DT Swiss E 512 rim
