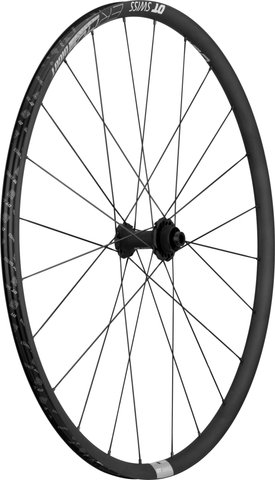

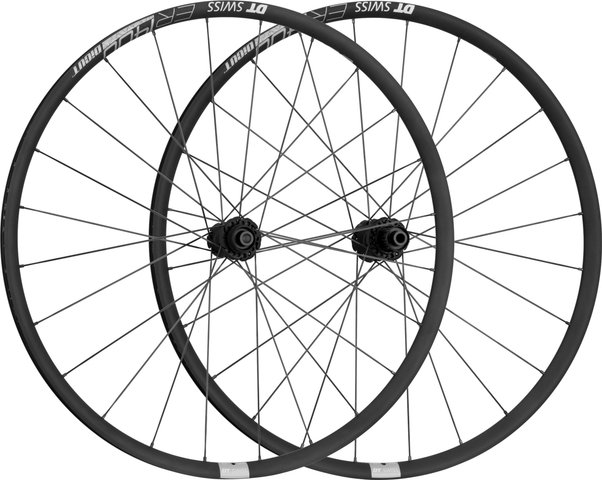

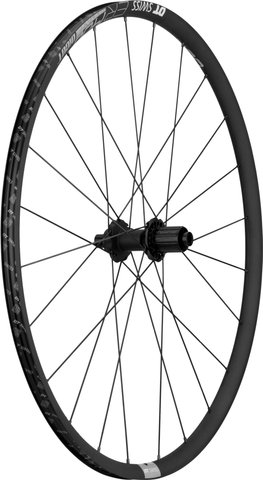

DT Swiss ER 1400 DICUT 21 Disc Center Lock 28" Wheelset

Adventurous, light and stable: the ER 1400 DICUT DB 21 wheelset from DT Swiss

The ER 1400 DICUT® DB 21 wheels from DT Swiss are the right choice whether you ride on streets, gravel paths or bad roads, with mudguards, lights, disc brakes and luggage rack. With 20 mm wide, stable-yet-lightweight rims and tried-and-tested 240s hubs, these wheels are exactly need to go on adventures.

Specifications:

Application:

Road, Gravel

Wheel Size:

28"

Tyre Type:

clincher tyre

Number of Spokes:

24

Brake Type:

Center Lock Disc

Tubeless System:

Tubeless Ready

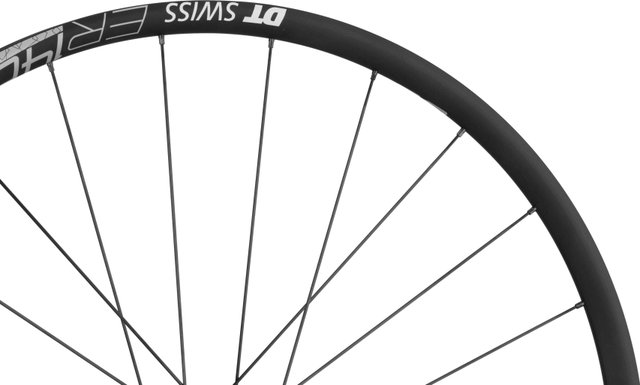

Technical Information - Rim:

Type:

ER 1400 DICUT

Dimensions (ETRTO):

20-622

Inner Width:

20 mm

Outer Width:

24 mm

Depth:

21 mm

Valve Hole Diameter:

SV / Presta (6.5 mm)

Rim Material:

Aluminium

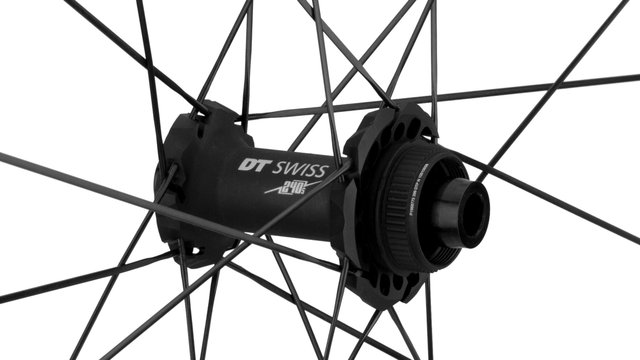

Technical Information - Front Hub:

Type:

240

Over Locknut Dimension:

12 x 100 mm thru-axle

Body Material:

Aluminium

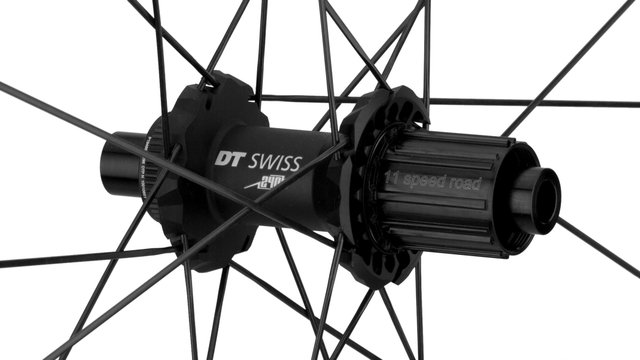

Technical Information - Rear Hub:

Type:

240

Over Locknut Dimension:

12 x 142 mm thru-axle

Body Material:

Aluminium

Freehub Body:

DT Swiss Ratchet System® (36 T)

Technical Information - Lacing:

Front Lacing Pattern:

2-cross

Rear Lacing Pattern:

2-cross

Spoke Type:

DT Aero Comp® / DT Aerolite® / straight pull

Spoke Material:

steel

Nipple Type:

DT Pro Lock Squorx / Pro Head

Nipple Material:

Aluminium

Approved For:

Weight Limit:

120 kg (system weight)

Air Pressure (max.):

7.8 bars

Recommended Tyre Width:

28 - 34 mm (1.10 - 1.35" )

Features:

• Waterslide adhesive type
• 20 mm jaw width

Technology:

DT ProLock Squorx Pro Head
The DT Squorx Pro Head nipple combines ease of assembly and lightweight. With an additional Torx and square drive. The Torx drive provides more contact surface when building wheels, which means that the torque transmitted from the tool to the nipple is better distributed. The spherical contact area in the rim guarantees perfect alignment with the spoke.

DICUT
The RRC DICUT line is the perfect combination of aerodynamics, technology and design. From its advanced heat-dissipating rims to the reliable hubs with Ratchet System, DICUT wheels are high-end and made for fast times.

Tubeless Ready
Tubeless Ready rims are designed for use with tubeless kits and tyres. They allow a correct fit of the tubeless rim tape (use the appropriate model!) and the tubeless tyre.

Ratchet System
The patented freehub system with high-precision toothed ratchets guarantees maximum load capacity and reliability. Thanks to the No-Tool concept, the system is very easy and quick to maintain.

Straight Pull
In order to achieve an ideal ratio of weight and stability, many DT Swiss wheels use different forms of straight pull spokes. Straight pull spokes do not need a spoke bend and thus eliminate a weak point. Nevertheless, they can be trued and replaced with standard tools.

Colour info:

black:

• Rims: black w/ white accents
• Hubs: black
• Spokes: black
• Nipples: black

Models:

28" set (front 12x100 + rear 12x142) Shimano:

• Freehub: Shimano Road
• Gearing: 8-/9-/10-/11-speed
• Manufacturer Numbers: WER1400AIDXKA07123 (front) + WER1400NIDJKA07124 (rear)
• Conversion Options: To convert to SRAM XDR, an XDR freehub body is required.

Contents:

• 1 x DT Swiss ER 1400 DICUT DB 21 wheelset (front and rear wheel)
• 2 x DT Swiss 23 mm tubeless tape
• 2 x DT Swiss road 32 mm tubeless valves
