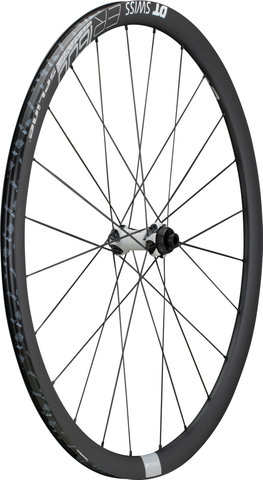

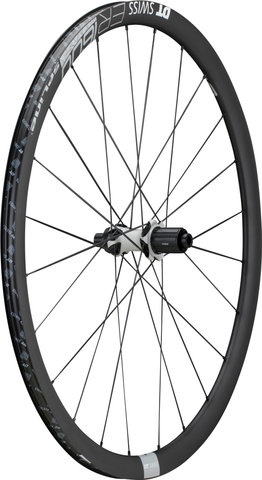

DT Swiss ER 1600 SPLINE 32 Center Lock Disc 28" Wheelset

Progress without compromise: the ER 1600 SPLINE® 32 DB wheelset from DT Swiss

Don't mind bad roads? Are potholes just a game to you? Then take a closer look at the ER 1600 SPLINE® 32. Approved for system weights up to 130 kg and equipped with a high-quality welded rim, these wheels are made for tough use. When roads become rougher and you're looking to transform your power into propulsion, these wheels are in their element - without compromise.

Specifications:

Application:

Road

Wheel Size:

28"

Tyre Type:

clincher tyre

Number of Spokes:

24

Brake Type:

Center Lock Disc

Tubeless System:

Tubeless Ready

Freehub Compatibility:

Shimano Freehub:

8/9/10/11-speed Shimano/SRAM (Road)

Note:

To convert to 11-/12-speed SRAM XD, an XD freehub body is required.

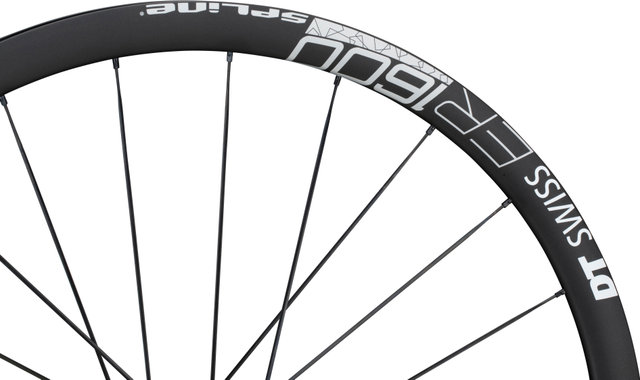

Technical Information - Rim:

Dimensions (ETRTO):

20-622

Inner Width:

20 mm

Outer Width:

24 mm

Depth:

32 mm

Valve Hole Diameter:

SV/Presta (6.5 mm)

Rim Material:

aluminium

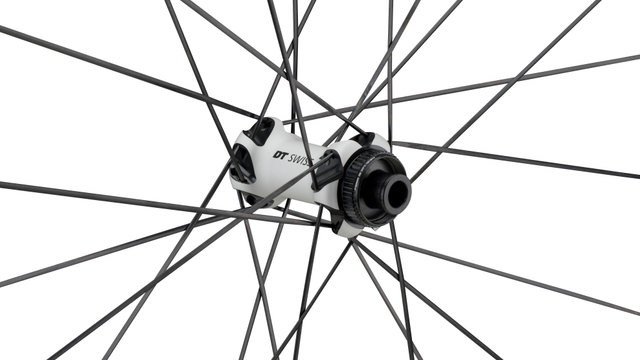

Technical Information - Front Hub:

Type:

350

Over Locknut Dimension:

12 x 100 mm thru-axle

Body Material:

aluminium

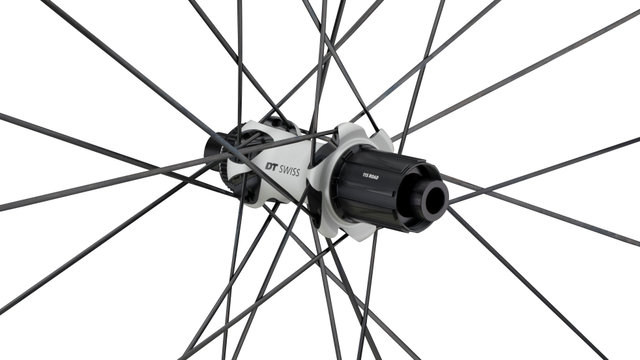

Technical Information - Rear Hub:

Type:

350

Over Locknut Dimension:

12 x 142 mm thru-axle

Body Material:

aluminium

Freehub Body:

DT Swiss Ratchet System® (18 T)

Technical Information - Lacing:

Front Lacing Pattern:

1-cross

Rear Lacing Pattern:

1-cross

Spoke Type:

DT Aero Comp® / straight pull

Spoke Material:

steel

Nipple Type:

DT Pro Lock / Squorx Pro Head

Nipple Material:

aluminium

Approved For:

Weight Limit:

130 kg (system weight)

Air Pressure (max.):

7.8 bars

Recommended Tyre Width:

28 - 62 mm (1.1 - 2.5" )

Technology:

Pro Lock
The screw-locking system injected into the nipples enables the construction of extremely durable wheels.

SPLINE®
The SPLINE® line features new and lightweight straight pull hubs with well-known DT Swiss technology, straight spokes as well as stable rims. The combination of reliable and ideally matched components makes every SPLINE® wheel the perfect training and competition partner.

Straight Pull
In order to achieve an ideal ratio of weight and stability, many DT Swiss wheels use different forms of straight pull spokes. Straight pull spokes do not need a spoke bend and thus eliminate a weak point. Nevertheless, they can be trued and replaced with standard tools.

Tubeless Ready
Tubeless Ready rims are designed for use with tubeless kits and tyres. They allow a correct fit of the tubeless rim tape (use the appropriate model!) and the tubeless tyre.

Manufacturer Numbers:

WER1600AIDXSA04470 + WER1600NIDMSA04472

Contents:

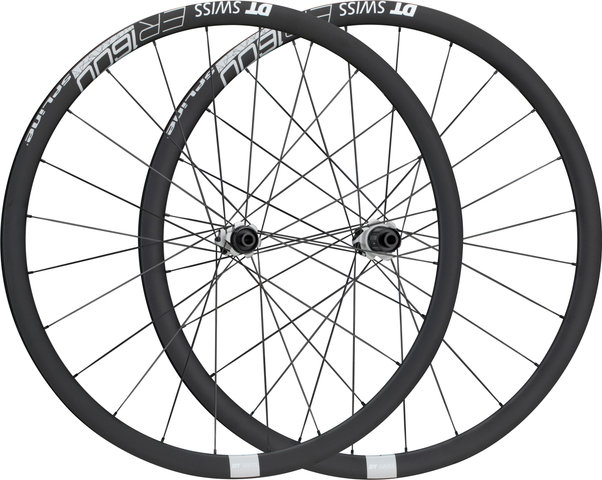

• 1 x DT Swiss ER 1600 SPLINE® DB 32 wheelset (front and rear wheel)
• 2 x DT Swiss MTB/Road 40 mm tubeless valve
• 2 x rolls DT Swiss rim tape
