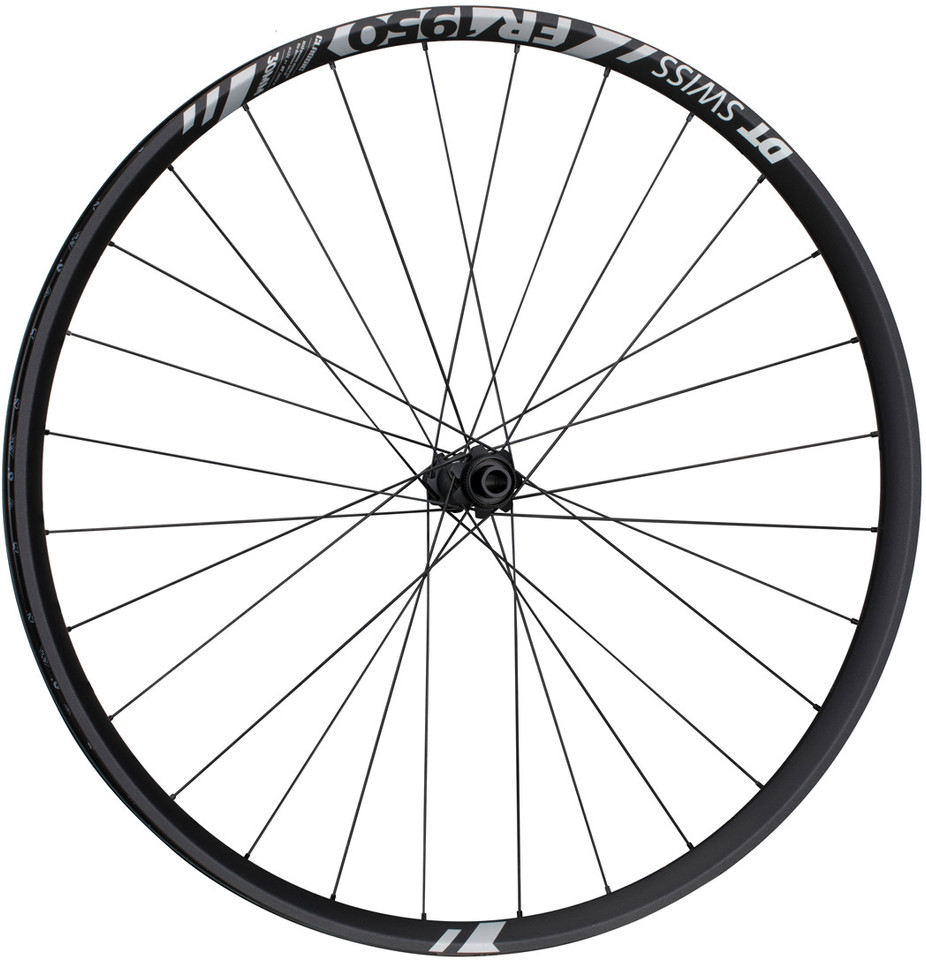

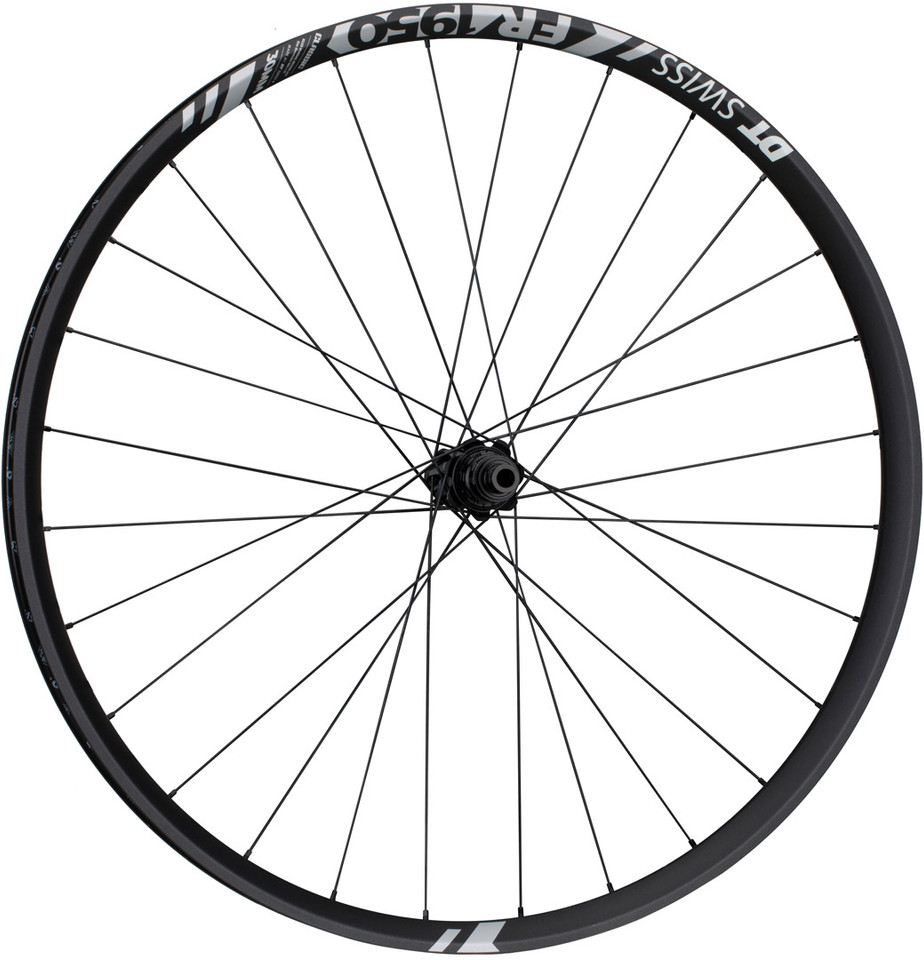

DT Swiss FR 1950 CLASSIC 30 Boost Center Lock Disc 29" Wheelset

A reliable wheel for any situation: the FR 1950 CLASSIC 30 wheelset from DT Swiss

The 30 mm rim width of the FR 1950 CLASSIC 30 gives your downhill tyres very good lateral support for even higher cornering speeds. The increased air volume allows you to lower tyre pressure and find traction where there was none before. The rim design, light 240s hubs and DT Competition spokes have proved their mettle on the bikes of Danny Hart and Loic Bruni, riding the toughest downhill tracks in the world. Whether you're going against the clock or just having fun - the FR 1950 is for all bikers who enjoy letting go.

Specifications:

Application:

Freeride

Wheel Size:

29"

Tyre Type:

clincher tyre

Number of Spokes:

32

Brake Type:

6-bolt disc

Tubeless System:

Tubeless Ready

Freehub:

Shimano MTB

Gearing:

8-/9-/10-/11-speed

Freehub Compatibility:

Note:

To convert to SRAM XD, an XD freehub body is required.

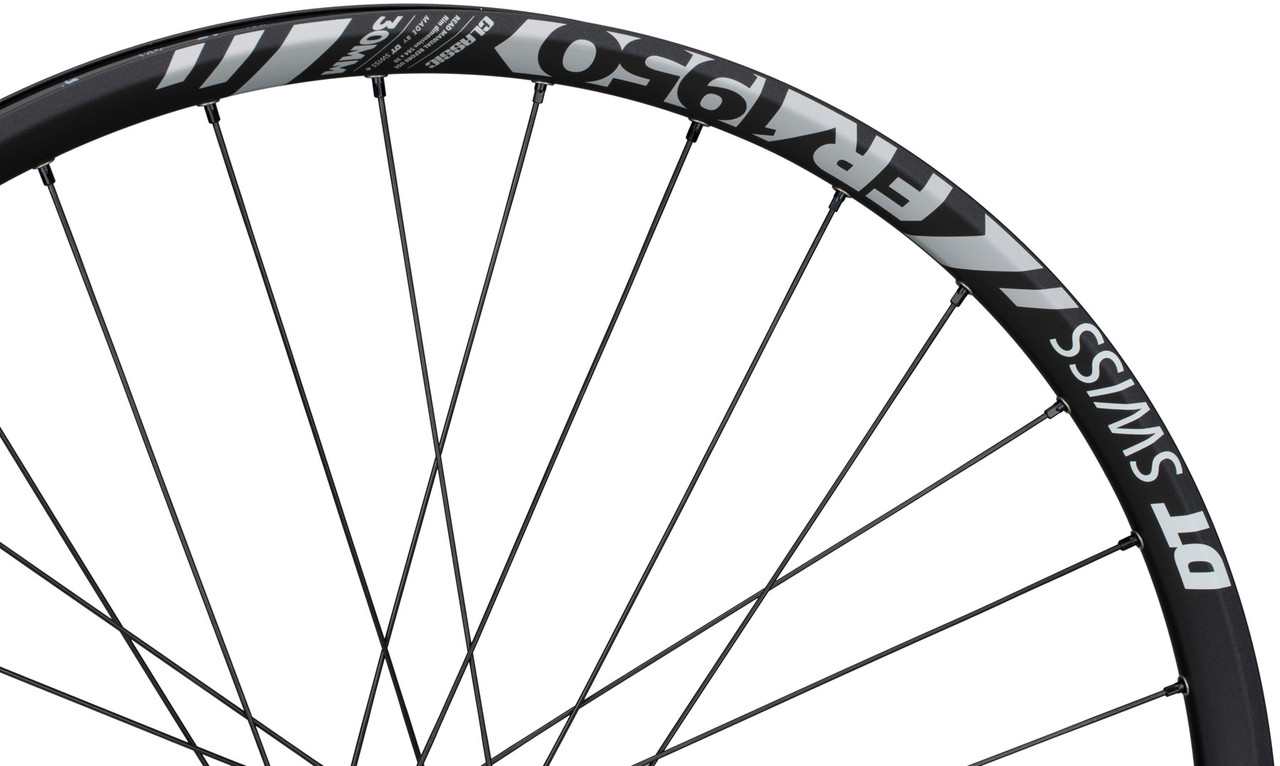

Technical Information - Rim:

Dimensions (ETRTO):

30-622

Inner Width:

30 mm

Outer Width:

35 mm

Depth:

21 mm

Rim Material:

aluminium

Technical Information - Front Hub:

Type:

240

Over Locknut Dimension:

20 x 110 mm thru-axle

Bearings:

precision bearings, sealed

Body Material:

aluminium

Technical Information - Rear Hub:

Type:

240

Over Locknut Dimension:

12 x 148 mm thru-axle

Bearings:

precision bearings, sealed

Body Material:

aluminium

Freehub Body Material:

aluminium

Freehub Body:

DT Swiss Ratchet System® 18

Technical Information - Lacing:

Front Lacing Pattern:

3-cross

Rear Lacing Pattern:

3-cross

Spoke Type:

DT Competition® / straight pull / double butted

Spoke Size:

291 mm/293 mm (front l/r), 292 mm (rear)

Spoke Material:

steel

Nipple Type:

DT Pro Lock / Squorx Pro Head

Nipple Material:

aluminium

Approved For:

Weight Limit:

140 kg (system weight)

Air Pressure (max.):

4.7 bars

Recommended Tyre Width:

1.85 - 3.50"

Features:

• glue type: vinyl hub/ Waterslide rim
• 30 mm width for better lateral hold
• higher speed in curves
• better traction due to larger air volume

Technology:

DT ProLock Squorx Pro Head®
The DT Squorx Pro Head nipple combines ease of assembly and lightweight. With an additional Torx and square drive. The Torx drive provides more contact surface when building wheels, which means that the torque transmitted from the tool to the nipple is better distributed. The spherical contact area in the rim guarantees perfect alignment with the spoke.

Ratchet System®
The patented freehub system with high-precision star ratchets guarantees maximum load capacity and reliability. Thanks to the no-tool concept, the system is very easy and quick to maintain.

Straight Pull
In order to achieve an ideal ratio of weight and stability, many DT Swiss wheels use different forms of straight pull spokes. Straight pull spokes do not need a spoke bend and thus eliminate a weak point. Nevertheless, they can be trued and replaced with standard tools.

Tubeless Ready
Tubeless Ready rims are designed for use with tubeless kits and tyres. They allow a correct fit of the tubeless rim tape (use the appropriate model!) and the tubeless tyre.

Double Butted
These spokes have two different diameters. The spoke is partially butted by cold forging. As a result, the diameter is smaller and thus enables a reduction in weight while at the same time improving the strain values.

Manufacturer Numbers:

29" set (front 20x110 Boost + rear 12x148 Boost) Shimano:

WFR1950BFEXSA07460 + WFR1950TFDBSA07250

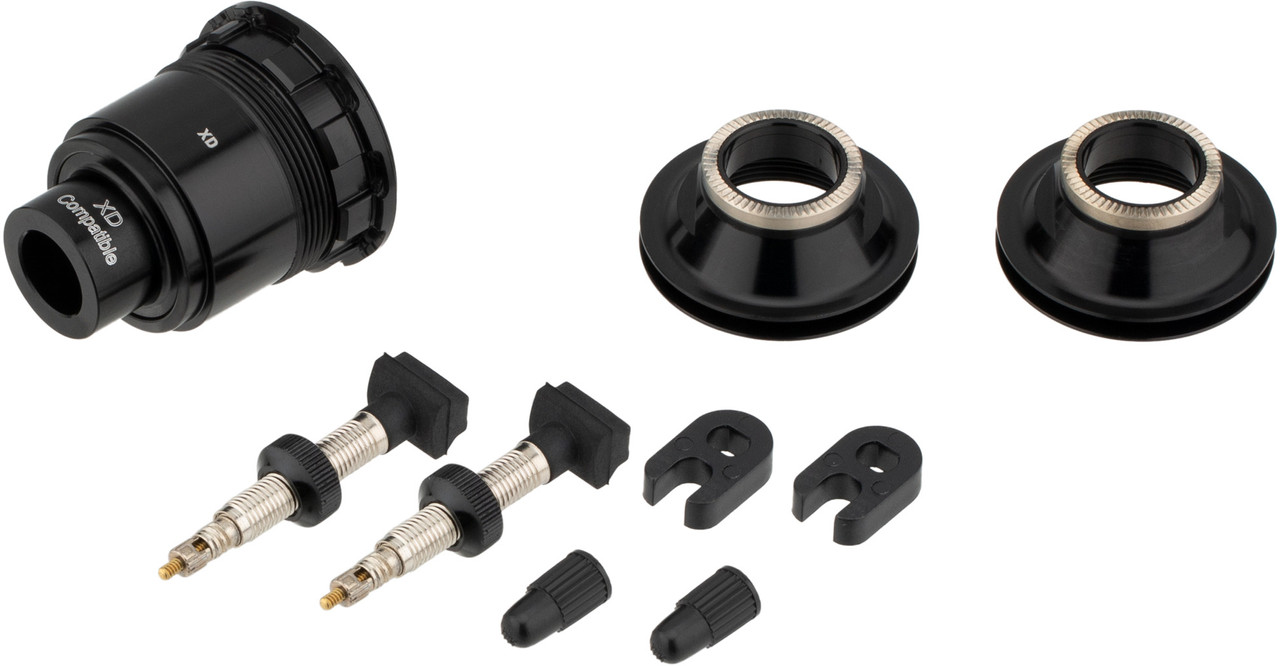

Contents:

• 1 x DT Swiss FR 1950 CLASSIC 30 wheelset (front & rear)
• 2 x roll 32 mm rim tape
• 2 x MTB 32 mm tubeless valves
• 1 x DT Swiss 15 mm end cap conversion kit (front)
• 1 x SRAM XD freehub body conversion kit (rear)
