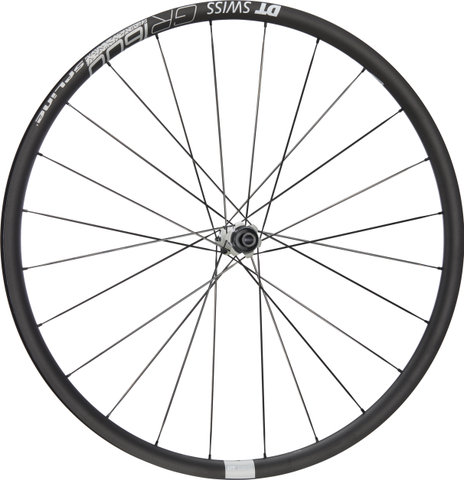

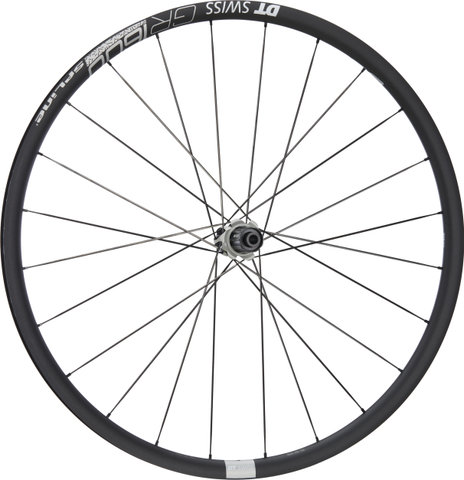

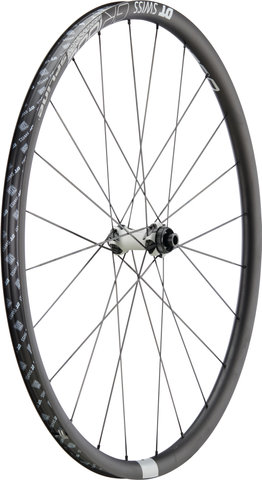

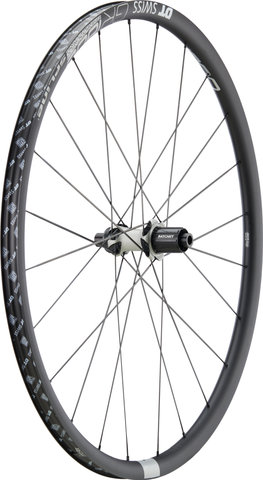

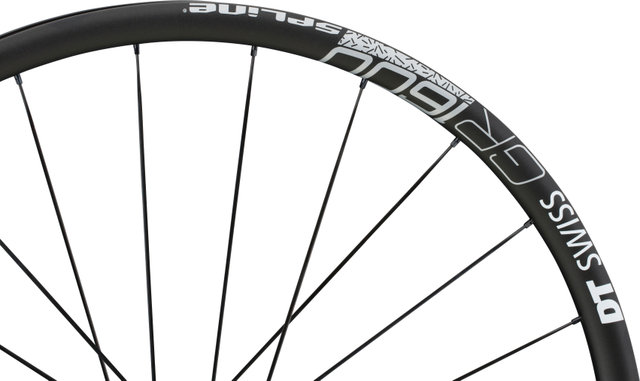

DT Swiss GR 1600 SPLINE 25 Center Lock Disc 28" Wheelset - OEM Packaging

DT Swiss GR 1600 SPLINE DB 25 Center Lock Disc 28" gravel wheelset - for off-road use

With the GR 1600 SPLINE wheelset from DT Swiss, your gravel bike is optimally equipped for adventures far off the beaten path. Thanks to SPLINE technology with 350 hub, straight pull spokes and a strong aluminium rim, you get a reliable, durable wheel. strong enough to withstand extra luggage for bikepacking trips. The ratchet 18-tooth freehub engages quickly, reducing idle travel when pedalling and allowing you to move forward efficiently. With 28 mm rim depth and 24 mm rim width, you have the option of riding tubeless or tubular. The right choice of tyres and center lock disc brakes will allow you to always maintain control, whether on gravel or loose soil.

OEM Packaging:

This item comes from the original equipment manufacturer and is lacking the retail packaging. There is no SRAM XDR freehub body included.

Specifications:

Application:

Gravel

Wheel Size:

28"

Tyre Type:

clincher tyre

Number of Spokes:

24

Brake Type:

Center Lock Disc

Tubeless System:

Tubeless Ready

Technical Information - Rim:

Rim Flange:

with hook

Dimensions (ETRTO):

24-622

Inner Width:

24 mm

Outer Width:

28 mm

Depth:

25 mm

Valve Hole Diameter:

SV/Presta (6.5 mm)

Rim Material:

aluminium

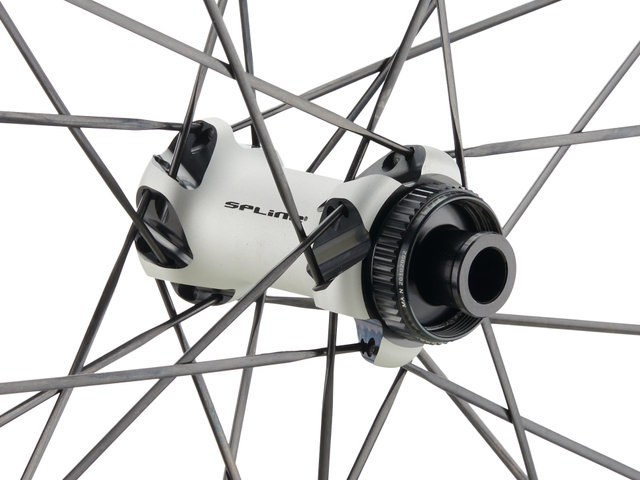

Technical Information - Front Hub:

Type:

DT Swiss 350

Over Locknut Dimension:

12 x 100 mm thru-axle

Bearings:

precision bearings, sealed

Body Material:

aluminium

Technical Information - Rear Hub:

Type:

DT Swiss 350

Over Locknut Dimension:

12 x 142 mm thru-axle

Bearings:

precision bearings, sealed

Body Material:

aluminium

Freehub Body Material:

aluminium

Freehub Body:

DT Swiss Ratchet System 18

Technical Information - Lacing:

Front Lacing Pattern:

2-cross

Rear Lacing Pattern:

2-cross

Spoke Type:

DT Aero Comp Wide, straight pull

Spoke Size:

295 mm/296 mm (front l/r), 296 mm/291 mm (rear l/r)

Spoke Material:

stainless steel (18/10)

Nipple Type:

DT Pro Lock / Squorx Pro Head

Nipple Size:

15 mm (length) / 2 mm (diameter)

Nipple Material:

aluminium

Approved For:

Weight Limit:

130 kg (system weight)

Air Pressure (max.):

see manufacturer's specifications

Recommended Tyre Width:

see manufacturer's specifications

Technology:

Intended use: Category 2
Suitable for use on predominantly paved and partially unpaved ground with a slight slope and a temporary loss of ground contact as well as drops of up to 15 cm.

SPLINE
Straight pull hubs, straight spokes and strong rims result in a durable wheel. It can therefore be reliably used in training and competition.

Pro Lock
The nipple thread is coated with two-component adhesive to increase the durability of the wheels. It can still be re-trued several times without any problems, but the adhesive strength decreases slightly. The connection between the spoke and nipple cannot loosen by itself.

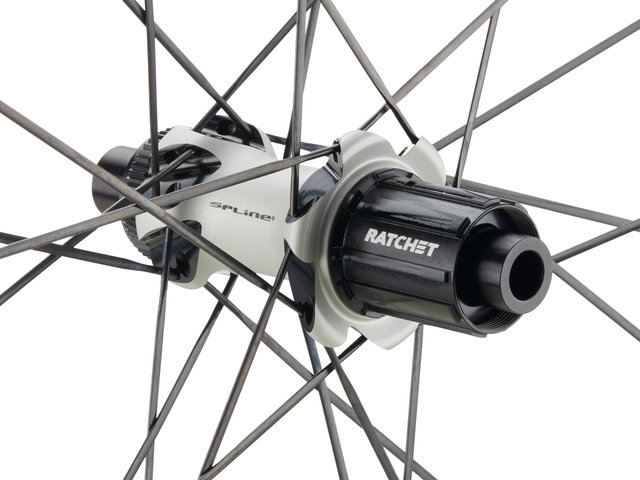

Ratchet System
The robust and reliable star ratchets freehub system can be maintained easily and quickly. A no-tool concept further contributes to this, as it allows disassembly without tools. The freehub has two ratchets which engage simultaneously. This means that the contact surface is large and the point load is kept small, which relieves the material and allows the freehub to work particularly reliably and precisely.

Colour Info:

black:

• Rims: black w/ white accents
• Hubs: silver
• Spokes: black
• Nipples: black

Models:

28" set (front 12x100 + rear 12x142) Shimano:

Freehub:

Shimano Road

Gearing:

8-/9-/10-/11-/12-speed

Note:

The assembly of 8-/9-/10-speed cassettes on a Shimano road rotor requires a 1.85 mm spacer.

Contents:

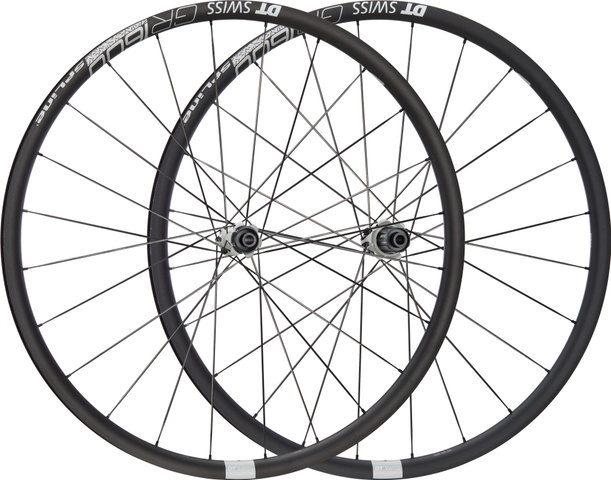

• 1 x DT Swiss GR 1600 Spline DB 25 wheelset (front and rear wheel)
• 2 x tubeless tape, 27 mm (pre-installed)

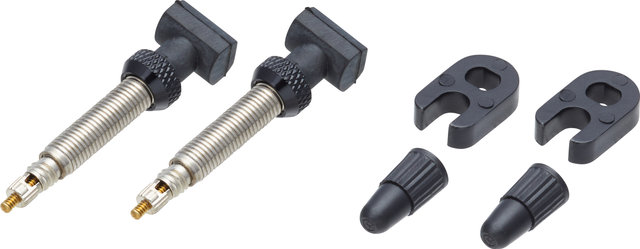

• 2 x DT Swiss road 32 mm tubeless valves

• schwarz | 142 mm | 100 mm | 28" | Shimano Road | 100 mm | Shimano Road | 100 mm | 142 mm: 1811 g

DT Swiss Deutschland GmbH
Albert-Einstein-Straße 3
59302 Oelde
Germany
