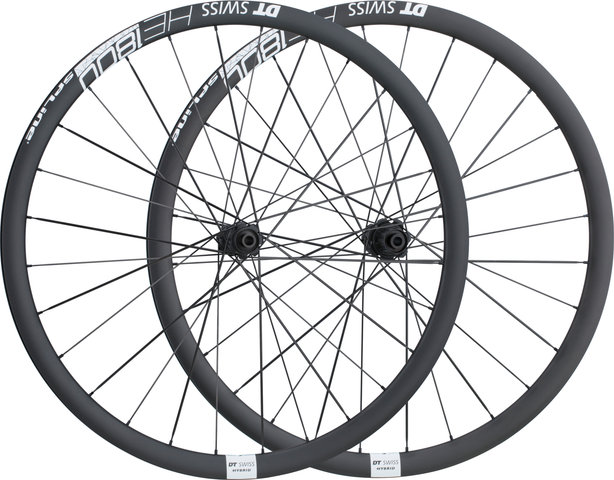

DT Swiss HE 1800 SPLINE 32 Disc Center Lock Hybrid 28" Wheelset

Ready for every E-Road adventure: the HE 1800 SPLINE 32 wheelset from DT Swiss

The entry-level wheel into the world of e-road biking. The HE 1800 SPLINE® wheelset offers very reliable wheels for all e-road riders. Each wheel has components specific to e-roads, such as the hybrid spokes, which deliver additional performance and unlimited driving pleasure on the road. Whether you just appreciate the extra power uphill or need the extra watts to challenge your fellow riders, The HE 1800 wheelset is ready for anything.

Guidelines for Replacing E-bike Components:

Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.

Specifications:

Application:

E-Bike, Road, Gravel

Wheel Size:

28"

Tyre Type:

clincher tyre

Number of Spokes:

28

Brake Type:

disc Center Lock (6-bolt conversion w/ adapter)

Tubeless System:

Tubeless Ready

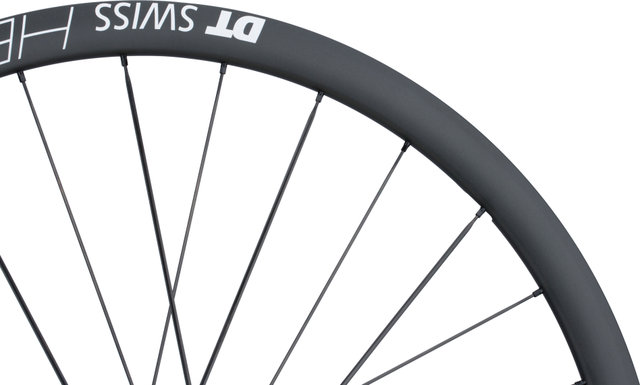

Technical Information - Rim:

Type:

HE 1800 SPLINE

Dimensions (ETRTO):

20-622

Inner Width:

20.0 mm

Outer Width:

24.0 mm

Depth:

32.0 mm

Valve Hole Diameter:

SV / Presta (6.5 mm)

Rim Material:

Aluminium

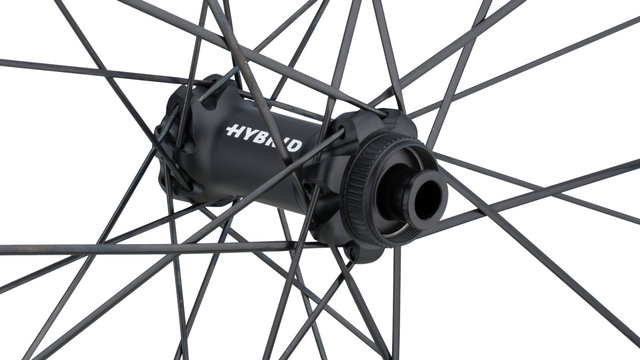

Technical Information - Front Hub:

Type:

370

Over Locknut Dimension:

12 x 100 mm thru-axle

Body Material:

Aluminium

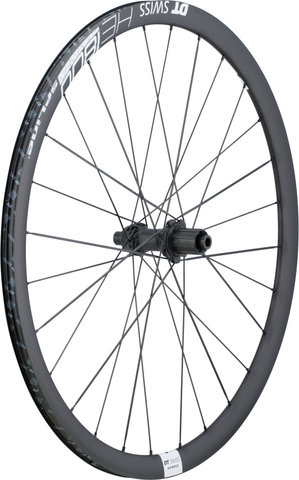

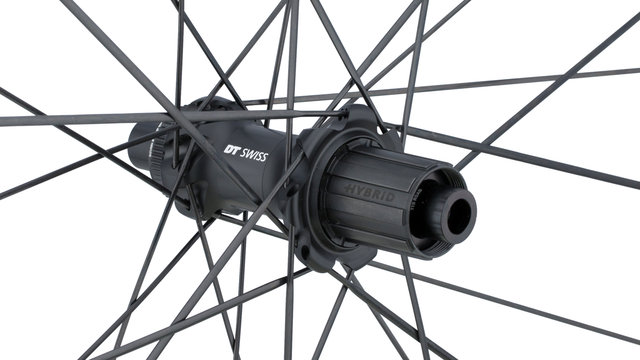

Technical Information - Rear Hub:

Type:

370

Over Locknut Dimension:

12 x 142 mm thru-axle

Body Material:

Aluminium

Freehub Body Material:

steel

Freehub Body:

DT Swiss Pawl System® (3 pawls)

Technical Information - Lacing:

Front Lacing Pattern:

2-cross

Rear Lacing Pattern:

2-cross

Spoke Type:

DT Hybrid 1® / straight pull

Spoke Material:

steel

Nipple Type:

DT Pro Lock® Squorx / Pro Head

Nipple Material:

Aluminium

Approved For:

Weight Limit:

130 kg system weight (rider + bike + gear)

Air Pressure (max.):

7.8 bars

Recommended Tyre Width:

1.10 - 1.35"

Features:

• Adhesive: Waterslide
• 20 mm jaw width

Technology:

SPLINE
The SPLINE line is characterised by straight pull hubs with famous DT Swiss technology, straight spokes as well as stable rims. The combination of reliable and ideally matched components makes every SPLINE wheel the perfect training and competition partner.

E-Bike
This product has been specially developed to meet the higher loads of e-bikes.

Tubeless Ready
Tubeless Ready rims are designed for use with tubeless kits and tyres. They allow a correct fit of the tubeless rim tape (use the appropriate model!) and the tubeless tyre.

DT ProLock Squorx Pro Head
The DT Squorx Pro Head nipple combines ease of assembly and lightweight. With an additional Torx and square drive. The Torx drive provides more contact surface when building wheels, which means that the torque transmitted from the tool to the nipple is better distributed. The spherical contact area in the rim guarantees perfect alignment with the spoke.

Colour Info:

black:

• Rims: black w/ white accents
• Hubs: black
• Spokes: black
• Nipples: black

Models:

28" set (front 12x100 + rear 12x142) Shimano:

• Freehub: Shimano
• Gearing: 8-/9-/10-/11-speed
• Manufacturer Numbers: WHE1800AIDXSA11404 (front) + WHE1800NIDVSA11405 (rear)
• Conversion Options: To convert to SRAM XD, an XD freehub body is required.

Contents:

• 1 x DT Swiss HE 1800 SPLINE 32 wheelset (front and rear wheel)
• 2 x DT Swiss 23 mm tubeless tape
• 2 x DT Swiss MTB/Road 40 mm tubeless valve
