HEC 1400 SPLINE 47 Carbon Centre Lock Disc Hybrid 28" Wheelset - black/28" set (front 12x100 + rear 12x142) Shimano

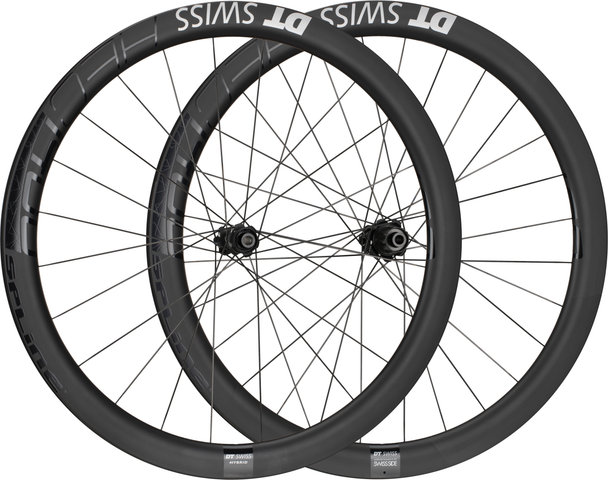

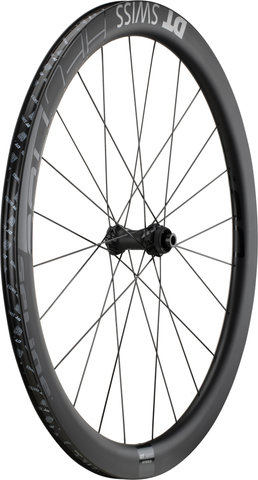

DT Swiss HEC 1400 SPLINE 47 Carbon Centre Lock Disc Hybrid 28" Wheelset

Item number: 87894

DT Swiss HEC 1400 SPLINE 47 Carbon Centre Lock Disc Hybrid 28" wheelset - for road bikes with an electric drivetrain


You can equip your electric Endurance road bike with the HEC 1400 Hybrid wheelset from DT Swiss. The HYBRID wheels are designed for the larger weight of e-bikes and are therefore particularly sturdy. The SPLINE construction further supports the stability provided by the steel freehub, robust hub and reinforced carbon rim walls. The rim depth is 47 mm. This makes the wheels robust, fast and they impress with precise driving characteristics.

Guidelines for Replacing E-bike Components:

Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.

Specifications:

Application:
Road, Gravel
Wheel Size:
28"
Tyre Type:
clincher tyre
Number of Spokes:
28
Brake Type:
Center Lock Disc
Tubeless System:
Tubeless Ready

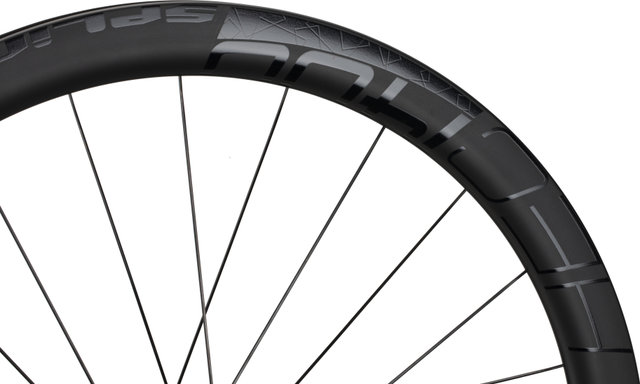

Technical Information - Rim:

Rim Flange:
with hook
Dimensions (ETRTO):
19-622
Inner Width:
19 mm
Outer Width:
27 mm
Depth:
47 mm
Valve Hole Diameter:
SV/Presta (6.5 mm)
Rim Material:
carbon

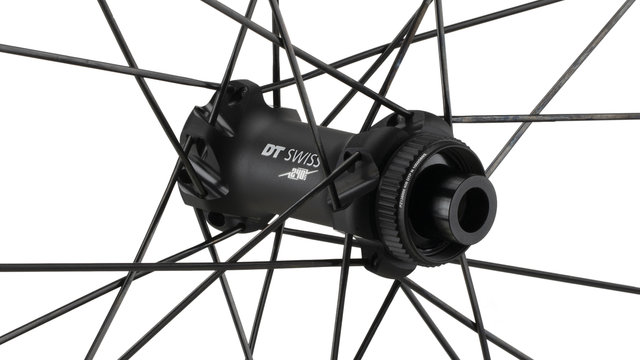

Technical Information - Front Hub:

Type:
240 straight pull
Over Locknut Dimension:
12 x 100 mm thru-axle
Bearings:
steel bearings
Body Material:
aluminium

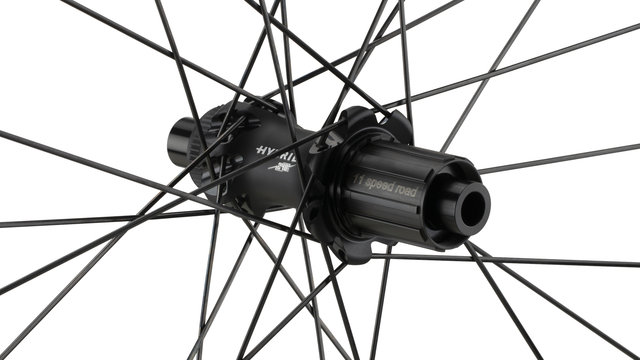

Technical Information - Rear Hub:

Type:
240 straight pull
Over Locknut Dimension:
12 x 142 mm thru-axle
Bearings:
steel bearings
Body Material:
aluminium
Freehub Body Material:
steel
Freehub Body:
Ratchet System 24

Technical Information - Lacing:

Front Lacing Pattern:
2-cross
Rear Lacing Pattern:
3-cross
Spoke Type:
DT Aero Comp / straight pull
Spoke Material:
stainless steel (18/10)
Nipple Type:
DT Pro Lock Hidden
Nipple Size:
12 mm (length) / 2 mm (diameter)
Nipple Material:
aluminium

Approved For:

Weight Limit:
130 kg (system weight)
Air Pressure (max.):
see user manual (Tire Pressure and Dimension)
Recommended Tyre Width:
see user manual (Tire Pressure and Dimension)

Technology:

Intended use - Category 2
Suitable for use on predominantly paved and partially unpaved ground with a slight slope and a temporary loss of ground contact as well as drops of up to 15 cm.

HYBRID
To cope with the higher loads on e-bikes, the hubs, as the heart of the wheel, have a higher wall thickness and larger housings than usual hubs. The spoke holes have been additionally reinforced. The freehub rotor is made from steel and is equipped with 24-tooth ratchets, which are made from special hardened steel. Heavy-duty axles and oversized hubs allow the wheels to work while bearing high loads. The rims have thicker rim walls and offer plenty of traction. The connecting element between rim and hub, the spokes, have reinforced spoke heads and are made of special steel alloys in order to withstand stronger external forces.

SPLINE
Straight pull hubs, straight spokes and strong rims result in a durable wheel. It can therefore be reliably used in training and competition.

Ratchet System
The robust and reliable star ratchets freehub system can be maintained easily and quickly. The no-tool concept contributes to this, because it allows disassembly without any tools. The freehub has two ratchets which engage simultaneously. This means that the contact surface is large and the point load is kept small, which relieves the material and allows the freehub to work particularly reliably and precisely.

Pro Lock
The nipple thread is coated with two-component adhesive to increase the durability of the wheels. It can still be re-trued several times without any problems, but the adhesive strength decreases slightly. The connection between the spoke and nipple cannot loosen by itself.

Colour Info:

black:
  • Rims: black with grey decals
  • Hubs: black
  • Spokes: black
  • Nipples: black

Models:

28" set (front 12x100 + rear 12x142) Shimano:
Freehub:
Shimano Road
Gearing:
8-/9-/10-/11-/12-speed
Note:
The assembly of 8-/9-/10-speed cassettes on a Shimano Road freehub body requires a 1.85 mm spacer ring.
Manufacturer Numbers:
WHEC140AIDXCA11402 + WHEC140NIDVCA11403

Contents:

  • 1 x DT Swiss HEC 1400 SPLINE 47 Carbon wheelset (front and rear wheel)
  • 1 x DT Swiss freehub body to convert to SRAM XDR
  • 2 x roll DT Swiss tubeless rim tape
  • 2 x DT Swiss tubeless valves
  • 2 x DT Swiss valve protectors
