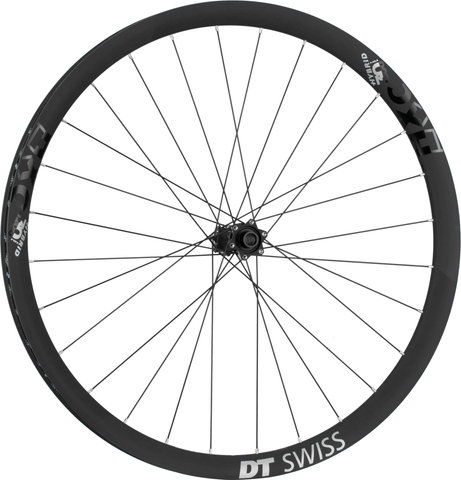

DT Swiss HXC 1200 SPLINE® 30 Boost 6-Bolt Disc Hybrid 27.5" Wheelset

The best of the best: the HXC 1200 SPLINE® wheelset by DT Swiss

Where to begin? Best in the middle: A super reliable straight pull spoke interface. Light, eMTB-stable spokes. A stiff, high-precision full carbon rim. But the whole HXC 1200 SPLINE® is even better than the sum of its parts - a wheel that accelerates like no other, offers traction like no other and is precise like no other. On the trail it is simply a rocket.

Specifications:

Application:

Trail

Wheel Size:

27.5" (650B)

Tyre Type:

clincher tyre

Number of Spokes:

28

Brake Type:

6-bolt disc

Tubeless System:

Tubeless Ready

Freehub Compatibility:

Shimano Freehub:

8/9/10-speed Shimano/SRAM; 11-speed Shimano MTB, 11-speed SRAM NX

Note:

To convert to 11-/12-speed SRAM XD, an XD freehub body is required.

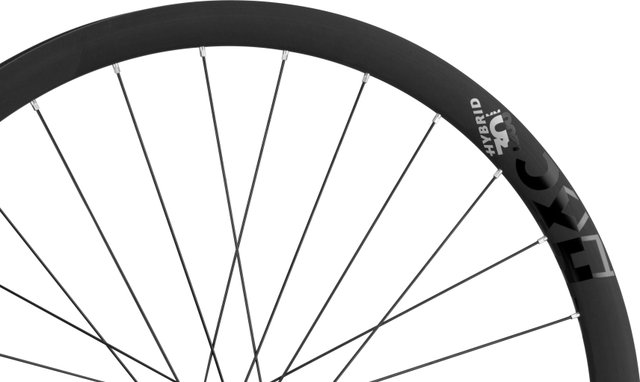

Technical Information - Rim:

Dimensions (ETRTO):

30-584

Inner Width:

30.0 mm

Outer Width:

36.0 mm

Valve Hole Diameter:

SV / Presta (6.5 mm)

Rim Material:

Carbon

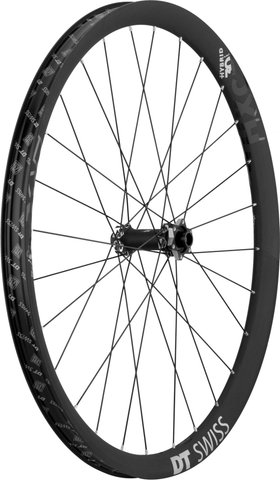

Technical Information - Front Hub:

Type:

DT Swiss 240

Over Locknut Dimension:

15 x 110 mm thru-axle

Body Material:

Aluminium

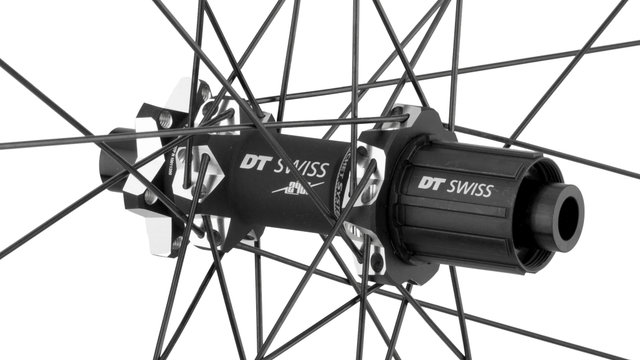

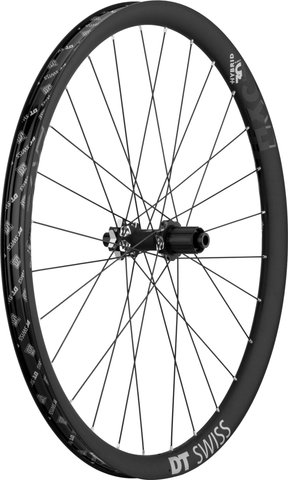

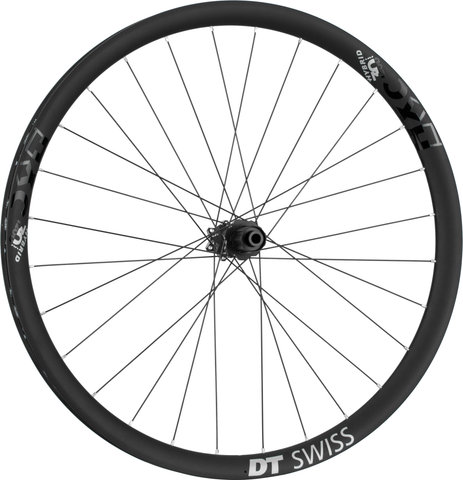

Technical Information - Rear Hub:

Type:

DT Swiss 240

Over Locknut Dimension:

12 x 148 mm thru-axle

Body Material:

Aluminium

Freehub Body:

DT Swiss Ratchet System® (24 T)

Technical Information - Lacing:

Front Lacing Pattern:

3-cross

Rear Lacing Pattern:

3-cross

Spoke Type:

DT Hybrid 2

Spoke Material:

steel

Nipple Type:

DT Pro Lock® Squorx

Nipple Material:

Aluminium

Approved For:

Weight Limit:

120 kg system weight (rider + bike + gear)

Air Pressure (max.):

4.7 bars

Recommended Tyre Width:

1.85 - 3.5"

Technology:

Double Butted:
These spokes have two different diameters. The spoke is partially butted by cold forging. As a result, the diameter is smaller and thus enables a reduction in weight while at the same time improving the strain values.

Pro Lock®:
The screw-locking system injected into the nipples enables the construction of extremely durable wheels.

Ratchet System®:
The patented freehub system with high-precision toothed ratchets guarantees maximum load capacity and reliability. Thanks to the No-Tool concept, the system is very easy and quick to maintain.

E-Bike:
This product has been specially developed to meet the higher loads of e-bikes.

SPLINE®:
The SPLINE® line features new and lightweight straight pull hubs with well-known DT Swiss technology, straight spokes as well as stable rims. The combination of reliable and ideally matched components makes every SPLINE® wheel the perfect training and competition partner.

Tubeless Ready:
Tubeless Ready rims are designed for use with tubeless kits and tyres. They allow a correct fit of the tubeless rim tape (use the appropriate model!) and the tubeless tyre.

Manufacturer Numbers:

WHXC120BHIXCA00772 + WHXC120THDBCA00773

Contents:

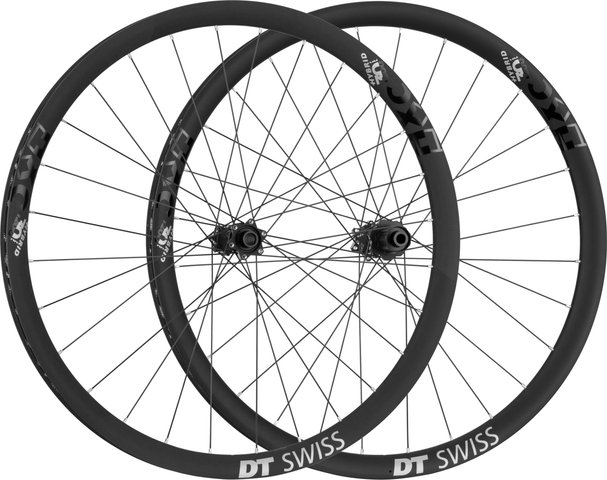

• 1 x DT Swiss HXC 1200 SPLINE® 30 Boost wheelset (front and rear wheel)

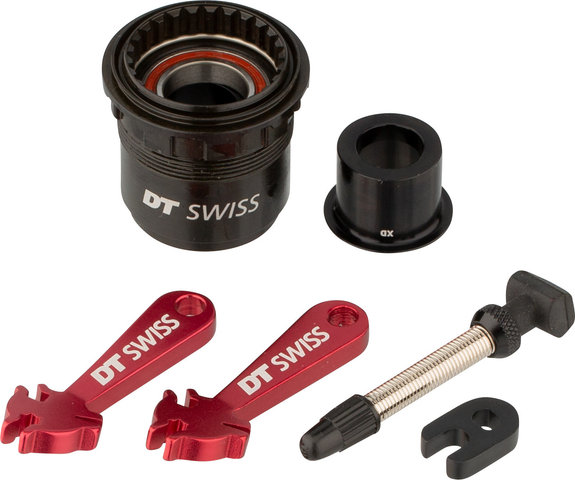

• 1 x DT Swiss 11-/12-speed SRAM XD conversion kit (rear only)

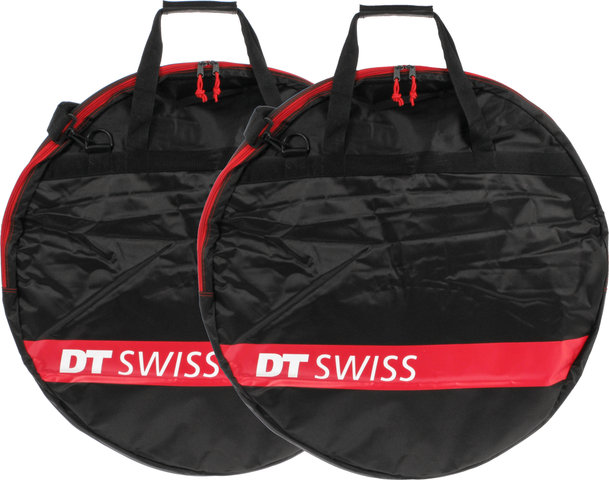

• 2 x DT Swiss wheel bag
• 2 x DT Swiss tubeless valves

• schwarz | Boost | 110 mm | 148 mm | Boost | 27.5" (650B) | 110 mm | Shimano MTB | 110 mm | 148 mm | Shimano MTB: 1678 g
