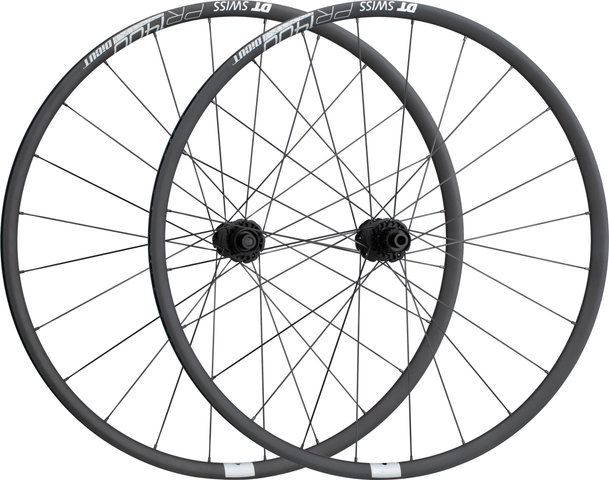

DT Swiss PR 1400 DICUT 21 Center Lock Disc 28" Wheelset

Up to the Challenge: the PR 1400 DICUT® Wheelset by DT Swiss

Do you want a high-quality aluminium wheel? Then the PR 1400 DICUT® 21 is exactly what you have been looking for. The wide, asymmetrical rims have an excellent stiffness-to-weight ratio, making these wheels the perfect addition to any performance bike. With high-quality 240s hubs and tubeless-compatible rims in an elegant design, these wheels are made for every challenge on the road.

Specifications:

Application:

Road

Wheel Size:

28"

Tyre Type:

clincher tyre

Number of Spokes:

24

Brake Type:

disc, Center Lock ( 6-bolt conversion w/ adapter)

Tubeless System:

Tubeless Ready

Freehub Compatibility:

Shimano Freehub:

8/9/10/11-speed Shimano/SRAM (Road)

Note:

To convert to 11-/12-speed SRAM XD, an XD freehub body is required.

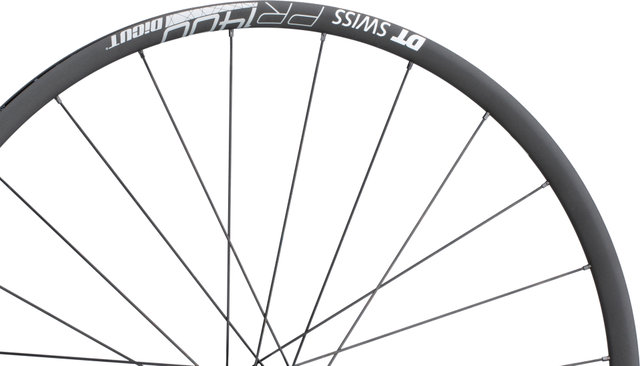

Technical Information - Rim:

Dimensions (ETRTO):

18-622

Inner Width:

18 mm

Outer Width:

21.5 mm

Depth:

21 mm

Valve Hole Diameter:

SV/Presta (6.5 mm)

Rim Material:

aluminium

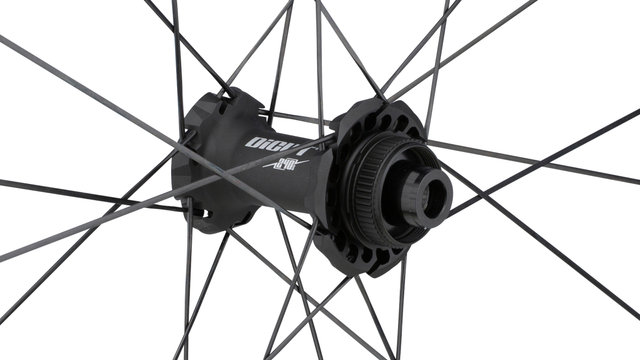

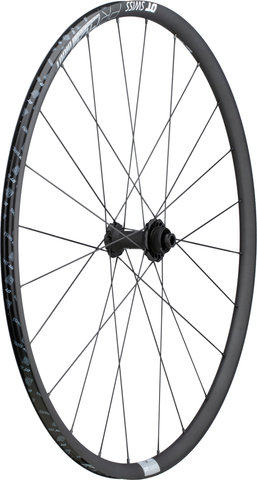

Technical Information - Front Hub:

Type:

DT Swiss 240s

Over Locknut Dimension:

12 x 100 mm thru-axle

Body Material:

aluminium

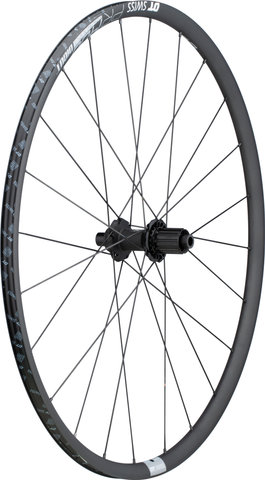

Technical Information - Rear Hub:

Type:

DT Swiss 240s

Over Locknut Dimension:

12 x 142 mm thru-axle

Body Material:

aluminium

Freehub Body:

DT Swiss Ratchet System® (36 T)

Technical Information - Lacing:

Front Lacing Pattern:

radial

Rear Lacing Pattern:

1-cross

Spoke Type:

DT Aerolite® / straight pull (front), DT Aero Comp® / straight pull (rear)

Spoke Material:

steel

Nipple Type:

DT Pro Lock / Squorx Pro Head

Nipple Material:

aluminium

Approved For:

Weight Limit:

120 kg (system weight)

Air Pressure (max.):

9.0 bars

Recommended Tyre Width:

23 - 60 mm (0.9 - 2.35" )

Technology:

Pro Lock
The screw-locking system injected into the nipples enables the construction of extremely durable wheels.

DICUT®
The RRC DICUT® line is the perfect combination of aerodynamics, technology and design. From the advanced heat-dissipating rims to the reliable Ratchet System® hubs, DICUT® wheels are high-end and made for fast times.

Straight Pull
In order to achieve an ideal ratio of weight and stability, many DT Swiss wheels use different forms of straight pull spokes. Straight pull spokes do not need a spoke bend and thus eliminate a weak point. Nevertheless, they can be trued and replaced with standard tools.

Tubeless Ready
Tubeless Ready rims are designed for use with tubeless kits and tyres. They allow a correct fit of the tubeless rim tape (use the appropriate model!) and the tubeless tyre.

Manufacturer Numbers:

WPR1400AIDXKA04434 + WPR1400NIDJKA04436

Contents:

• 1 x DT Swiss PR 1400 DICUT® DB 21 wheelset (front and rear wheel)
• 2 x DT Swiss road 32 mm tubeless valves
• 1 x DT Swiss SRAM XDR freehub body
• 2 x rolls DT Swiss rim tape
