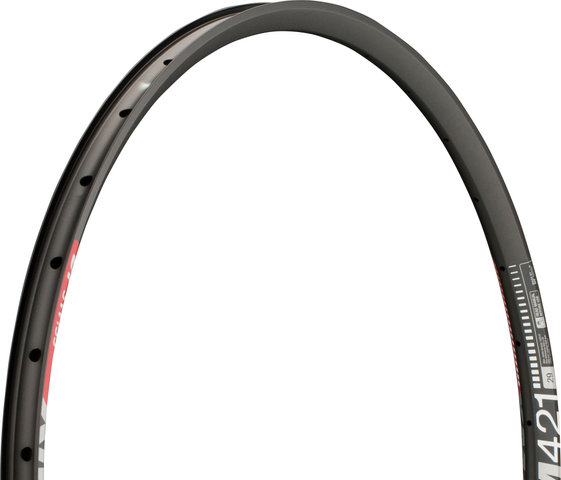

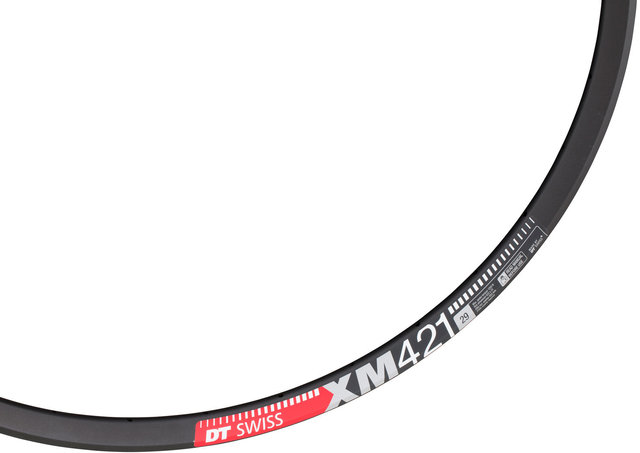

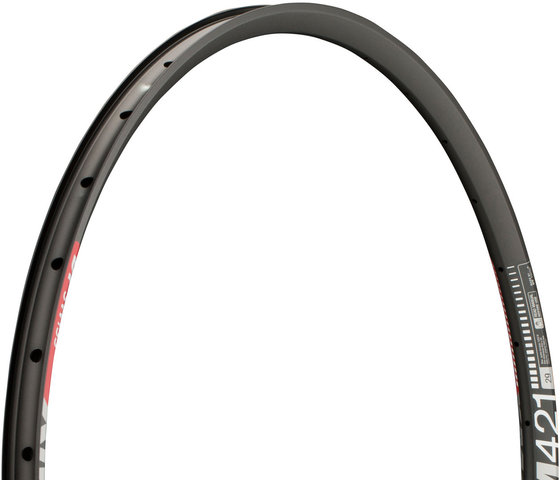

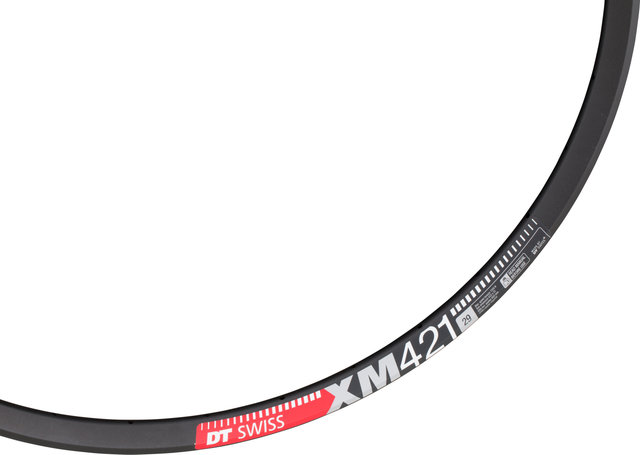

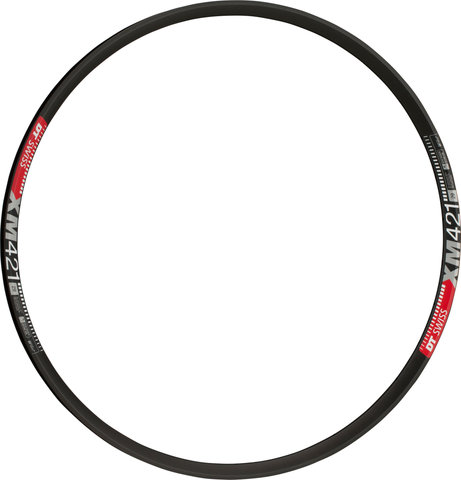

DT Swiss XM 421 Disc 29" Rim

A light rim that was as wide as a downhill rim just a few years ago? State-of-the-art materials and rigorous testing make it possible. DT Swiss knows exactly how easily a product can be designed to perfectly fulfill its task. That's why the XM 421 is as light as an all-mountain rim can be, without giving you cause to worry about trails, no matter what rock garden awaits you.

Specifications:

Application:

All Mountain

Wheel Size:

29"

Tyre Type:

clincher tyre

Number of Spokes:

28, 32

Brake Type:

disc

Tubeless System:

tubeless ready

Technical Information:

Dimensions (ETRTO):

25-622

Rim Flange:

with hook

Inner Width:

25 mm

Outer Width:

30 mm

Depth:

20 mm

ERD:

602 mm

Valve Hole Diameter:

SV/Presta (6.5 mm)

Rim Material:

aluminium

Approved For:

Weight Limit:

120 kg (system weight)

Air Pressure (max.):

5.5 bars

Recommended Tyre Width:

1.5 - 3.0"

Features:

• no eyelets
• 1200 N max. spoke tension
• required rim tape: 622x27 mm

Models:

29" / 28 hole:

• Wheel Size: 29"
• Number of Spokes: 28
• Manufacturer Number: RDXM4229N28S011457

29" / 32 hole:

• Wheel Size: 29"
• Number of Spokes: 32
• Manufacturer Number: RDXM4229N32S011458

Contents:

• 1 x DT Swiss XM 421 rim

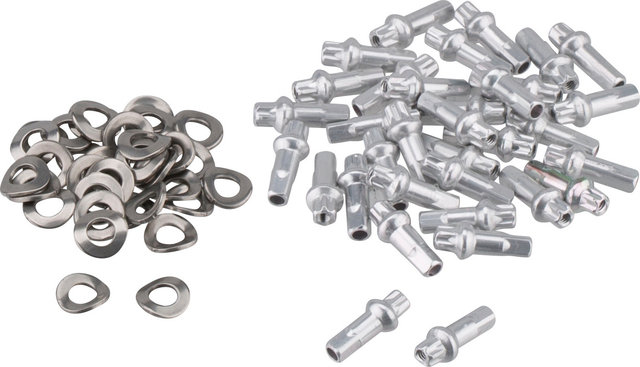

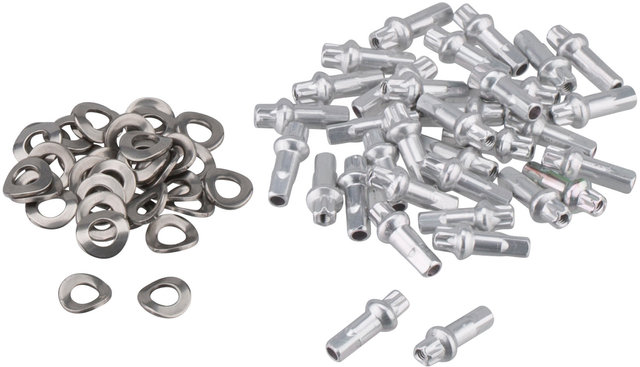

• incl. DT Swiss nipples
• incl. DT Swiss PHR washers
