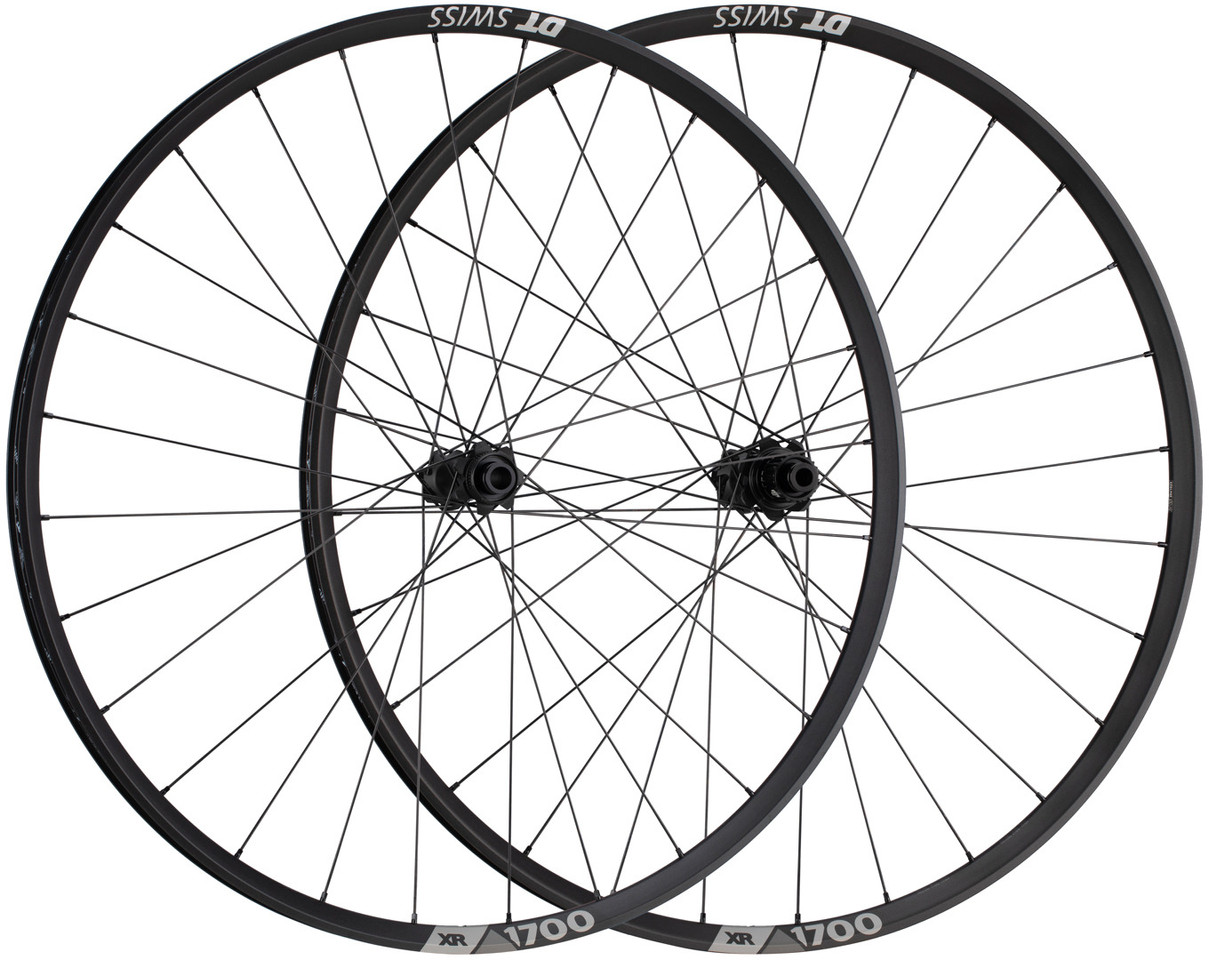

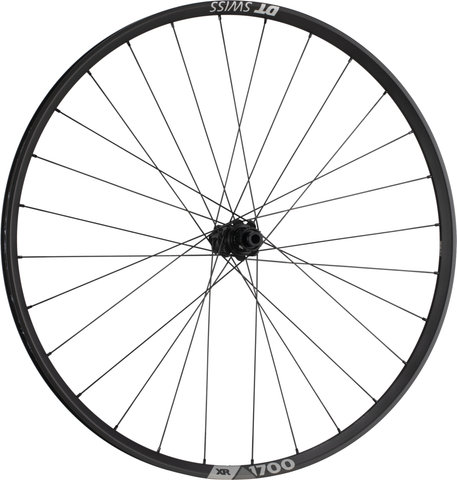

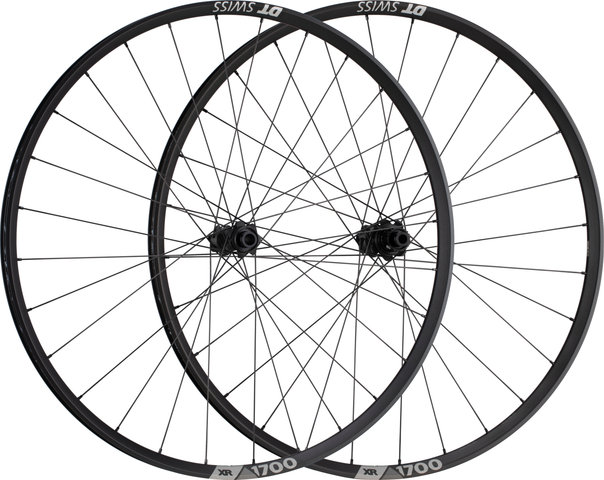

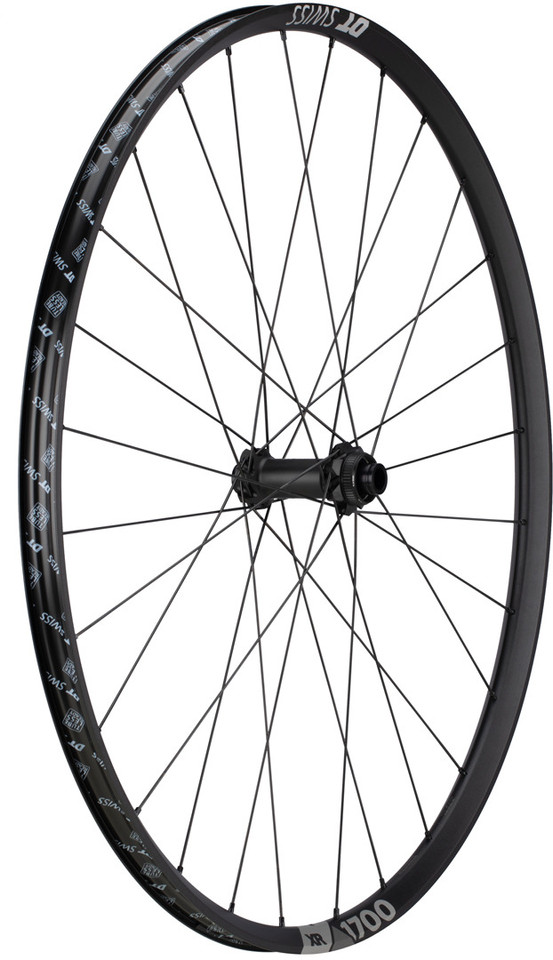

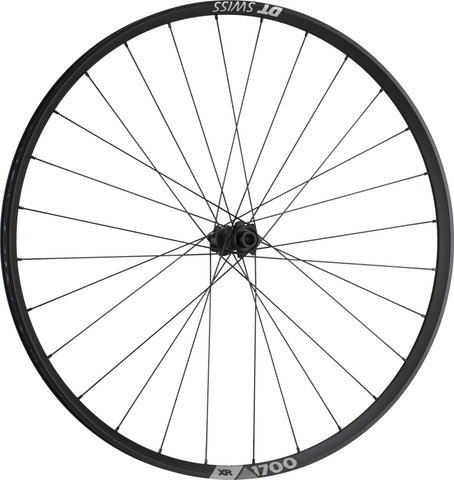

DT Swiss XR 1700 SPLINE 25 Boost Centre Lock Disc 29" Wheelset

DT Swiss XR 1700 SPLINE 25 Boost centre lock disc 29" wheelset - durable Cross Country wheels

With the XR 1700 SPLINE wheelset from DT Swiss you equip your Cross Country bike with robust accessories. The 29" aluminium rims are connected to the 350 hub via straight pull spokes. This hub follows the Boost standard, so your MTB can withstand stronger forces. It is also equipped with a Ratchet freehub. The two pulleys have 36 teeth, which give you good propulsion. The disc brake mount for centre lock brake rotors completes the modern standard of these wheels.

Specifications:

Application:

Cross Country

Wheel Size:

29"

Tyre Type:

clincher tyre

Number of Spokes:

28

Brake Type:

Center Lock Disc

Wheel Standard:

Boost

Tubeless System:

Tubeless Ready

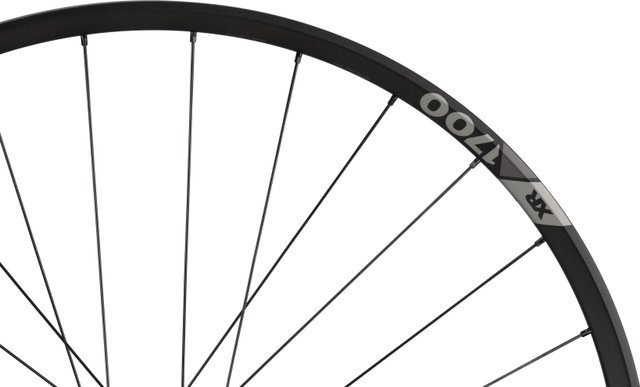

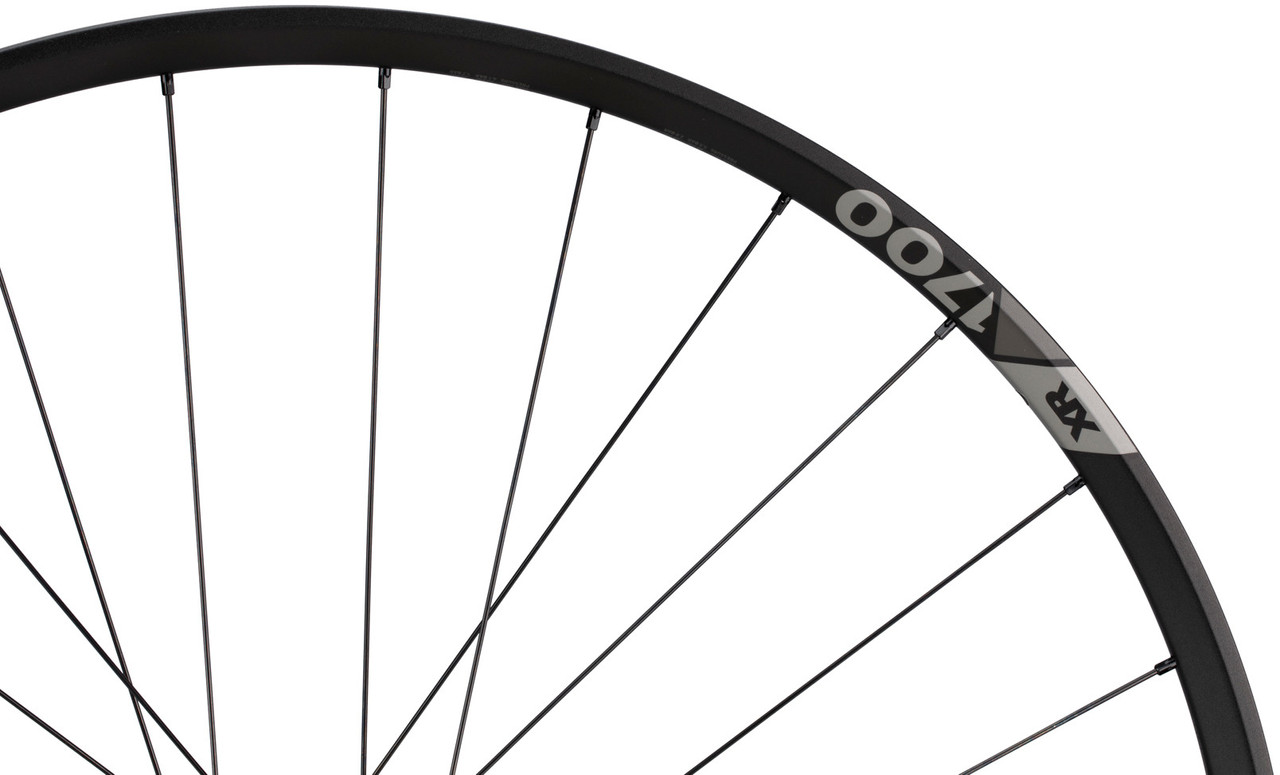

Technical Information - Rim:

Rim Flange:

with hook

Dimensions (ETRTO):

25-622

Inner Width:

25 mm

Outer Width:

29 mm

Depth:

18 mm

Valve Hole Diameter:

SV/Presta (6.5 mm)

Rim Material:

aluminium

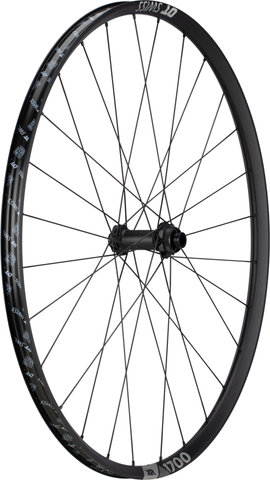

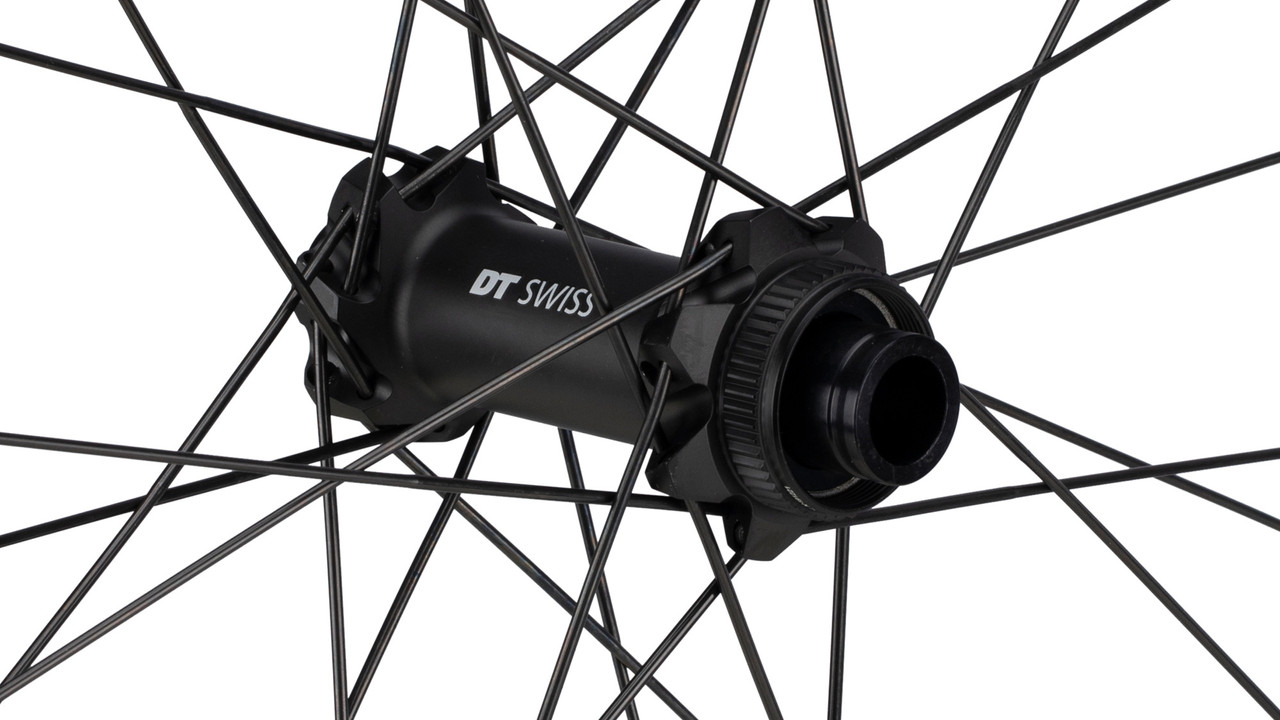

Technical Information - Front Hub:

Type:

350 straight pull

Over Locknut Dimension:

15 x 110 mm thru-axle

Bearings:

steel bearings

Body Material:

aluminium

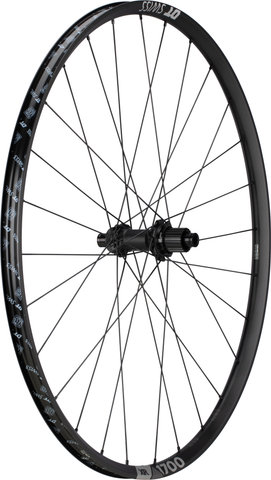

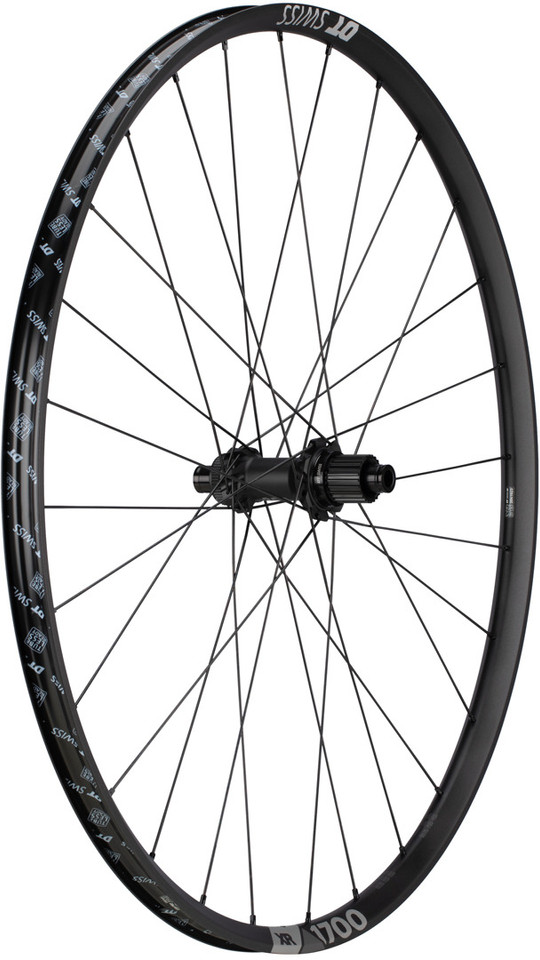

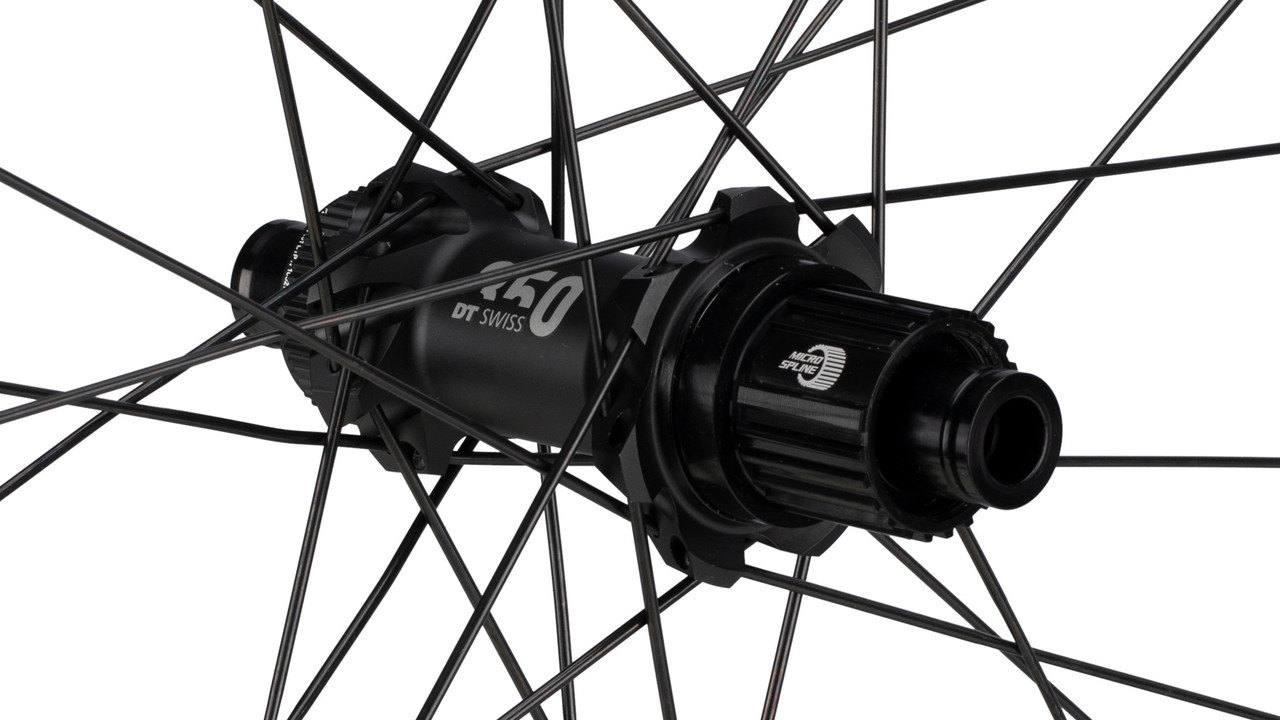

Technical Information - Rear Hub:

Type:

350 straight pull

Over Locknut Dimension:

12 x 148 mm thru-axle

Bearings:

steel bearings

Body Material:

aluminium

Freehub Body Material:

aluminium

Freehub Body:

Ratchet 36

Technical Information - Lacing:

Front Lacing Pattern:

3-cross

Rear Lacing Pattern:

3-cross

Spoke Type:

DT Competition / straight pull

Spoke Material:

stainless steel

Nipple Type:

DT Pro Lock Squorx Pro Head

Nipple Size:

15 mm (length) / 2 mm (diameter)

Nipple Material:

aluminium

Approved For:

Weight Limit:

110 kg (system weight)

Air Pressure (max.):

5.5 bars

Recommended Tyre Width:

1.7" - 2.35"

Technology:

Intended use - Category 3:
Suitable for use on rough paved and unpaved ground, with a raised riding technique and occasional drops and jumps of approx. 60 cm.

Ratchet System:
The robust and reliable star ratchets freehub system can be maintained easily and quickly. The no-tool concept contributes to this, because it allows disassembly without any tools. The freehub has two ratchets which engage simultaneously. This means that the contact surface is large and the point load is kept small, which relieves the material and allows the freehub to work particularly reliably and precisely.

SPLINE:
Straight pull hubs, straight spokes and strong rims result in a durable wheel. It can therefore be reliably used in training and competition.

Pro Lock:
The nipple thread is coated with two-component adhesive to increase the durability of the wheels. It can still be re-trued several times without any problems, but the adhesive strength decreases slightly. The connection between the spoke and nipple cannot loosen by itself.

Colour Index:

black:

• Rims: black with grey decals
• Hubs: black with grey decals
• Spokes: black
• Nipples: black

Models:

29" set (front 15x110 Boost + rear 12x148 Boost) Shimano:

Freehub:

Shimano MTB

Gearing:

8-/9-/10-/11-speed

Manufacturer Numbers:

WXR1700BEIXSA12046 + WXR1700TEDBSA13802

29" set (front 15x110 Boost + rear 12x148 Boost) Shimano Micro Spline:

Freehub:

Shimano Micro Spline

Gearing:

12-speed

Manufacturer Numbers:

WXR1700BEIXSA12046 + WXR1700TED2SA12047

29" set (front 15x110 Boost + rear 12x148 Boost) SRAM XD:

Freehub:

SRAM XD

Gearing:

11-/12-speed

Manufacturer Numbers:

WXR1700BEIXSA12046 + WXR1700TEDRSA12048

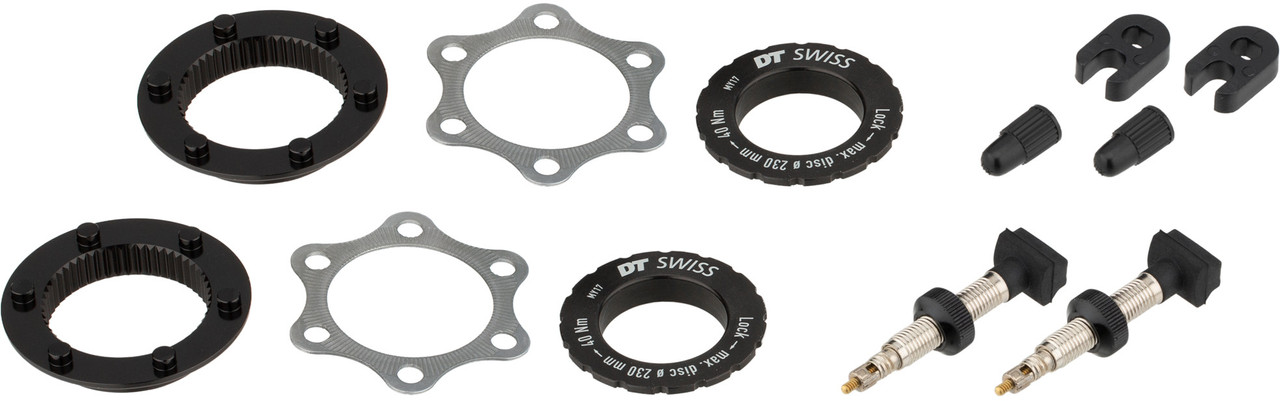

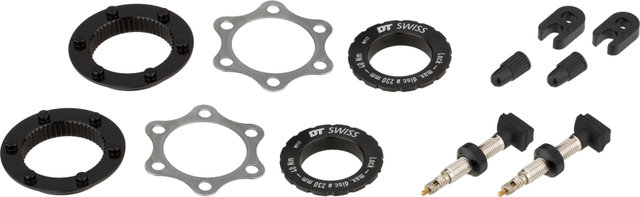

Contents:

• 1 x DT Swiss XR 1700 SPLINE wheelset (front and rear wheel)
• 2 x DT Swiss adapters to convert from Center Lock to 6-bolt
• 2 x DT Swiss tubeless valves
• 2 x rolls DT Swiss tubeless rim tape
