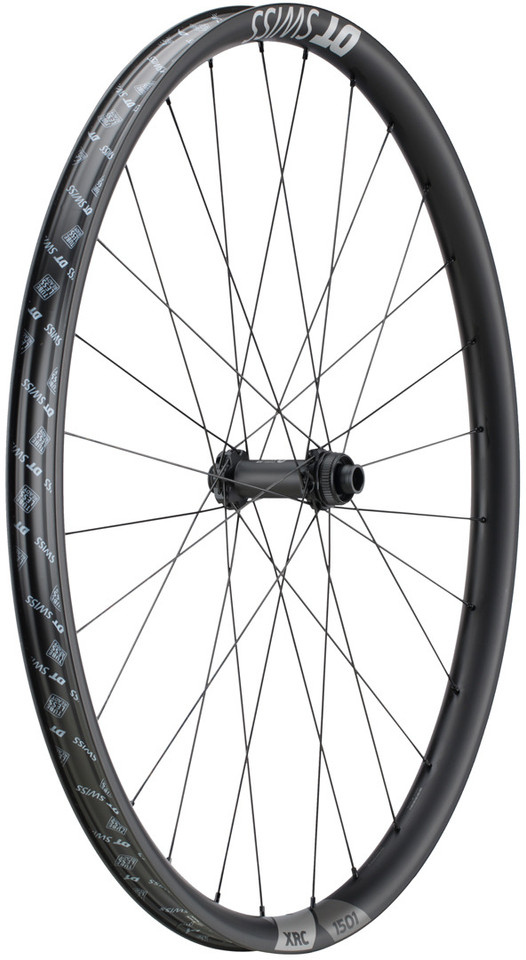

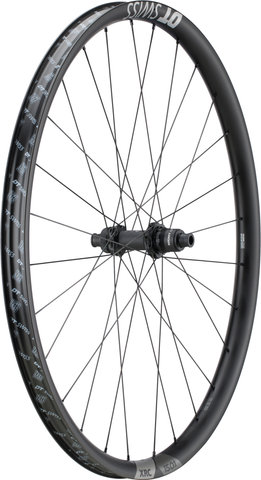

DT Swiss XRC 1501 SPLINE 30 Carbon Boost Centre Lock Disc 29" Wheelset

DT Swiss XRC 1501 SPLINE 30 Boost centre lock disc 29" wheelset - carbon wheels for the Cross Country bike

With the XRC 1501 SPLINE wheelset from DT Swiss you can equip your Cross Country MTB with wheels made from carbon. The 29" wheels have reinforced rim walls without hooks, which saves weight. The 240 hub is manufactured following the Boost standard and can therefore withstand high loads. This way, in combination with the 30 mm inner rim width, you can mount extra wide tyres onto your MTB. The hub has a Ratchet EXP freehub with 36 ratchets. This immediately transforms your leg power into propulsion and avoids unwanted idling when you start pedalling. The disc brake mount for centre lock brake rotors lets you control your bike in any situation.

Specifications:

Application:

Cross Country

Wheel Size:

29"

Tyre Type:

clincher tyre

Number of Spokes:

28

Brake Type:

Center Lock Disc

Wheel Standard:

Boost

Tubeless System:

Tubeless Ready

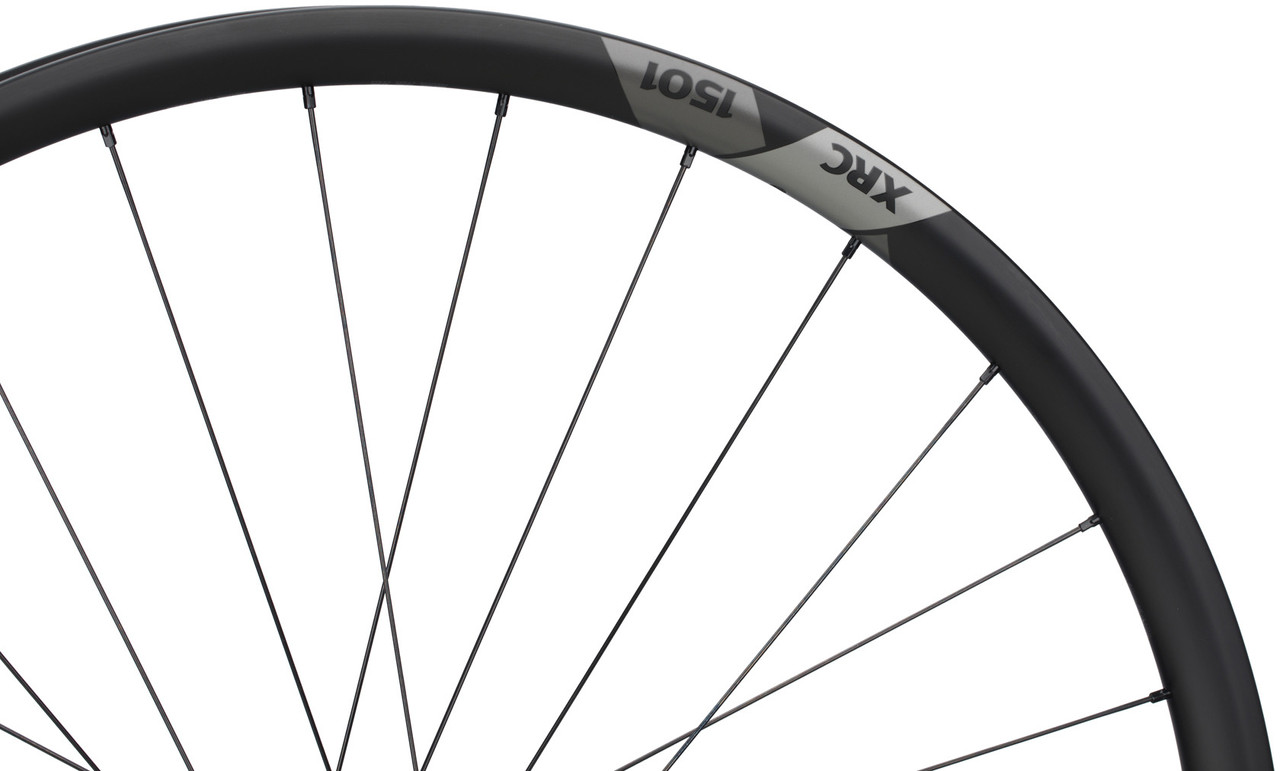

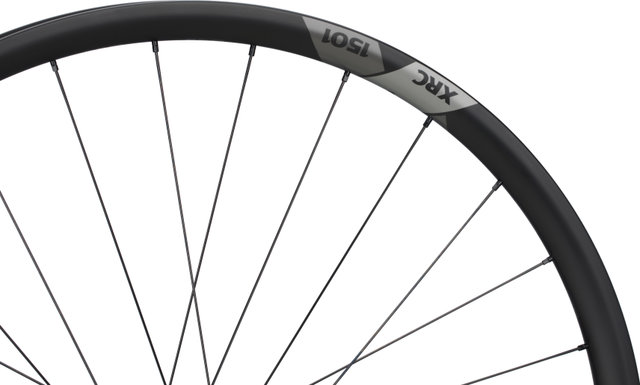

Technical Information - Rim:

Rim Flange:

hookless

Dimensions (ETRTO):

30-622

Inner Width:

30 mm

Outer Width:

36 mm

Depth:

25 mm

Valve Hole Diameter:

SV/Presta (6.5 mm)

Rim Material:

Carbon

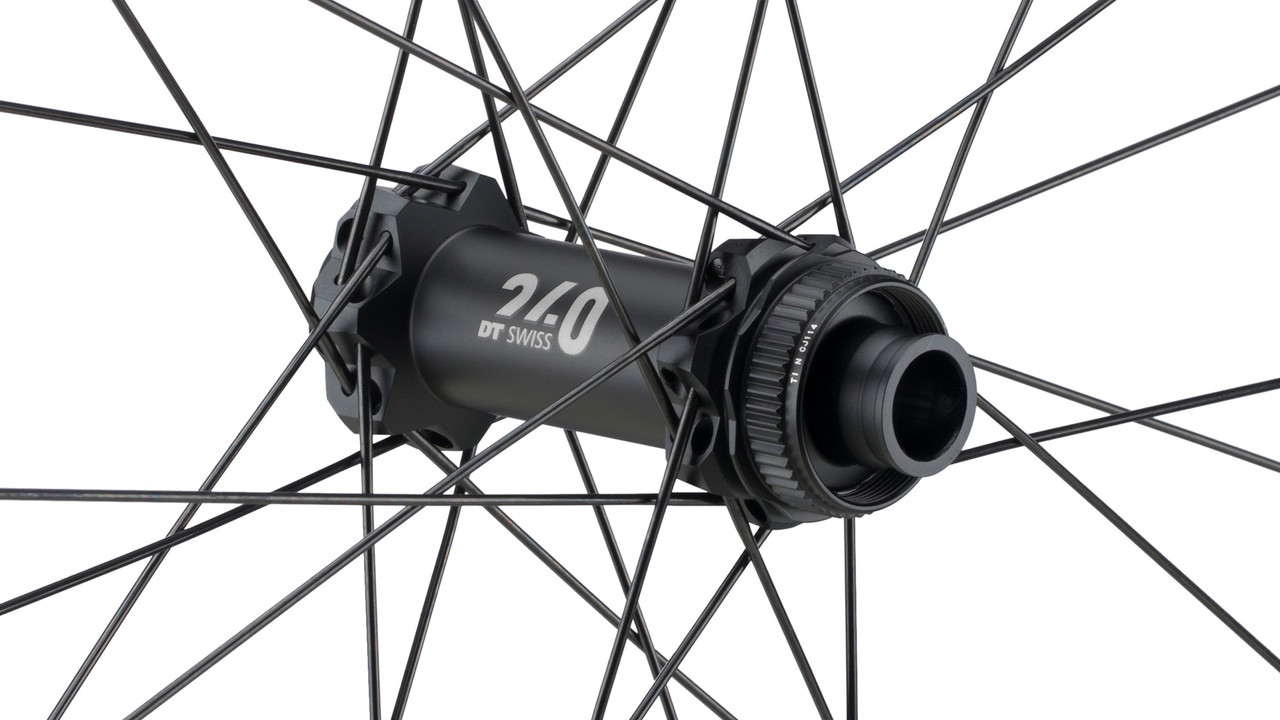

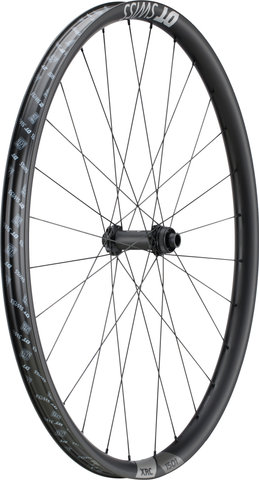

Technical Information - Front Hub:

Type:

240 straight pull

Over Locknut Dimension:

15 x 110 mm thru-axle

Bearings:

steel bearings

Body Material:

aluminium

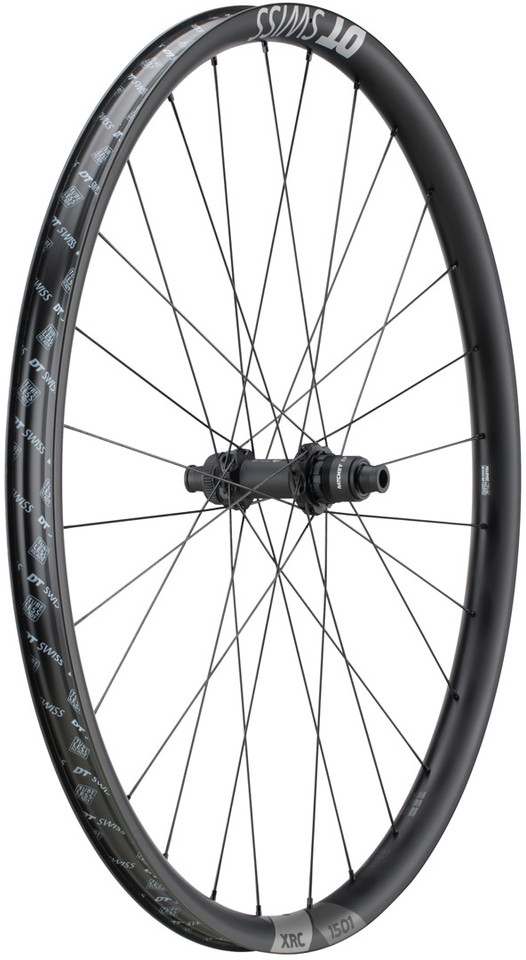

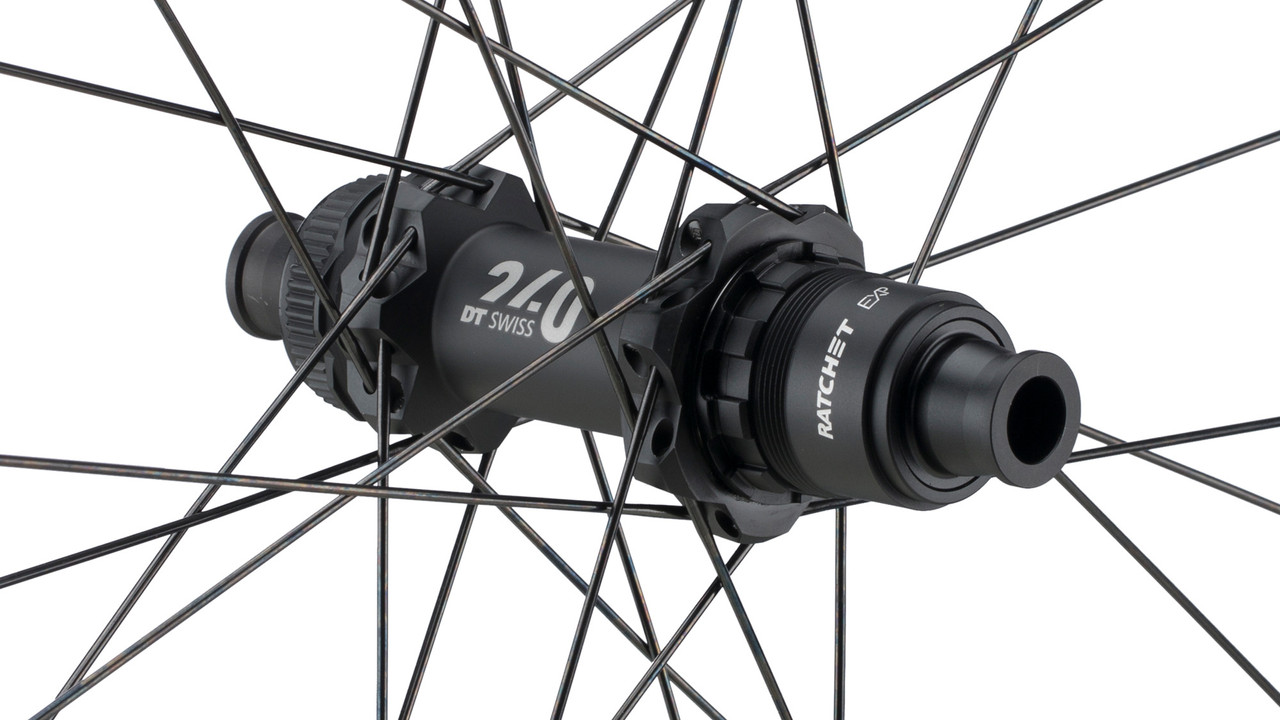

Technical Information - Rear Hub:

Type:

240 straight pull

Over Locknut Dimension:

12 x 148 mm thru-axle

Bearings:

steel bearings

Body Material:

aluminium

Freehub Body Material:

aluminium

Freehub Body:

Ratchet EXP 36

Technical Information - Lacing:

Front Lacing Pattern:

3-cross

Rear Lacing Pattern:

3-cross

Spoke Type:

DT Competition Race / straight pull

Spoke Material:

stainless steel

Nipple Type:

DT Pro Lock Squorx Pro Head

Nipple Size:

15 mm (length) / 2 mm (diameter)

Nipple Material:

aluminium

Approved For:

Weight Limit:

110 kg (system weight)

Air Pressure (max.):

see manufacturer's specifications

Recommended Tyre Width:

see manufacturer's specifications

Technology:

Intended use - Category 3:
Suitable for use on rough paved and unpaved ground, with a raised riding technique and occasional drops and jumps of approx. 60 cm.

Ratchet EXP:
A ratchet and a threaded ring are integrated into the hub. This reduces the number of components required, resulting in less wear and tear and a lower weight. In addition, the heavy-duty and reliable ratchet system can be easily and quickly maintained. The no-tool concept plays a decisive role, as it allows the freehub to be replaced without any tools. The freehub has two ratchets which engage simultaneously. This means that the contact surface is large and the point load is kept small, which relieves the material and allows the freehub to work particularly reliably and precisely.

SPLINE:
Straight pull hubs, straight spokes and strong rims result in a durable wheel. It can therefore be reliably used in training and competition.

Pro Lock:
The nipple thread is coated with two-component adhesive to increase the durability of the wheels. It can still be re-trued several times without any problems, but the adhesive strength decreases slightly. The connection between the spoke and nipple cannot loosen by itself.

Colour Index:

black:

• Rims: black with grey decals
• Hubs: black with grey decals
• Spokes: black
• Nipples: black

Models:

29" set (front 15x110 Boost + rear 12x148 Boost) SRAM XD:

Freehub:

SRAM XD

Gearing:

11-/12-speed

Manufacturer Numbers:

WXRC150BEIXCA11457 + WXRC150TEDRCA11460

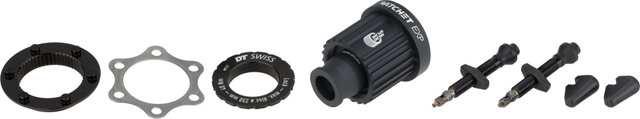

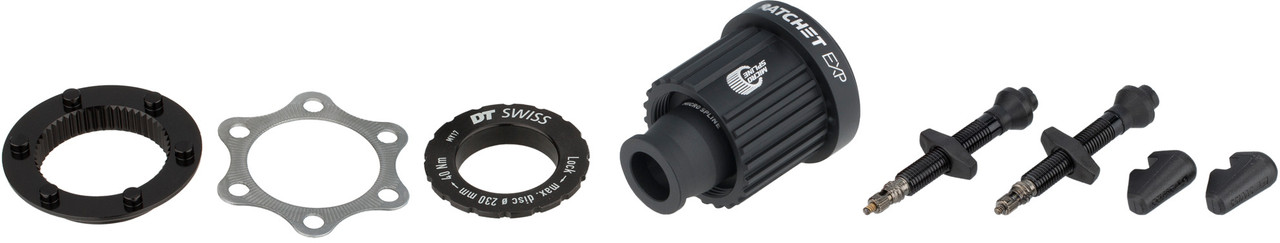

Contents:

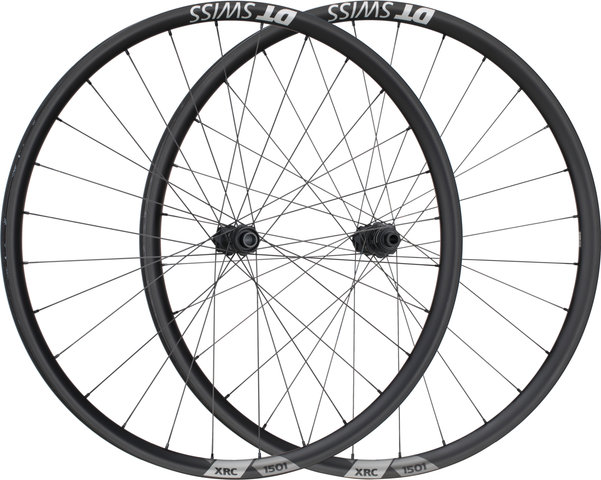

• 1 x DT Swiss XRC 1501 SPLINE wheelset (front and rear wheel)
• 1 x DT Swiss Shimano Micro Spline freehub body
• 2 x DT Swiss adapters to convert from Center Lock to 6-bolt
• 2 x DT Swiss tubeless valves
• 2 x rolls DT Swiss tubeless rim tape
