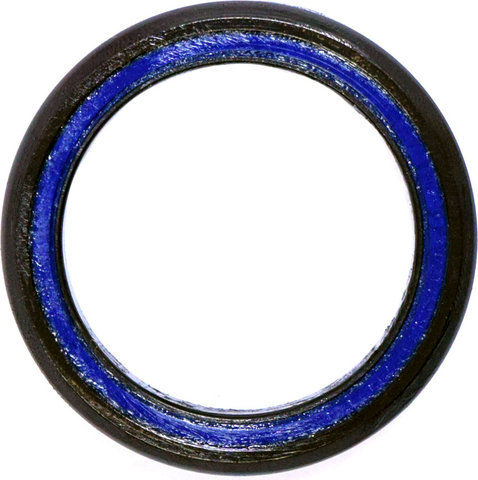

Enduro Bearings Angular Contact Ball Bearing ACB 30.2 mm x 41 mm x 6.5 mm for Headset

Item number: 57565
1
1
  • 100 day return period
  • Online since 1998
  • Trusted Shop 4.89 / 5.00

Optimised force absorption through helix angle: the ACB 36x45 BO CC Bearing by Enduro Bearings


In standard radial bearings, only 3 or 4 balls make contact during the load at any given time. Inside of Enduro Bearings' Angular Contact (A/C) bearings, ALL balls are engaged so that they can distribute force over a larger surface area. This reduces friction and minimizes wear. These bearings have a nylon ball cage for the lowest possible running resistance and a double rubber sealing system, which extends the service life.
BO (Black Oxide) bearings receive an additional magnetite treatment, and therefore have almost as high a corrosion resistance as stainless steel.

Specifications:

Dimensions (Inner x Outer x Width):
30.2 mm x 41 mm x 6.5 mm
Designation:
ACB

Models:

Type 1:
Design:
Angular contact ball bearing
Recommended Use:
headset
Inner Race Material:
steel (52100)
Outer Race Material:
steel (52100)
Ball Material:
steel
Basic static load rating:
4.8 kN (1085 lbs)
Manufacturer Number:
ACB3645BOCC

Features:

  • angular contact ball bearing according to Cane Creek standard (CC): 36° x 45°
  • chrome steel balls 5th degree = roundness is 5/1,000,000"
  • race grooves made of carbon-chrome steel alloy, heat and triple cold treated (down to -190° C), minimum hardness Rockwell HRC 62, polished
  • 90% filled with waterproof high-pressure grease
  • BO = burnished

Contents:

  • 1 x Enduro Bearings ball bearing ACB 30.2 mm x 41 mm x 6.5 mm

Weight:

  • universal/type 1: 19,2 g

Models:

  • universal/type 1, in stock
