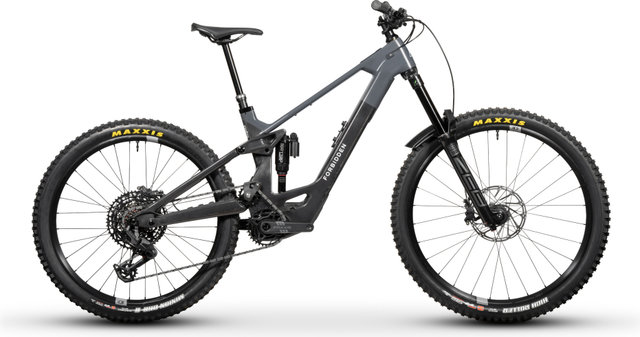

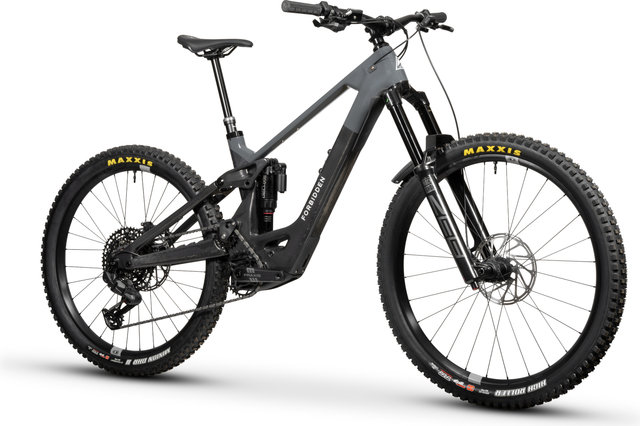

FORBIDDEN Dreadnought E T4 Carbon 29"/27.5" e-mountain bike

Dreadnought E T4 Carbon 29"/27.5" E-Mountainbike by FORBIDDEN for Enduro and MTB Adventures

The Dreadnought E T4 Carbon 29"/27.5" E-Mountainbike by FORBIDDEN is designed for enduro and mountain biking, offering a high-performance ride with its carbon FORBIDDEN Dreadnought frame and high pivot kinematics. Equipped with a powerful Avinox M2S mid-drive motor and an integrated 800 Wh battery, it provides reliable assistance up to 25 km/h. The bike features crankbrothers Aluminium 1.0 rims with a 31.5 mm inner width and tubeless-ready tires: Maxxis HighRoller III 29 x 2.4" at the front and Maxxis Minion DHR II 27.5 x 2.5" at the rear for excellent traction. SRAM Eagle 70 components including a 10-52T cassette and trigger shifter ensure smooth and precise shifting. The Praxis Type 7 DJ1 crankset and crankbrothers hubs contribute to a robust drivetrain and wheelset. With a TranzX dropper seatpost and FORBIDDEN saddle, comfort and control are prioritized on technical descents. SRAM DB4 disc brakes deliver confident stopping power in all conditions. This bike is tailored for riders who want a balanced combination of power, control, and durability on challenging trails.

sunny daze | 180 mm | 44 mm | S | 29" (front), 27.5" (rear) | 150,0 mm:

Wheel size:

29" (front), 27.5" (rear)

Crank Arm Length:

150,0 mm

Rear travel:

160 mm

Travel:

180 mm

sunny daze | 180 mm | 44 mm | M | 29" (front), 27.5" (rear) | 150,0 mm:

Travel:

180 mm

Wheel size:

29" (front), 27.5" (rear)

Crank Arm Length:

150,0 mm

Rear travel:

160 mm

sunny daze | 180 mm | 44 mm | L | 29" (front), 27.5" (rear) | 150,0 mm:

Travel:

180 mm

Wheel size:

29" (front), 27.5" (rear)

Crank Arm Length:

150,0 mm

Rear travel:

160 mm

sunny daze | 180 mm | 44 mm | XL | 29" (front), 27.5" (rear) | 150,0 mm:

Travel:

180 mm

Wheel size:

29" (front), 27.5" (rear)

Crank Arm Length:

150,0 mm

Rear travel:

160 mm

sunny daze | 180 mm | 44 mm | S | 29" (front), 27.5" (rear) | 150,0 mm:

Fork Offset:

44 mm

sunny daze | 180 mm | 44 mm | M | 29" (front), 27.5" (rear) | 150,0 mm:

Fork Offset:

44 mm

sunny daze | 180 mm | 44 mm | L | 29" (front), 27.5" (rear) | 150,0 mm:

Fork Offset:

44 mm

sunny daze | 180 mm | 44 mm | XL | 29" (front), 27.5" (rear) | 150,0 mm:

Fork Offset:

44 mm

• Powerful and versatile Dreadnought E T4 Carbon E-Mountainbike designed for aggressive Enduro and MTB riding with a high-pivot carbon frame and integrated Avinox mid-drive motor
• Equipped with premium crankbrothers aluminum 1.0 rims (31.5mm inner width) and Maxxis HighRoller III and Minion DHR II tires for superior traction and control on technical terrain
• SRAM Eagle 70 drivetrain with 10-52T cassette and single-click trigger shifter delivers precise and reliable gear changes for demanding mountain trails
• Advanced TransX remote system paired with TranzX dropper seatpost and 143mm wide FORBIDDEN saddle ensures comfort and control on varied descents and climbs
• SRAM DB4 hydraulic disc brakes provide strong, consistent stopping power to handle steep and technical downhill sections safely

sunny daze | 180 mm | 44 mm | S | 29" (front), 27.5" (rear) | 150,0 mm:

Head Tube Angle:

63

Stack:

635 mm

Standover Height:

720 mm

Wheelbase:

1215 mm

Reach:

425 mm

Seat Tube Angle:

76.75

BB Drop:

20 mm

Flat Bar Width:

800 mm

Seat Tube Length:

400 mm

Head Tube Length:

100 mm

Stem Length:

42 mm

Bottom Bracket Height:

340 mm

Effective Top Tube Length:

575 mm

sunny daze | 180 mm | 44 mm | M | 29" (front), 27.5" (rear) | 150,0 mm:

Head Tube Angle:

63

Stack:

648 mm

Standover Height:

720 mm

Wheelbase:

1256 mm

Reach:

445 mm

Seat Tube Angle:

76.75

BB Drop:

20 mm

Flat Bar Width:

800 mm

Stem Length:

42 mm

Seat Tube Length:

420 mm

Head Tube Length:

115 mm

Bottom Bracket Height:

340 mm

Effective Top Tube Length:

598 mm

sunny daze | 180 mm | 44 mm | L | 29" (front), 27.5" (rear) | 150,0 mm:

Head Tube Angle:

63

Stack:

669 mm

Standover Height:

720 mm

Wheelbase:

1298 mm

Reach:

461 mm

Seat Tube Angle:

76.75

BB Drop:

20 mm

Flat Bar Width:

800 mm

Stem Length:

42 mm

Seat Tube Length:

440 mm

Head Tube Length:

138 mm

Bottom Bracket Height:

340 mm

Effective Top Tube Length:

619 mm

sunny daze | 180 mm | 44 mm | XL | 29" (front), 27.5" (rear) | 150,0 mm:

Head Tube Angle:

63

Stack:

682 mm

Standover Height:

720 mm

Wheelbase:

1339 mm

Reach:

481 mm

Seat Tube Angle:

76.75

BB Drop:

20 mm

Flat Bar Width:

800 mm

Seat Tube Length:

470 mm

Head Tube Length:

153 mm

Stem Length:

42 mm

Bottom Bracket Height:

340 mm

Effective Top Tube Length:

642 mm

• sunny daze | 180 mm | 44 mm | S | 29" (front), 27.5" (rear) | 150,0 mm: 007.906.2405
• sunny daze | 180 mm | 44 mm | M | 29" (front), 27.5" (rear) | 150,0 mm: 007.906.2406
• sunny daze | 180 mm | 44 mm | L | 29" (front), 27.5" (rear) | 150,0 mm: 007.906.2407
• sunny daze | 180 mm | 44 mm | XL | 29" (front), 27.5" (rear) | 150,0 mm: 007.906.2408

• 1 x Forbidden Dreadnought E T4 29"/27.5" e-mountain bike


• 1 x Avinox charger

• sunny daze | 180 mm | 44 mm | S | 29" (front), 27.5" (rear) | 150,0 mm: 23.34 kg
• sunny daze | 180 mm | 44 mm | M | 29" (front), 27.5" (rear) | 150,0 mm: 23.34 kg
• sunny daze | 180 mm | 44 mm | L | 29" (front), 27.5" (rear) | 150,0 mm: 23.34 kg
• sunny daze | 180 mm | 44 mm | XL | 29" (front), 27.5" (rear) | 150,0 mm: 23.34 kg
