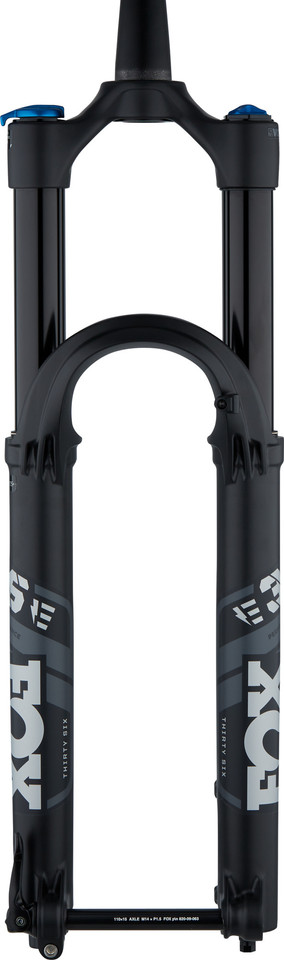

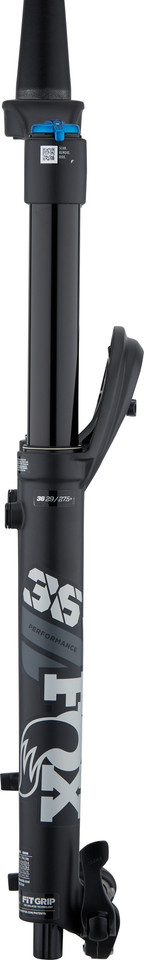

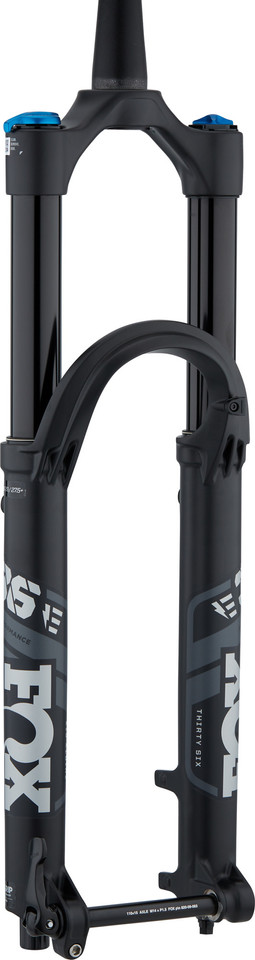

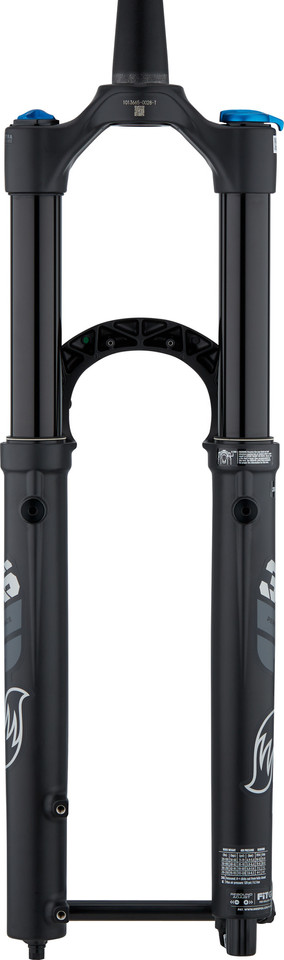

Fox Racing Shox 36 Float 29" GRIP Performance Boost E-Optimized Suspension Fork 2023

Guidelines for Replacing E-bike Components:

Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.

Specifications:

Application:

All Mountain

Wheel Size:

29"

Suspension Type:

air

Travel:

160 mm

Steerer Tube:

1 1/8" - 1.5" tapered

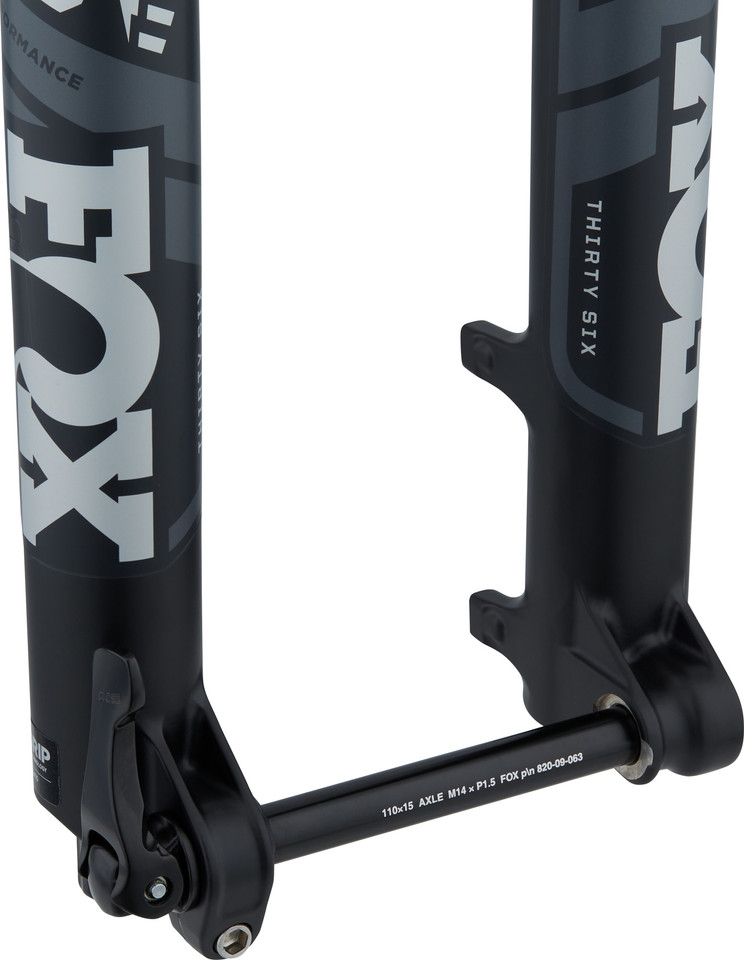

Axle Type:

thru-axle with quick release lever

Wheel Standard:

15 x 110 mm (Boost)

Brake Mount:

disc PM7 (direct mount 180 mm)

Technical Information:

Offset:

44 mm, 51 mm

Steerer Tube Length:

263 mm

Steerer Tube Diameter (Stem):

28.6 mm

Steerer Tube Diameter (Crown Race):

40 mm

Axle to Crown:

571 mm

Over Locknut Dimension:

110 mm

Stanchion Tube Diameter:

36 mm

Steerer Tube Material:

aluminium

Crown Material:

aluminium

Stanchion Tube Material:

aluminium

Lower Tube Material:

magnesium

Adjustment Options:

Compression:

3-position lever (Open / Medium / Firm) with Micro Adjust

Rebound:

yes (10 levels)

Suspension Stiffness:

air pressure adjust

Remote:

no

Travel Adjustment:

no

Approved For:

Note:

The tyre clearance must be checked with the fork fully compressed every time you change the tyre or the rim. It should be at least 8.5 mm all around.

Rotor Size (max.):

230 mm

Air Pressure (max.):

120 psi (8.3 bar)

Features:

• Boost suspension fork for E-mountain bikes on all-mountain trails
• E-MTB optimised chassis

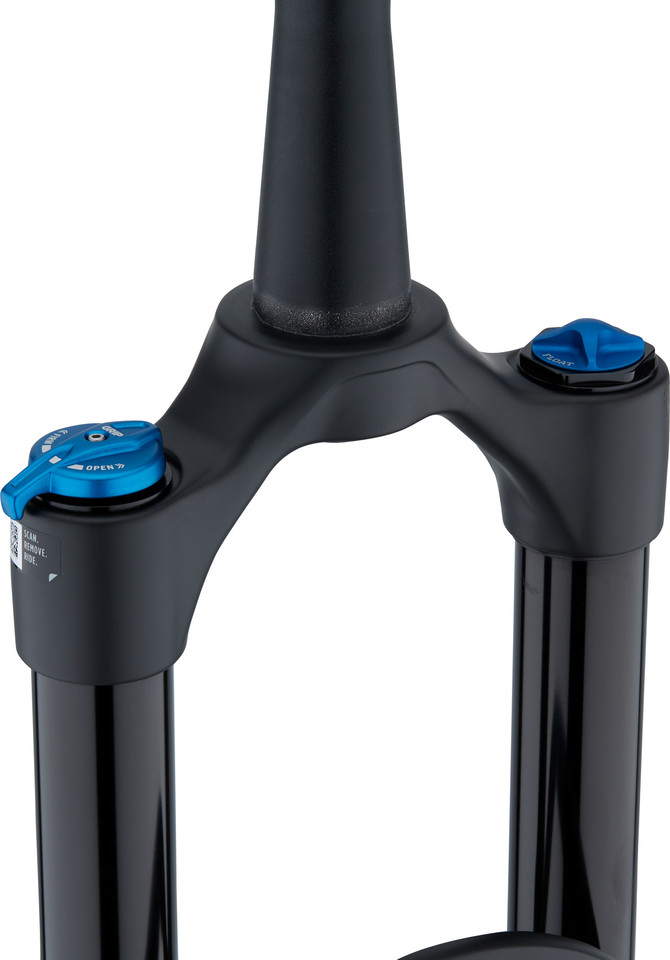

• GRIP damping cartridge with three-position lever
• Micro Adjust: rasters between Open, Medium and Firm mode allow for intermediate settings
• floating axle for optimal alignment of hub and suspension fork
• with bleed valves for quick, uncomplicated adjustment of the ambient air pressure
• fork crown design optimised for high stiffness, plenty of space in the head tube area and short leading edge
• air and oil channels in the dip tubes for continuous lubrication of the foam rings and prevention of excessive pressure increase
• performance series with black anodised uprights
• Float EVOL air suspension for sensitive response, linear spring characteristics and optimum support through the entire travel

Models:

160 mm / 1.5 tapered / 15 x 110 mm / 44 mm:

Travel:

160 mm

Offset:

44 mm

Manufacturer Number:

910-21-104

160 mm / 1.5 tapered / 15 x 110 mm / 51 mm:

Travel:

160 mm

Offset:

51 mm

Manufacturer Number:

910-21-102

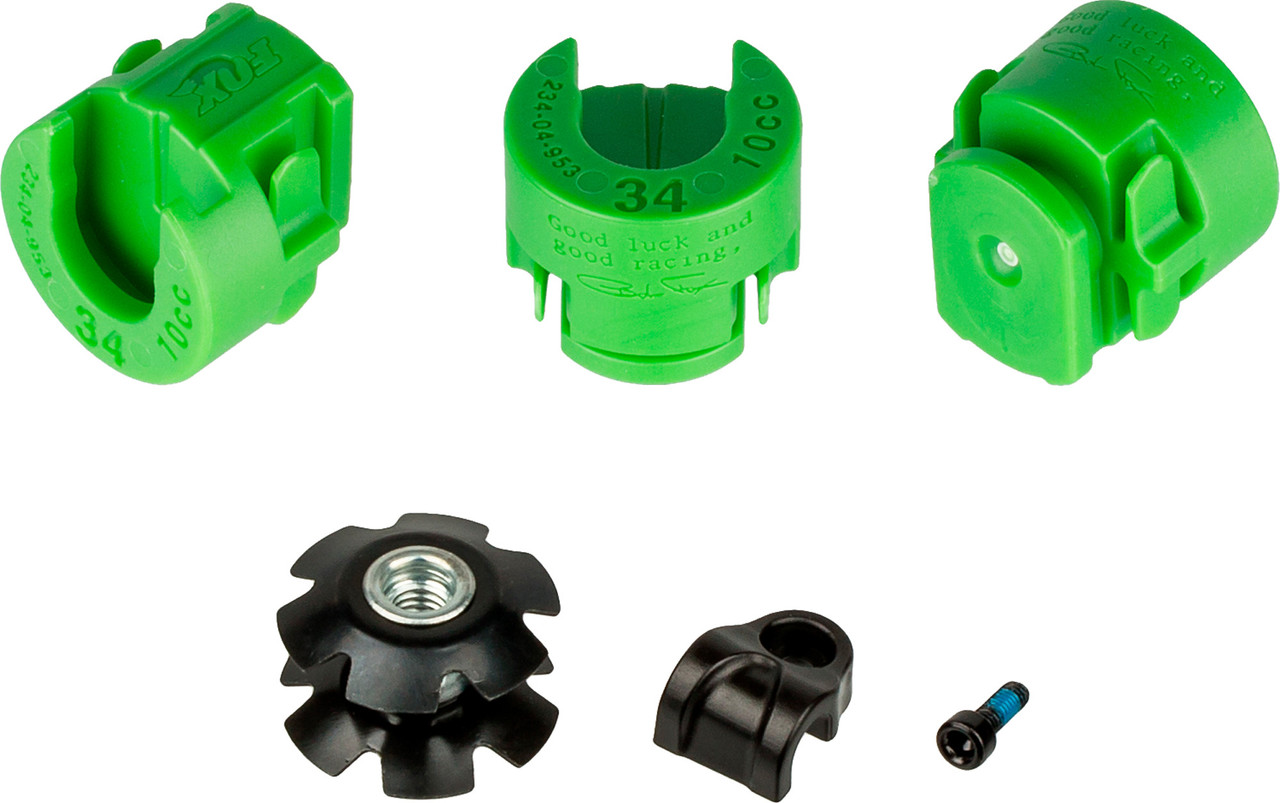

Contents:

• 1 x Fox Racing Shox 36 Float 29" GRIP2 Factory Boost E-Optimized Suspension Fork
• 1 x Fox Racing Shox thru-axle with quick release
• 3 x Fox Racing Shox volume spacers
• 1 x hose guides
• 1 x star nut

Order Together:

Optional accessories:

• Stanchion Tube Mudguard for 36 / 38
• XL Stanchion Tube Mudguard for 36 / 38
