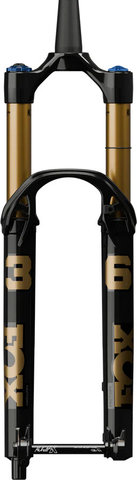

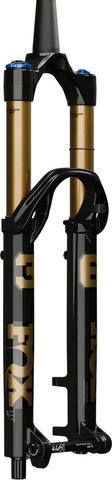

Fox Racing Shox 36 Float 29" GRIP X Factory Boost E-Optimised suspension fork
Product Description
36 Float 29" GRIP X Factory Boost E-Optimised Suspension Fork by Fox Racing Shox for All Mountain Riding
The 36 Float 29" GRIP X Factory Boost E-Optimised Suspension Fork from Fox Racing Shox is designed for all mountain applications, offering a perfect balance between performance and control. This suspension fork features a 36 mm stanchion tube diameter made from aluminum, paired with magnesium lower legs to ensure durability and lightweight handling. It uses an air spring system with adjustable spring rate via air pressure, allowing you to fine-tune the fork to your riding style. The fork includes both high-speed and low-speed compression damping as well as low-speed rebound damping, providing precise suspension response on varied terrain. With a thru axle system (15 x 110 mm Boost standard), it offers a secure and stiff connection to your 29" wheelset.The fork is optimized for e-bikes and pedelecs up to 25 km/h, making it a versatile choice for modern mountain bikes. It supports disc brakes with a direct mount for 203 mm rotors, ensuring reliable stopping power. This fork is built to handle the demands of aggressive trail riding while keeping you confident on every descent.
Guidelines for Replacing E-bike Components:
Product Specifications:
- Application:
- All Mountain
- Wheel size:
- 29"
black | 160 mm | 44 mm | 110 mm | 29" | 1 1/8" - 1,5" tapered | 15 mm Thru Axle:
- Travel:
- 160 mm
- Wheel size:
- 29"
Technical Information:
- Steerer Tube Diameter (Crown Race):
- 40 mm
- Steerer Tube Length:
- 244 mm
- Steerer Tube Material:
- Aluminum
- Spring Rate:
- Via Air Pressure
- Travel Adjustment:
- No
- Brake Mount:
- Disc PM8 (Direct Mount 203 mm)
- Stanchion Tube Diameter:
- 36 mm
- Compression Damping:
- High-Speed and Low-Speed
- Stanchion Material:
- Aluminium
- Wheel Standard:
- 15 x 110 mm (Boost)
- Axle System:
- Thru Axle (15 x 110 mm)
- Rebound Damping:
- Yes, Low-Speed
- Crown Material:
- Aluminum
- Remote:
- No
- Lower Leg Material:
- Magnesium
black | 160 mm | 44 mm | 110 mm | 29" | 1 1/8" - 1,5" tapered | 15 mm Thru Axle:
- Fork Offset:
- 44 mm
- Installation Width:
- 110 mm
- Steerer Tube:
- 1 1/8" - 1,5" tapered
- Axle Standard:
- 15 mm Thru Axle
Approved For:
- Max. disc brake diameter:
- 230 mm
Product Features:
- High-performance 36 Float 29" GRIP X Factory Boost suspension fork optimized for all-mountain riding and e-bikes up to 25 km/h
- Lightweight and durable construction with aluminum steerer tube, crown, and stanchions combined with magnesium lowers
- Advanced suspension tuning featuring air spring with adjustable spring rate and both high-speed and low-speed compression damping
- Boost 15 x 110 mm thru axle system and 36 mm stanchion diameter for enhanced stiffness and precise handling on 29" wheels
- Compatible with large 203 mm disc brakes (PM8 direct mount) and supports maximum disc brake diameter of 230 mm for superior stopping power
Manufacturer Number:
- black | 160 mm | 44 mm | 110 mm | 29" | 1 1/8" - 1,5" tapered | 15 mm Thru Axle: 910-21-428
Contents:
- 1 x Fox Racing Shox 36 Float 29" GRIP X Factory E-Optimized suspension fork
