Fox Racing Shox Podium 29" Factory Grip X2 68HT suspension fork - black ano/29"/170 mm/1 1/8" - 1,5" tapered/20 mm thru-axle/110 mm/44 mm

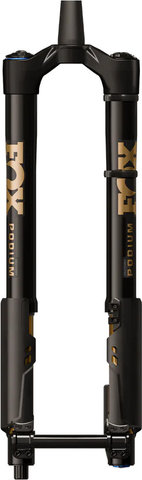

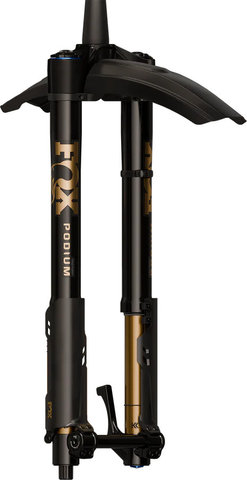

Fox Racing Shox Podium 29" Factory Grip X2 68HT suspension fork

Item number: 221589

Unleash the full potential of your E-Enduro or E-MTB adventures with this state-of-the-art Fox Racing Shox Podium 29" Factory Grip X2 suspension fork for bikes with a 68 mm head tube diameter, designed to take your riding experience to the next level. Crafted from durable aluminum, the fork features a steerer tube, stanchion, and lower legs all made from this lightweight yet robust material, ensuring your ride is both agile and sturdy. The steerer tube measures 244mm in length with a diameter of 40mm at the crown race, perfectly accommodating modern bike designs. This fork is equipped with advanced rebound damping capabilities, offering both low-speed and high-speed adjustments to fine-tune your ride according to the terrain. The stanchion tubes, with a generous 38mm diameter, promise unparalleled stability and responsiveness. The fork's spring rate is easily adjustable via air pressure, allowing you to customize your suspension to match your weight and riding style. Designed for the future, this fork is e-bike ready, supporting e-bikes and pedelecs up to 25 km/h, making it a versatile choice for all your cycling needs. It accommodates a max tire size of 2.6 inches, ensuring you can tackle any trail with confidence. The thru-axle system enhances stiffness and control, while the fork's compatibility with 29" wheels and a max disc brake diameter of 230mm guarantees powerful braking performance. The fork also features a cutting-edge compression damping system with high-speed and low-speed settings, offering precision control. The disc brake mounts are designed for PM8 (Direct Mount 203 mm), providing reliable stopping power for high-speed descents. Whether you're shredding local trails or competing in Enduro races, this suspension fork is your ticket to a superior cycling experience.

Guidelines for Replacing E-bike Components:

Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.

Specifications:

Application:
Enduro, MTB
Wheel size:
29"

Technical Information:

Steerer Tube Material:
Aluminum
Stanchion Material:
Aluminium
Travel Adjustment:
No
Crown Material:
Aluminum
Brake Mount:
Disc PM8 (Direct Mount 203 mm)
Lower Leg Material:
Aluminium
Spring Rate:
Via Air Pressure
Steerer Tube Length:
244 mm
Axle System:
Thru Axle
Wheel Standard:
20 x 110 mm (Boost)
Stanchion Tube Diameter:
38 mm
Compression Damping:
High-Speed and Low-Speed (xx levels)
Rebound Damping:
Yes, Low-Speed and High-Speed
Steerer Tube Diameter (Crown Race):
40 mm

Approved For:

Max Tire Size Inches:
2,6"
Max. disc brake diameter:
230 mm

Features:

  • High-performance suspension fork designed for Enduro and MTB, featuring aluminum construction for durability and lightweight.
  • Equipped with both high-speed and low-speed rebound and compression damping for customizable ride control.
  • Supports E-Bikes & Pedelecs up to 25 km/h, making it versatile for both traditional and electric bikes.
  • Thru axle system and a large 38 mm stanchion diameter ensure robustness and precise steering.
  • Compatible with up to 2.6" tire width and 29" wheel size, accommodating a wide range of mountain bike configurations.
  • Features a disc PM8 brake mount supporting up to 230 mm disc brake diameter for superior stopping power.

Manufacturer Number:

  • black ano/29"/160 mm/1 1/8" - 1,5" tapered/20 mm thru-axle/110 mm/44 mm: 910-21-399
  • black ano/29"/170 mm/1 1/8" - 1,5" tapered/20 mm thru-axle/110 mm/44 mm: 910-21-398

Contents:

- 1 x Fox Racing Shox Podium 29" Factory Grip X2 suspension fork

Manufacturer:

FOX Factory GmbH
Gewerbepark 6
66989 Höhfröschen
Germany
info@ridefox.com
  • Shipping in 1-3 business days
  • 100-day return policy
  • Free returns
  • 25+ years of experience

Models:

  • black ano/29"/160 mm/1 1/8" - 1,5" tapered/20 mm thru-axle/110 mm/44 mm, Shipping in 1-3 business days
    2,240.00€
  • black ano/29"/170 mm/1 1/8" - 1,5" tapered/20 mm thru-axle/110 mm/44 mm, available from 23.08.2025
    2,240.00€
