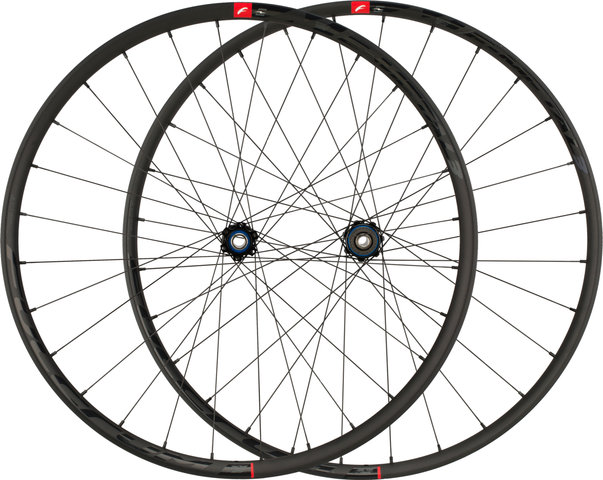

Fulcrum E-Metal 3 Disc 6-bolt Boost 29" Wheelset - 2019
Item number: 66664
Product Description
The E-Metal 3 Disc 6-bolt Boost 29" wheelset from Fulcrum has been specially developed for the requirements of E-MTBs.
Guidelines for Replacing E-bike Components:
Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.
Product Specifications:
- Rim material:
- Aluminum
- Tubeless system:
- Tubeless Ready
- Brake system:
- Disc 6-bolt
- Tubeless system:
- Tubeless Ready
- Tire type:
- Clincher tire/folding tire
- Number of spokes:
- 28
- Valve hole (diameter):
- SV (6.5 mm)
- Application:
- Enduro, All Mountain, MTB
- Rim height front:
- 23 mm
- Rim height rear:
- 18 mm
- Inner rim width:
- 30 - 30 mm
- Outer rim width:
- 35 - 35 mm
- Rim flange:
- With hook
black/148 mm/110 mm/Shimano MTB/29"/Boost/Boost:
- Dimension (ETRTO):
- 30-622
- Wheel size:
- 29"
- Rear Wheel Standard:
- Boost
- Front Wheel Standard:
- Boost
black/148 mm/110 mm/Shimano Micro Spline/29"/Boost/Boost/148 mm/110 mm/Shimano Micro Spline/110 mm:
- Front Wheel Standard:
- Boost
- Installation width RW:
- 148 mm
- Rear Wheel Standard:
- Boost
- Wheel size:
- 29"
- Installation width FW:
- 110 mm
- Dimension (ETRTO):
- 30-622
Technical Information:
- Freehub:
- Shimano Micro Spline
- Diameter mm:
- 622 mm
- Hub shell material:
- Aluminum
- Nipple material:
- Aluminum
- Spoke type/construction:
- Straightpull / straight
- Spoke material:
- Stainless steel
- Gears:
- 12-speed
- Rear spoke pattern:
- 2-cross
- Front spoke pattern:
- 2-cross
- Axle type front:
- Thru-axle
- Rear hub shell material:
- Aluminum
- Front hub shell material:
- Aluminum
- Nipple type/construction:
- Self-locking
- Axle type rear:
- Thru-axle
black/148 mm/110 mm/Shimano MTB/29"/Boost/Boost:
- Axle diameter rear:
- 12 mm
- Axle diameter front:
- 15 mm
- Rear installation width:
- 148 mm
- Front installation width:
- 110 mm
- Freehub:
- Shimano MTB
- Gear steps:
- 8-/9-/10-/11-speed
black/148 mm/110 mm/Shimano Micro Spline/29"/Boost/Boost/148 mm/110 mm/Shimano Micro Spline/110 mm:
- Front installation width:
- 110 mm
- Installation Width:
- 110 mm
- Freehub:
- Shimano Micro Spline
- Rear installation width:
- 148 mm
- Freehub:
- Shimano Micro Spline
- Axle diameter front:
- 15 mm
- Axle diameter rear:
- 12 mm
- Gear steps:
- 12-speed
Product Features:
- ASTM category 3: for off-road use with jumps up to 61 cm in height
- - ASTM category 4 (130 kg weight limit): for off-road use with jumps up to a height of 122 cm
- self-locking nipples
- reinforced specific disc brake flange
- differentiated rim depth
- welded joints on the rim
- spokes with reinforced head
- reinforced freehub body system
Technology:
2-Way Fit™ Ready
If the necessary accessories (valve, rim tape and tyre sealant) are used, the wheelset is tubeless compatible. This makes it particularly versatile and perfectly suited for every situation. An Abrupt loss of air is prevented with this system - which is a clear plus in terms of safety. There is also less snake bite danger, as there is no inner tube that can be damaged.
What about a flat tyre? Don't worry! One of the advantages of the Fulcrum 2-Way Fit Ready system is the possibility of removing the tubeless valve and inserting a normal inner tube to get you home.
Asymmetric Rim
Rim asymmetry is designed to improve the tension of the rim while balancing the forces coming from the brakes and cassette.
Anti-Rotation System™
Fulcrum's technicians have redesigned the spokes and hub shells to create a strong and solid unit. In this way, the spokes never lose their initial tension, keeping the wheel perfectly reactive and centred, and the wheel remains in the position developed in the wind tunnel to ensure the best possible aerodynamics.
If the necessary accessories (valve, rim tape and tyre sealant) are used, the wheelset is tubeless compatible. This makes it particularly versatile and perfectly suited for every situation. An Abrupt loss of air is prevented with this system - which is a clear plus in terms of safety. There is also less snake bite danger, as there is no inner tube that can be damaged.
What about a flat tyre? Don't worry! One of the advantages of the Fulcrum 2-Way Fit Ready system is the possibility of removing the tubeless valve and inserting a normal inner tube to get you home.
Asymmetric Rim
Rim asymmetry is designed to improve the tension of the rim while balancing the forces coming from the brakes and cassette.
Anti-Rotation System™
Fulcrum's technicians have redesigned the spokes and hub shells to create a strong and solid unit. In this way, the spokes never lose their initial tension, keeping the wheel perfectly reactive and centred, and the wheel remains in the position developed in the wind tunnel to ensure the best possible aerodynamics.
Manufacturer Number:
- black/148 mm/110 mm/Shimano MTB/29"/Boost/Boost: EM3-19DFR952B
- black/148 mm/110 mm/Shimano Micro Spline/29"/Boost/Boost/148 mm/110 mm/Shimano Micro Spline/110 mm: EM3-19DFR952BM
Contents:
- 1 x Fulcrum E-Metal 3 wheelset (front and rear wheel)
Weight:
- black/148 mm/110 mm/Shimano Micro Spline/29"/Boost/Boost/148 mm/110 mm/Shimano Micro Spline/110 mm: 2050 g
Manufacturer:
Fulcrum Wheels S.r.l.
Via dell' Economia 103
36100 Vicenza
Italy
info@fulcrumwheels.com
Via dell' Economia 103
36100 Vicenza
Italy
info@fulcrumwheels.com
