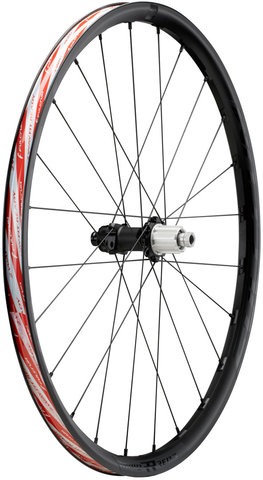

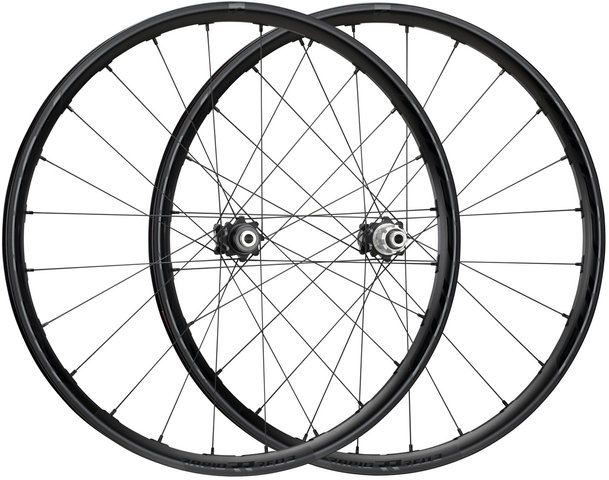

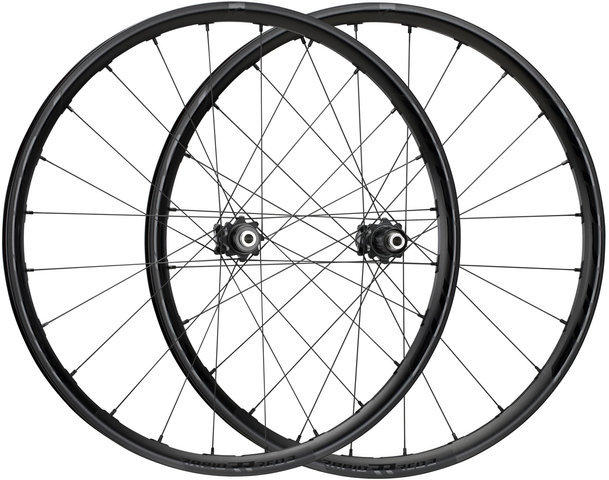

Fulcrum Rapid Red 3 Center Lock Disc 27.5" Wheelset

Fulcrum Rapid Red 3 Center Lock Disc 27.5" Wheelset - Your suspension for gravel roads

The Rapid Red 3 is a gravel wheelset in 27.5" from Fulcrum and is particularly suitable if you ride a small bike frame or want a larger tyre width. Thanks to the wide rim base, you can mount tyres up to 60 mm wide and are thus prepared for any terrain. Slightly-narrower tyres give you speed on the road, which makes changing surfaces no problem. Tubeless or not? You have the choice to customise your set-up according to your wishes. Disc brakes are important, especially when you're facing more technical challenges. The hub of the Rapid Red 3 provides for Center Lock brake rotors.

Specifications:

Application:

Gravel

Wheel Size:

27.5" (650B)

Tyre Type:

clincher tyre

Number of Spokes:

24

Brake Type:

Center Lock Disc

Tubeless System:

Tubeless Ready

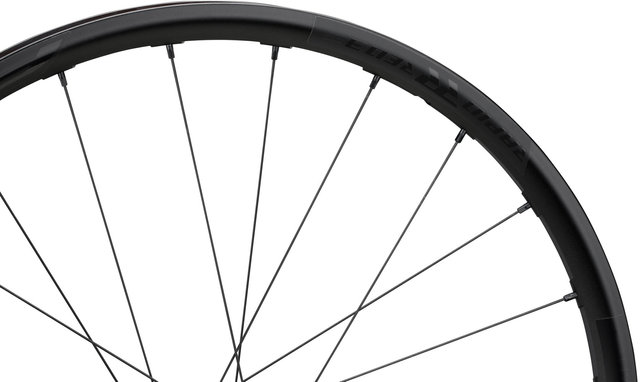

Technical Information - Rim:

Rim Flange:

with hook

Dimensions (ETRTO):

24-584

Inner Width:

24 mm

Outer Width:

29 mm

Depth:

24 mm

Valve Hole Diameter:

SV/Presta (6.5 mm)

Rim Material:

aluminium

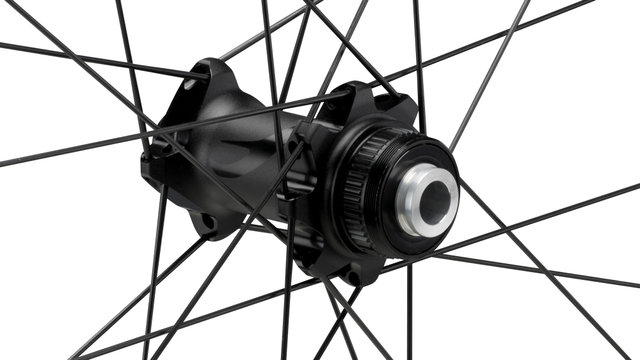

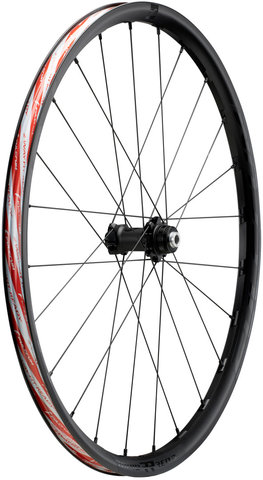

Technical Information - Front Hub:

Over Locknut Dimension:

12 x 100 mm thru-axle (convertible to 15 mm thru-axle)

Bearings:

cup & cone

Body Material:

aluminium (convertible to 135 mm quick release)

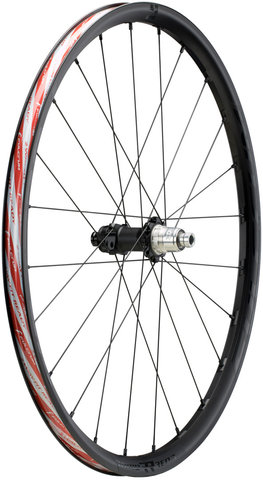

Technical Information - Rear Hub:

Over Locknut Dimension:

12 x 142 mm thru-axle

Bearings:

cup & cone

Body Material:

aluminium

Freehub Body Material:

aluminium

Technical Information - Lacing:

Front Lacing Pattern:

3-cross

Rear Lacing Pattern:

3-cross

Spoke Type:

straight pull, double-butted, round

Spoke Material:

stainless steel

Nipple Material:

aluminium

Approved For:

Weight Limit:

120 kg (system weight)

Recommended Tyre Width:

40 - 60 mm

Colour Info:

black:

• Rims: black with grey decals
• Hubs: black
• Spokes: black
• Nipples: black

Models:

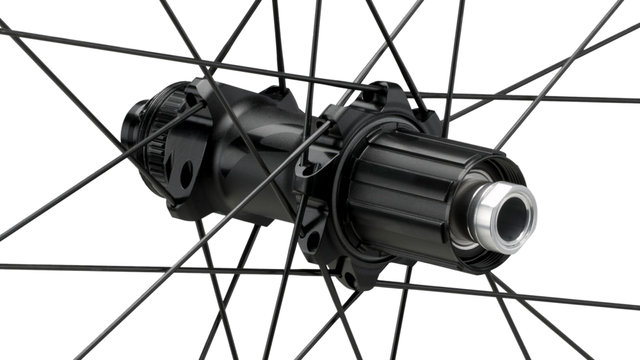

27.5" set (front 12x100 + rear 12x142) Shimano:

Freehub:

Shimano Road

Gearing:

8-/9-/10-/11-/12-speed

Note:

Assembly of 8-/9-/10-speed cassettes on Shimano Road freehub bodies requires a 1.85 mm spacer.

Manufacturer Number:

RR3-21DFR227AS

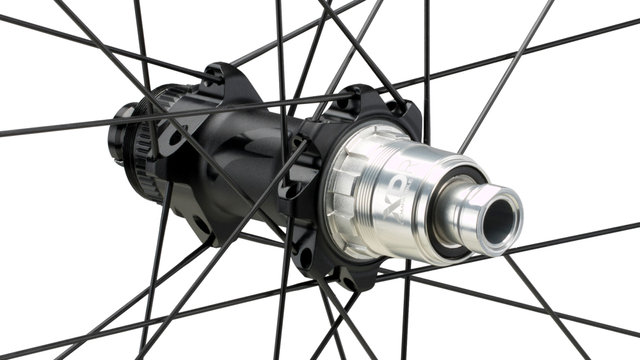

27.5" set (front 12x100 + rear 12x142) SRAM XDR:

Freehub:

SRAM XDR

Gearing:

11-/12-speed

Note:

A 1.8 mm spacer is required to mount XD cassettes on an XDR freehub.

Manufacturer Number:

RR3-21DFR227AX

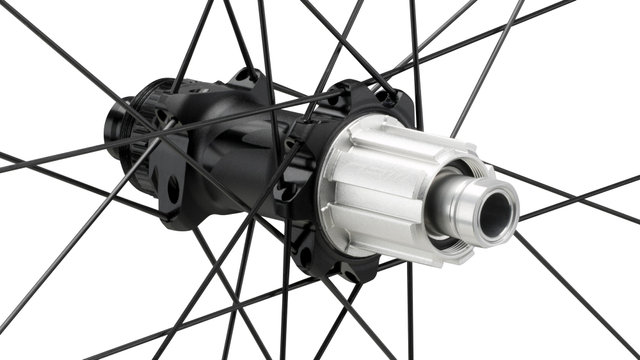

27.5" Set (front 12x100 + rear 12x142) N3W:

Freehub:

Campagnolo N3W

Gearing:

11-/12-/13-speed

Note:

An adapter is necessary for mounting 11/12-speed Campagnolo cassettes on a Campagnolo N3W rotor.

Manufacturer Number:

RR3-21DFR227AC3

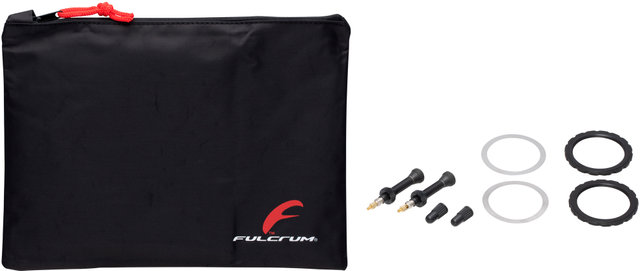

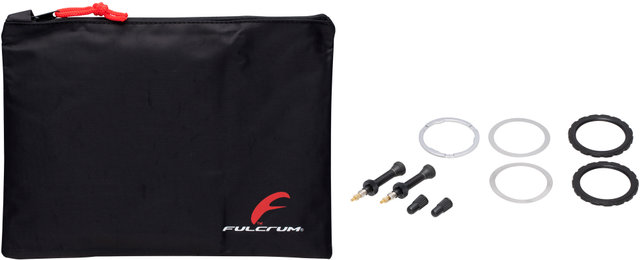

Contents:

• 1 x Fulcrum Rapid Red 3 wheelset (front- and rear wheel)
• 2 x Fulcrum tubeless valves
• 1 x quick release adapter for 135 mm
• 2 x rolls Fulcrum tubeless rim tape
