Gates CDX 5-Arm Alfine Di2 Front Belt Drive Sprocket w/ 130 mm BCD

This front CDX belt drive sprocket from Gates for touring use has a 5-arm bolt circle diameter of 130 mm and has been designed to create a perfect belt line for Shimano Alfine Di2 internally geared hubs. It is made of 6061 aluminium.

Specifications:

Application:

City & Touring

Mount:

130 mm bolt circle diameter, 5-arm

Teeth:

50 t, 55 t, 60 t

Technical Information:

Width of the teeth:

11 mm

Tooth division:

11 mm

Mounting web thickness:

3.1 mm

Offset:

3.85 mm (assembly surface), 2.3 mm (centre line)

Arm width:

17 mm

Inner Diameter:

114.5 mm

Material:

aluminium (6061)

Compatibility:

• specific for Shimano Alfine Di2 due to offset

Features:

• CDX level: high-end version for high loads and best performance
• suitable for mud, sand, snow and ice as well as all roads
• middle guide groove (CenterTrack)
• high mileage
• black anodised
• with specific cranking for the matching belt line with Shimano Alfine Di2 internally geared hubs

Technology:

Gates Carbon Drive System
The main advantages of the Gates Carbon Drive system are cleanliness, smoothness and robustness. Urban commuters as well as mountain bikers, E-bike users or leisure riders benefit from the high mileage. Oil-stained or rusty chains are a thing of the past.
Clean: No lubricant means no accumulation of grease and dirt.
Smooth and silent operation: no metal-to-metal contact of the chains.
Light: The whole system weighs less than a standard bicycle chain.
No elongation: Belt does not need to be re-tensioned or replaced.
Self-cleaning: CenterTrack and MudPort profiles are specially designed to repel mud, dirt, snow or other contaminants.
Consistent efficiency: The drive boasts a long service life compared to that of a conventional chain, where efficiency is significantly reduced by wear or dirt.
Installing a Gates Carbon Drive Belt Drive requires a specially-made frame, therefore we strongly advise against using one to modify a conventional framework.

Models:

50 tooth:

Outer Diameter:

173.2 mm

Manufacturer Number:

CT11505AA-D

55 tooth:

Outer Diameter:

190.7 mm

Manufacturer Number:

CT11555AA-D

60 tooth:

Outer Diameter:

208.2 mm

Manufacturer Number:

CT11605AA-D

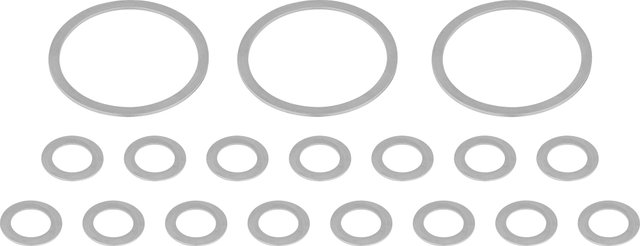

Contents:

• 1 x Gates CDX 5-arm Alfine Di2 Front Belt Drive Sprocket
• 1 x washer 35 x 41 x 1 mm
• 2 x washer 35 x 41 x 0.5 mm
• 10 x washer 10 x 16 x 1 mm
• 4 x washer 10 x 16 x 0.5 mm

Universal Transmissions GmbH
Walkmühlenstraße 195
99974 Mühlhausen
Germany
