Lupine SL Nano RF Bosch Nyon 2 E-Bike LED Front Light - StVZO approved

Illuminate your rides with the SL Nano RF Bosch Nyon 2 e-bike LED front light from Lupine

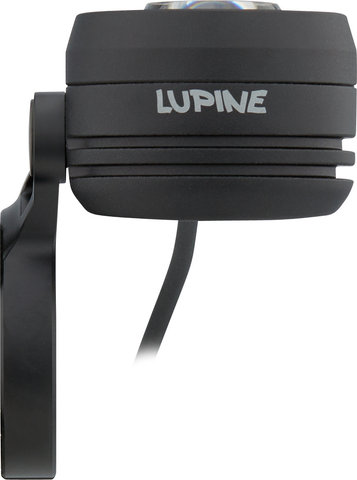

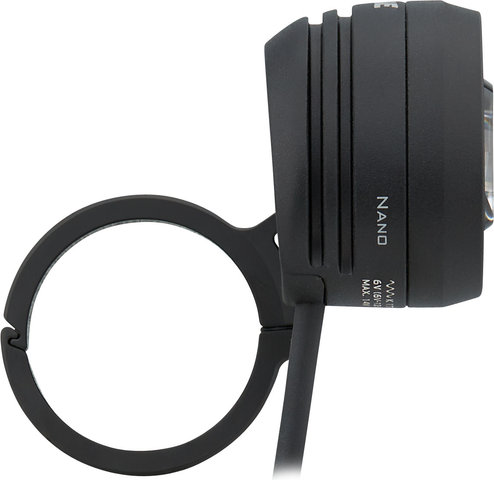

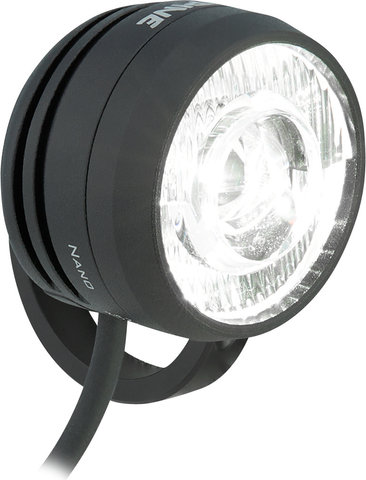

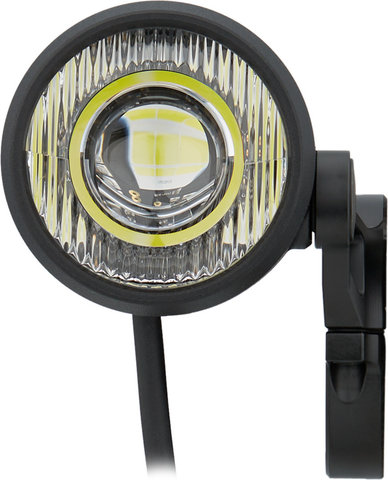

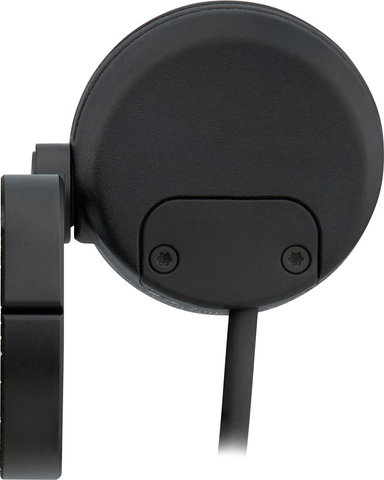

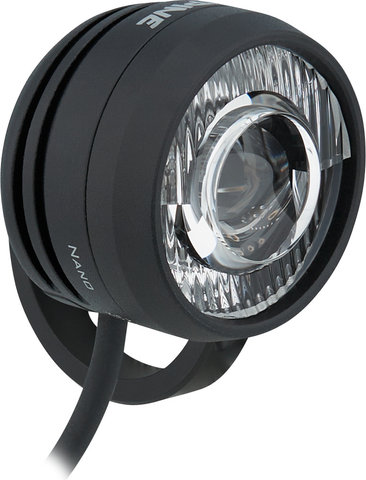

Attach the SL Nano RF Bosch Nyon 2 e-bike LED front light from Lupine to your e-bike's Bosch Nyon 2 display and illuminate your routes with 900 lumens of high beam brightness. In normal operation, you get 600 lumens of luminosity. With low beam and high beam functions and a housing made of impact-resistant aluminium, this light gives you perfect visibility and style. The supplied clamp ensures seamless integration on your e-bike display.

Information regarding the return of batteries and electrical equipment:

Information on the return and disposal of used batteries and electrical equipment can be found here.

Guidelines for Replacing E-bike Components:

Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.

Specifications:

Type:

front light (white)

Mount:

clamp on the e-bike display

Light Source:

LED (2 x Osram Compact PL)

Brightness:

900 lumens / 130 lux

Illumination Range:

230 m

Power Source:

E-bike battery

Technical Information:

Illumination Modes:

low beam (600 lumens), high beam (900 lumens)

Voltage:

12V

Protection Rating:

IP67, IK09

Dimensions (H x W x D):

41 x 30 x 30 mm (lamp head)

Material:

aluminium

Switch:

on / off

Approved For:

Street Use in Germany:

yes, for bicycles (according to §67 StVZO)

Check Number:

K~~1797

Compatibility:

Displays:

• Bosch Nyon 2

Motors:

• Bosch Performance CX
• Bosch Active Line (as of 2017)
• Bosch Active Line Plus
• Bosch Cargo Line
• Bosch Performance Line
• Bosch Performance CX (Gen3)
• Bosch Performance CX (Gen4)
• Bosch Performance SX

Features:

• compact and powerful e-bike front light for direct mounting on the underside of a Bosch Nyon 2 display
• enclosed clamp replaces the lower clamp of the display for an unobtrusive and seamless look on the cockpit
• high beam function with 900 lumens, low beam with 600 lumens
• 6000 K white, daylight-like colour temperature
• impact-resistant according to IK09
• dust- and waterproof with an IP67 rating

Manufacturer Number:

d7760

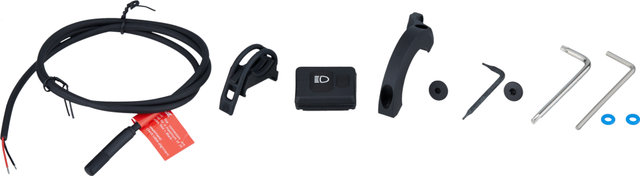

Contents:

• 1 x Lupine SL Nano RF light
• 1 x clamp for Bosch Nyon 2 display
• 1 x Lupine Bluetooth Peppi handlebar mount
• 1 x Bluetooth remote control
• 1 x light cable
• 1 x retaining screw with O-ring blue
• 1 x 3 mm / 1.5 mm Torx tool
