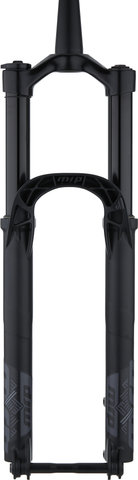

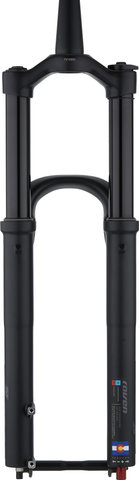

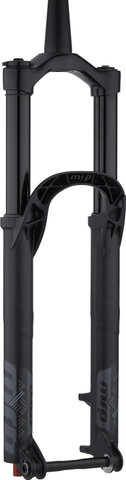

MRP Raven Boost 29" Suspension Fork

The Raven suspension fork from MRP for 29" Boost wheels is equipped with separately inflatable air chambers and with 160 mm travel is perfect for All Mountain and Enduro.

Specifications:

Application:

All Mountain, Enduro

Wheel Size:

29"

Suspension Type:

air

Travel:

160 mm

Steerer Tube:

1 1/8 - 1.5" tapered

Axle Type:

thru-axle

Wheel Standard:

15 x 110 mm (Boost)

Brake Mount:

disc PM7 (direct mount 180 mm)

Technical Information:

Offset:

46 mm

Steerer Tube Length:

260 mm

Steerer Tube Diameter (Stem):

28.6 mm

Steerer Tube Diameter (Crown Race):

40 mm

Axle to Crown:

572 mm

Over Locknut Dimension:

110 mm

Stanchion Tube Diameter mm:

35 mm

Steerer Tube Material:

aluminium

Crown Material:

aluminium

Stanchion Tube Material:

aluminium

Lower Tube Material:

aluminium

Adjustment Options:

Compression:

low speed (8 positions)

Rebound:

yes

Suspension Stiffness:

air pressure adjust

Remote:

no

Travel Adjustment:

Yes (internal, up to 125 mm)

Approved For:

Tyre Size (max.):

27.5 x 3.0" (with 45 mm jaw width), 29 x 2.6" (with 35 mm jaw width)

Note:

For individual tyres, the tyre clearance must be checked with the fork fully compressed. It should be at least 3 mm measured from the fork crown.

Rotor Size (max.):

203 mm

Features:

• FullFill™air suspension system with independent, external control of air pressure of positive and negative chamber
• suspension travel can be changed with spacers in 5 mm steps up to 125 mm
• adjustable volume via Huck Puck Spacer
• damping without bladder with low IFP pressure

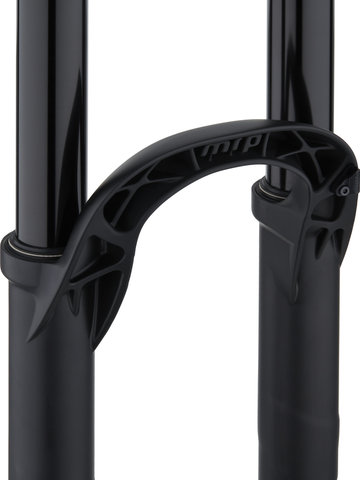

• mud-resistant Outcast™ fork bridge design with weight-reducing cut-outs

Manufacturer Number:

WB-20-2313

Contents:

• 1 x MRP Raven Boost 29" suspension fork

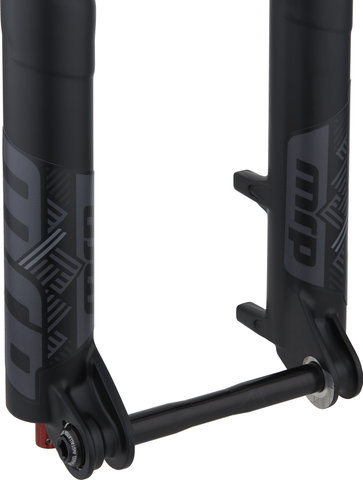

• 1 x MRP thru-axle
