Mavic Crossride FTS-X 6-bolt Disc 26" Wheelset
Item number: 51090
The wheel upgrade par excellence, simple and reliable: the Crossride FTS-X by Mavic
Even unspectacular products deserve optimisation. The design is well proven, but the Crossride FTS-X now has a sleeved rim that is wider and lighter to give the rider more comfort and control. The rear hub uses the proven Mavic FTS-X freehub, resulting in a wheelset with an excellent price/performance ratio. 24 straight spokes each provide stiffness and reliability, typical of Mavic wheels, where all components are designed and tested together to ensure performance and reliability.
Specifications:
- Application:
- All Mountain
- Wheel Size:
- 26"
- Tyre Type:
- clincher tyre
- Number of Spokes:
- 24
- Brake Type:
- 6-bolt disc
- Tubeless System:
- none

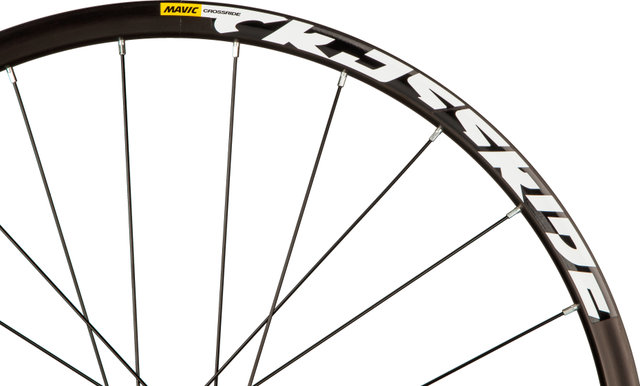

Technical Information - Rim:
- Dimensions (ETRTO):
- 21-559
- Inner Width:
- 21 mm
- Outer Width:
- 26.45 mm
- Depth:
- 20.7 mm
- Valve Hole Diameter:
- AV (Auto/Schrader) 8.5 mm
- Rim Material:
- aluminium

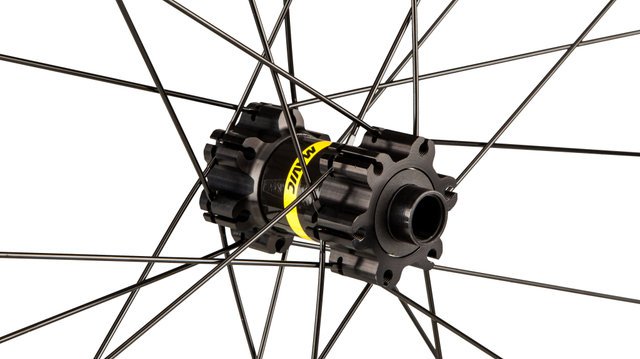

Technical Information - Front Hub:
- Over Locknut Dimension:
- 15 x 100 mm thru-axle, convertible to 9 x 100 mm quick release
- Bearings:
- cartridge bearings (sealed)
- Body Material:
- aluminium

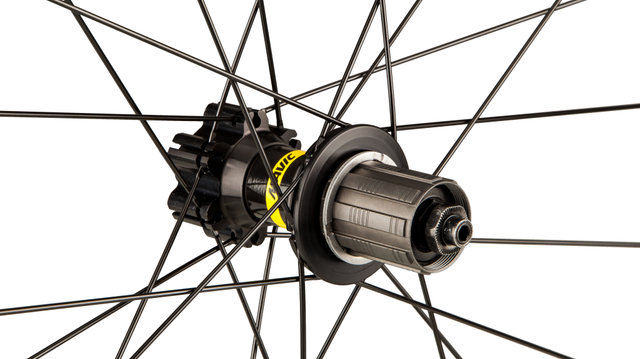

Technical Information - Rear Hub:
- Over Locknut Dimension:
- 10 x 135 mm quick release
- Bearings:
- cartridge bearings (sealed)
- Body Material:
- aluminium
- Freehub Body Material:
- steel
- Freehub Body:
- FTS-X (FTS-L with MTB pawls)
Technical Information - Lacing:
- Front Lacing Pattern:
- 2-cross
- Rear Lacing Pattern:
- 2-cross
- Spoke Type:
- straight / round
- Spoke Size:
- 264 mm (front), 264 mm/265 mm (rear l/r)
- Spoke Material:
- steel
- Nipple Type:
- self-locking
- Nipple Material:
- steel
Approved For:
- Weight Limit:
- 120 kg total weight* (rider, gear & bike)
- Recommended Tyre Width:
- 1.4" - 2.5"
* recommended for increased durability
Features:
- system wheel with a concept: all components were developed together
- established technologies
- sleeved rim joint (light and stable)
- front axle made of aluminium, rear axle made of steel
- conventional rim drilling
- ASTM category 3: for off-road use with jumps up to 61 cm in height
Technology:
QRMQualité de Roulements Mavic. Cartridge bearings of this quality are only available in Mavic hubs. Thanks to double seals (type 2RS or LLU) they are extremely durable. Minimum bearing clearance and extreme dimensional accuracy ensure maximum efficiency.
FTS-X
Force Transfer System X. Further improved freehub system, especially for the toughest MTB applications, when a more robust freehub is required. Reinforced pawls, self-locking kingpin mount, new type of lip seal with half the friction.
Models:
26" set (front 15x100 + rear 10x135) Shimano:- Freehub:
- Shimano Road
- Gearing:
- 8-/9-/10-/11-/12-speed
- Note:
- A spacer ring is required for an MTB cassette (incl.).
- Manufacturer Number:
- F5050110 (front) + R7620110 (rear)

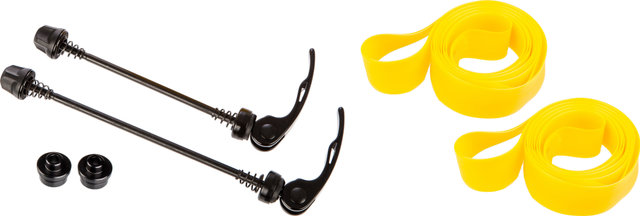

Contents:
- 1 x Mavic Crossride FTS-X wheelset (front and rear)
- 2 x Mavic BR101 quick release
- 2 x rolls of rim tape
- 2 x 9 mm end caps (front)
- 1 x cassette spacer (rear)
Weight:
- black/26" set (front 15x100 + rear 10x135) Shimano: 1925 g (Satz)
