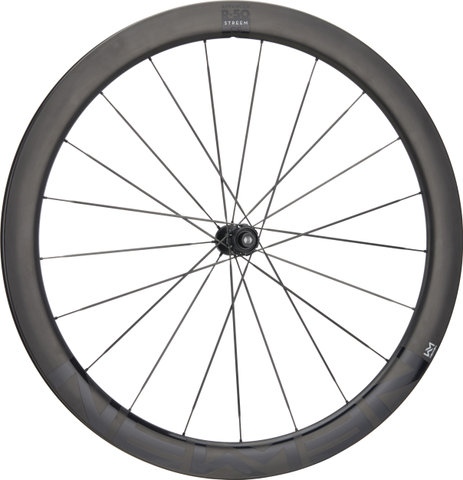

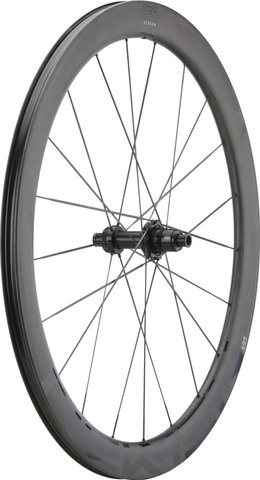

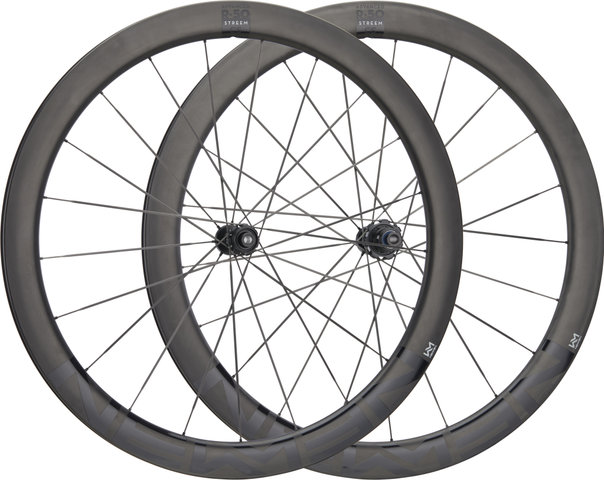

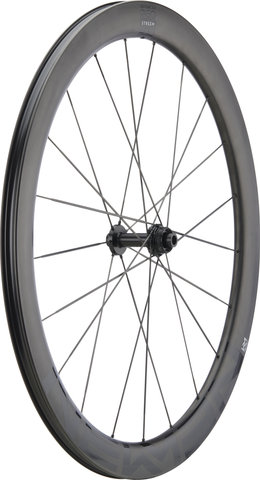

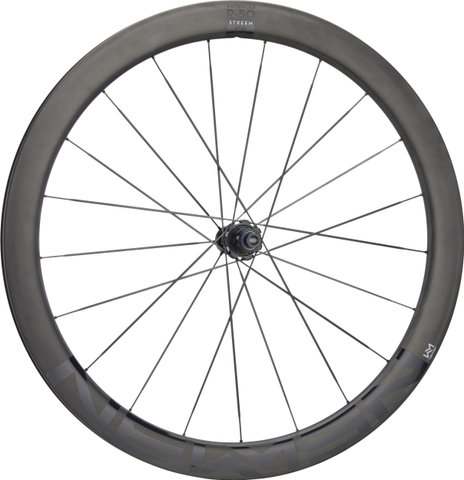

NEWMEN Advanced R.50 Streem VONOA Center Lock Disc Carbon 28" Wheelset

The Advanced R.50 Streem VONOA Center Lock Disc Carbon 28" wheelset from NEWMEN - with 50 mm rim depth for lightweight aerodynamic support

The NEWMEN Advanced R.50 Streem VONOA Center Lock Disc Carbon 28" wheelset for your road bike is characterised by the combination of carbon rims and innovative carbon spokes. Due to the increased stiffness, only 21 instead of 24 spokes are needed per wheel, which reduces aerodynamic drag and makes the system lighter. Overall, the weight is reduced by approx. 10 % compared to the standard Advanced wheelset.
The FADE Road hub is quiet and fail-safe thanks to the pawl freehub with 36 contact points. With more material at crucial points, this rear wheel version with Center Lock brake mount is extremely reliable.
You have a choice of tyres. The wheelset is tubeless-compatible and comes with the necessary rim tape pre-installed. But if you prefer, you can also use a tyre and tube.

The wheels were already tested in the 2022 season in the World Tour by some riders from Team Intermache Wanty, including at the Tour de France. In 2023, all of the team's riders will be using carbon spokes.

Specifications:

Application:

Road

Wheel Size:

28"

Tyre Type:

clincher tyre

Number of Spokes:

21

Brake Type:

Center Lock Disc

Tubeless System:

Tubeless Ready

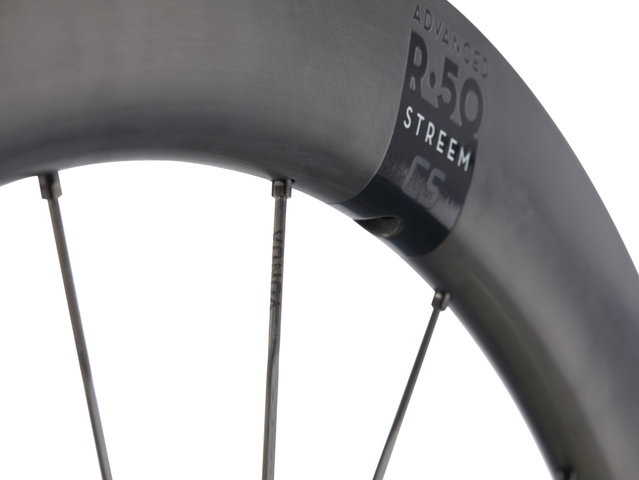

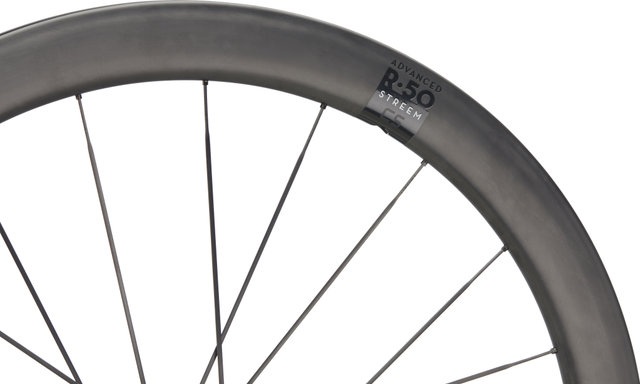

Technical Information - Rim:

Type:

NEWMEN Streem R.50

Rim Flange:

with hook

Dimensions (ETRTO):

18-622

Inner Width:

18 mm

Outer Width:

25.5 mm

Depth:

50 mm

ERD:

540 mm

Valve Hole Diameter:

SV/Presta (6.5 mm)

Rim Material:

carbon

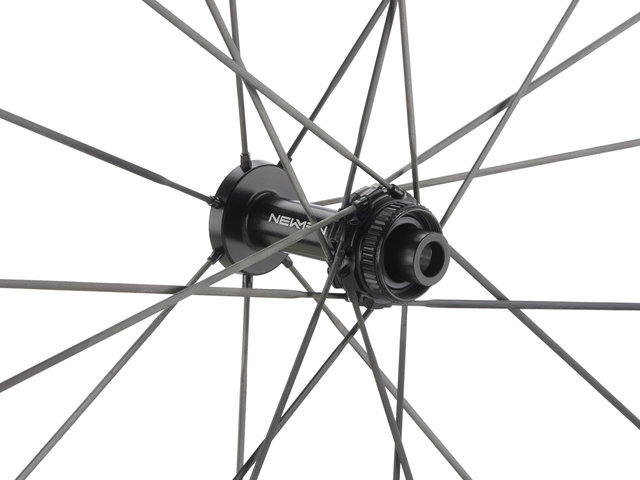

Technical Information - Front Hub:

Type:

NEWMEN FADE Road

Over Locknut Dimension:

12 x 100 mm thru-axle

Bearings:

2 deep groove ball bearings

Body Material:

aluminium (7075)

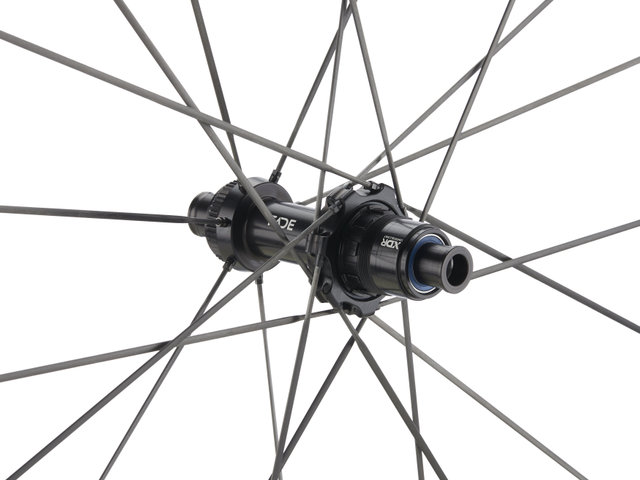

Technical Information - Rear Hub:

Type:

NEWMEN FADE Road

Over Locknut Dimension:

12 x 142 mm thru-axle

Bearings:

4 deep groove ball bearings, double sealed

Body Material:

aluminium (7075)

Freehub Body Material:

aluminium

Freehub Body:

3 pawls, 36 contact points

Technical Information - Lacing:

Front Lacing Pattern:

2-cross

Rear Lacing Pattern:

2-cross

Spoke Type:

NEWMEN VONOA, Straightpull

Spoke Size:

278.5 mm / 263.5 mm (front l/r), 266 mm / 278 mm (rear l/r)

Spoke Material:

carbon

Approved For:

Weight Limit:

130 kg (system weight)

Recommended Tyre Width:

25 - 28 mm

Models:

28" set (front 12x100 + rear 12x142) Shimano:

Freehub:

Shimano Road

Gearing:

8-/9-/10-/11-/12-speed

Note:

The assembly of 8-/9-/10-speed cassettes on a Shimano Road Rotor requires a 1.85 mm spacer.

Manufacturer Numbers:

90869 (front wheel) + 90870 (rear wheel)

28" set (front 12x100 + rear 12x142) Shimano SRAM XDR:

Freehub:

SRAM XDR

Gearing:

11-/12-speed

Note:

A 1.8 mm spacer is required to mount XD cassettes on an XDR freehub body.

Manufacturer Numbers:

90869 (front wheel) + 90871 (rear wheel)

You can view hazardous substance labelling, safety and application information for the included sealant under the description for tubeless sealant.

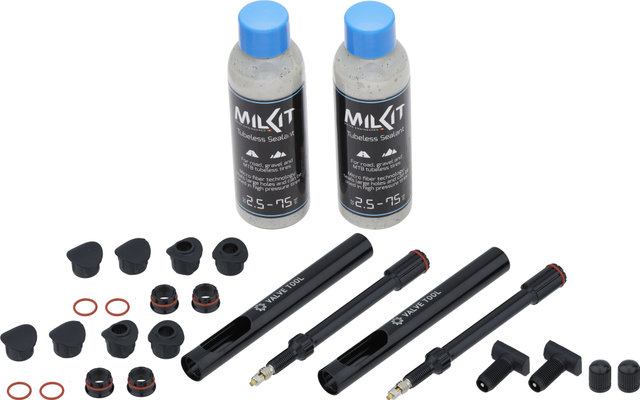

Contents:

• 1 x NEWMEN Advanced R.50 Streem VONOA Center Lock Disc Carbon 28" Wheelset (front and rear wheel)
• 2 x NEWMEN Aero Valve kits
• 2 x NEWMEN tubeless rim tape (pre-installed)
• 1 x milKit tubeless sealant, 60 ml bottle
